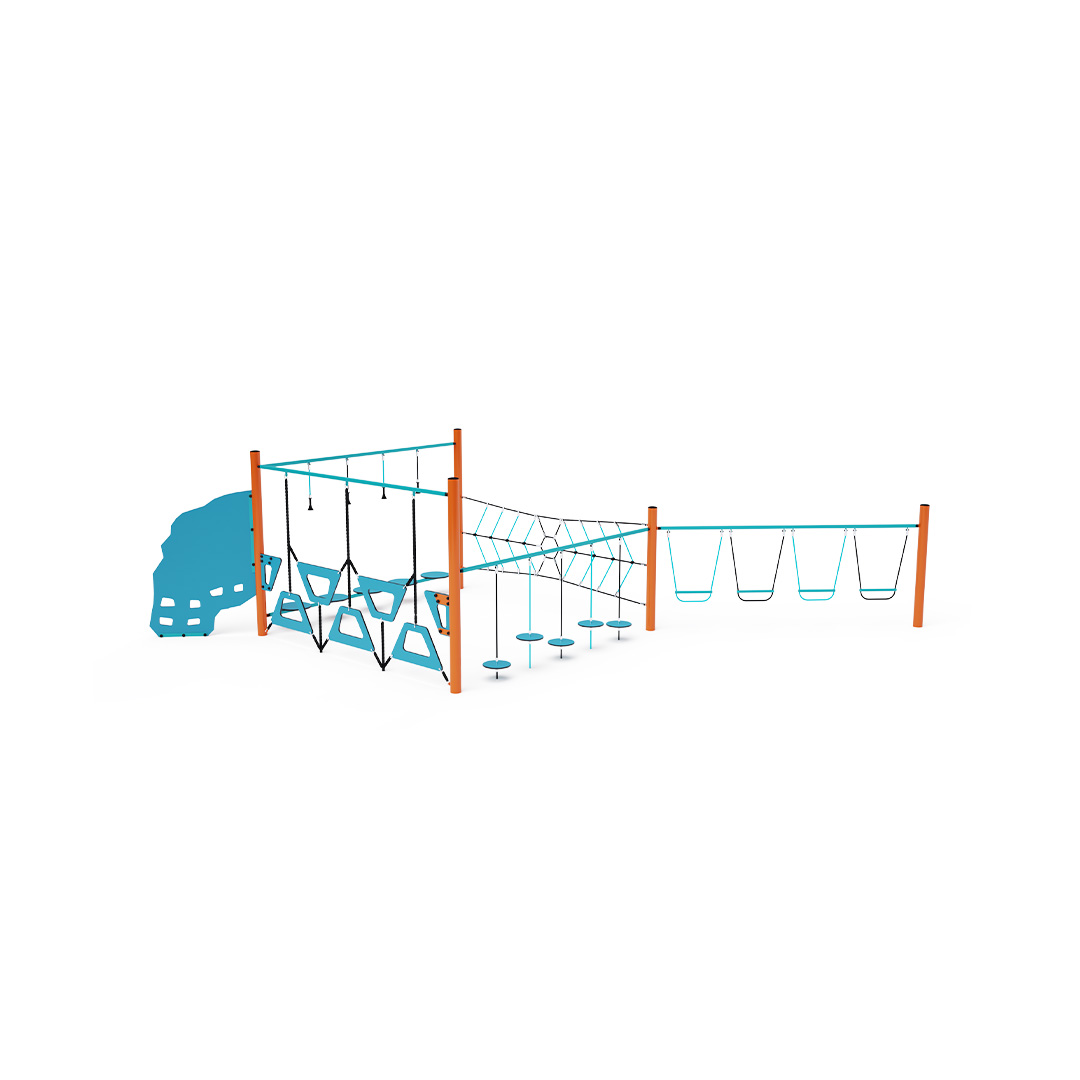

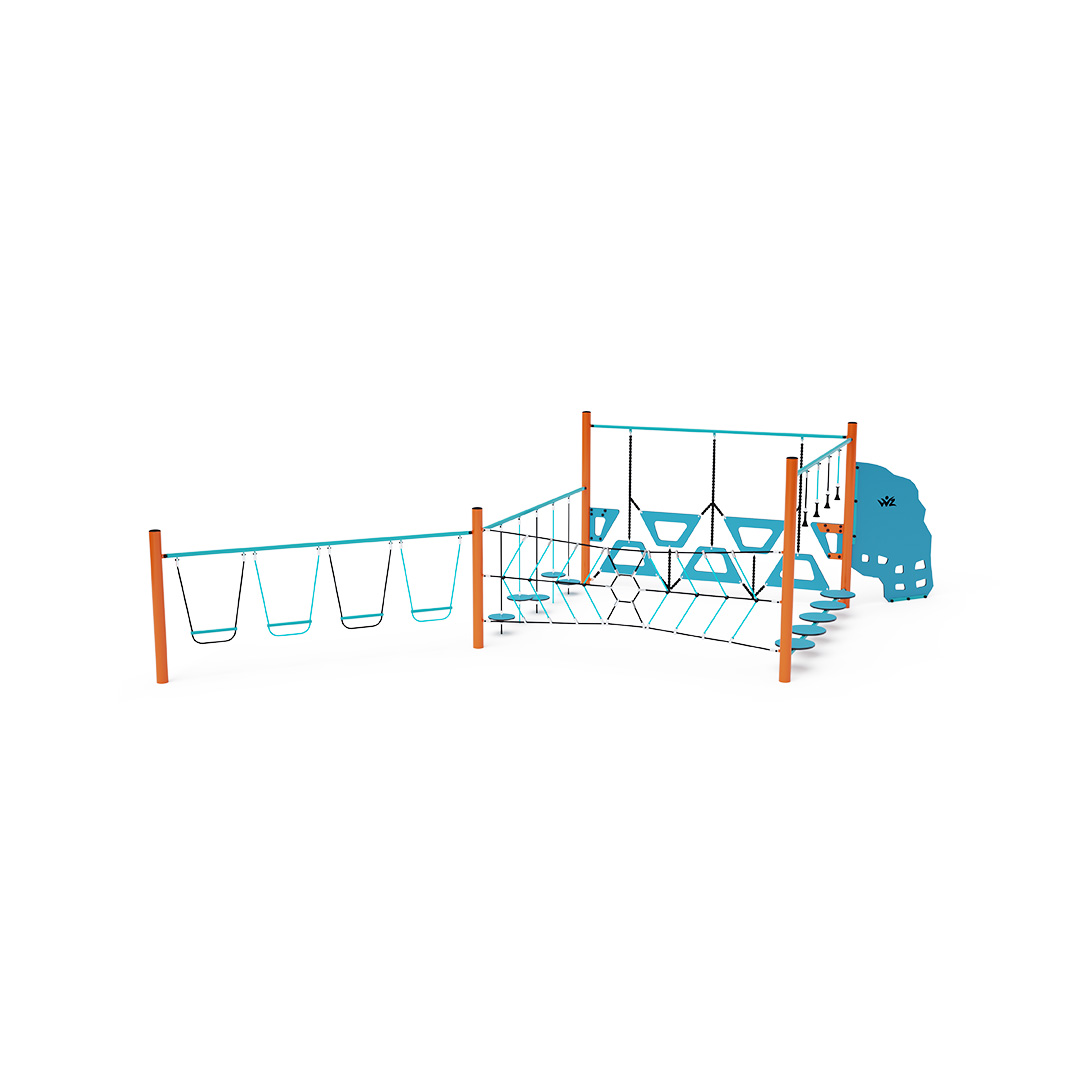

VVZ-OP5-03 Five-Part Monkey Track This monkey track is composed of six different sections: HPL balance steps with supporting vertical ropes, a trapezoidal climbing wall, hanging balance stones, a vertical spider net, vertically suspended footholds, and a mini climbing wall. Overcoming this element is not only fun but also physically demanding. The structure is made of galvanized steel with a high-quality powder-coated finish. All joints are made of stainless steel and protected with plastic caps to enhance safety and extend the durability of the connections. The ropes are made from polyester fibers with a steel core, wound around the center. This rope design increases strength and resistance to mechanical stress. Polyester itself has many advantages: it is resistant to microorganisms and weather conditions, dries quickly after rain, retains color over time, and offers high strength. Specification:The five-part monkey track VVZ-OP5-03 is certified according to STN EN 1176. Capacity: 11 peoplesAge group: 3 – 14 yearsDimensions: 6,6 × 6,6 × 2,2 mFree fall height: up to 1,0 mImpact area: 9,82 × 9,82 m (in accordance with STN EN 1176-1)Material: Galvanized and powder-coated steel, HDPE plastics, HPL 19 mm, stainless steel fasteners and chains, polyester ropes

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

Product color variants:

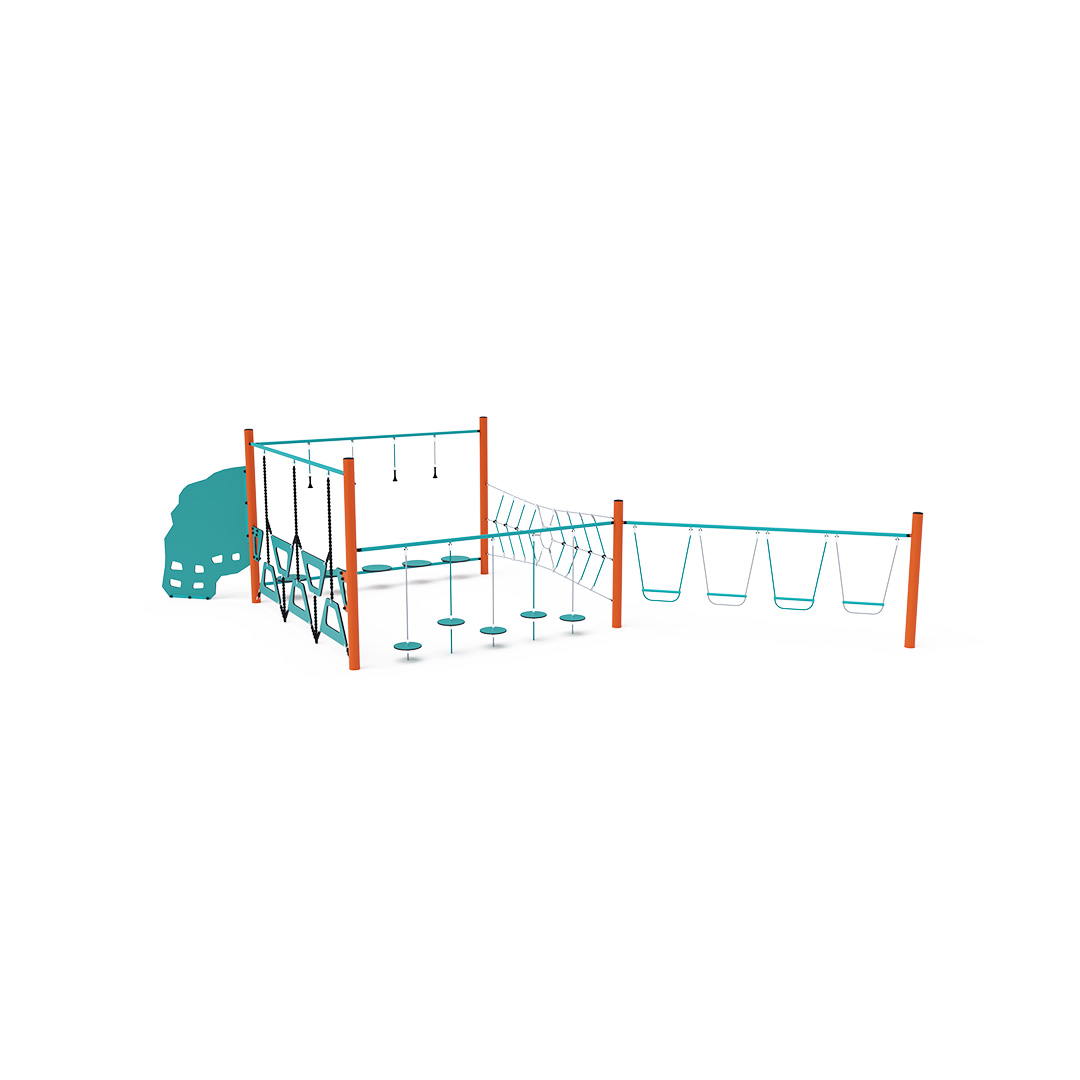

Orange + Turquoise

More color
options

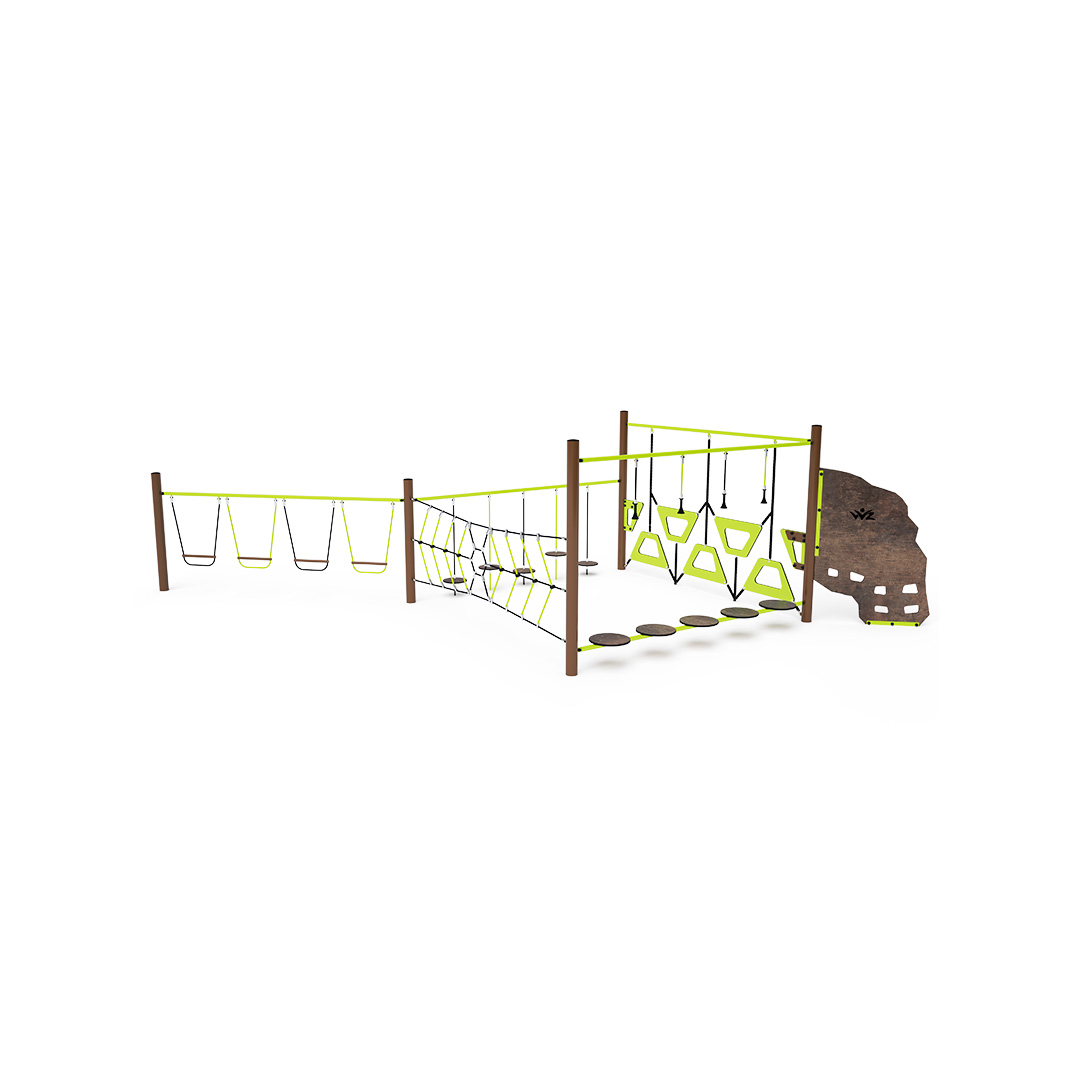

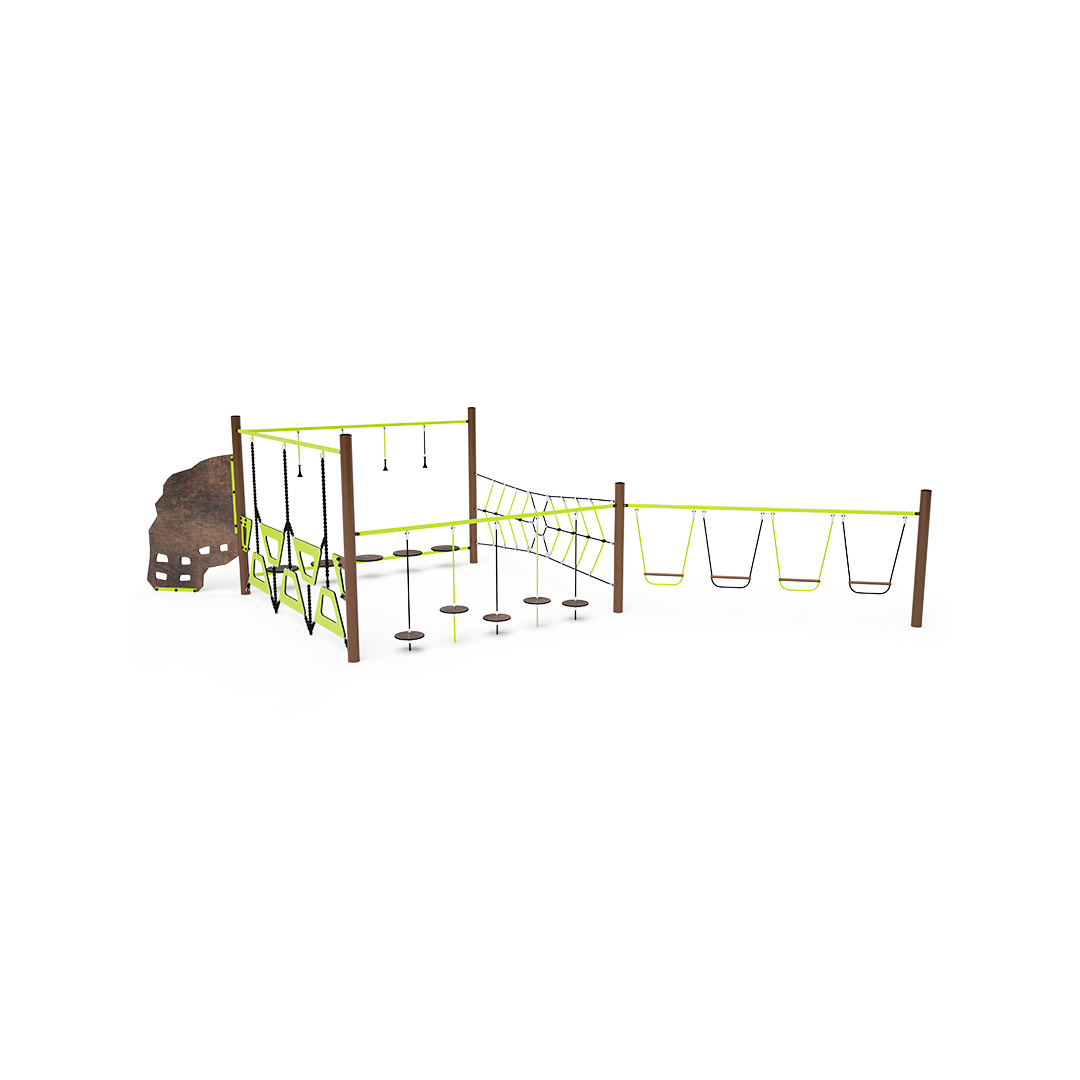

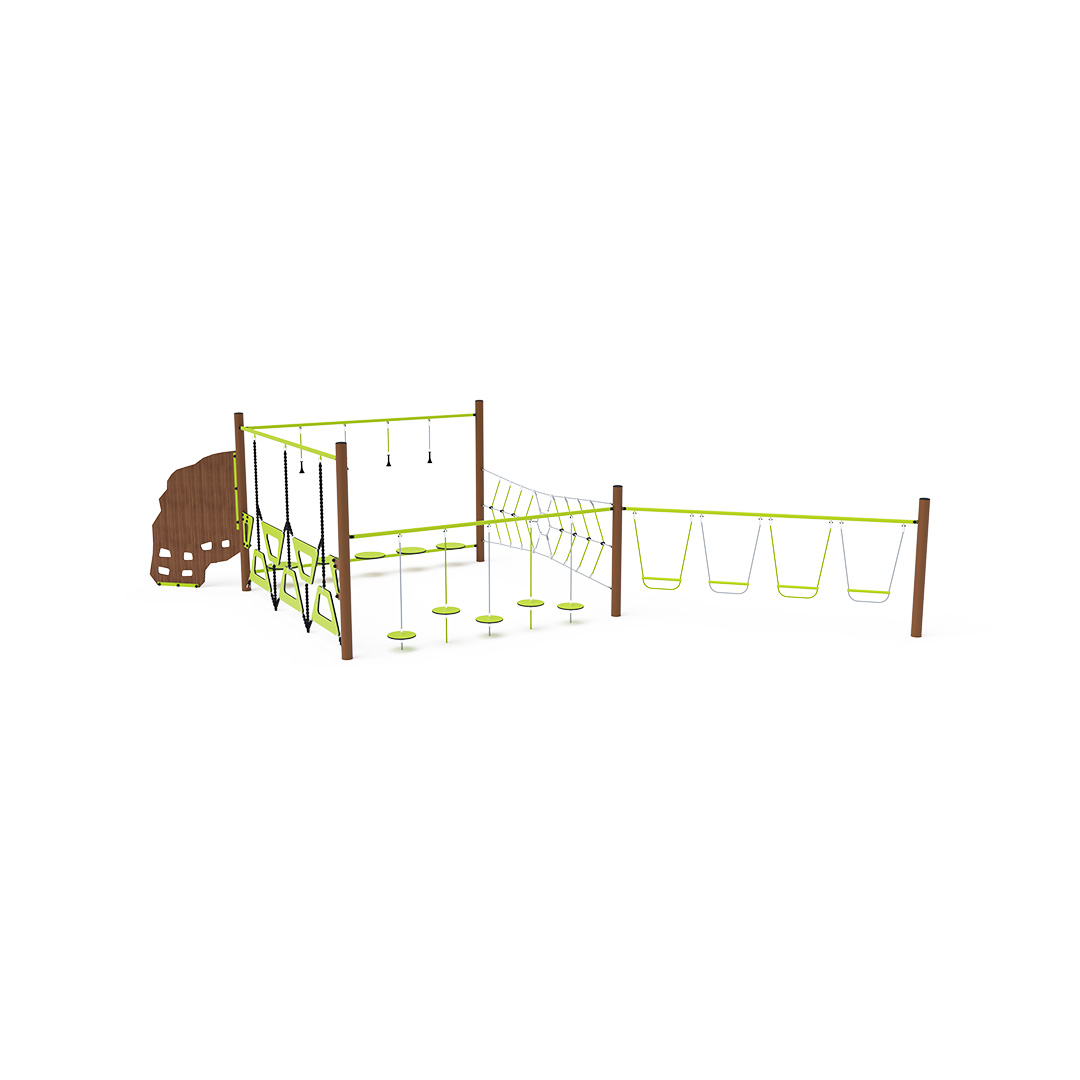

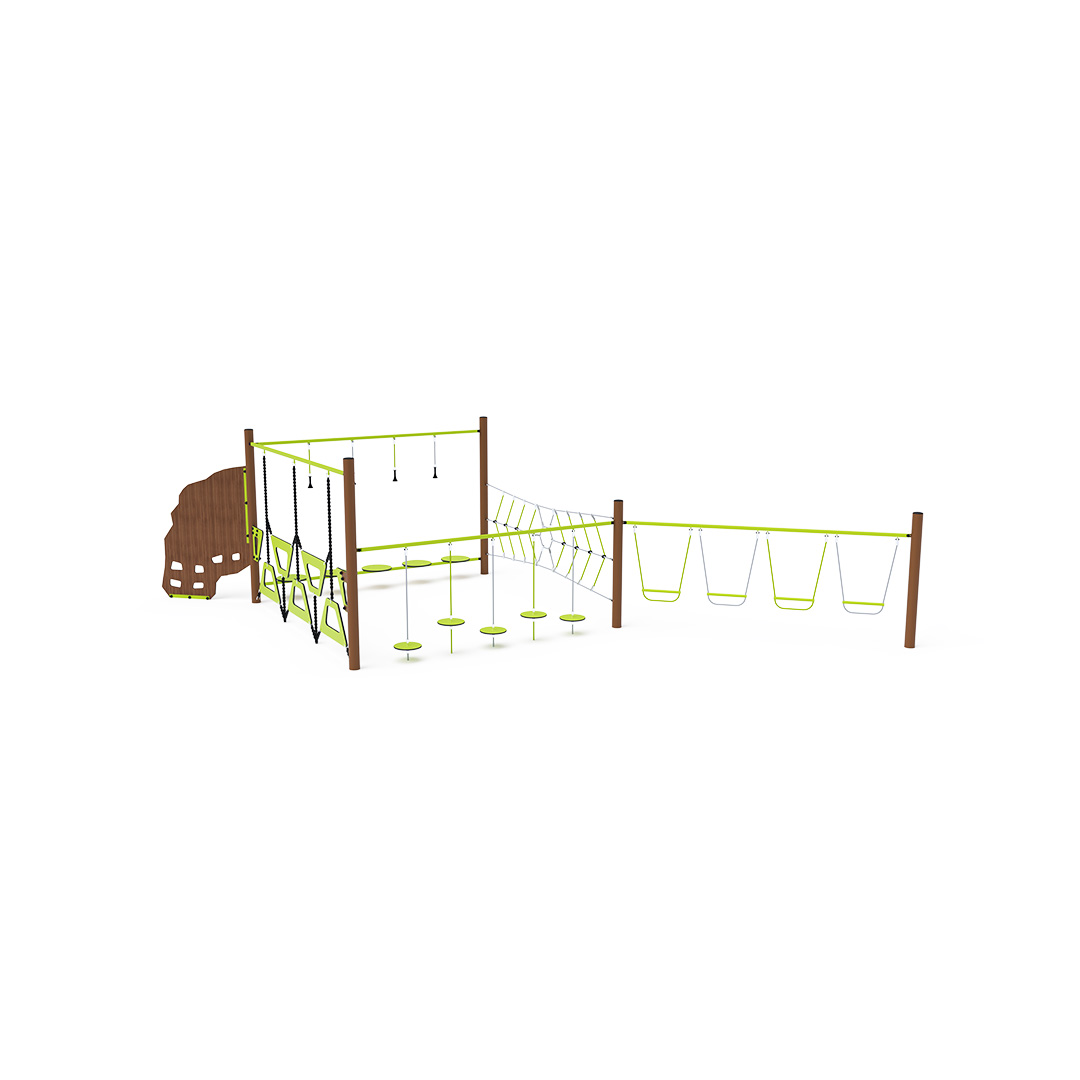

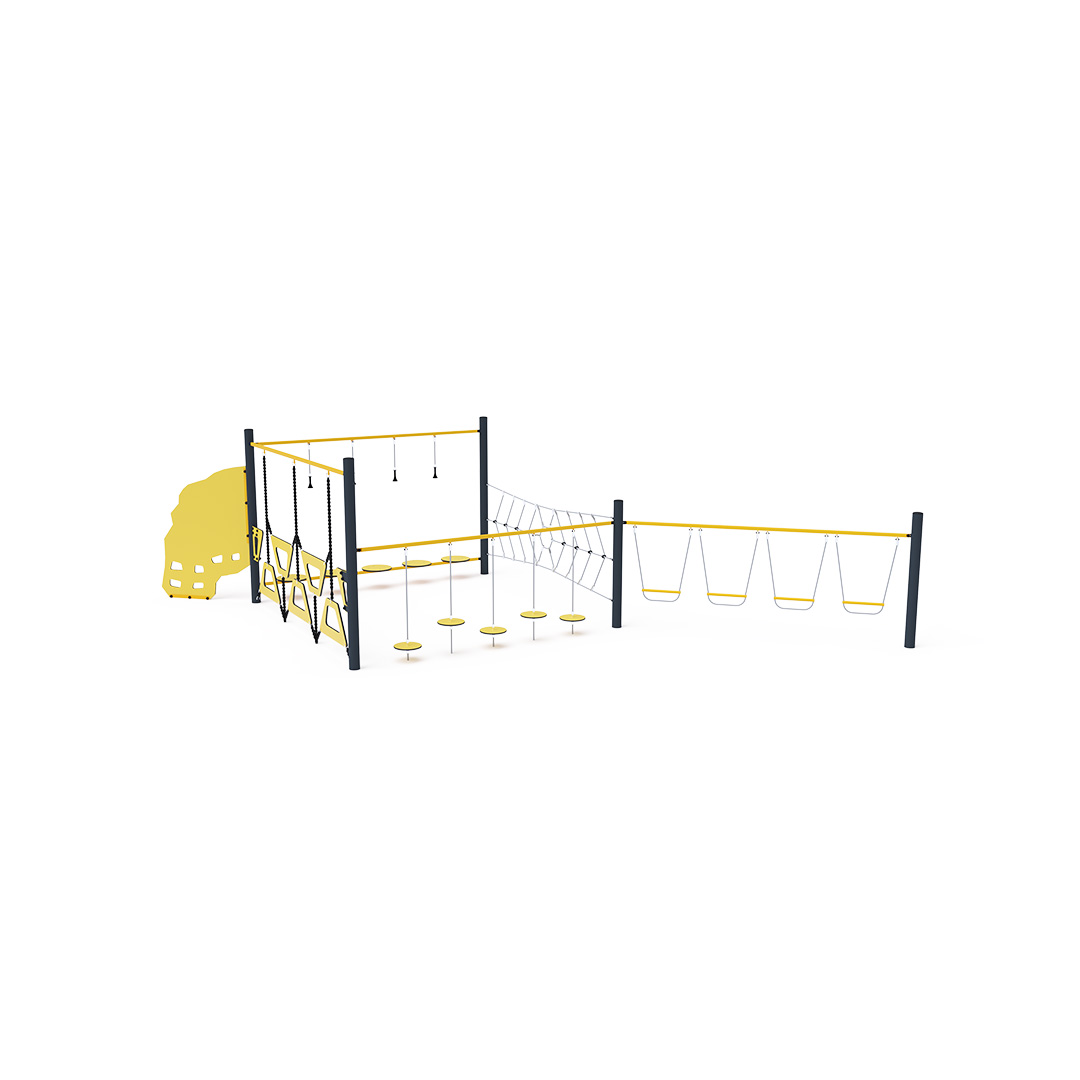

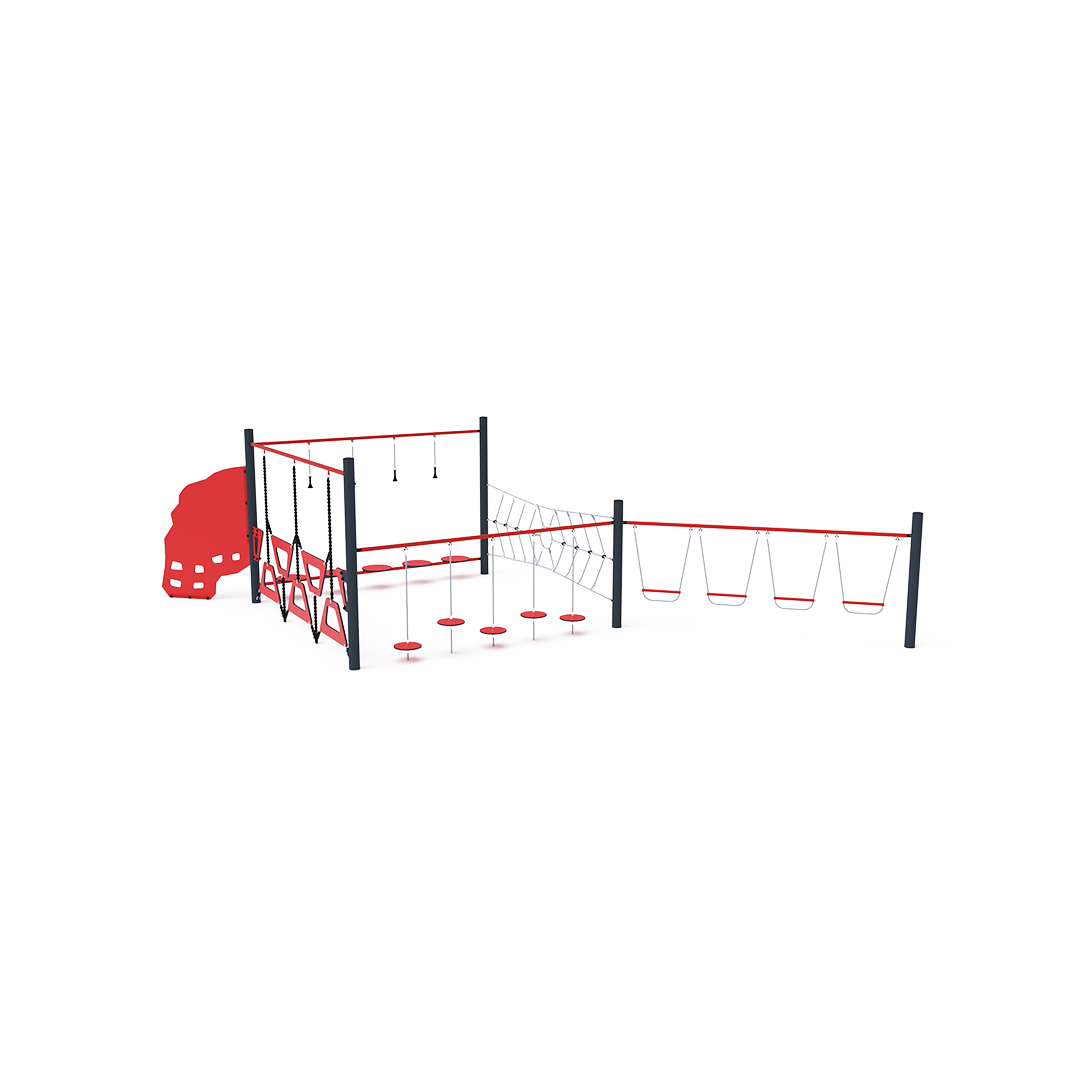

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 6.6 m

width 6.6 m

height 2.2 m

Designed for exterior use:

Yes

Age category:

from 3 to 14 years

Element capacity:

11 persons

Free fall height:

1.00 m

Protective area:

length 9.82 m

width 9.82 m

area 96.43 m²

Certified according to standard:

STN EN 1176

Show all parameters

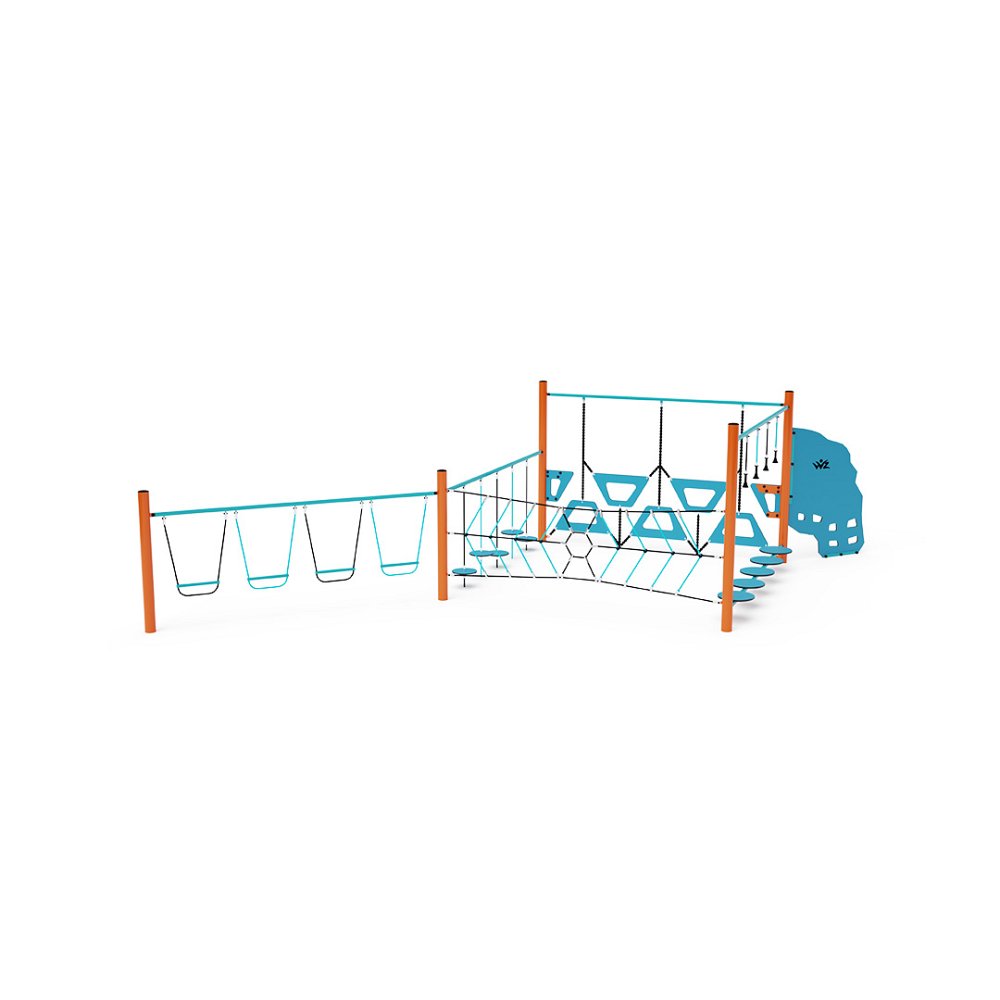

VVZ-OP5-03 Five-Part Monkey Track

This monkey track is composed of six different sections: HPL balance steps with supporting vertical ropes, a trapezoidal climbing wall, hanging balance stones, a vertical spider net, vertically suspended footholds, and a mini climbing wall. Overcoming this element is not only fun but also physically demanding.

The structure is made of galvanized steel with a high-quality powder-coated finish. All joints are made of stainless steel and protected with plastic caps to enhance safety and extend the durability of the connections. The ropes are made from polyester fibers with a steel core, wound around the center. This rope design increases strength and resistance to mechanical stress. Polyester itself has many advantages: it is resistant to microorganisms and weather conditions, dries quickly after rain, retains color over time, and offers high strength.

Specification:
The five-part monkey track VVZ-OP5-03 is certified according to STN EN 1176.

Capacity: 11 peoples
Age group: 3 – 14 years
Dimensions: 6,6 × 6,6 × 2,2 m
Free fall height: up to 1,0 m
Impact area: 9,82 × 9,82 m (in accordance with STN EN 1176-1)
Material: Galvanized and powder-coated steel, HDPE plastics, HPL 19 mm, stainless steel fasteners and chains, polyester ropes

Documents for download:

Certificate

PDF download

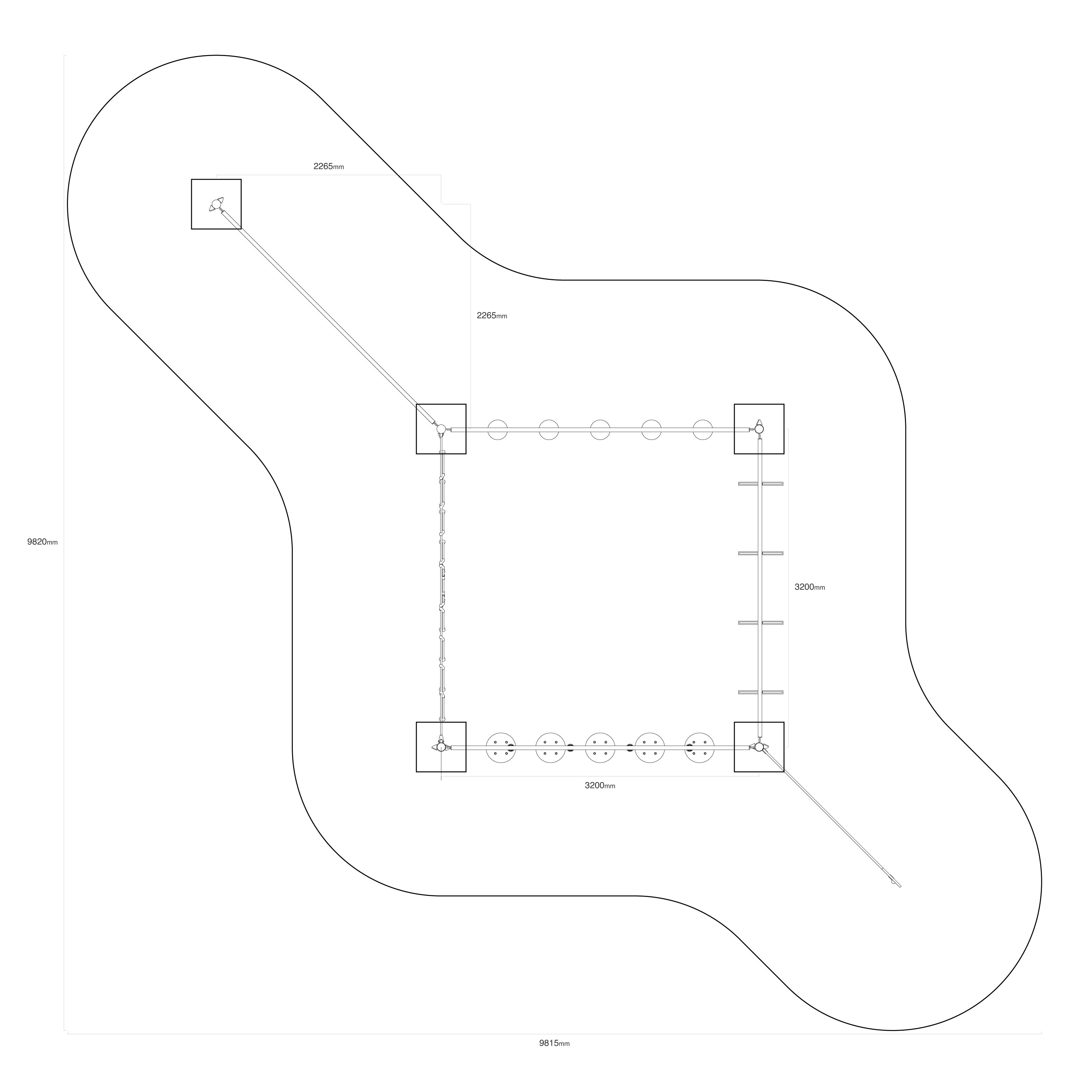

Impact area

Image to download

DWG file

DWG for download

You must log in to view locked files

HPL - High Pressure Laminates

HPL - high-pressure laminate has high resistance to mechanical damage and abrasion, easy maintenance and is suitable for exteriors and extremely stressed areas. They are produced in stacking presses using high pressure and at high temperatures.

Climbing

Climbing and mountaineering are basic human activities that evolved from survival needs and are now popular sports and recreational activities. Climbing and mountaineering are great for physical fitness, promoting overall strength, improving coordination and mental resilience.
