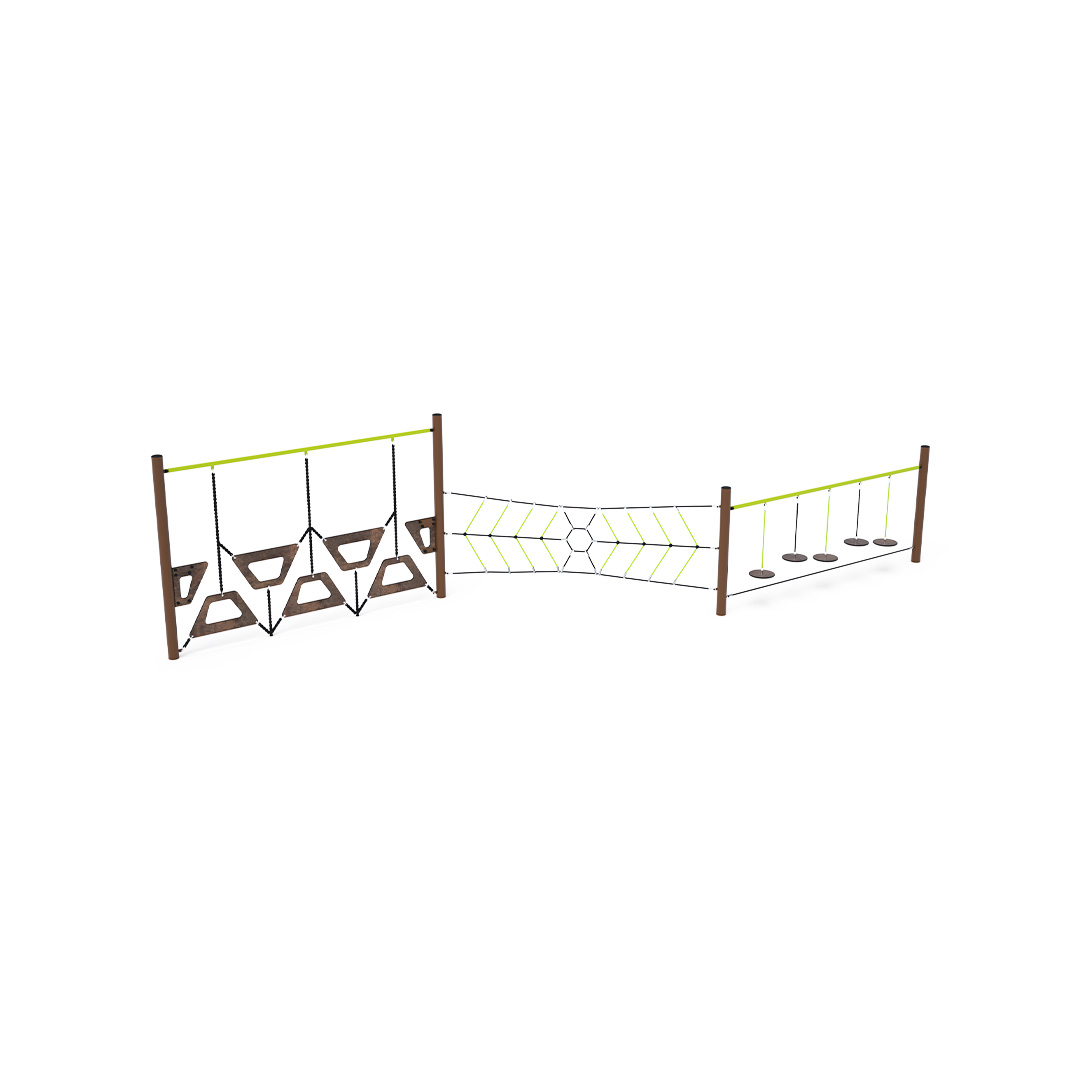

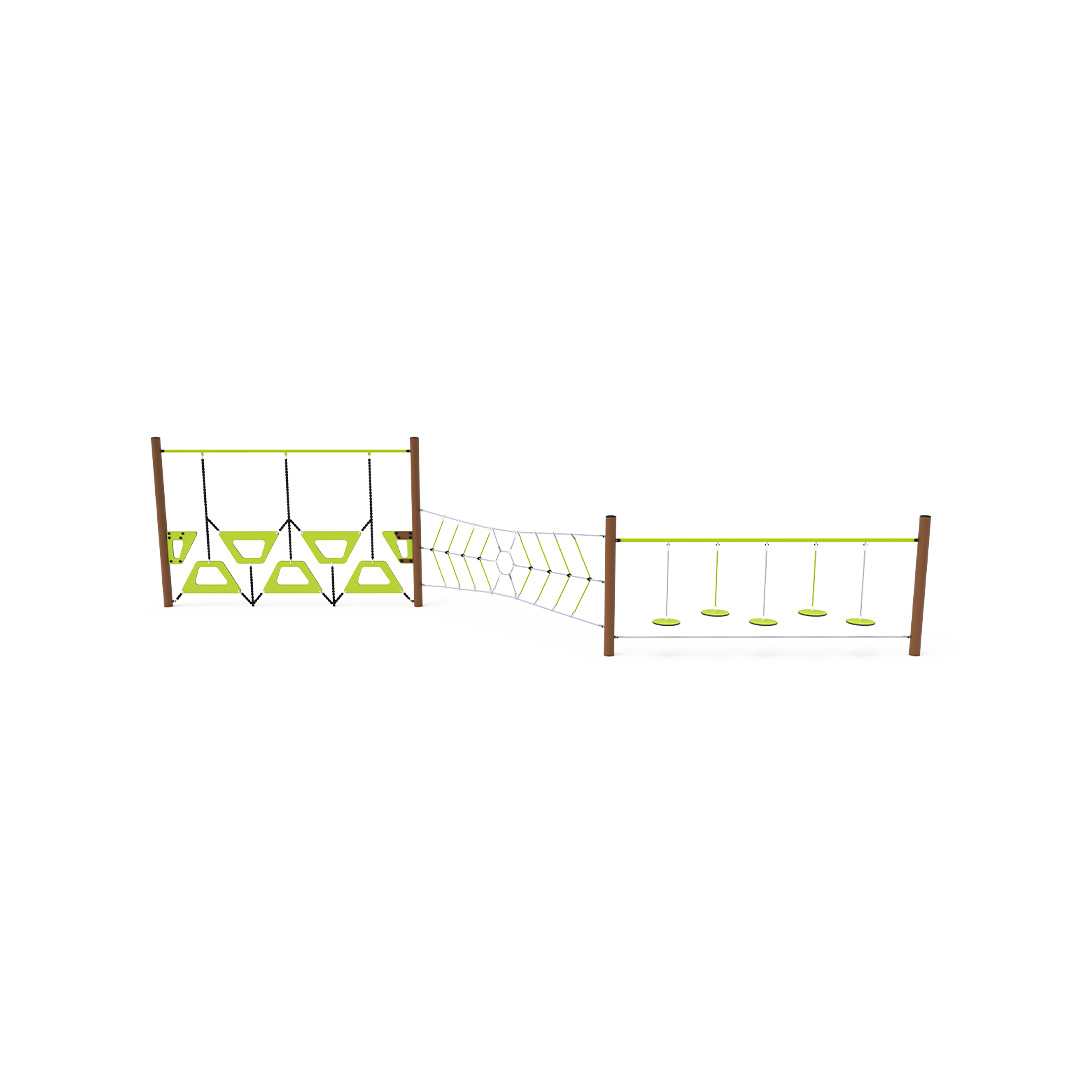

Triple Monkey Trail VVZ-OP3-03 The monkey trail is created by combining three sections: a trapezoidal wall, a spider net, and freely hanging discs. Overcoming this play element is not only fun but also challenging. The play element is made of galvanized steel with a high-quality surface finish – powder coating, the joints are stainless steel and covered with plastic caps to enhance safety and prolong the lifespan of the connections. The ropes are made of polyester fibers with a steel core, which are wound around a center. This rope construction increases its strength and resistance to mechanical stress. Polyester itself has many positive properties. It is resistant to microorganisms and weather conditions, dries quickly after rain, is colorfast, and is characterized by high strength. Specification: The Triple Monkey Trail VVZ-OP3-03 is certified according to the STN EN 1176 standard. Capacity: 6 peoplesAge group: 3 – 14 yearsDimensions: 7,92 × 4,62 × 2,2 mFree fall height: up to 1,0 mImpact area: 10,73 × 7,53 m (in accordance with STN EN 1176-1)Material: Galvanized and powder-coated steel, polyester ropes, HPL 19mm, stainless steel fasteners, and chains

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

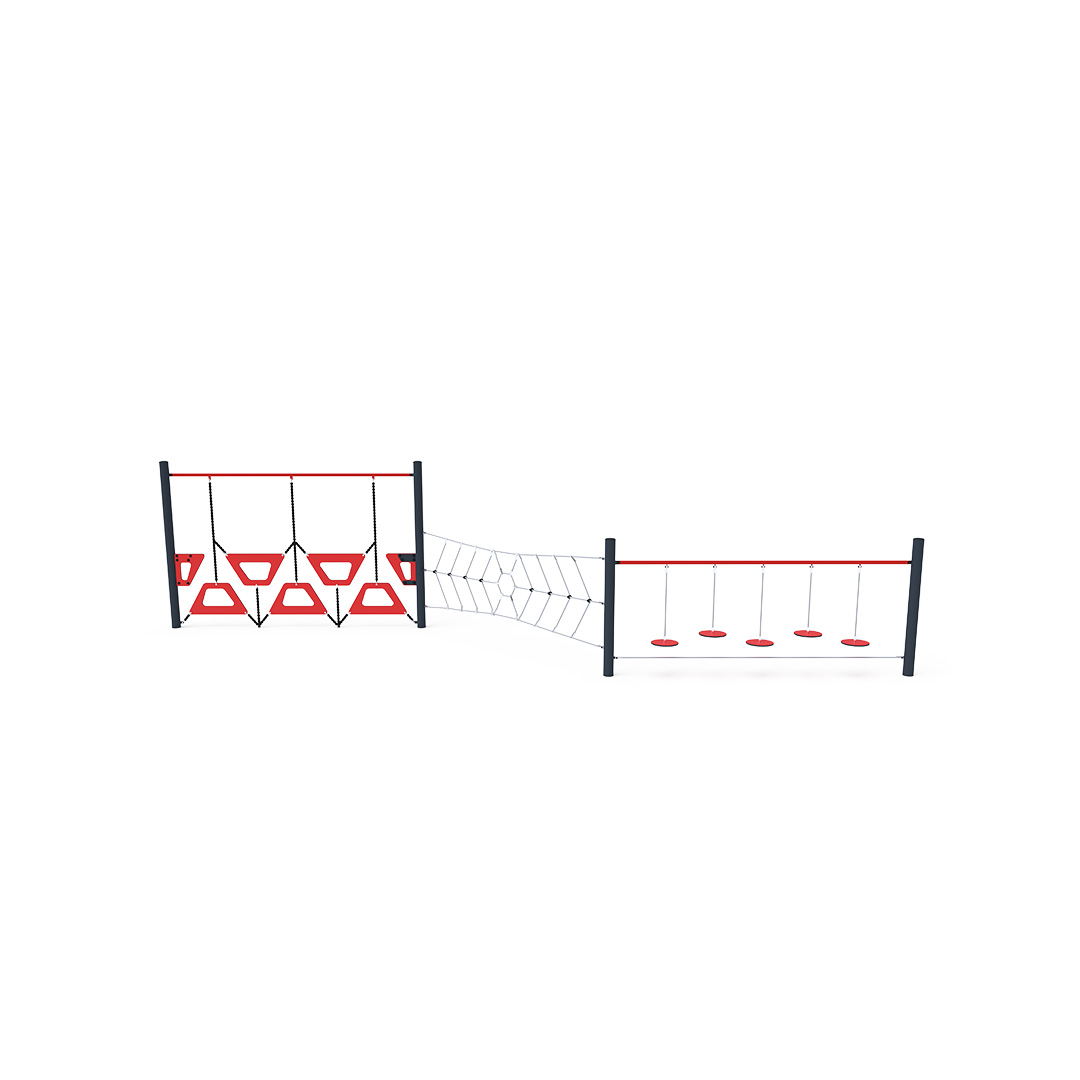

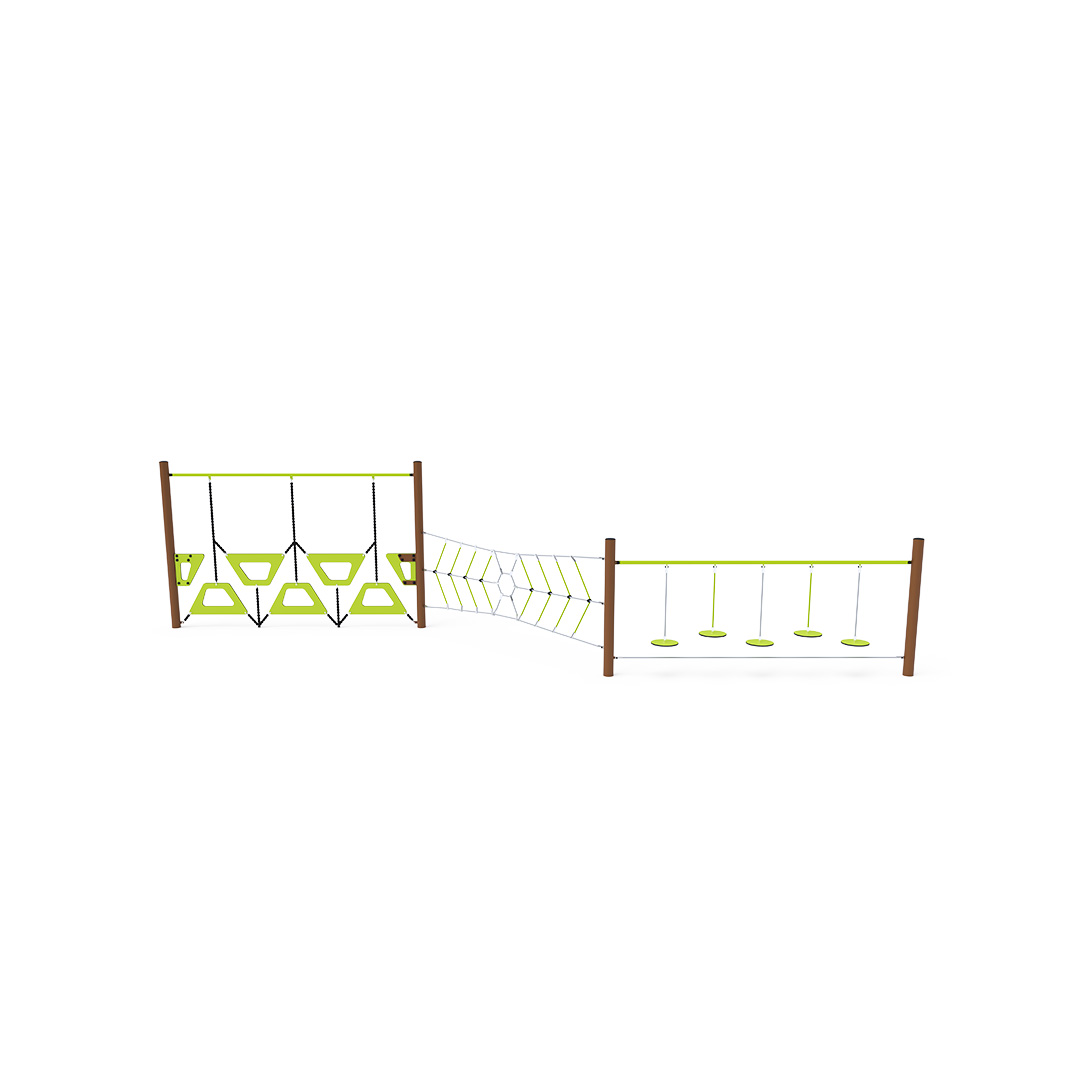

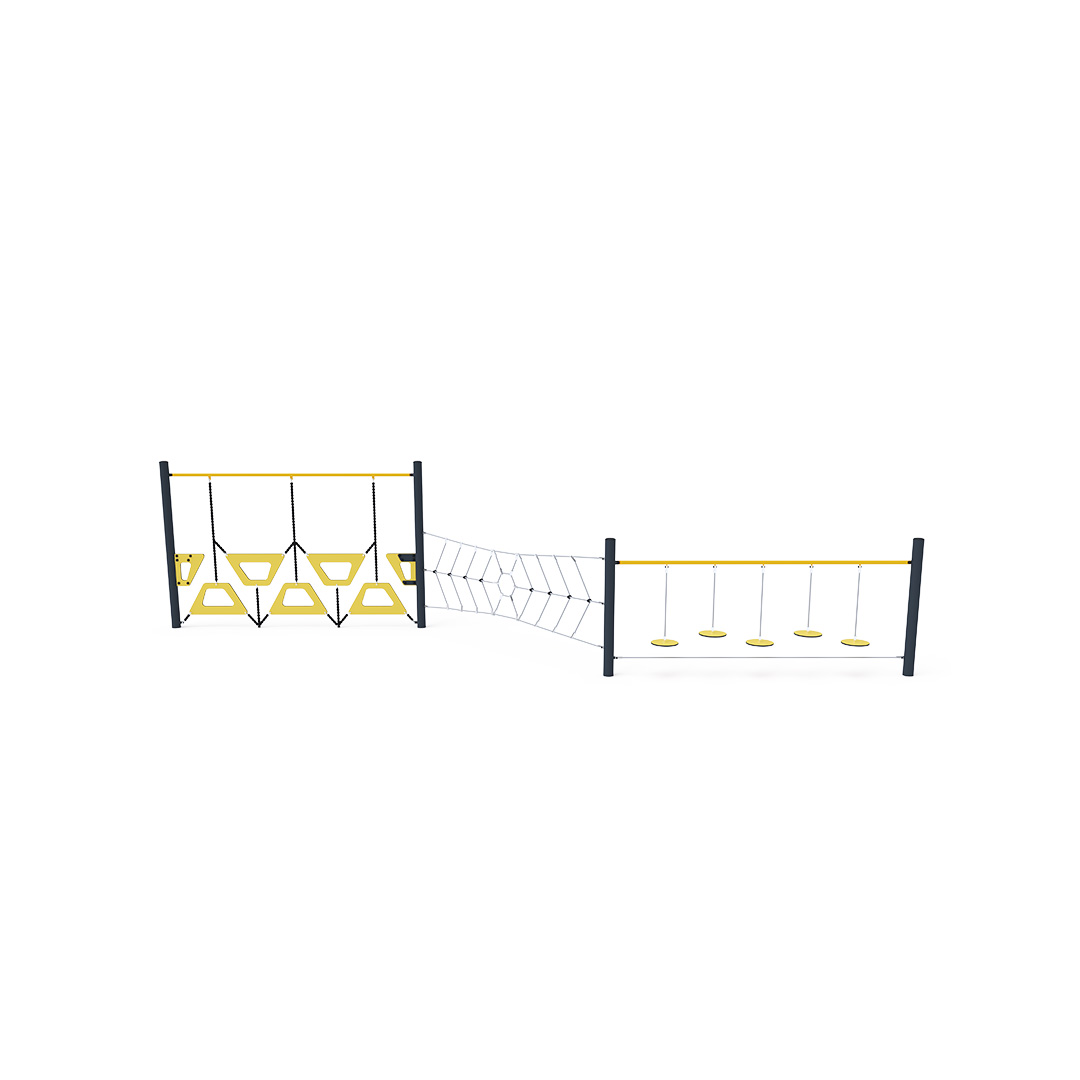

Product color variants:

Orange + Turquoise

More color
options

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 7.92 m

width 4.62 m

height 2.2 m

Designed for exterior use:

Yes

Age category:

from 3 to 14 years

Element capacity:

6 persons

Free fall height:

1.00 m

Protective area:

length 10.73 m

width 7.53 m

area 80.8 m²

Certified according to standard:

STN EN 1176

Show all parameters

Triple Monkey Trail VVZ-OP3-03

The monkey trail is created by combining three sections: a trapezoidal wall, a spider net, and freely hanging discs. Overcoming this play element is not only fun but also challenging. The play element is made of galvanized steel with a high-quality surface finish – powder coating, the joints are stainless steel and covered with plastic caps to enhance safety and prolong the lifespan of the connections. The ropes are made of polyester fibers with a steel core, which are wound around a center. This rope construction increases its strength and resistance to mechanical stress. Polyester itself has many positive properties. It is resistant to microorganisms and weather conditions, dries quickly after rain, is colorfast, and is characterized by high strength.

Specification:

The Triple Monkey Trail VVZ-OP3-03 is certified according to the STN EN 1176 standard.

Capacity: 6 peoples
Age group: 3 – 14 years
Dimensions: 7,92 × 4,62 × 2,2 m
Free fall height: up to 1,0 m
Impact area: 10,73 × 7,53 m (in accordance with STN EN 1176-1)
Material: Galvanized and powder-coated steel, polyester ropes, HPL 19mm, stainless steel fasteners, and chains

Documents for download:

Certificate

PDF download

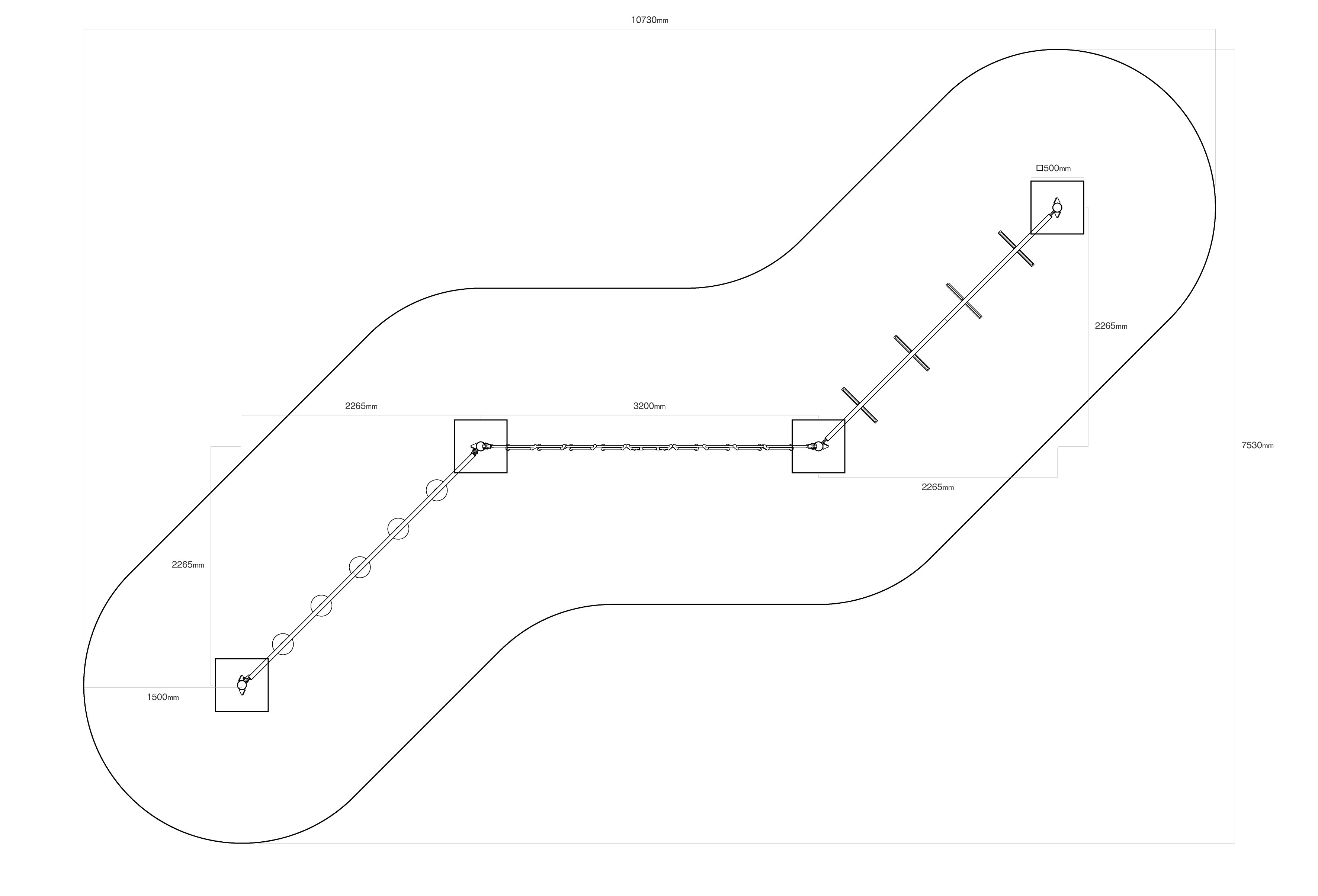

Impact area

Image to download

DWG file

DWG for download

You must log in to view locked files

HPL - High Pressure Laminates

HPL - high-pressure laminate has high resistance to mechanical damage and abrasion, easy maintenance and is suitable for exteriors and extremely stressed areas. They are produced in stacking presses using high pressure and at high temperatures.

Climbing

Climbing and mountaineering are basic human activities that evolved from survival needs and are now popular sports and recreational activities. Climbing and mountaineering are great for physical fitness, promoting overall strength, improving coordination and mental resilience.

1-piece monkey tracks

2-piece monkey tracks

3-piece monkey tracks

4-piece monkey tracks

Multi-section monkey tracks

Monkey Trail VVZ-OP3-03

Add to cart

Frequently asked questions

Can you arrange transportation to my place?

Yes, we provide transportation in Central Europe.

Will I be able to install the game elements, workout and fitness myself?

Each element in our offer is also available with installation, but if you are interested and want to save money, we can provide you with a drawing of the foundations and assembly so that you can install the elements yourself.

Are your elements certified?

All of our items in the offer have been inspected by the Technical Inspection a.s., according to the relevant standard, as evidenced by the certificates that you can find on the website for each product. Although all of our products are approved by the Technical Inspection a.s., the strictest inspectors for us are those who set out on a journey for fun - and it's not just children.

Who makes all this for you?

Our products are designed, developed, tested and manufactured in our hall in Trenčín.

What is the delivery time of the order?

Standard delivery time is 4 to 6 weeks from order placement.
