VVZ-OP3-05 Triple Monkey Track The monkey track is designed as a combination of three sections. The first part features a hanging rope – a simple but versatile element. The second part consists of freely suspended stepping elements placed next to each other. The third part is intended for sideways hand-over-hand movement. Although the child stands on a fixed bar, they must hold on to a rope that is not quite as stable. Overcoming this play element is not only fun but also physically challenging. The play equipment is made of hot-dip galvanized steel with a high-quality surface finish. The joints are stainless steel and covered with plastic caps to enhance safety and prolong the lifespan of the connections. The ropes are made of polyester fibers wound around a central core. This rope construction increases strength and resistance to mechanical wear. Polyester itself has many positive properties – it is resistant to microorganisms and weather conditions, dries quickly after rain, retains its color, and is characterized by high strength and durability. Specification:The triple monkey track VVZ-OP3-05 is certified according to STN EN 1176. Capacity: 5 peoplesAge group: 3 – 14 yearsDimensions: 7,92 × 4,62 × 2,2 mFree fall height: up to 1,0 meterImpact area: 11,7 × 5,26 m (in accordance with STN EN 1176-1)Material: Hot-dip galvanized steel, polyester ropes, stainless steel fasteners
View full product description and parameters
I am interested in this product
Send us a non-binding inquiry

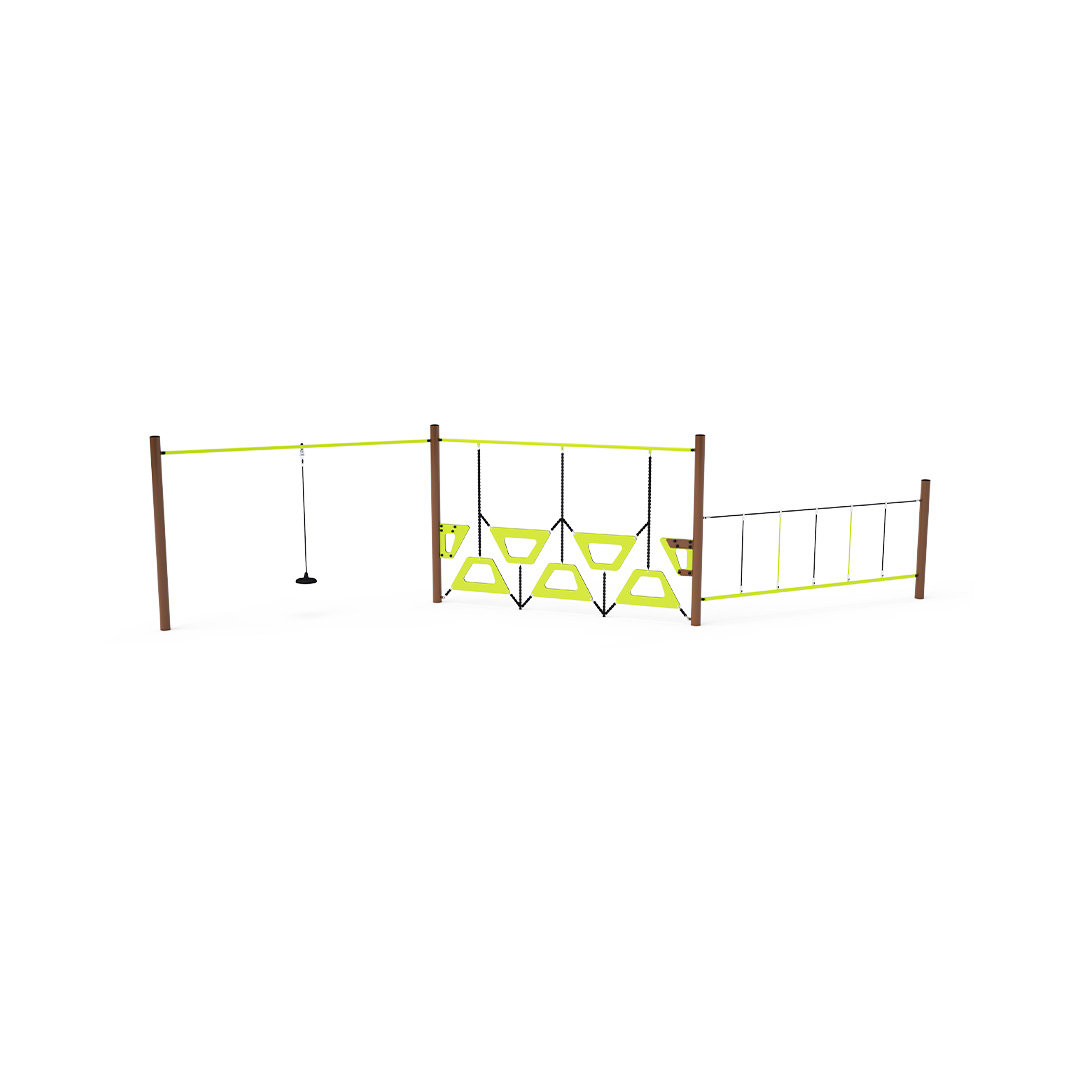

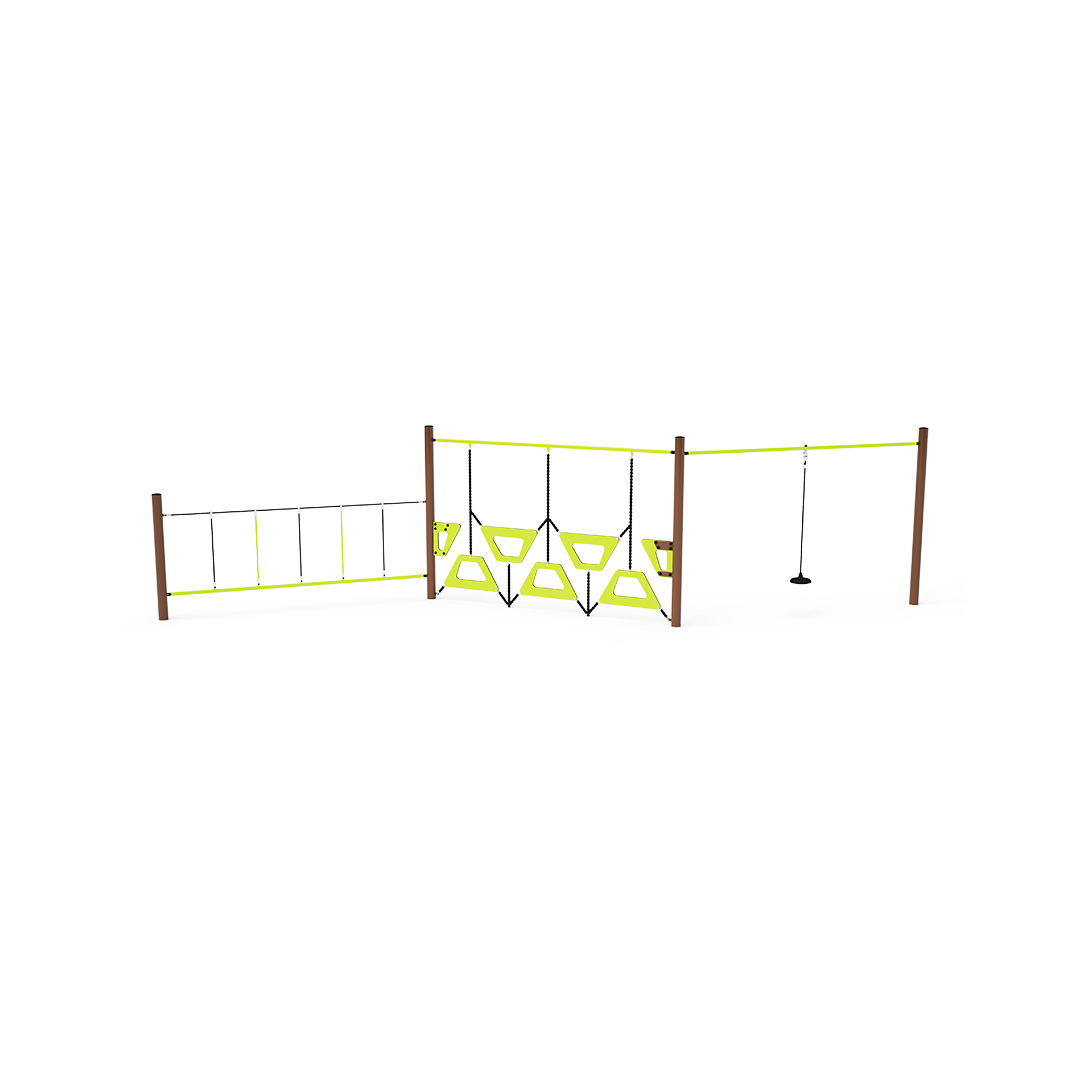

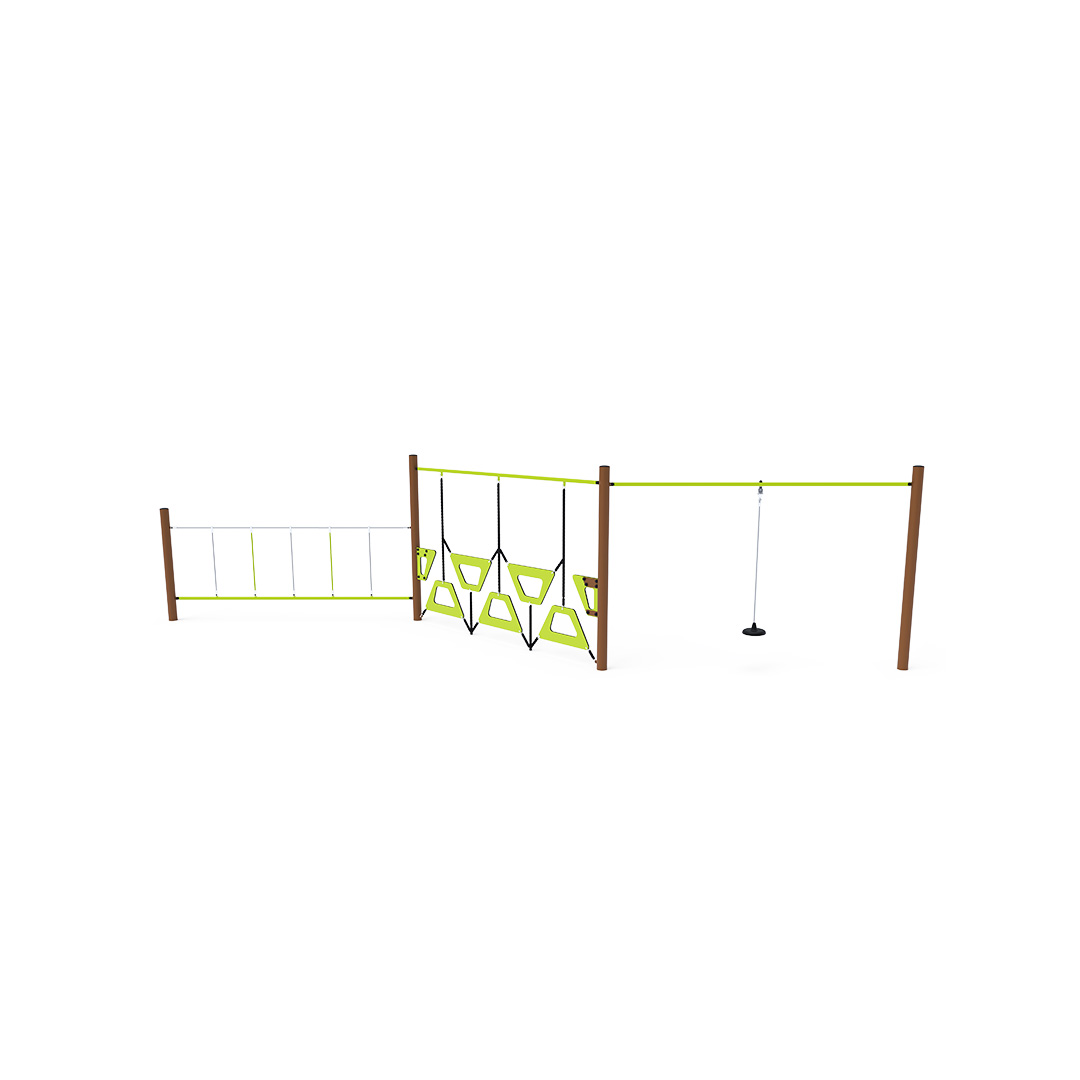

Product color variants:
Brown + Yellow green

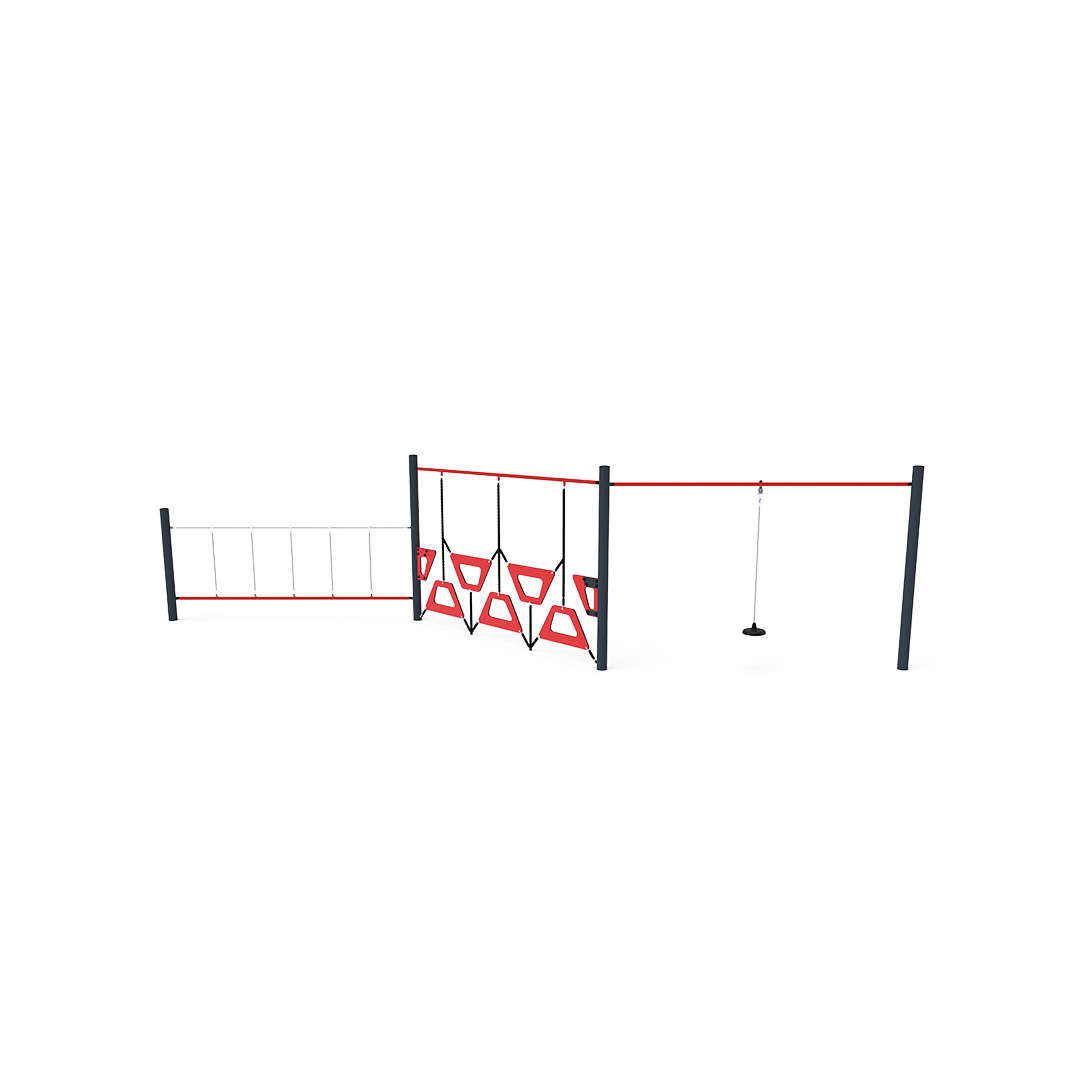

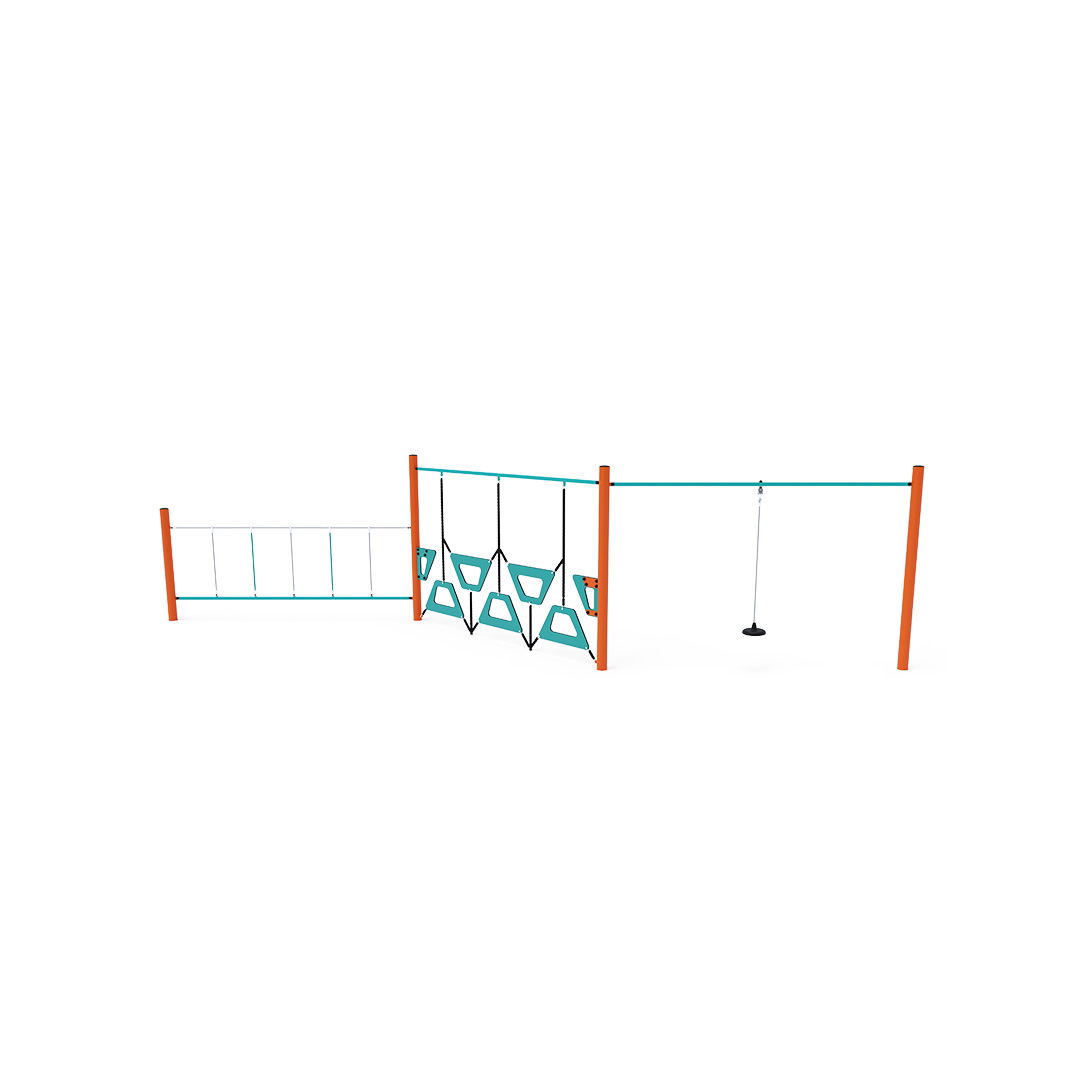

More color
options

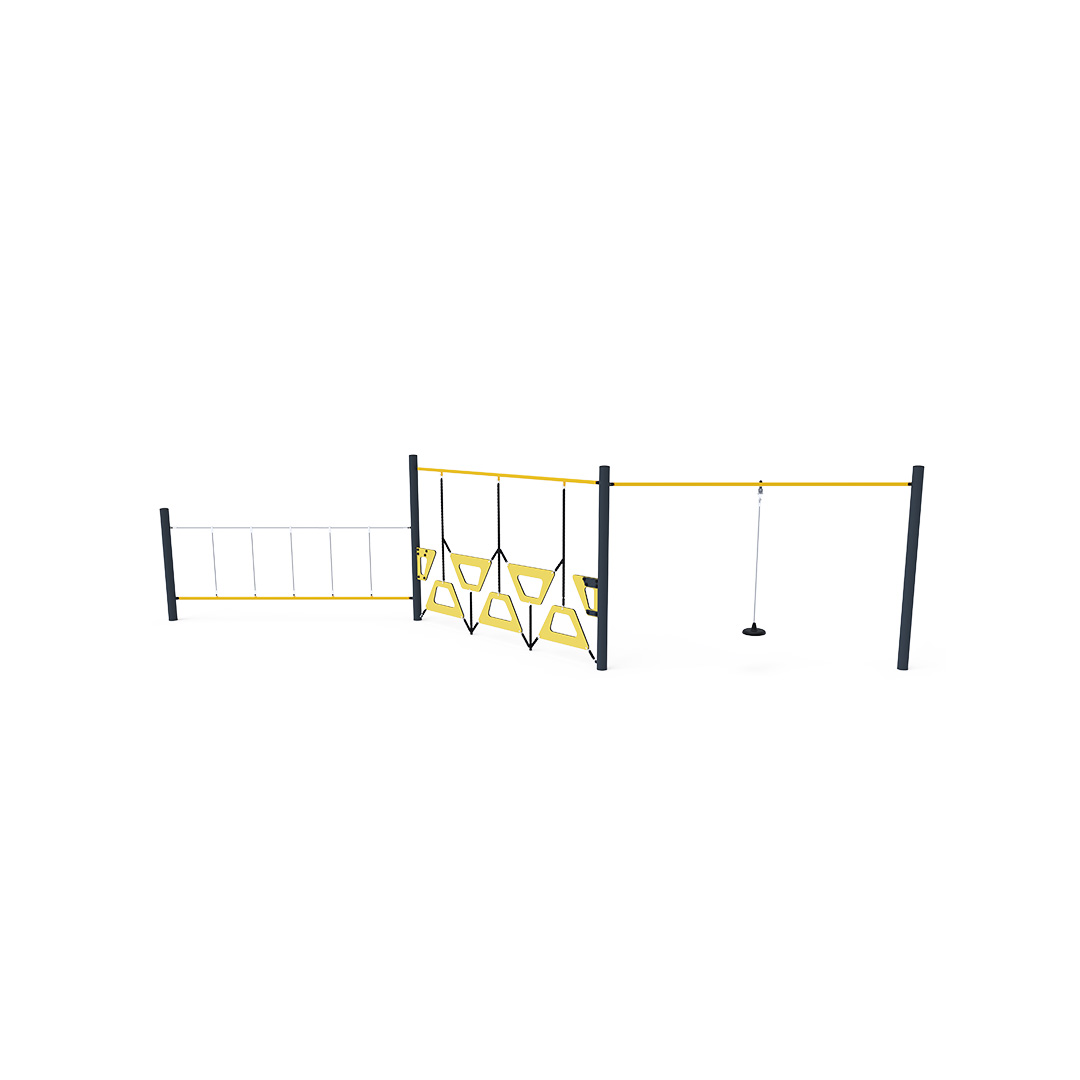

We can also produce this element in other color variants. Please contact us for details.
Element dimensions:
length 7.92 m
width 4.62 m
height 2.2 m
Designed for exterior use:
Yes
Age category:
from 3 to 14 years
Element capacity:
5 persons
Free fall height:
1.00 m
Protective area:
length 11.4 m
width 8.1 m
area 92.34 m2
Certified according to standard:
STN EN 1176
Show all parameters

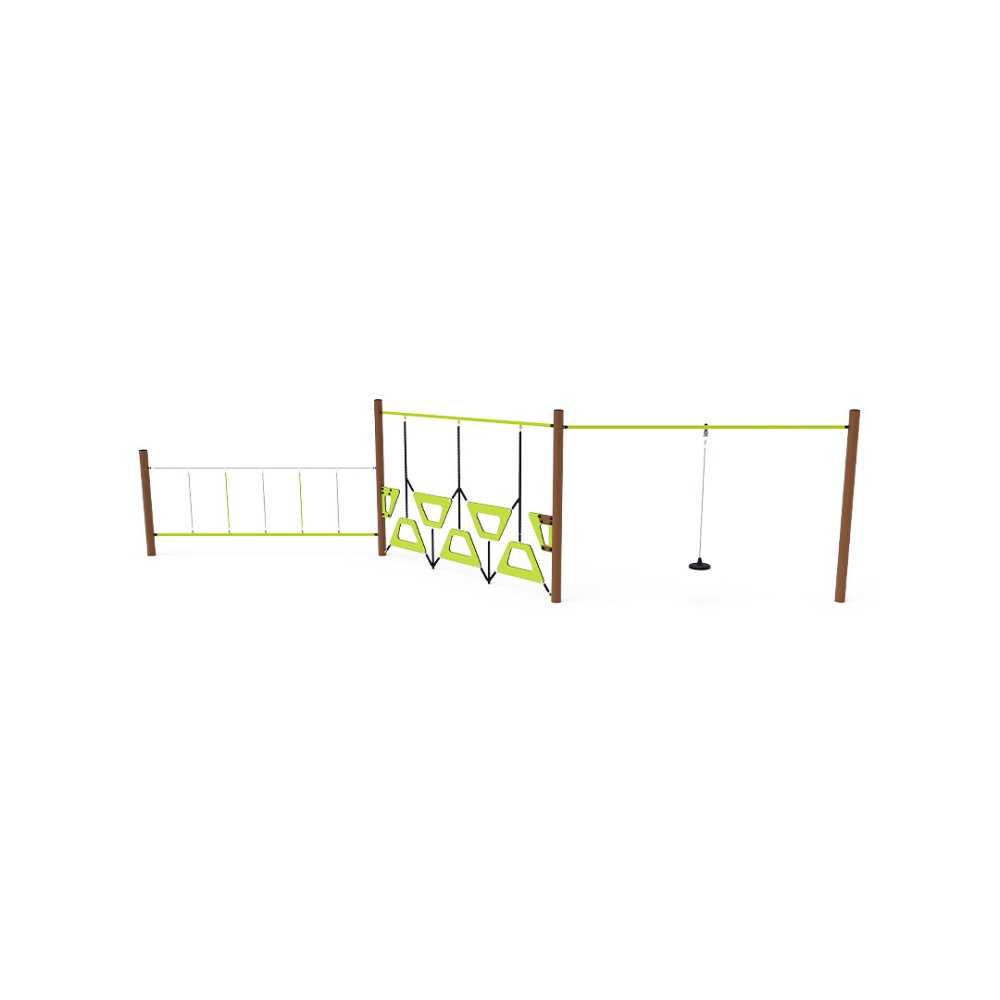

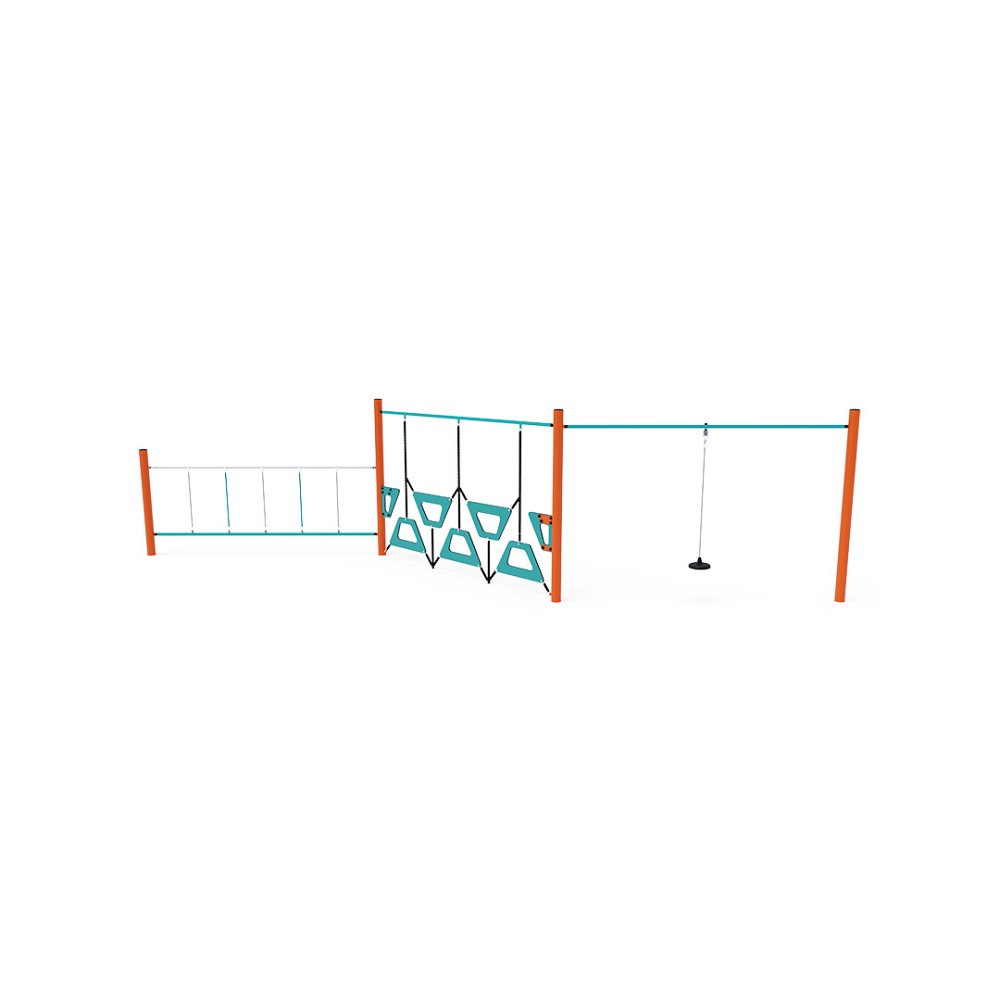

VVZ-OP3-05 Triple Monkey Track

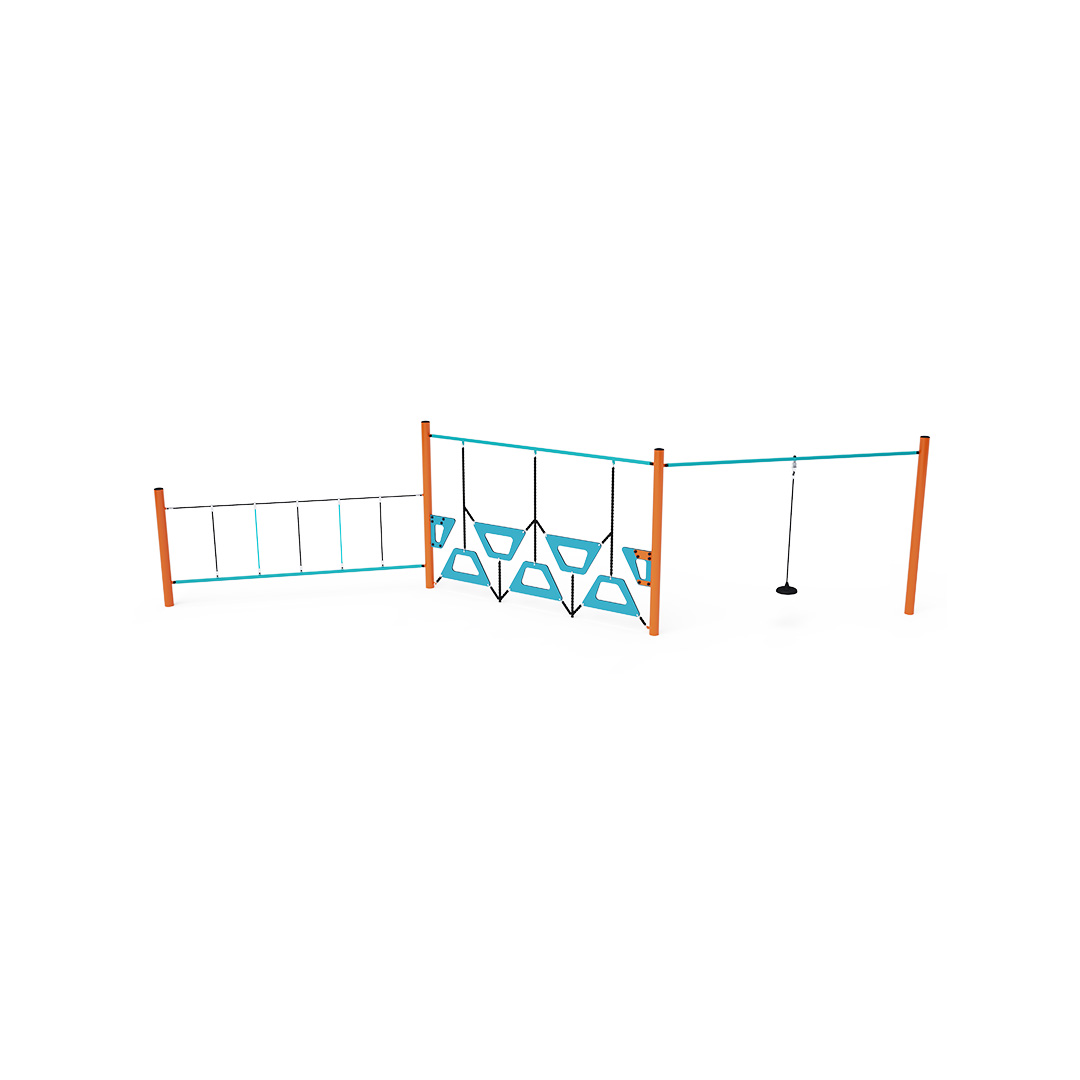

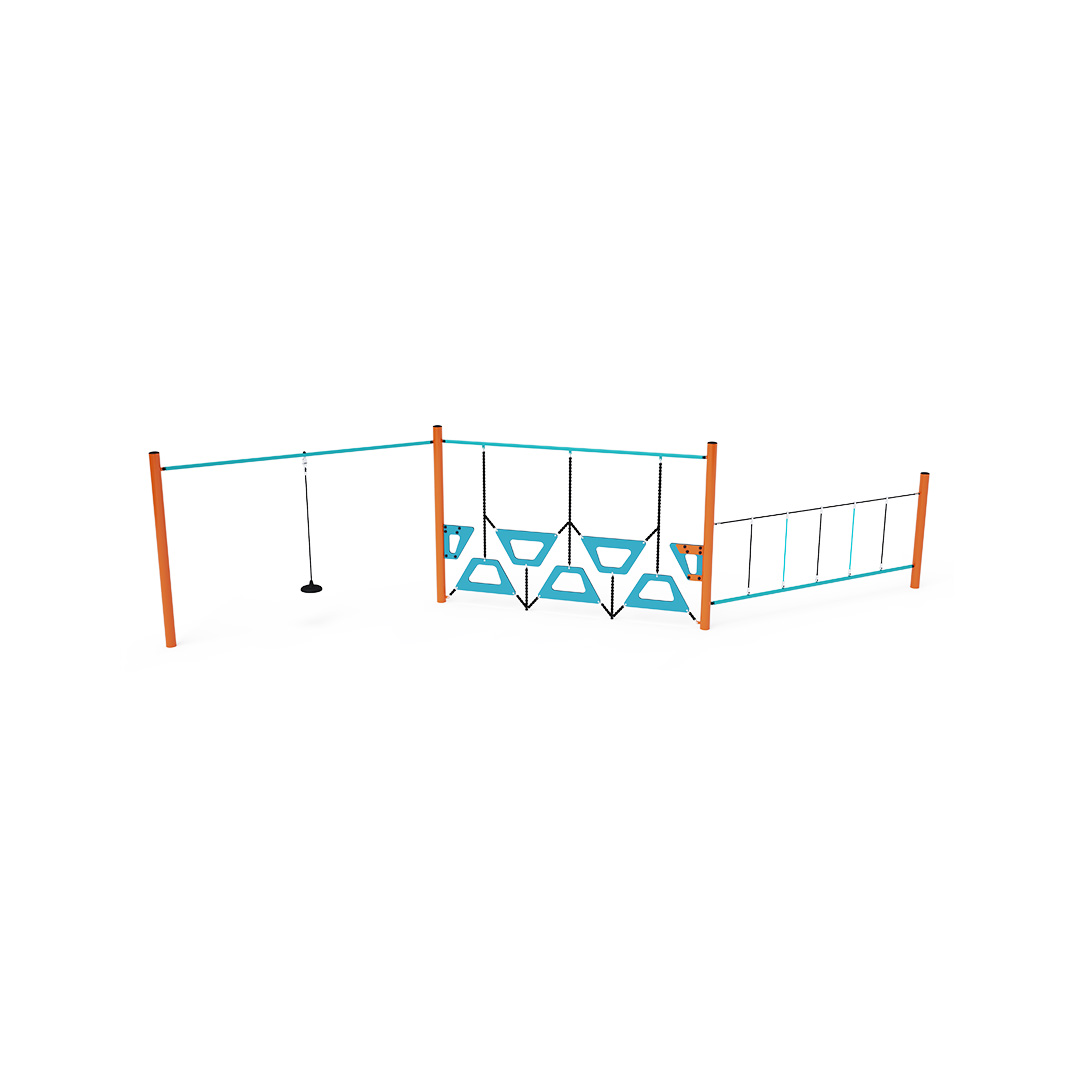

The monkey track is designed as a combination of three sections. The first part features a hanging rope – a simple but versatile element. The second part consists of freely suspended stepping elements placed next to each other. The third part is intended for sideways hand-over-hand movement. Although the child stands on a fixed bar, they must hold on to a rope that is not quite as stable. Overcoming this play element is not only fun but also physically challenging.

The play equipment is made of hot-dip galvanized steel with a high-quality surface finish. The joints are stainless steel and covered with plastic caps to enhance safety and prolong the lifespan of the connections. The ropes are made of polyester fibers wound around a central core. This rope construction increases strength and resistance to mechanical wear. Polyester itself has many positive properties – it is resistant to microorganisms and weather conditions, dries quickly after rain, retains its color, and is characterized by high strength and durability.

Specification:
The triple monkey track VVZ-OP3-05 is certified according to STN EN 1176.

Capacity: 5 peoples
Age group: 3 – 14 years
Dimensions: 7,92 × 4,62 × 2,2 m
Free fall height: up to 1,0 meter

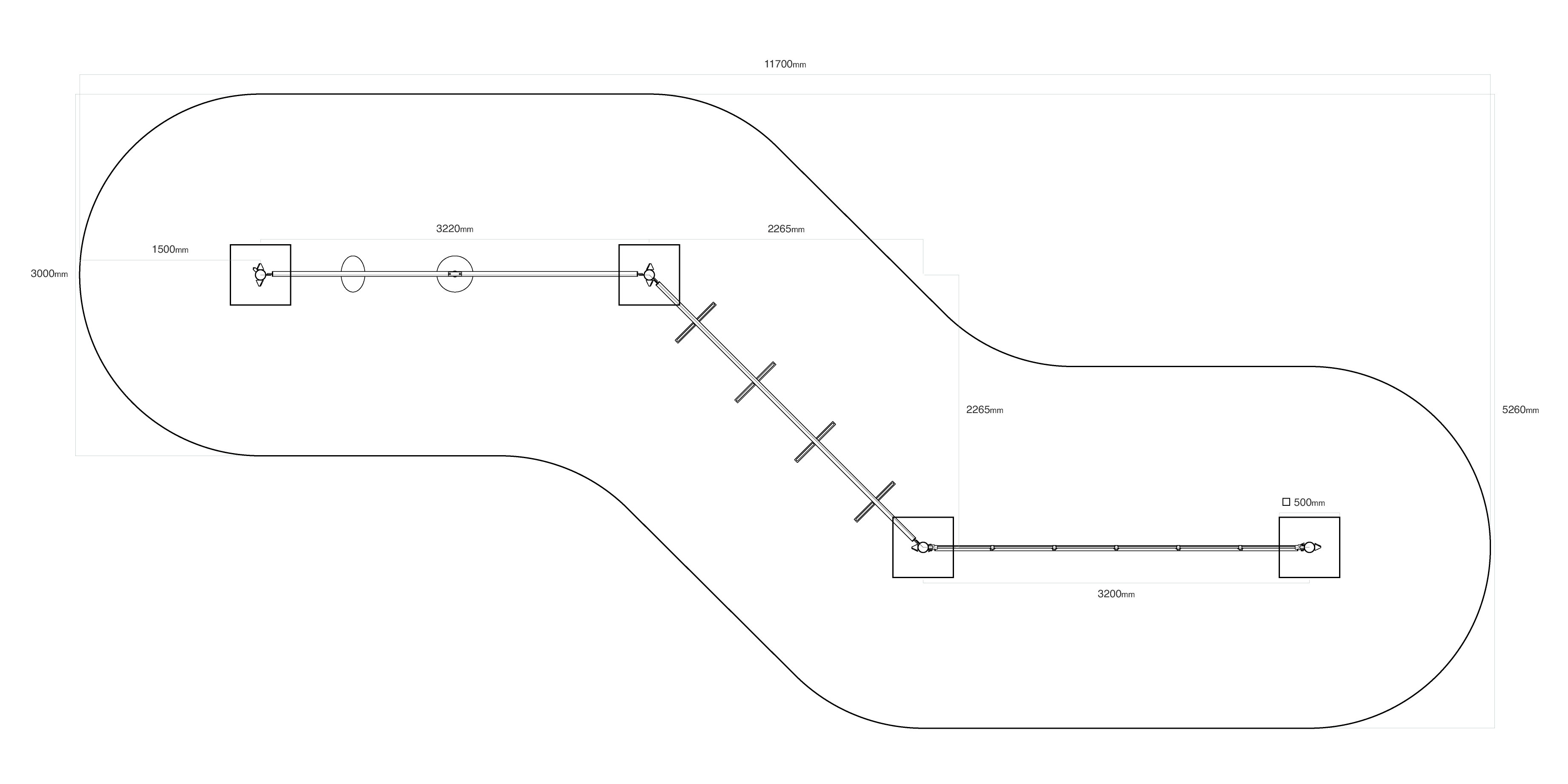

Impact area: 11,7 × 5,26 m (in accordance with STN EN 1176-1)
Material: Hot-dip galvanized steel, polyester ropes, stainless steel fasteners

Documents for download:
Certificate
PDF download
Impact area
Image to download
DWG file
DWG for download
You must log in to view locked files
