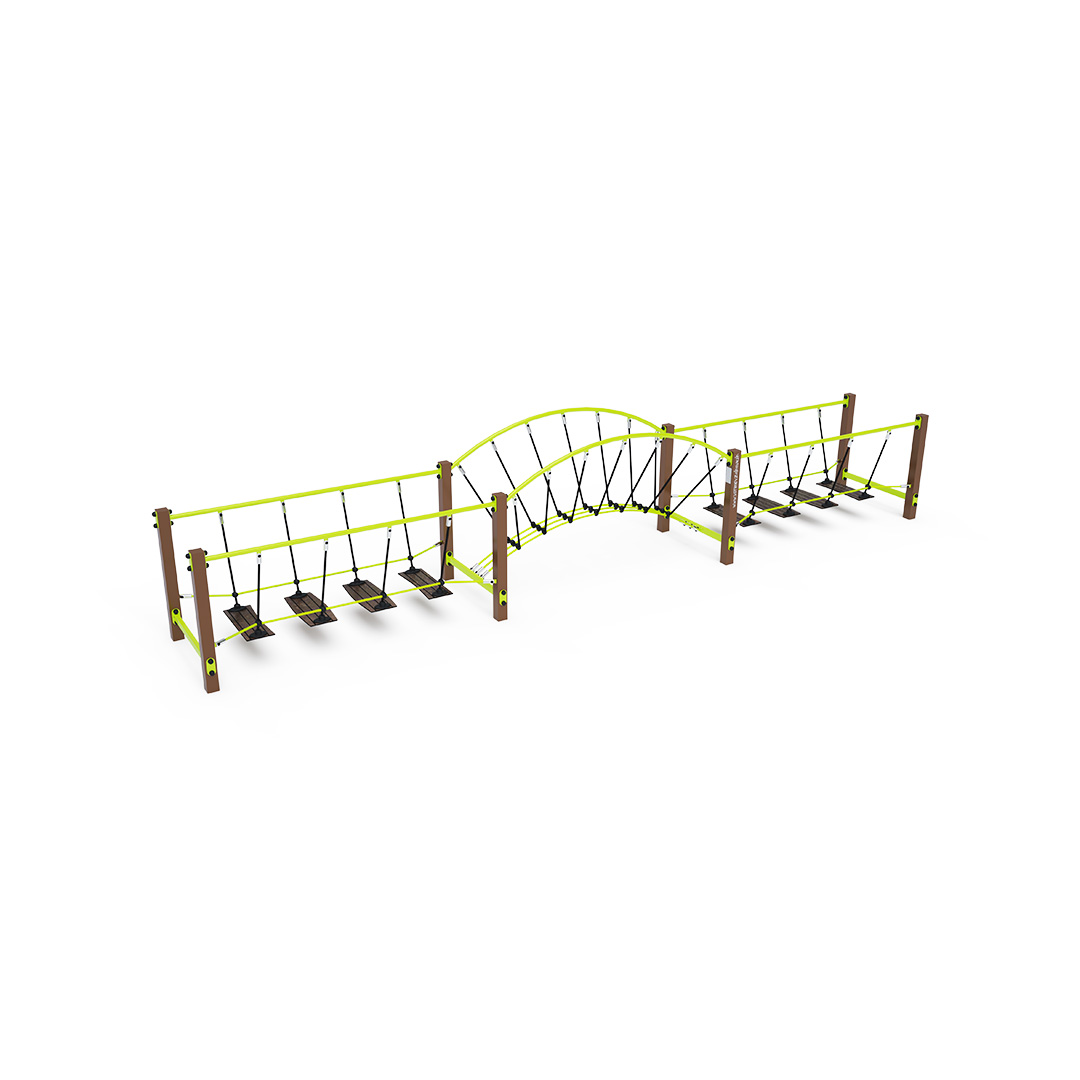

VVZ-M3-02 Triple HPL Balance Bridge The maintenance-free combined triple HPL balance bridge with anti-slip treads suspended on polyester ropes is a playground feature designed for children to develop their coordination, stability, and balance. It is made of hot-dip galvanized steel, coated with powder-baked paint for durability. The ropes are crafted from polyester fibers wound around a core, enhancing their strength and resistance to mechanical stress. Polyester itself offers many positive qualities: it is resistant to microorganisms, weather conditions, quick-drying after rain, color-fast, and known for its high strength. Stainless steel connectors are used for assembly. While a grassy surface can serve as an impact area, we recommend using a turf reinforcement mat. Specifications The VVZ-M3-02 Triple HPL Balance Bridge is certified according to the STN EN 1176 standard. Age category: 3 - 14years Dimensions of the element: 6,39 × 0,87 x 1,3 m Free fall height: 0,5 m Impact area: 9,4 × 4,0 m (according to STN EN 1177) Material: hot-dip galvanized steel, HPL, polyester rope, stainless steel connectors

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

Product color variants:

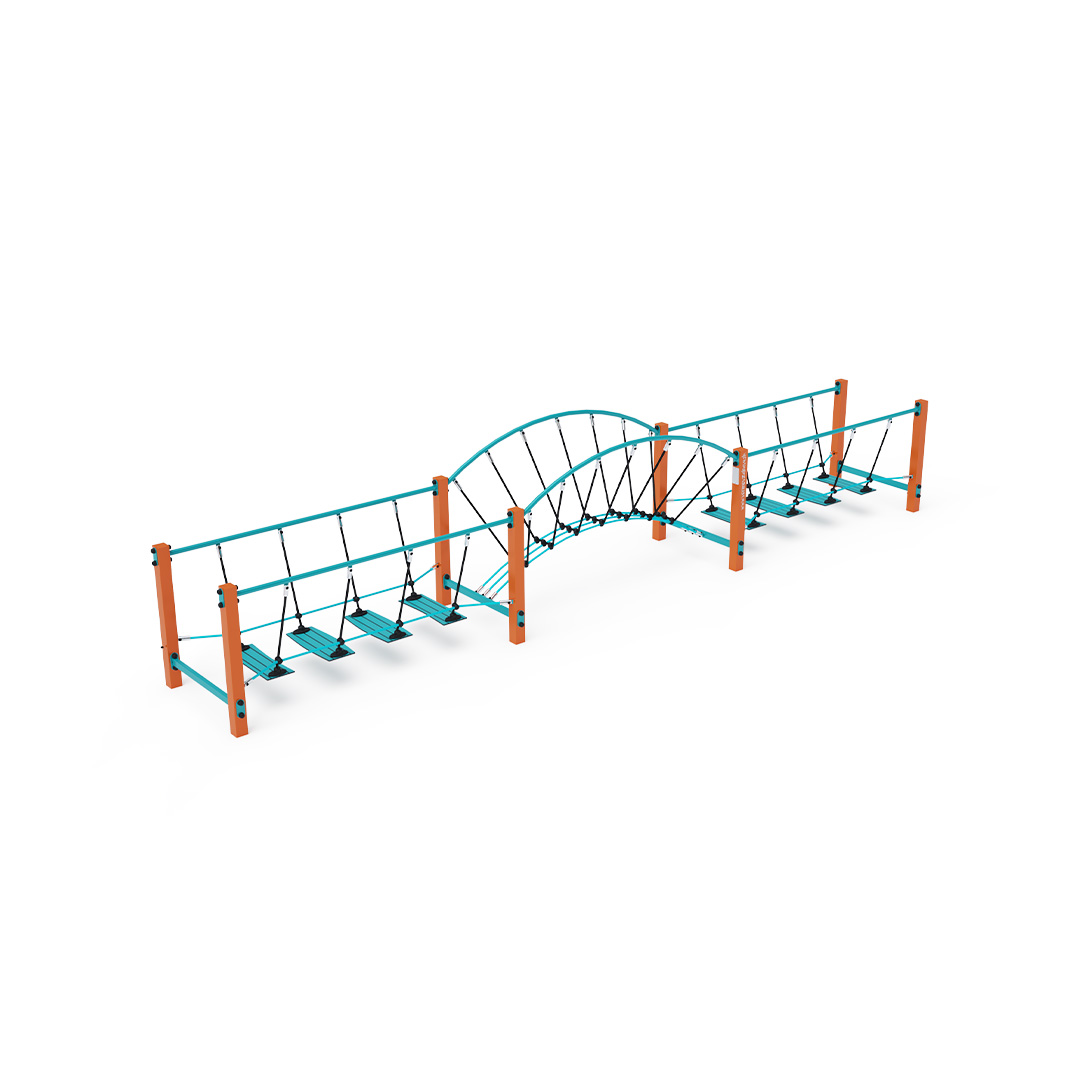

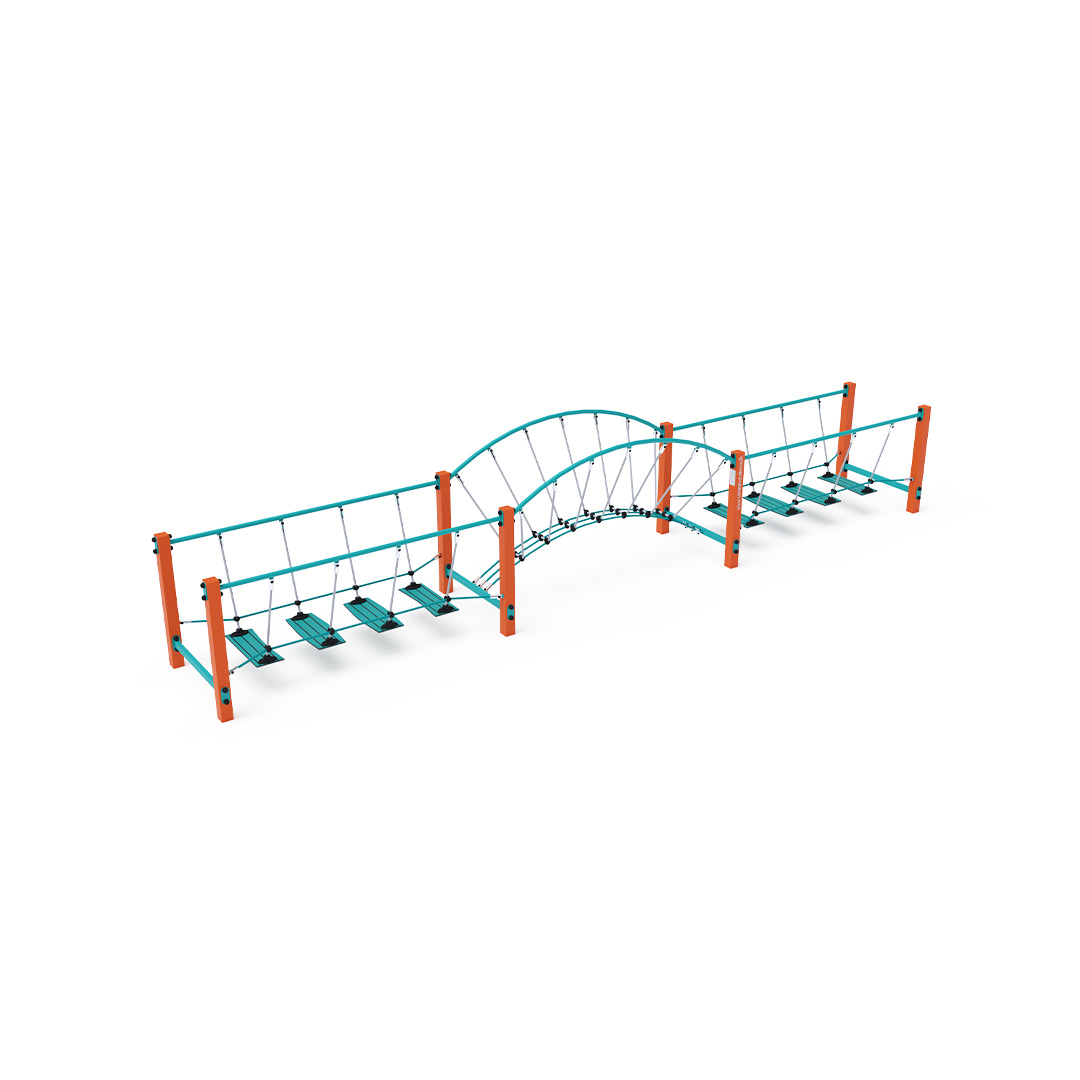

Orange + Turquoise

More color
options

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 6.39 m

width 0.87 m

height 1.3 m

Designed for exterior use:

Yes

Age category:

from 3 to 14 years

Free fall height:

0.50 m

Protective area:

length 9.4 m

width 4 m

area 37.6 m²

Certified according to standard:

STN EN 1176

Show all parameters

VVZ-M3-02 Triple HPL Balance Bridge

The maintenance-free combined triple HPL balance bridge with anti-slip treads suspended on polyester ropes is a playground feature designed for children to develop their coordination, stability, and balance. It is made of hot-dip galvanized steel, coated with powder-baked paint for durability. The ropes are crafted from polyester fibers wound around a core, enhancing their strength and resistance to mechanical stress. Polyester itself offers many positive qualities: it is resistant to microorganisms, weather conditions, quick-drying after rain, color-fast, and known for its high strength. Stainless steel connectors are used for assembly. While a grassy surface can serve as an impact area, we recommend using a turf reinforcement mat.

Specifications

The VVZ-M3-02 Triple HPL Balance Bridge is certified according to the STN EN 1176 standard.

Age category: 3 - 14years
Dimensions of the element: 6,39 × 0,87 x 1,3 m
Free fall height: 0,5 m
Impact area: 9,4 × 4,0 m (according to STN EN 1177)
Material: hot-dip galvanized steel, HPL, polyester rope, stainless steel connectors

Documents for download:

Certificate

PDF download

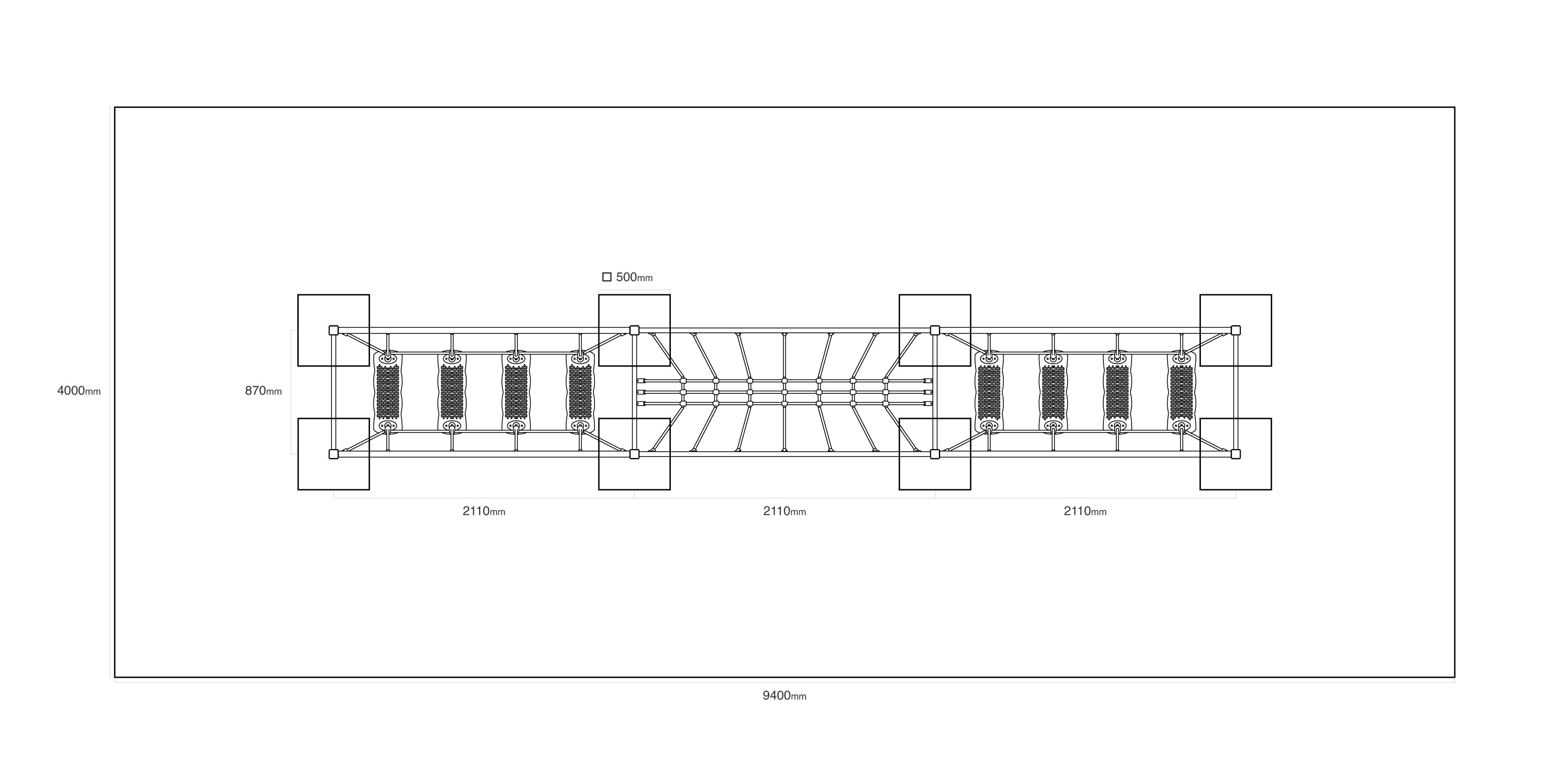

Impact area

Image to download

DWG file

DWG for download

You must log in to view locked files

HPL - High Pressure Laminates

HPL - high-pressure laminate has high resistance to mechanical damage and abrasion, easy maintenance and is suitable for exteriors and extremely stressed areas. They are produced in stacking presses using high pressure and at high temperatures.

Balance training

Balance training helps children better control their bodies and move safely in space – when running, walking on uneven surfaces and playing. It strengthens the core muscles (abdominals, back, pelvis), which is the basis for proper posture and injury prevention. It improves coordination between the eyes, inner ear and muscles, thanks to which children orient themselves faster and react to changes in position. Regular balance exercises promote better concentration and attention, because the child has to focus on maintaining stability. Children gain more confidence and courage to try new movements, because they feel that their body obeys them. And what is best – balance activities (standing on one leg, walking on a bench, swinging) are fun and natural for them, so they develop in a playful way.
