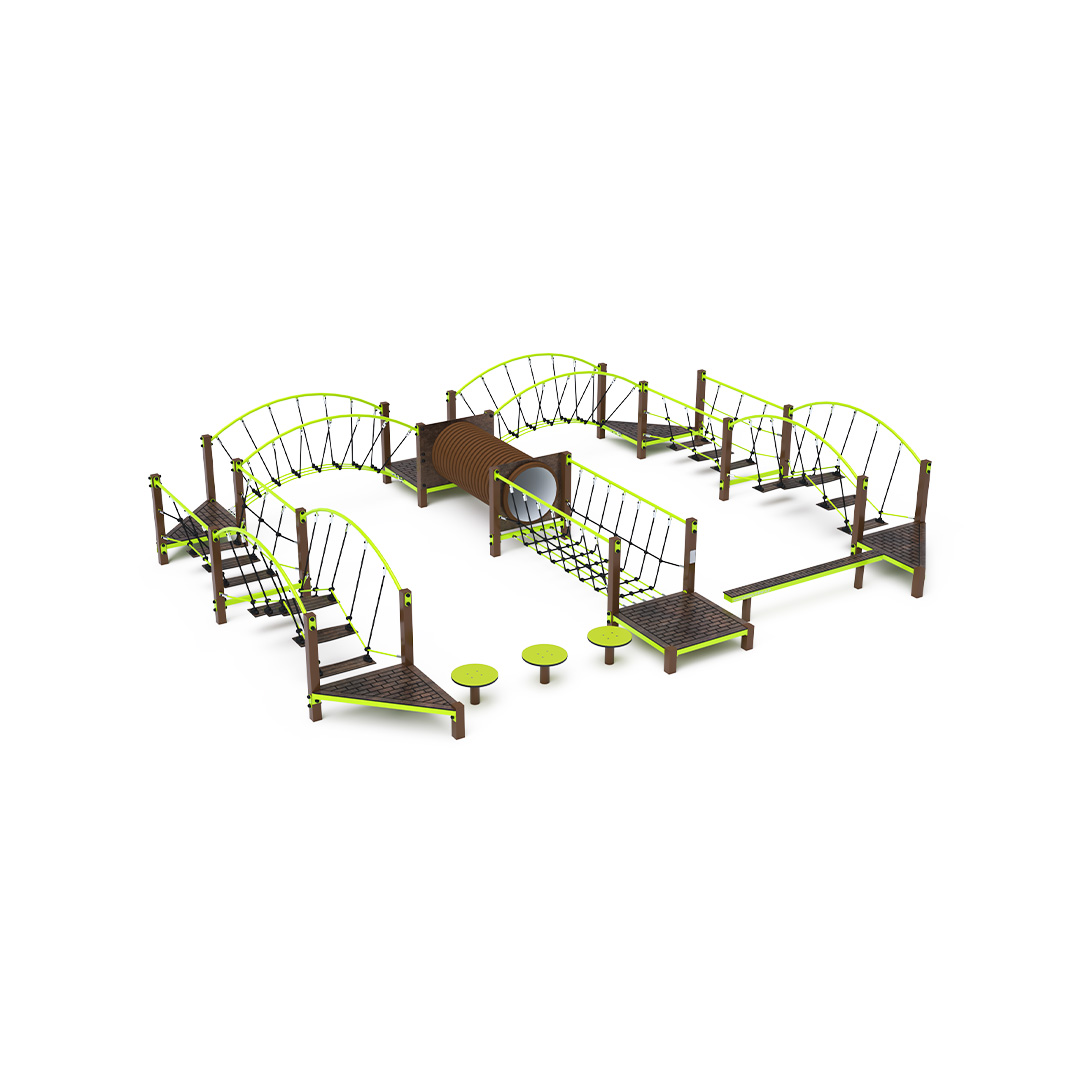

Combined bridge set VVZ-MZ-01

Products catalog

Maintenance-free playgrounds

Bridges

VVZ-MZ-01 Combined bridge set The maintenance-free combined bridge set with HPL treads suspended on polyester ropes is a playground feature designed for children to develop their coordination, stability, and balance. It is made of hot-dip galvanized steel, coated with powder-baked paint for durability. The ropes are crafted from polyester fibers wound around a core, enhancing their strength and resistance to mechanical stress. Polyester itself offers many positive qualities: it is resistant to microorganisms, weather conditions, quick-drying after rain, color-fast, and known for its high strength. The tunnel is made of corrugated pipe with UV filters on both sides. Stainless steel connectors are used for assembly. While a grassy surface can serve as an impact area, we recommend using a turf reinforcement mat. Specifications The VVZ-MZ-01 Combined Bridge Set is certified according to the STN EN 1176 standard. Age category: 3 - 14 years Dimensions of the element: 7,0 x 5,7 x 1,3m Free fall height: 0,5 m Impact area: 10,0 x 8,6 m (accorgind to STN EN 1177) Material: hot-dip galvanized steel, HPL, polyester rope, stainless steel connectors, corrugated pipe

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

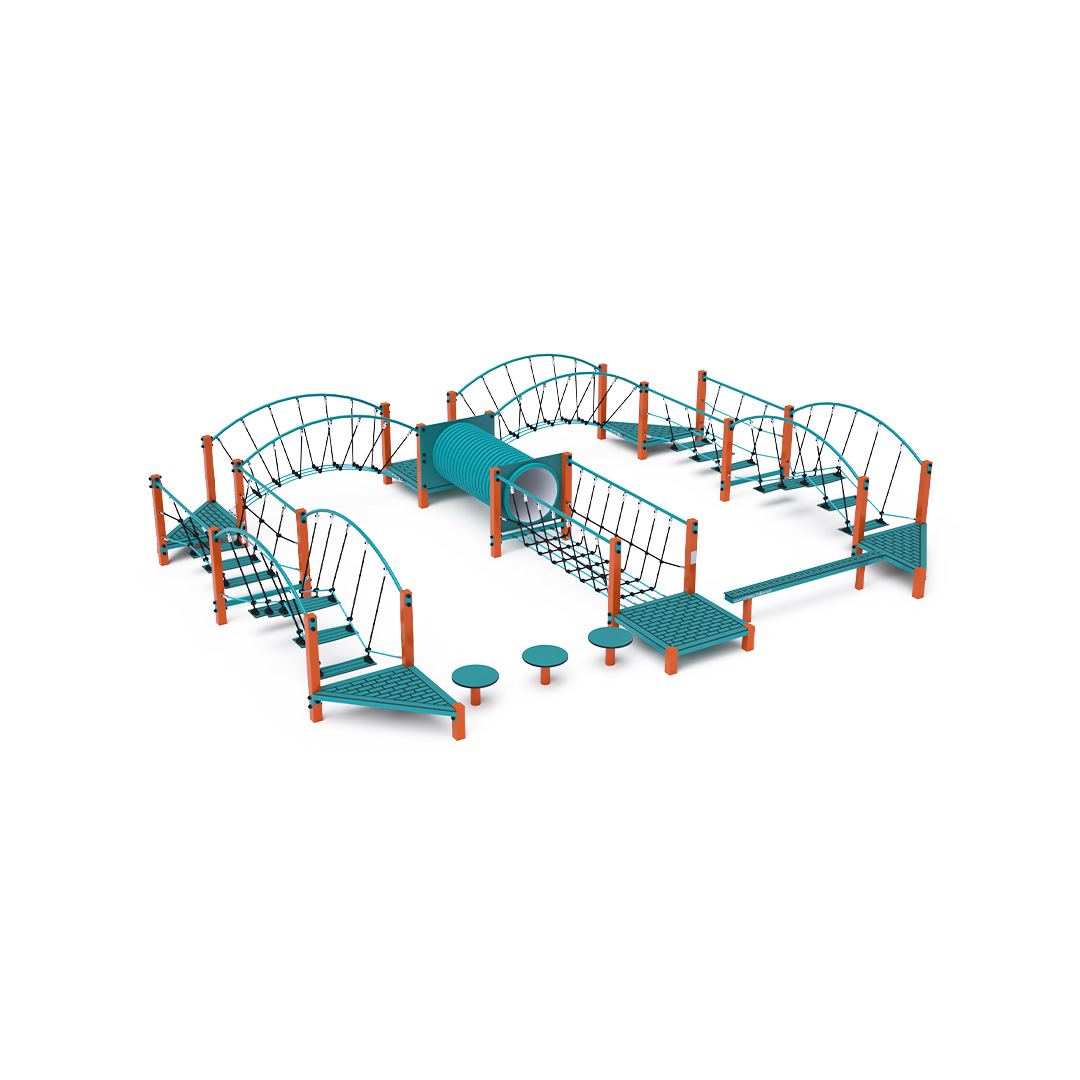

Product color variants:

Orange + Turquoise

More color
options

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 7 m

width 5.7 m

height 1.3 m

Designed for exterior use:

Yes

Age category:

from 3 to 14 years

Free fall height:

0.50 m

Protective area:

length 10 m

width 8.6 m

area 86 m²

Certified according to standard:

STN EN 1176

Show all parameters

VVZ-MZ-01 Combined bridge set

The maintenance-free combined bridge set with HPL treads suspended on polyester ropes is a playground feature designed for children to develop their coordination, stability, and balance. It is made of hot-dip galvanized steel, coated with powder-baked paint for durability. The ropes are crafted from polyester fibers wound around a core, enhancing their strength and resistance to mechanical stress. Polyester itself offers many positive qualities: it is resistant to microorganisms, weather conditions, quick-drying after rain, color-fast, and known for its high strength. The tunnel is made of corrugated pipe with UV filters on both sides. Stainless steel connectors are used for assembly. While a grassy surface can serve as an impact area, we recommend using a turf reinforcement mat.

Specifications

The VVZ-MZ-01 Combined Bridge Set is certified according to the STN EN 1176 standard.

Age category: 3 - 14 years
Dimensions of the element: 7,0 x 5,7 x 1,3m
Free fall height: 0,5 m
Impact area: 10,0 x 8,6 m (accorgind to STN EN 1177)
Material: hot-dip galvanized steel, HPL, polyester rope, stainless steel connectors, corrugated pipe

Documents for download:

Certificate

PDF download

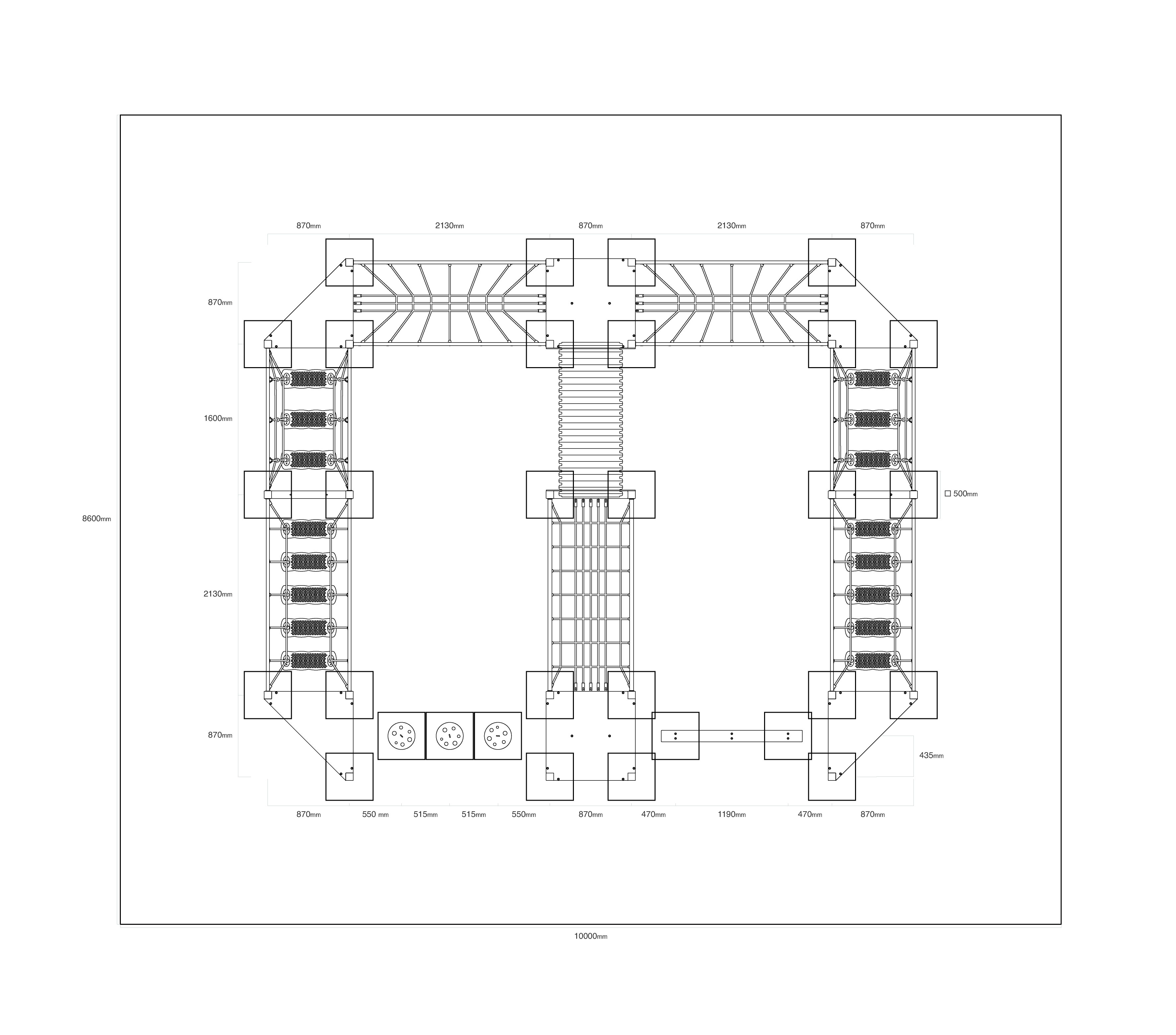

Impact area

Image to download

DWG file

DWG for download

You must log in to view locked files

HPL - High Pressure Laminates

HPL - high-pressure laminate has high resistance to mechanical damage and abrasion, easy maintenance and is suitable for exteriors and extremely stressed areas. They are produced in stacking presses using high pressure and at high temperatures.
