Monkey Trail VVZ-OP3-04

Products catalog

Maintenance-free playgrounds

Monkey tracks

3-piece monkey tracks

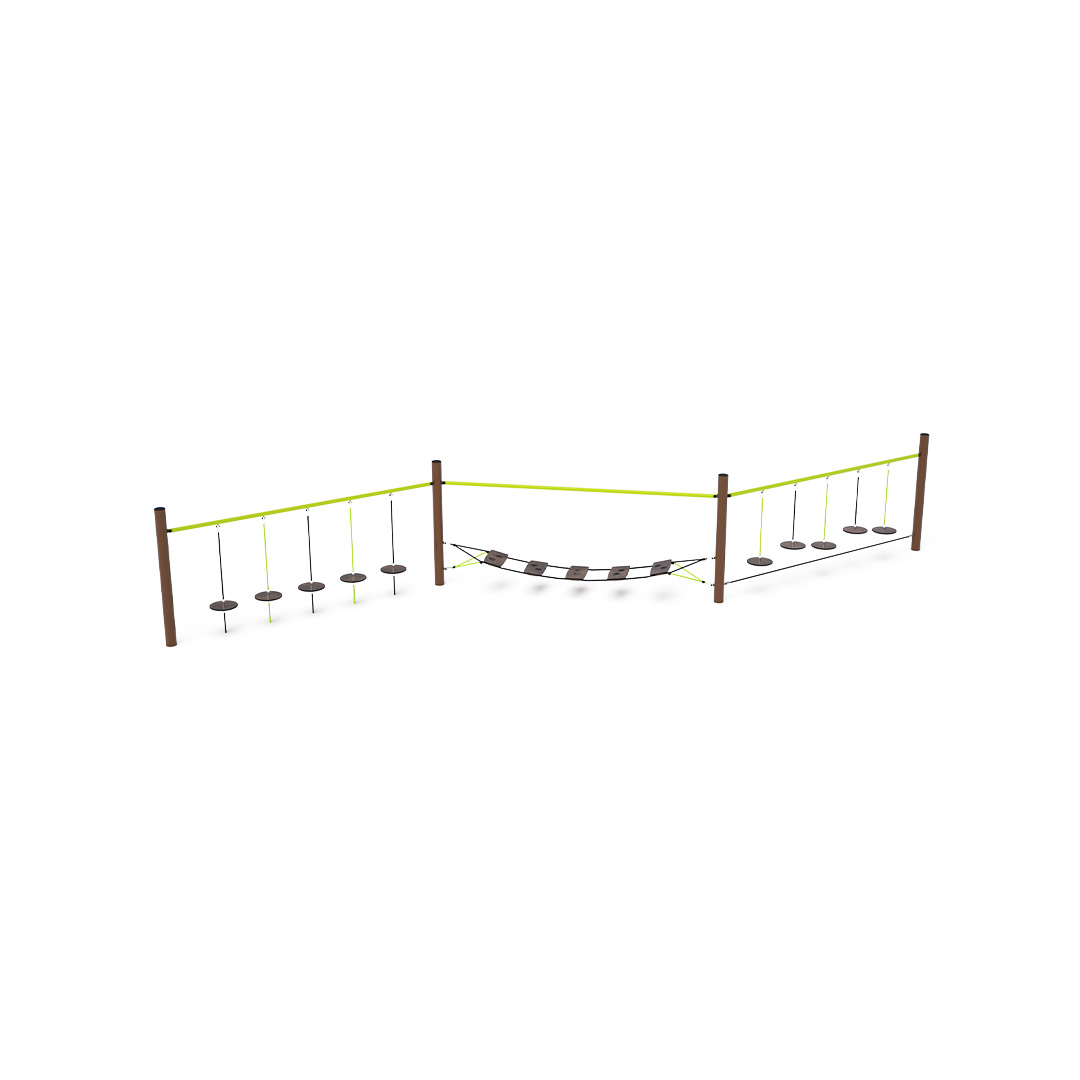

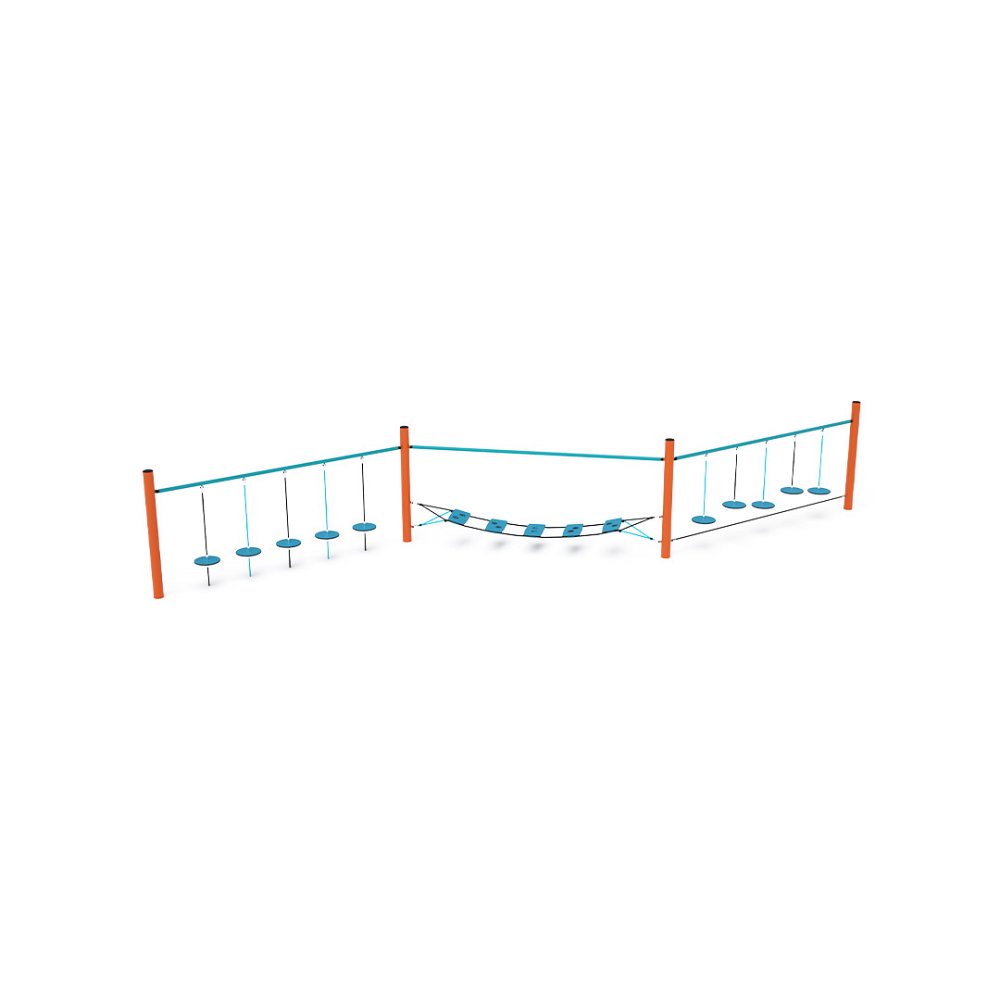

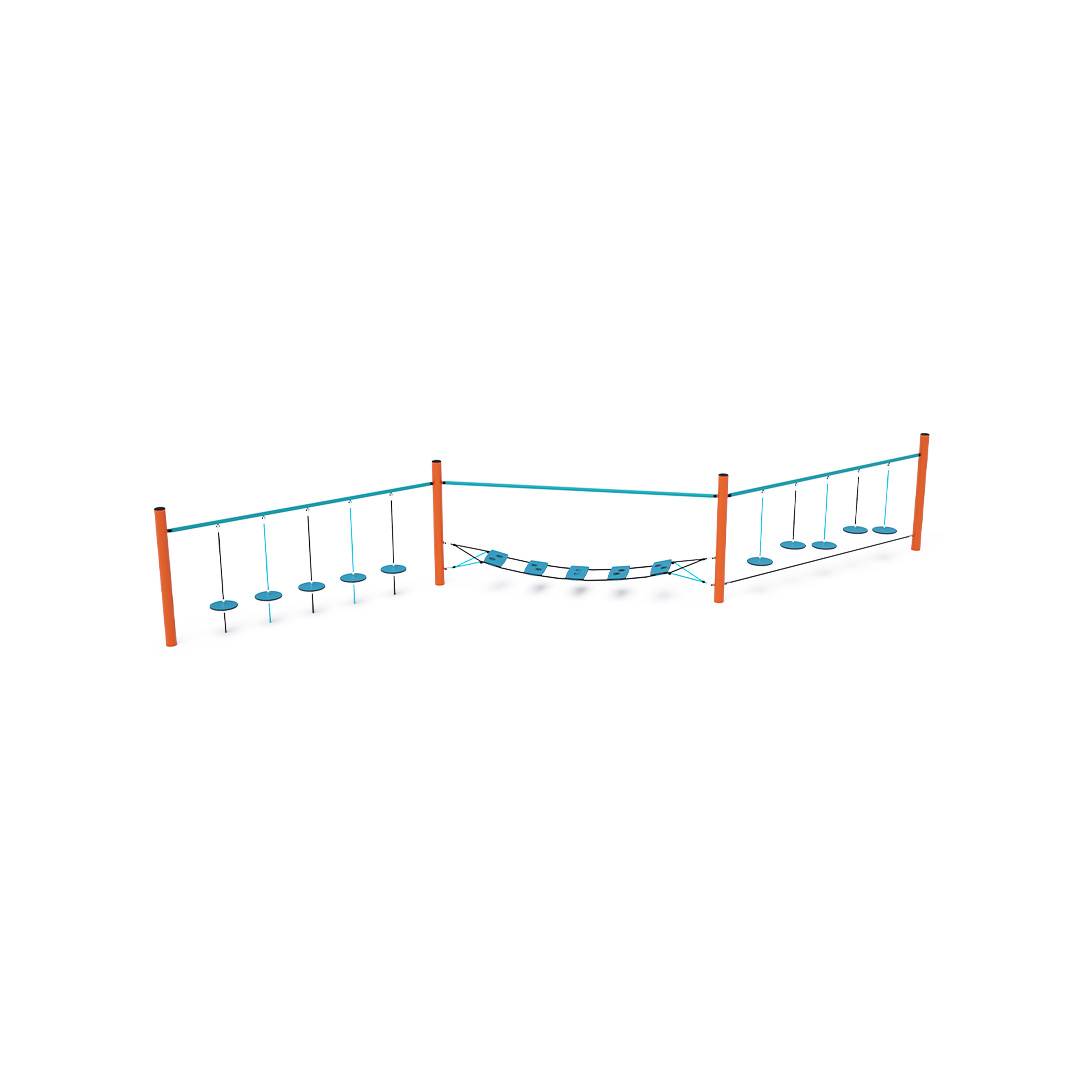

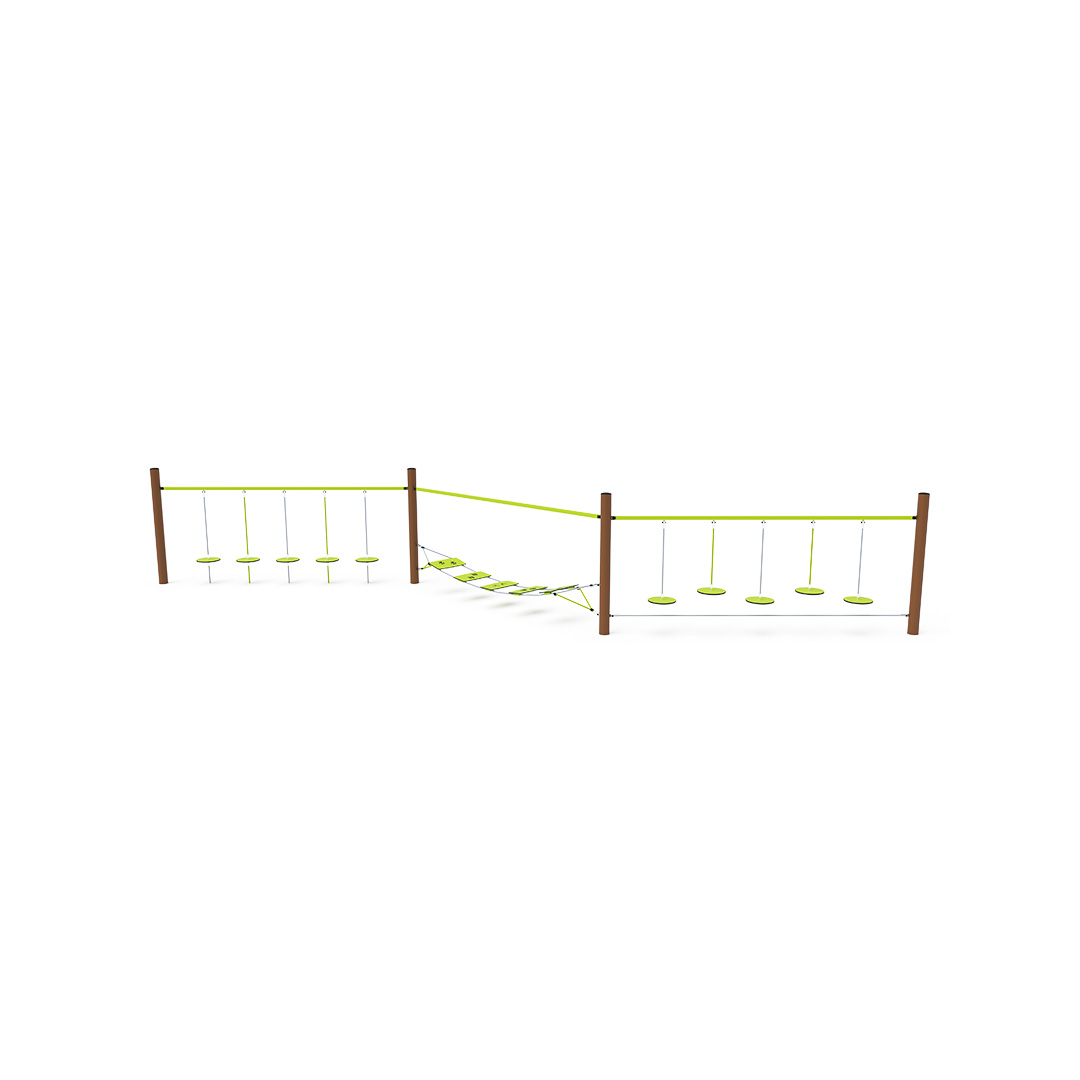

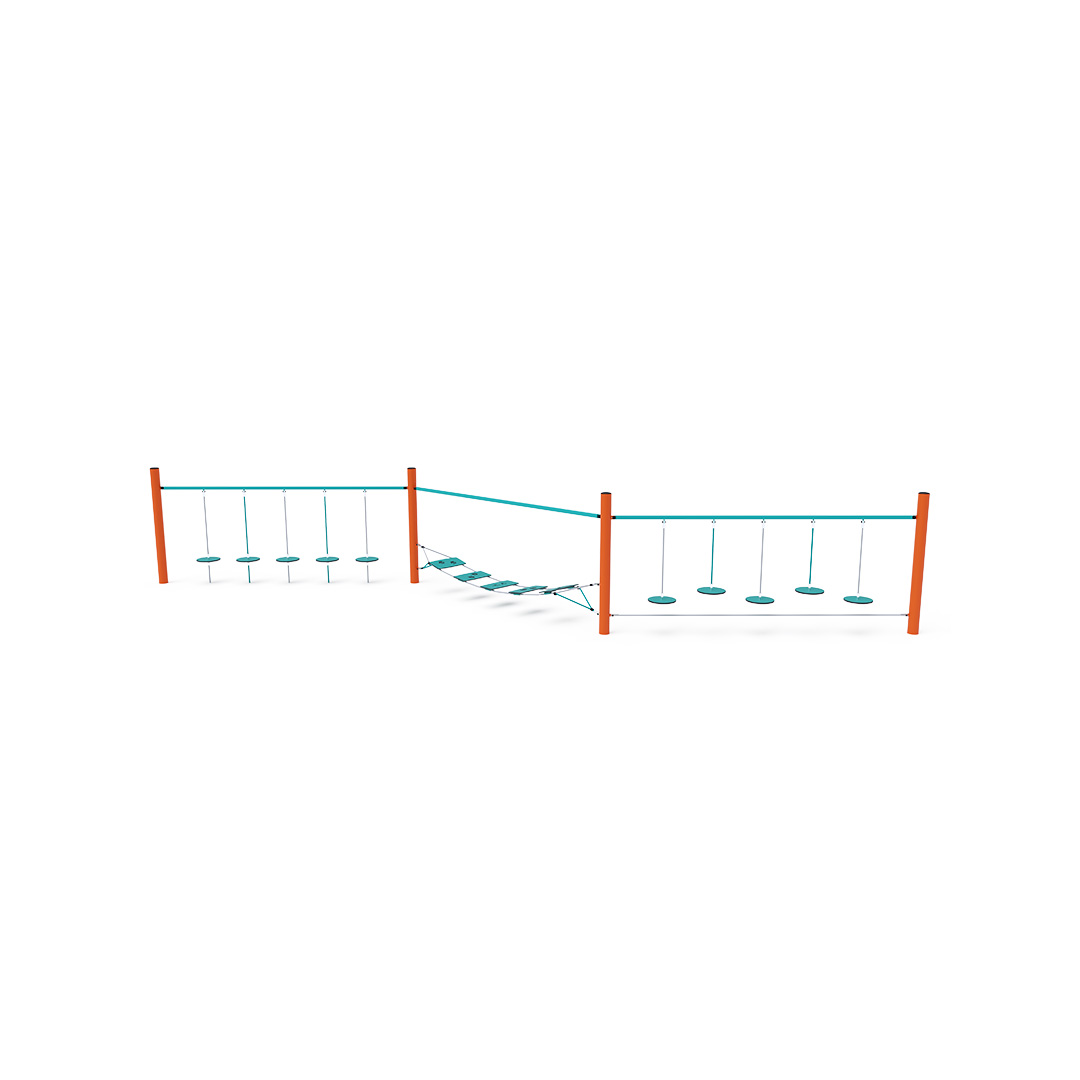

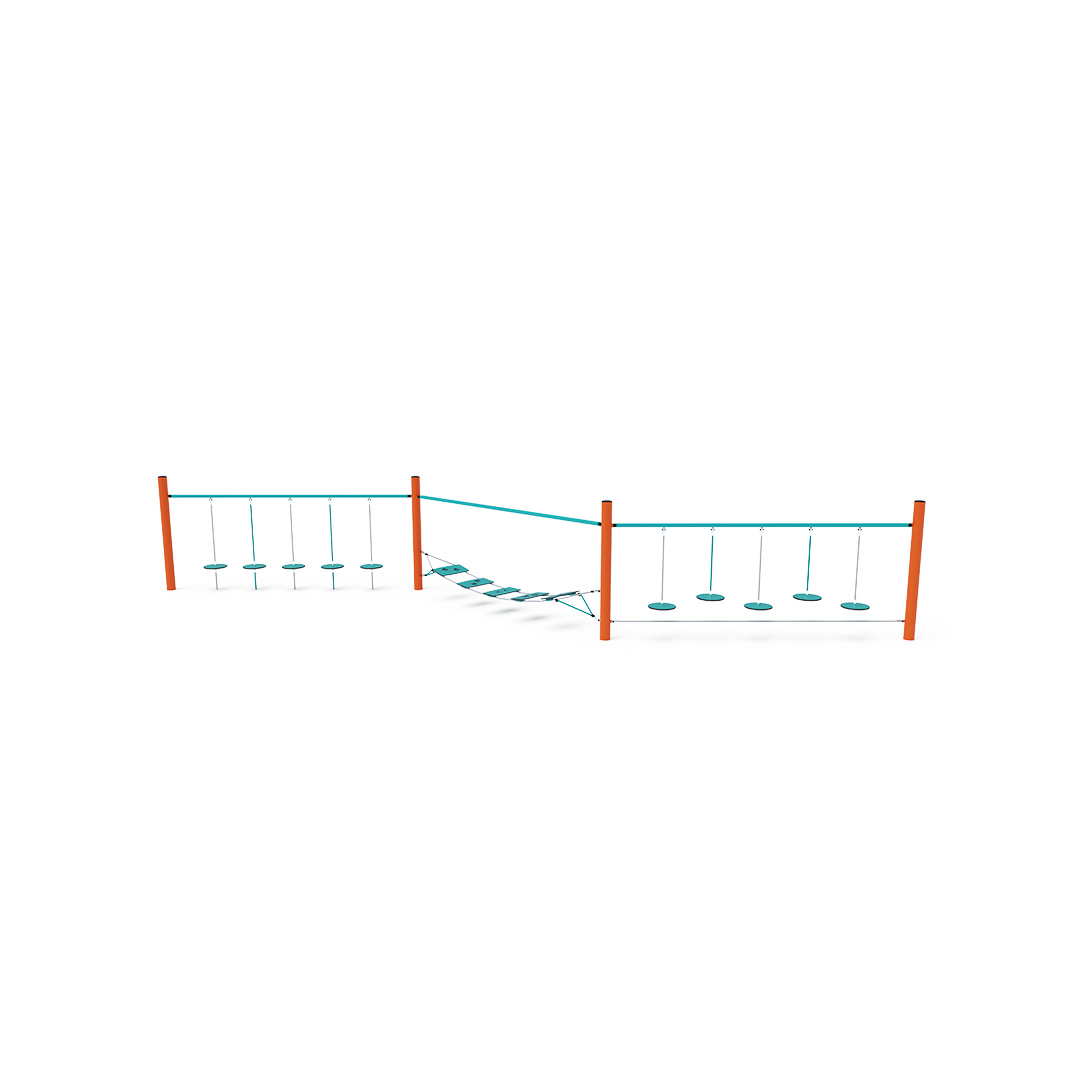

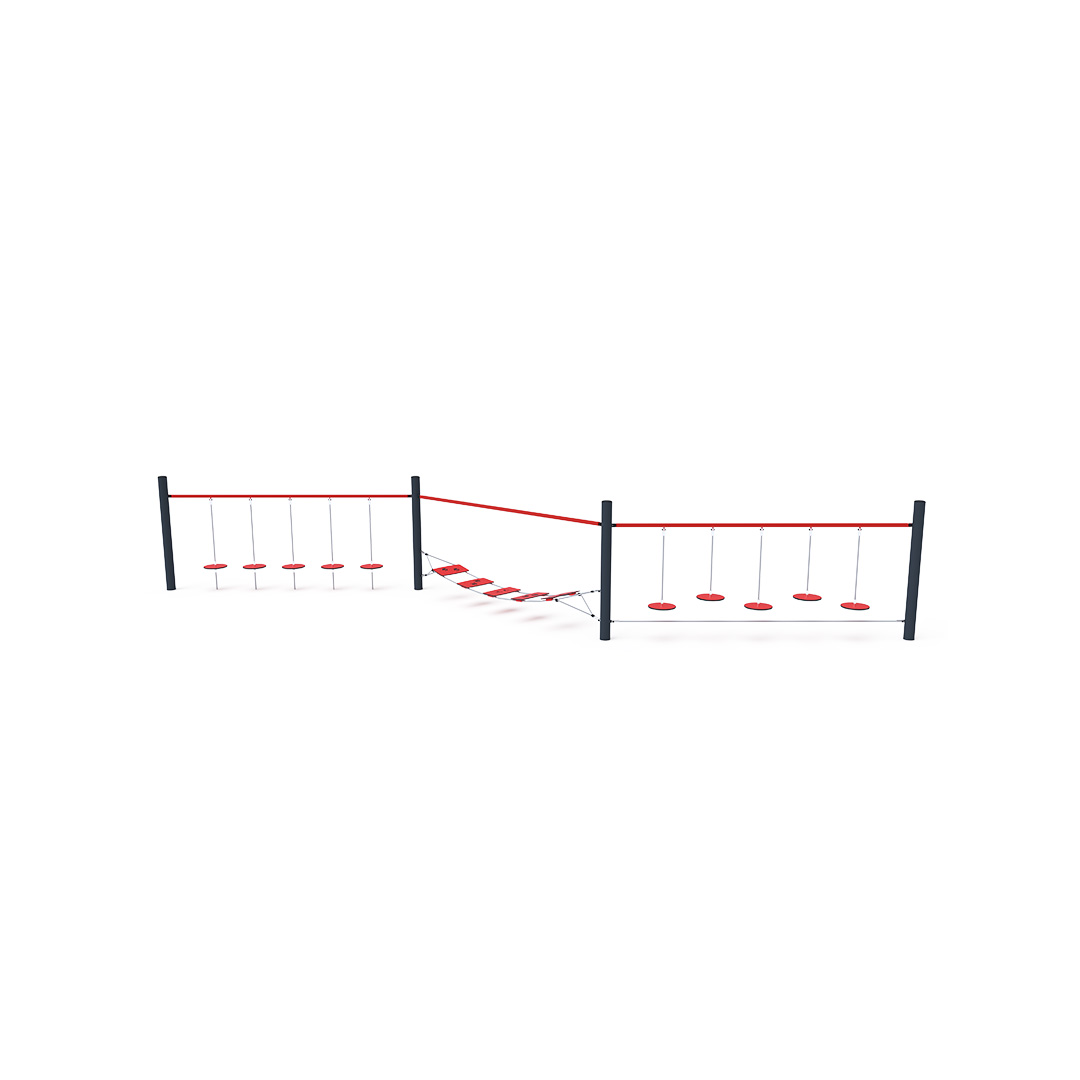

VVZ-OP3-04 Double Monkey Track The monkey track is created by combining three parts. The first part with hanging "stones" tests the ability to concentrate and coordinates the whole body. The second part consists of balancing steps made of HPL, which not only train children's balance but also teach them what tracks different animals leave behind. The third part consists of steps hanging freely, one beside the other. Overcoming this play element is not only fun but also challenging. The play element is made of hot-dip galvanized steel with a high-quality surface finish. The joints are stainless steel and covered with plastic caps to increase safety and durability. The ropes are made from polyester fibers wound around the center. This construction increases the rope’s strength and resistance to mechanical stress. Polyester has many beneficial properties: it is resistant to microorganisms and weather conditions, dries quickly after rain, retains its color, and is highly durable. Specification:The double monkey track VVZ-OP3-04 is certified according to STN EN 1176. Capacity: 6 peoplesAge group: 3 – 14 yearsDimensions: 7,9 × 4,6 × 1,5 mFree fall height: up to 1,0 mImpact area: 11,67 × 5,27 m (in accordance with STN EN 1176-1)Material: Hot-dip galvanized steel, HDPE plastics, polyester ropes, stainless steel fasteners

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

Product color variants:

Orange + Turquoise

More color
options

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 7.92 m

width 4.62 m

height 1.5 m

Designed for exterior use:

Yes

Age category:

from 3 to 14 years

Element capacity:

6 persons

Free fall height:

1.00 m

Protective area:

length 11.67 m

width 5.27 m

area 61.5 m²

Certified according to standard:

STN EN 1176

Show all parameters

VVZ-OP3-04 Double Monkey Track

The monkey track is created by combining three parts. The first part with hanging "stones" tests the ability to concentrate and coordinates the whole body. The second part consists of balancing steps made of HPL, which not only train children's balance but also teach them what tracks different animals leave behind. The third part consists of steps hanging freely, one beside the other. Overcoming this play element is not only fun but also challenging.

The play element is made of hot-dip galvanized steel with a high-quality surface finish. The joints are stainless steel and covered with plastic caps to increase safety and durability. The ropes are made from polyester fibers wound around the center. This construction increases the rope’s strength and resistance to mechanical stress. Polyester has many beneficial properties: it is resistant to microorganisms and weather conditions, dries quickly after rain, retains its color, and is highly durable.

Specification:
The double monkey track VVZ-OP3-04 is certified according to STN EN 1176.

Capacity: 6 peoples
Age group: 3 – 14 years
Dimensions: 7,9 × 4,6 × 1,5 m
Free fall height: up to 1,0 m
Impact area: 11,67 × 5,27 m (in accordance with STN EN 1176-1)
Material: Hot-dip galvanized steel, HDPE plastics, polyester ropes, stainless steel fasteners

Documents for download:

Certificate

PDF download

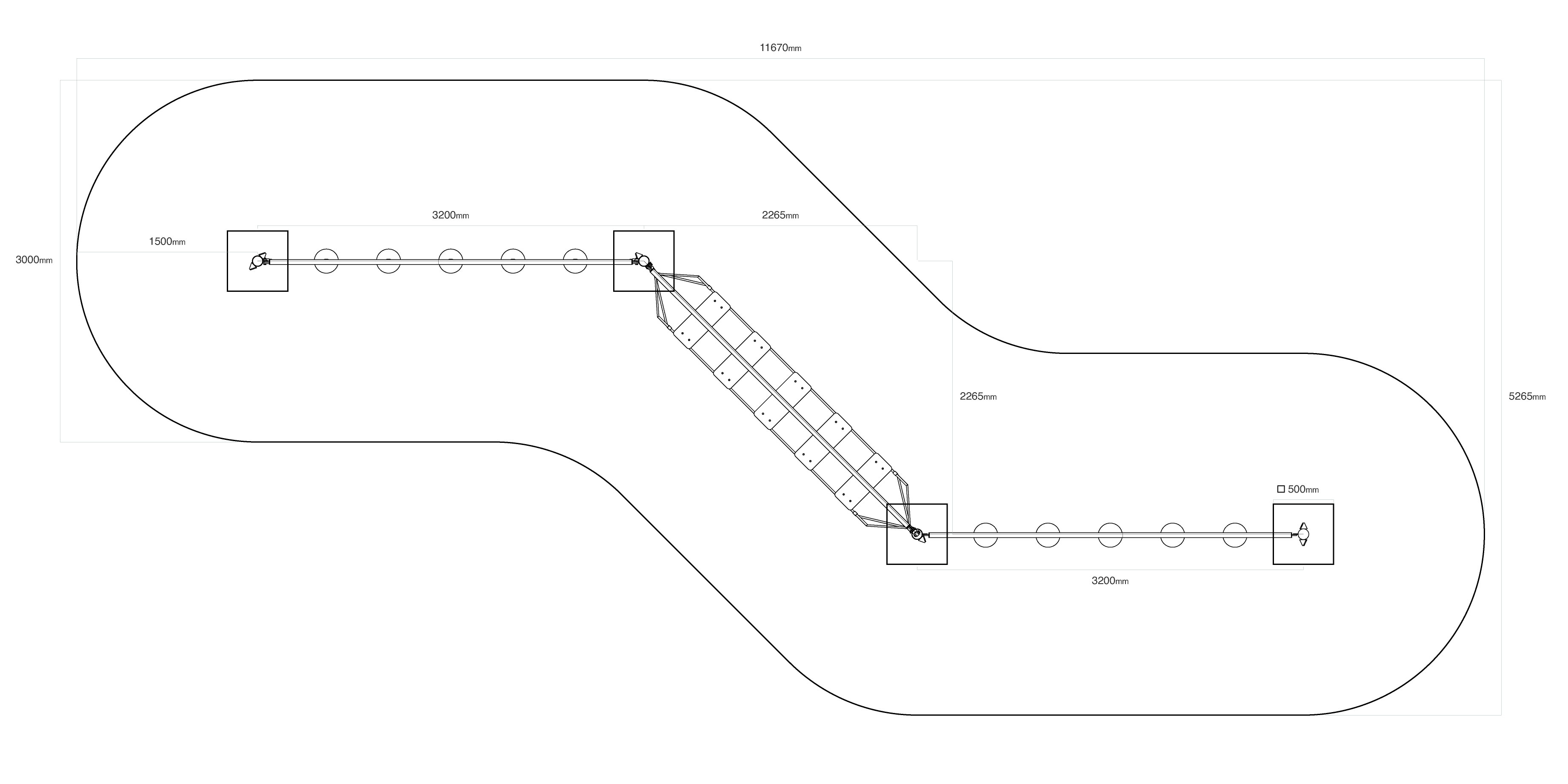

Impact area

Image to download

DWG file

DWG for download

You must log in to view locked files

HPL - High Pressure Laminates

HPL - high-pressure laminate has high resistance to mechanical damage and abrasion, easy maintenance and is suitable for exteriors and extremely stressed areas. They are produced in stacking presses using high pressure and at high temperatures.

Climbing

Climbing and mountaineering are basic human activities that evolved from survival needs and are now popular sports and recreational activities. Climbing and mountaineering are great for physical fitness, promoting overall strength, improving coordination and mental resilience.
