Tunnel structure - Beehive VVZ-TU002

VVZ-TU002 Tunnel Structure - Beehive The play element featuring a beehive design with a plastic tunnel is our medium-sized version in this series of play structures. The play set consists of two tunnels connected by a rope tunnel. Its thematic design fosters children's imagination.The front and back graphic panels are made of HPL (High Pressure Laminate) material, ensuring long lifespan, color stability, and safety. HPL material is eco-friendly, chemically resistant, UV-resistant, non-toxic, recyclable, and non-breakable. This eliminates the risk of children getting injured by sharp edges or fragments.The ropes are made from polyester fibers wound around a central core. This rope construction enhances its strength and resistance to mechanical stress. Polyester itself has many positive properties: it is resistant to microorganisms and weather conditions, dries quickly after rain, maintains color stability, and is very strong.Connectors are made of stainless steel. Specification Tunnel Structure - Beehive TU002 is certified according to the STN EN 1176 standard. Age category: 3 - 14 years Capacity: 3 persons Dimensions of the element: 3,2 × 1,0 × 1,0 m Free fall height: up to 0,8 m Impact area: 6,1 × 4,0 m (as per STN EN 1177) Material: galvanized and powder-coated steelHPL material, stainless steel connectors

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

Product color variants:

More color
options

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 3.8 m

width 1 m

height 1 m

Designed for exterior use:

Yes

Age category:

from 3 to 14 years

Element capacity:

3 persons

Free fall height:

0.80 m

Protective area:

length 6.1 m

width 4 m

area 24.4 m²

Certified according to standard:

STN EN 1176

Show all parameters

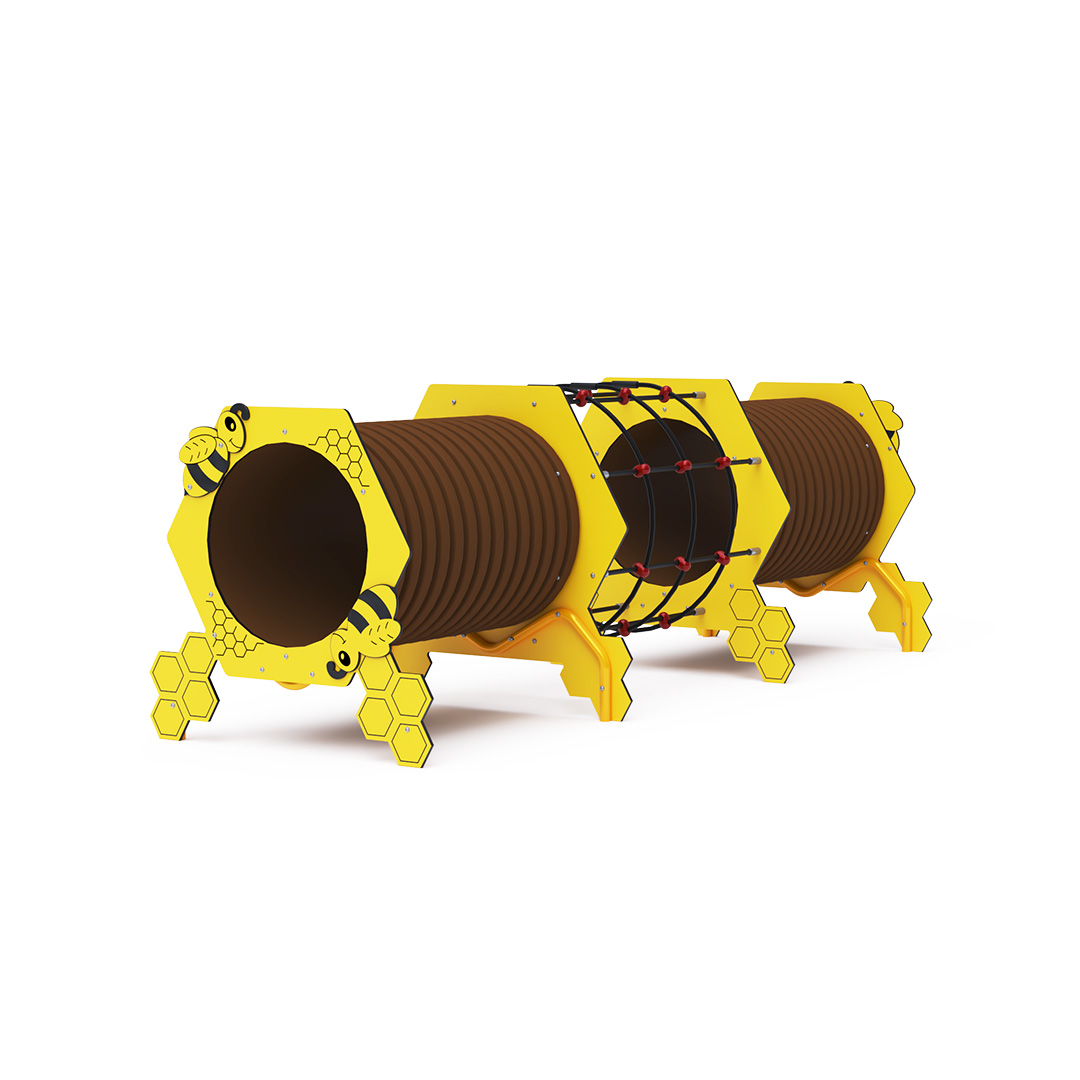

VVZ-TU002 Tunnel Structure - Beehive

The play element featuring a beehive design with a plastic tunnel is our medium-sized version in this series of play structures. The play set consists of two tunnels connected by a rope tunnel. Its thematic design fosters children's imagination.The front and back graphic panels are made of HPL (High Pressure Laminate) material, ensuring long lifespan, color stability, and safety. HPL material is eco-friendly, chemically resistant, UV-resistant, non-toxic, recyclable, and non-breakable. This eliminates the risk of children getting injured by sharp edges or fragments.The ropes are made from polyester fibers wound around a central core. This rope construction enhances its strength and resistance to mechanical stress. Polyester itself has many positive properties: it is resistant to microorganisms and weather conditions, dries quickly after rain, maintains color stability, and is very strong.Connectors are made of stainless steel.

Specification

Tunnel Structure - Beehive TU002 is certified according to the STN EN 1176 standard.

Age category: 3 - 14 years
Capacity: 3 persons
Dimensions of the element: 3,2 × 1,0 × 1,0 m
Free fall height: up to 0,8 m
Impact area: 6,1 × 4,0 m (as per STN EN 1177)
Material: galvanized and powder-coated steelHPL material, stainless steel connectors

Documents for download:

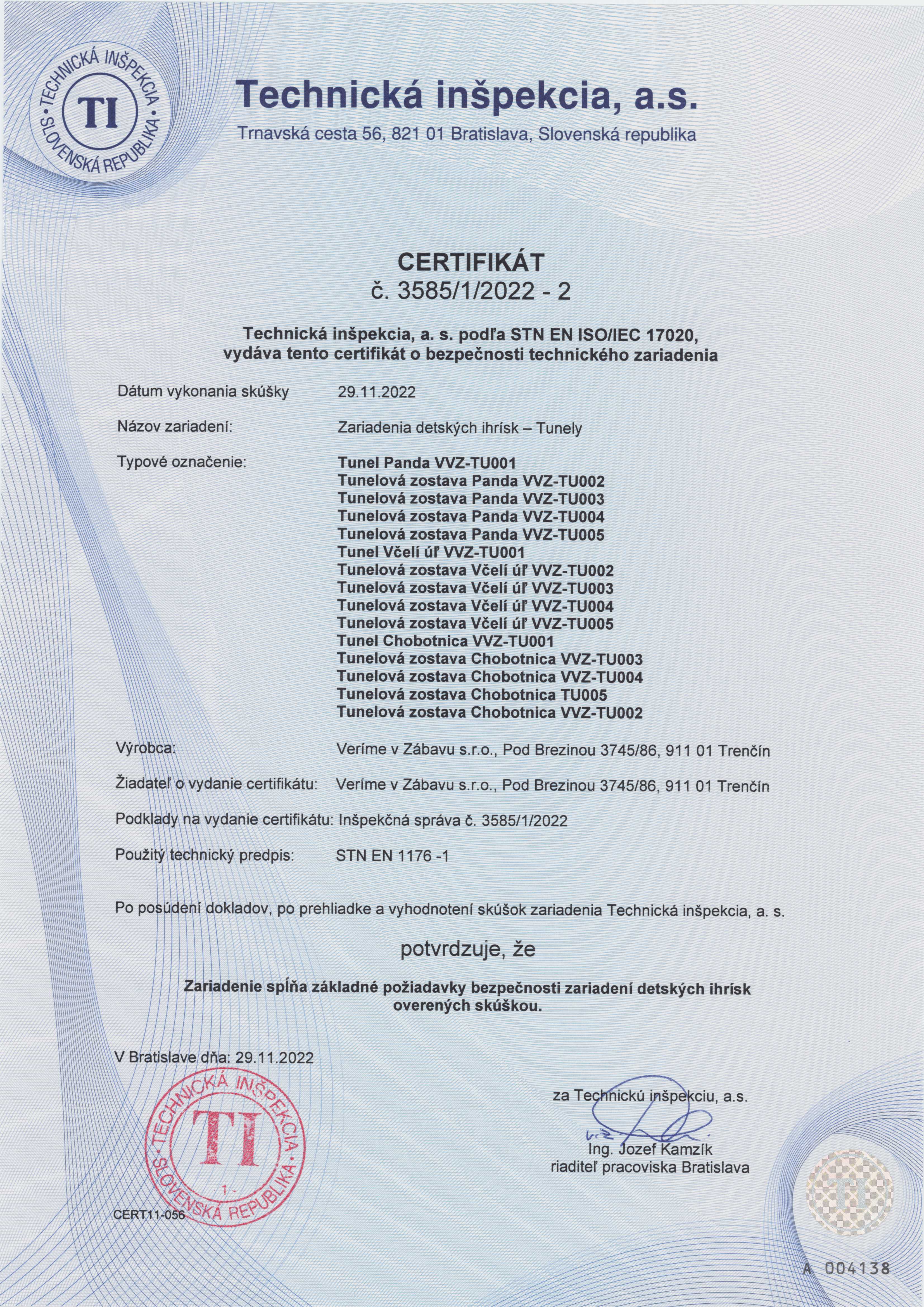

Certificate

Image to download

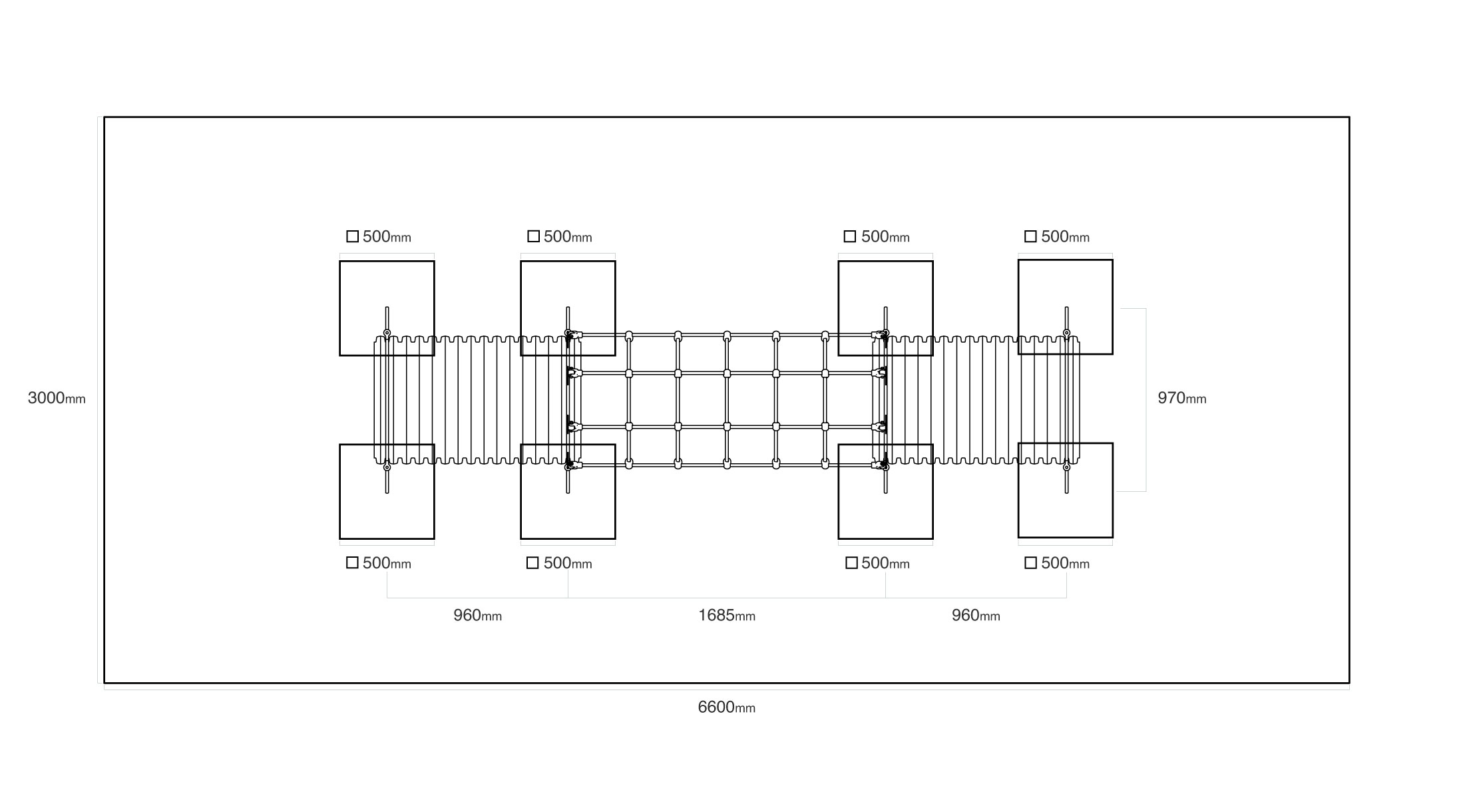

Impact area

Image to download

DWG file

DWG for download

You must log in to view locked files

HPL - High Pressure Laminates

HPL - high-pressure laminate has high resistance to mechanical damage and abrasion, easy maintenance and is suitable for exteriors and extremely stressed areas. They are produced in stacking presses using high pressure and at high temperatures.

Climbing

Climbing and mountaineering are basic human activities that evolved from survival needs and are now popular sports and recreational activities. Climbing and mountaineering are great for physical fitness, promoting overall strength, improving coordination and mental resilience.

1-piece tunnels

2-piece tunnels

3-piece tunnels

Other tunnel assemblies

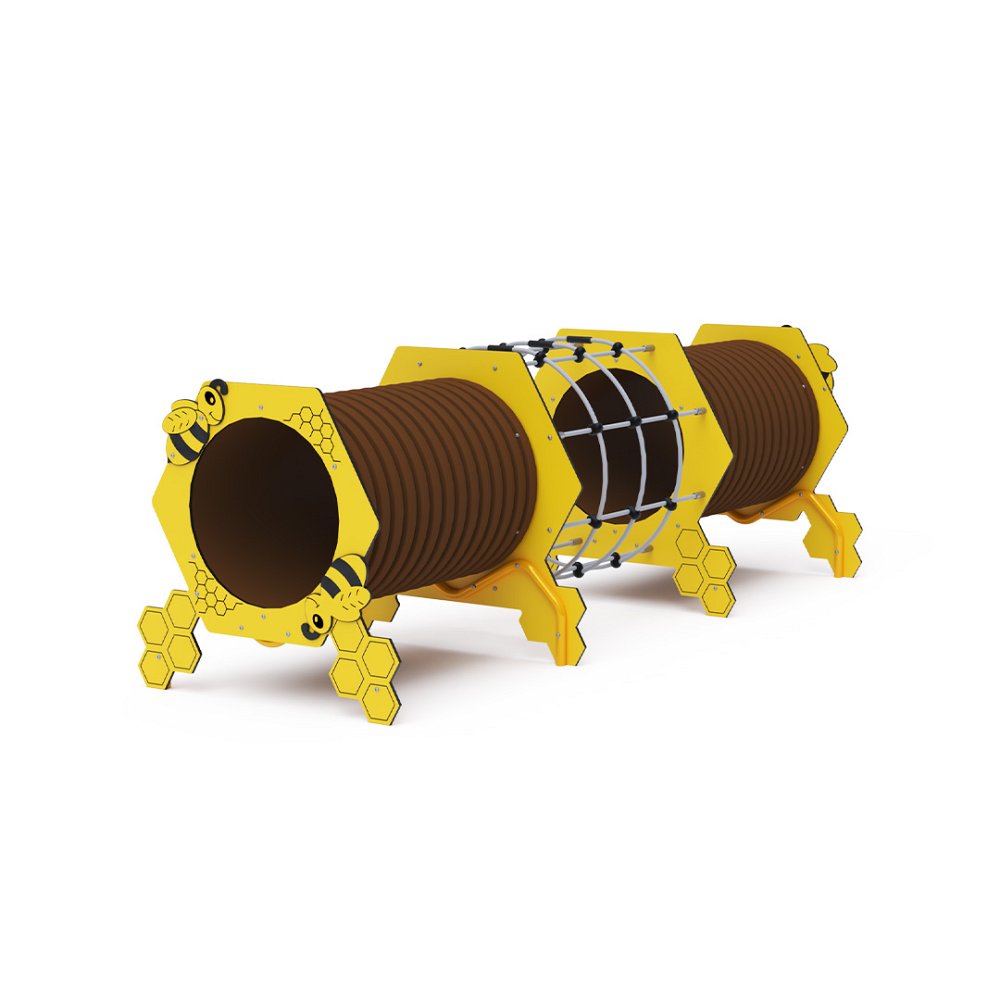

Tunnel structure - Beehive VVZ-TU002

Add to cart

Frequently asked questions

Can you arrange transportation to my place?

Yes, we provide transportation in Central Europe.

Will I be able to install the game elements, workout and fitness myself?

Each element in our offer is also available with installation, but if you are interested and want to save money, we can provide you with a drawing of the foundations and assembly so that you can install the elements yourself.

Are your elements certified?

All of our items in the offer have been inspected by the Technical Inspection a.s., according to the relevant standard, as evidenced by the certificates that you can find on the website for each product. Although all of our products are approved by the Technical Inspection a.s., the strictest inspectors for us are those who set out on a journey for fun - and it's not just children.

Who makes all this for you?

Our products are designed, developed, tested and manufactured in our hall in Trenčín.

What is the delivery time of the order?

Standard delivery time is 4 to 6 weeks from order placement.
