Steel gymcenter VVZ-GYM005

Products catalog

Maintenance-free playgrounds

Gym-centers

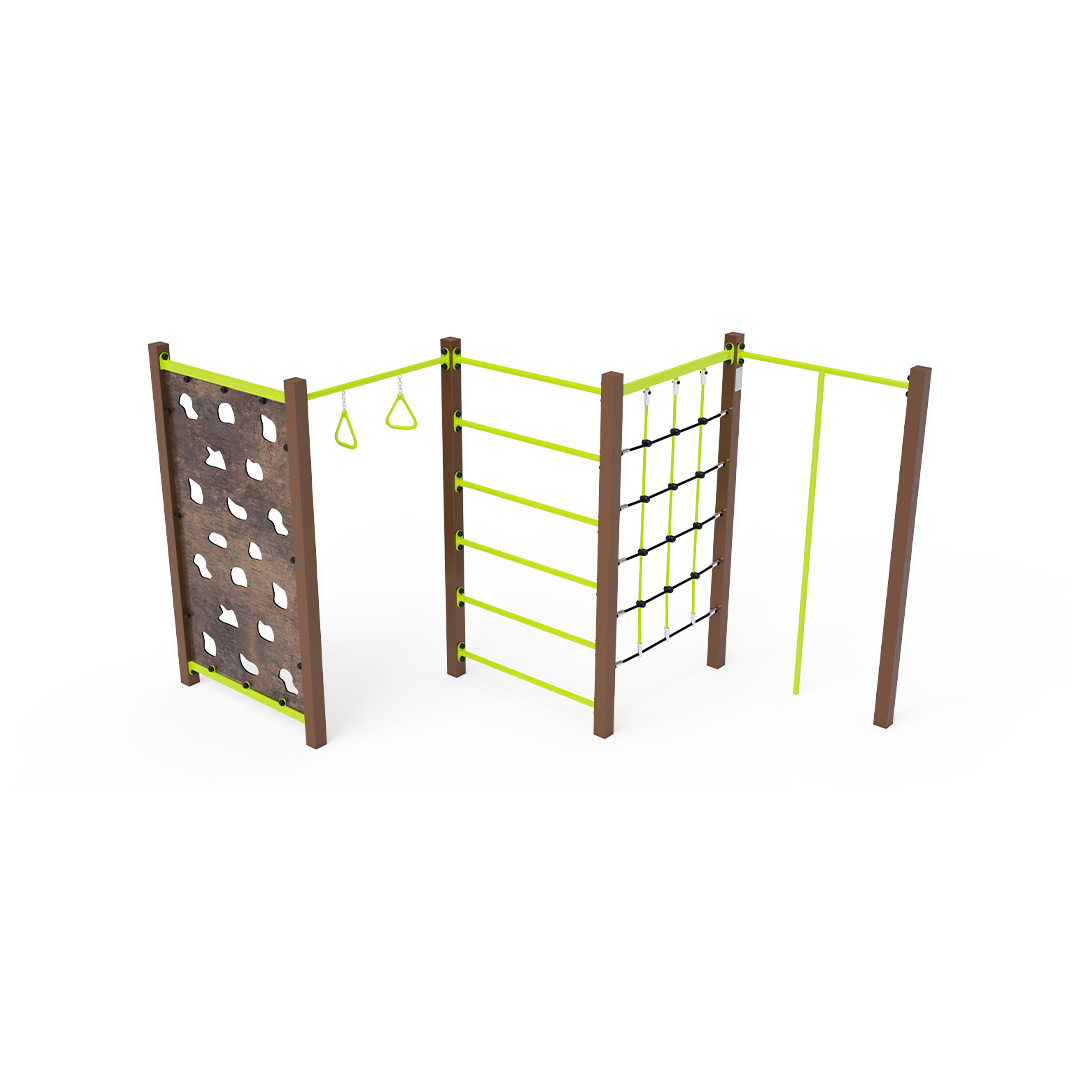

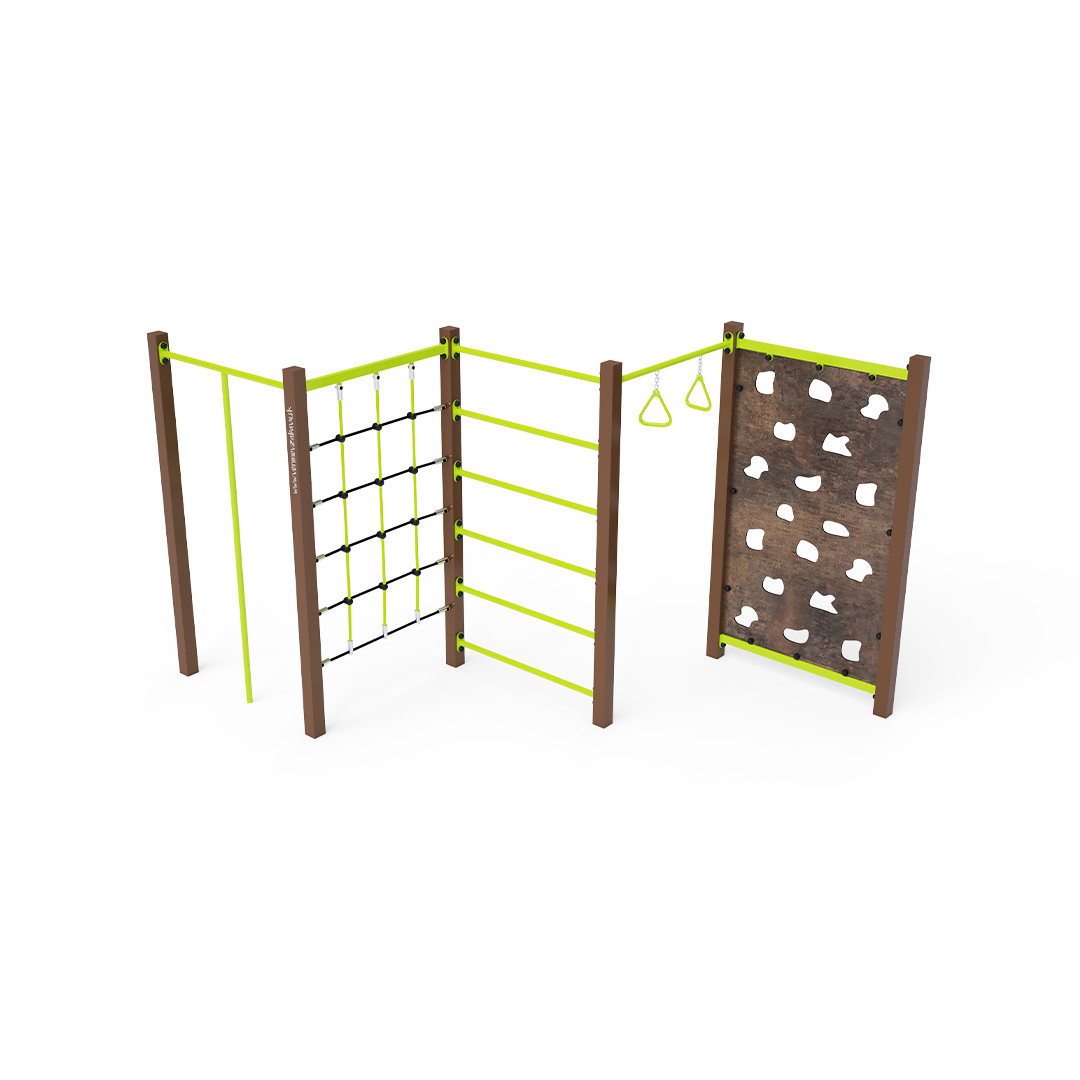

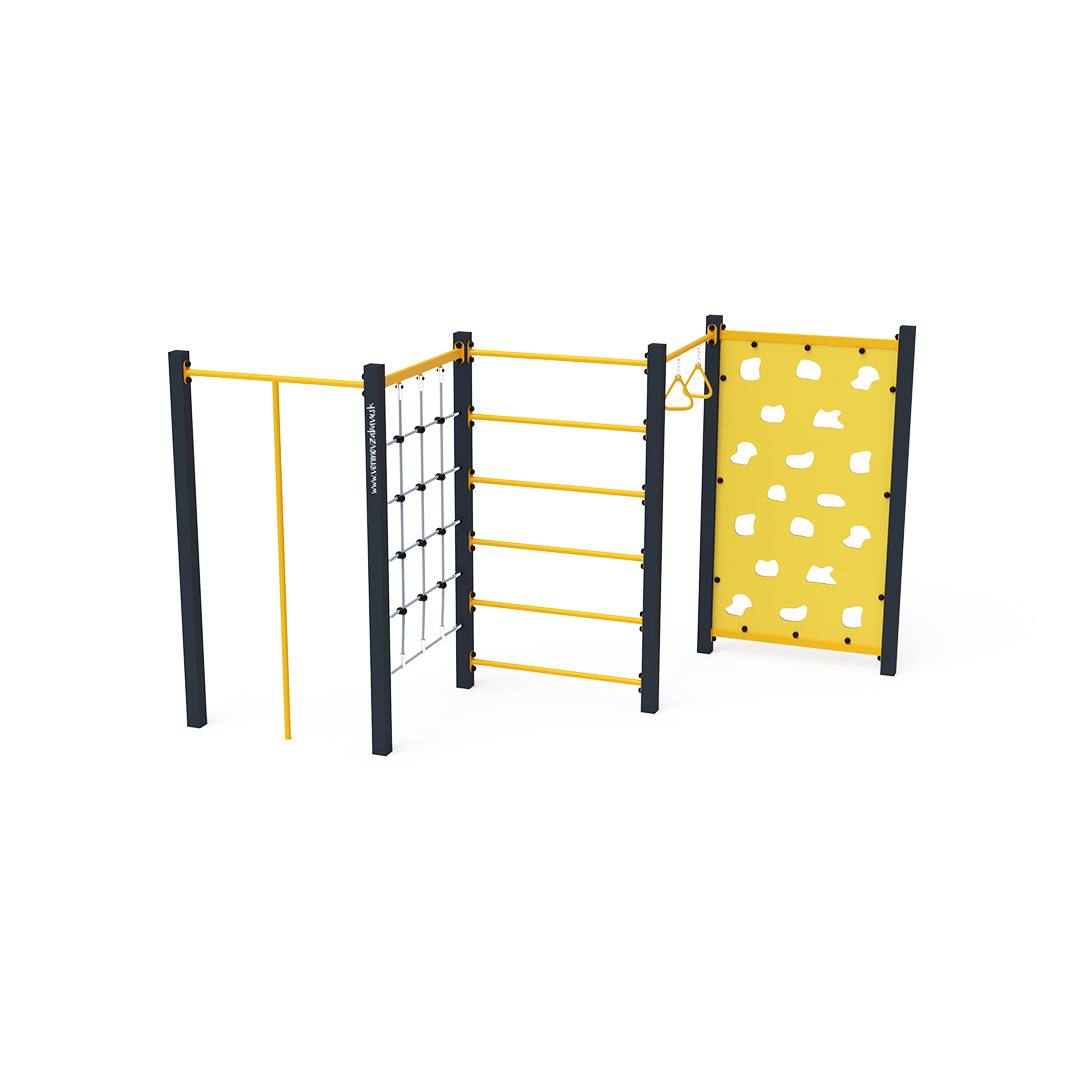

VVZ-GYM005 Steel Gymcenter Steel gymcenter composed of five different segments - climbing bar, climbing rope net, ladder, handle rings, and climbing wall with holds. The play element is made of hot-dip galvanized steel with a quality surface finish, joints are stainless steel and covered with plastic caps for increased safety and longevity of connections. Ropes are made of polyester fibers wound around the core, enhancing its strength and resistance to mechanical stress. Polyester itself has many positive attributes: it's resistant to microorganisms, weather conditions, dries quickly after rain, is colorfast, and characterized by high durability. The gymcenter VVZ-GYM005 is certified according to the STN EN 1176 standard.The play set is anchored to the ground by embedding the structure into concrete footings measuring 50x50x50 cm. Specifications Steel Gymcenter VVZ-GYM005 is certified according to STN EN 1176. Age Category: 3 - 14 years Capacity: 5 persons Element Dimensions: 2,36 × 3,57 × 2,1 m Free Fall Height: up to 2.0 m, impact area required. Using a grass reinforcement mat is recommended as the impact surface. Impact Area: 6,16 × 7,37 m (as per STN EN 1177) Material: hot-dip galvanized steel, polyester ropes, HPL material, stainless steel connectors

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

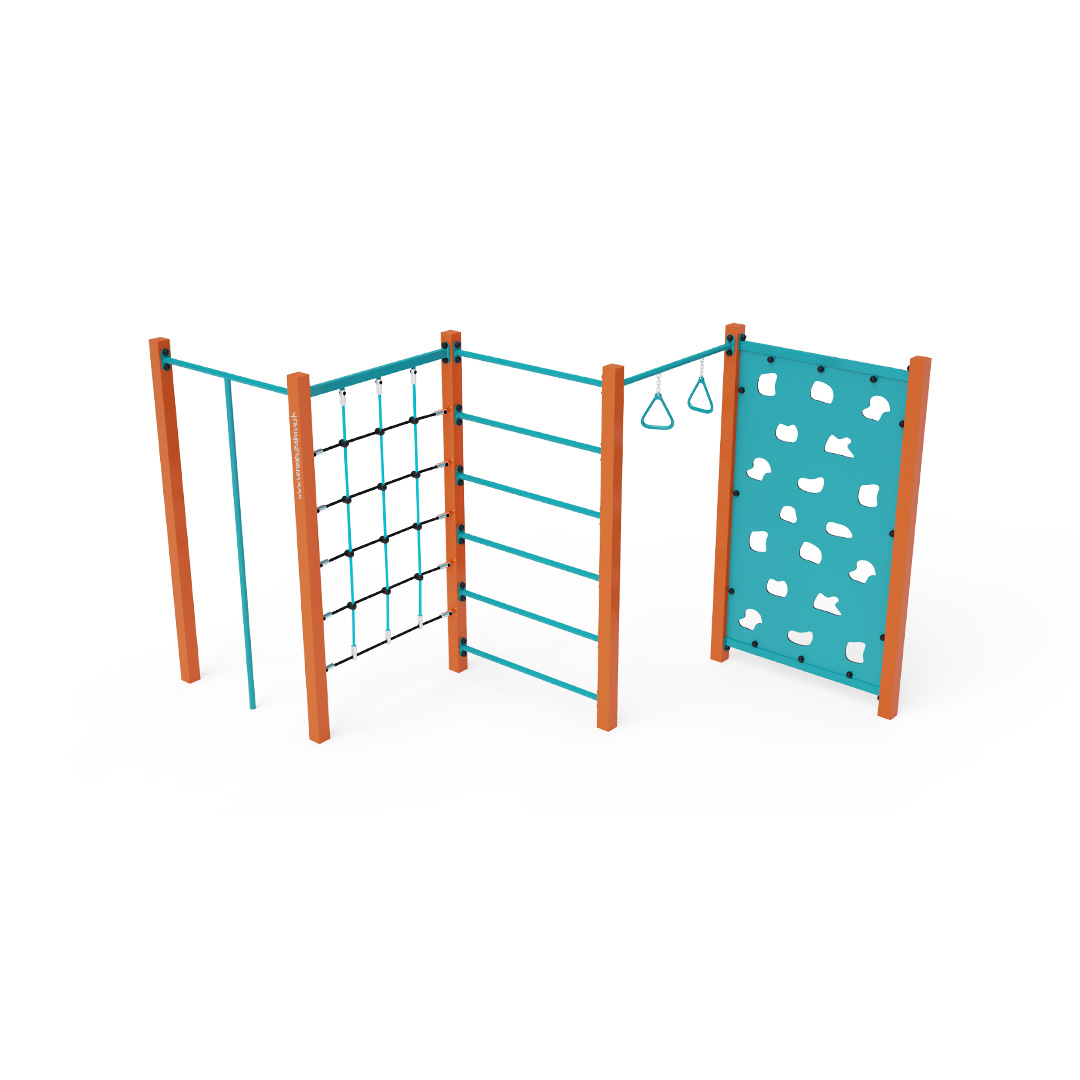

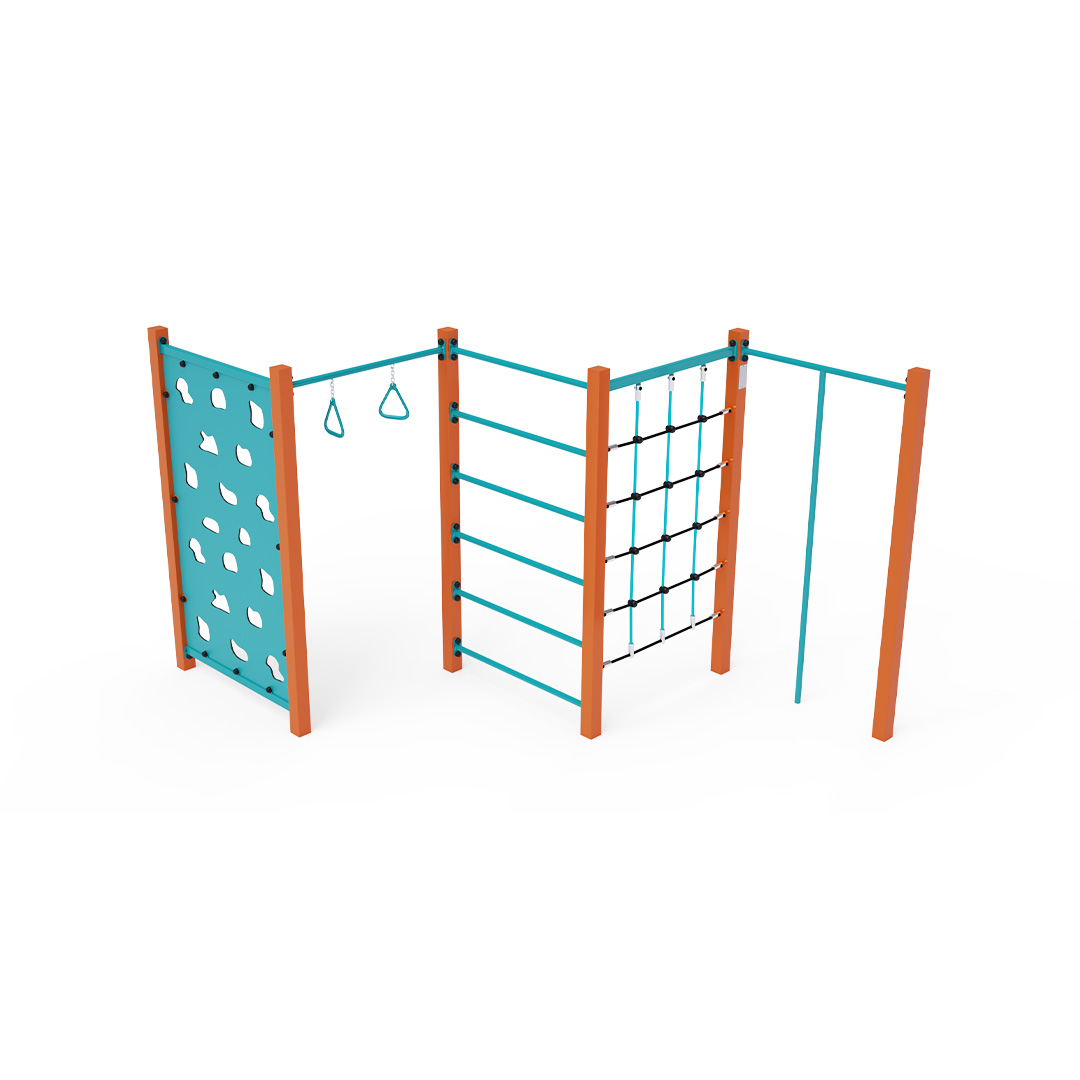

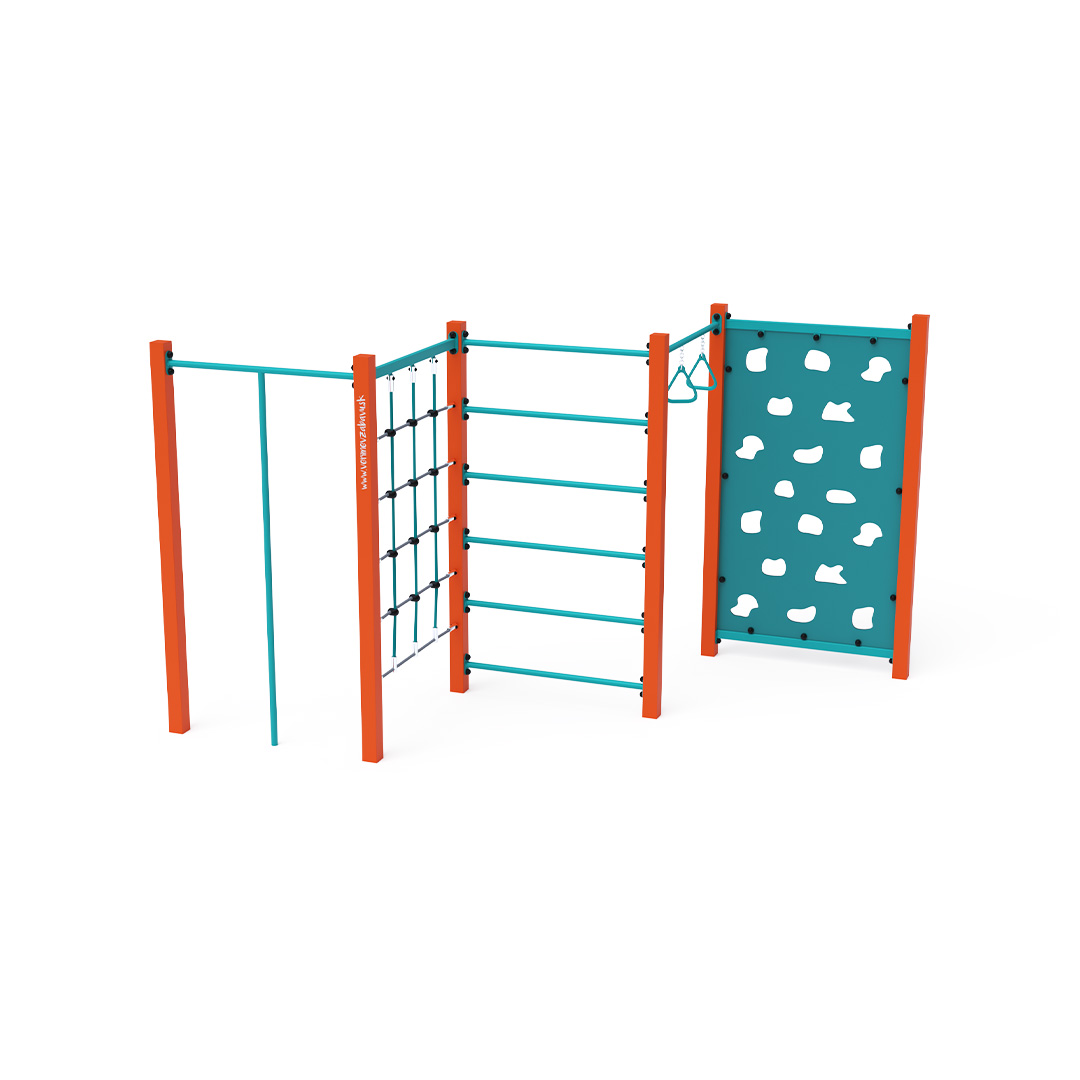

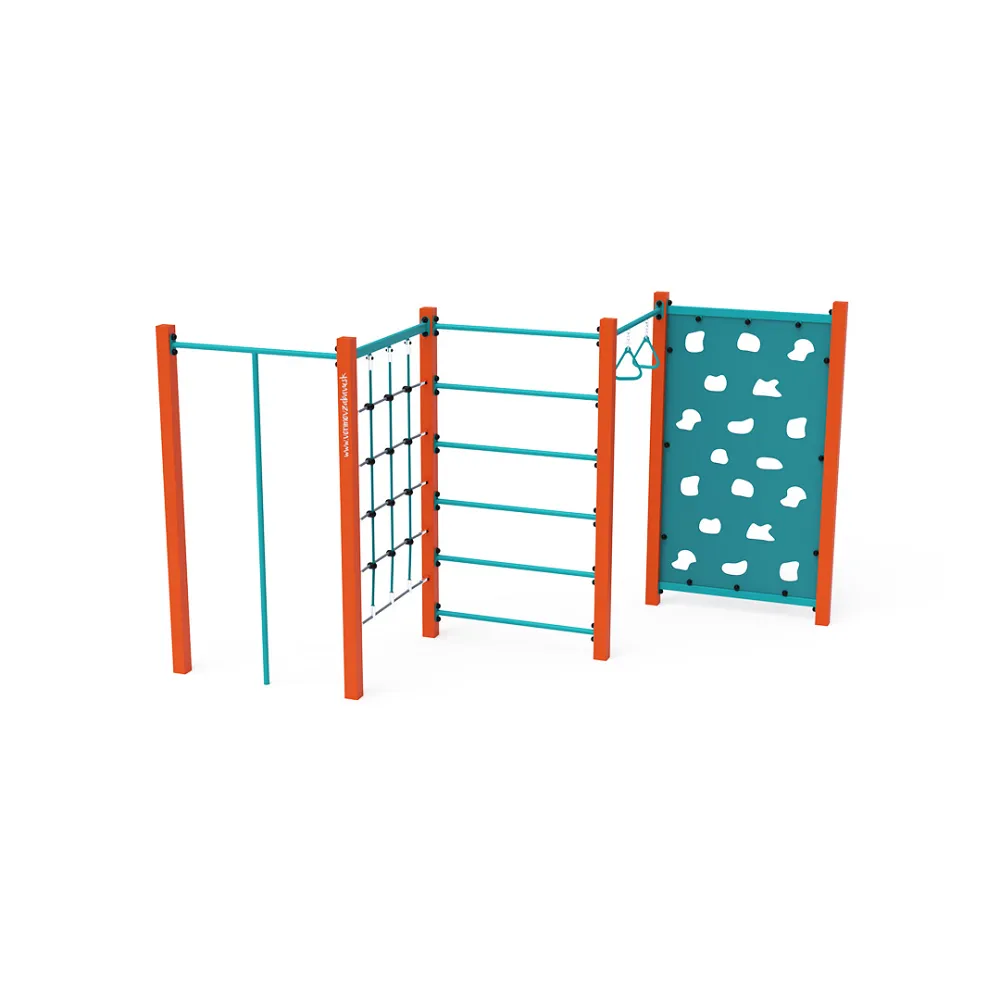

Product color variants:

Orange + Turquoise

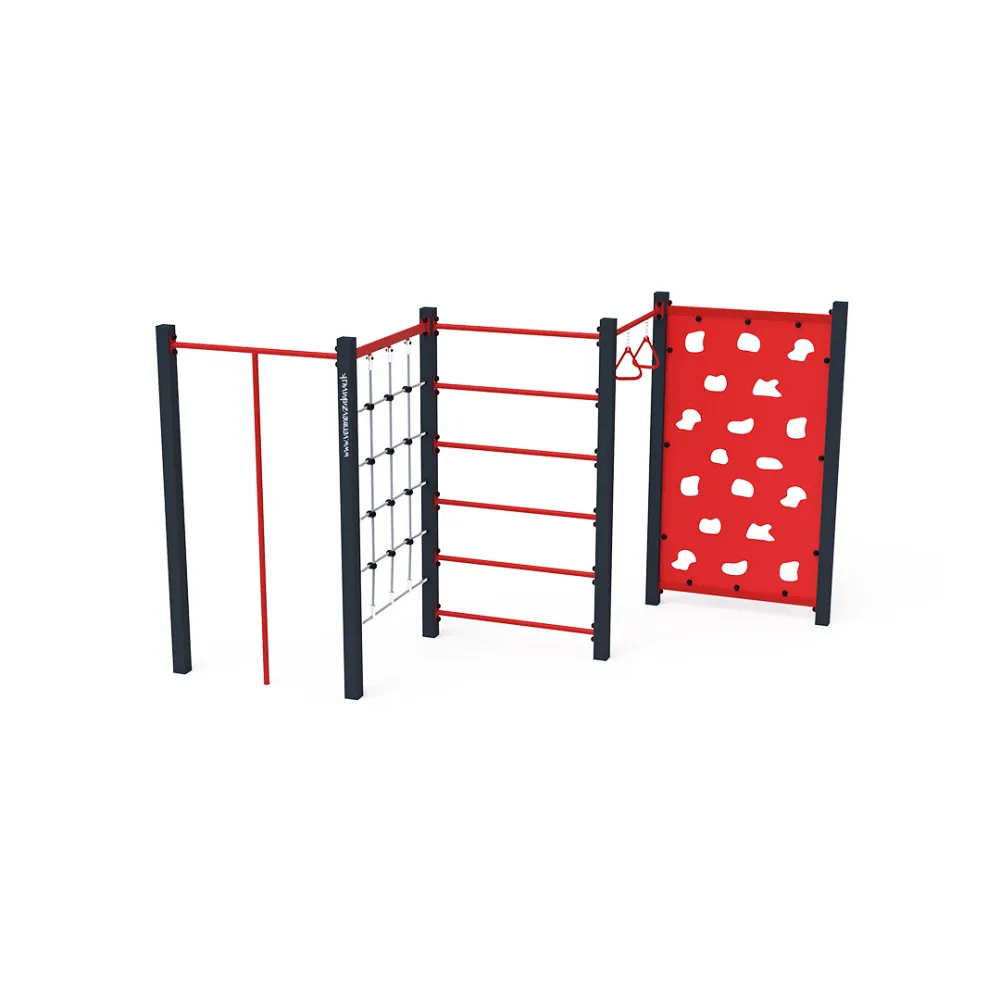

More color
options

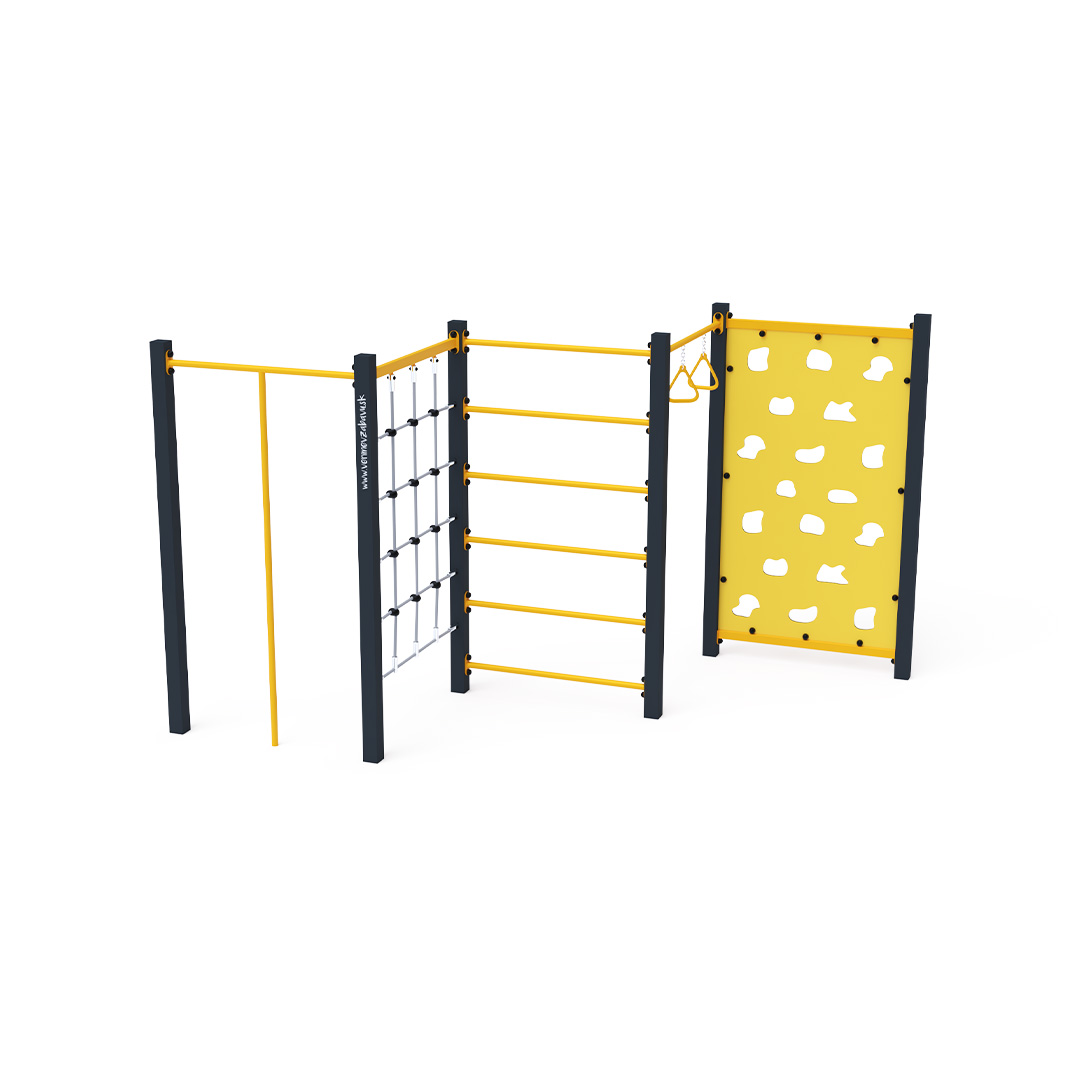

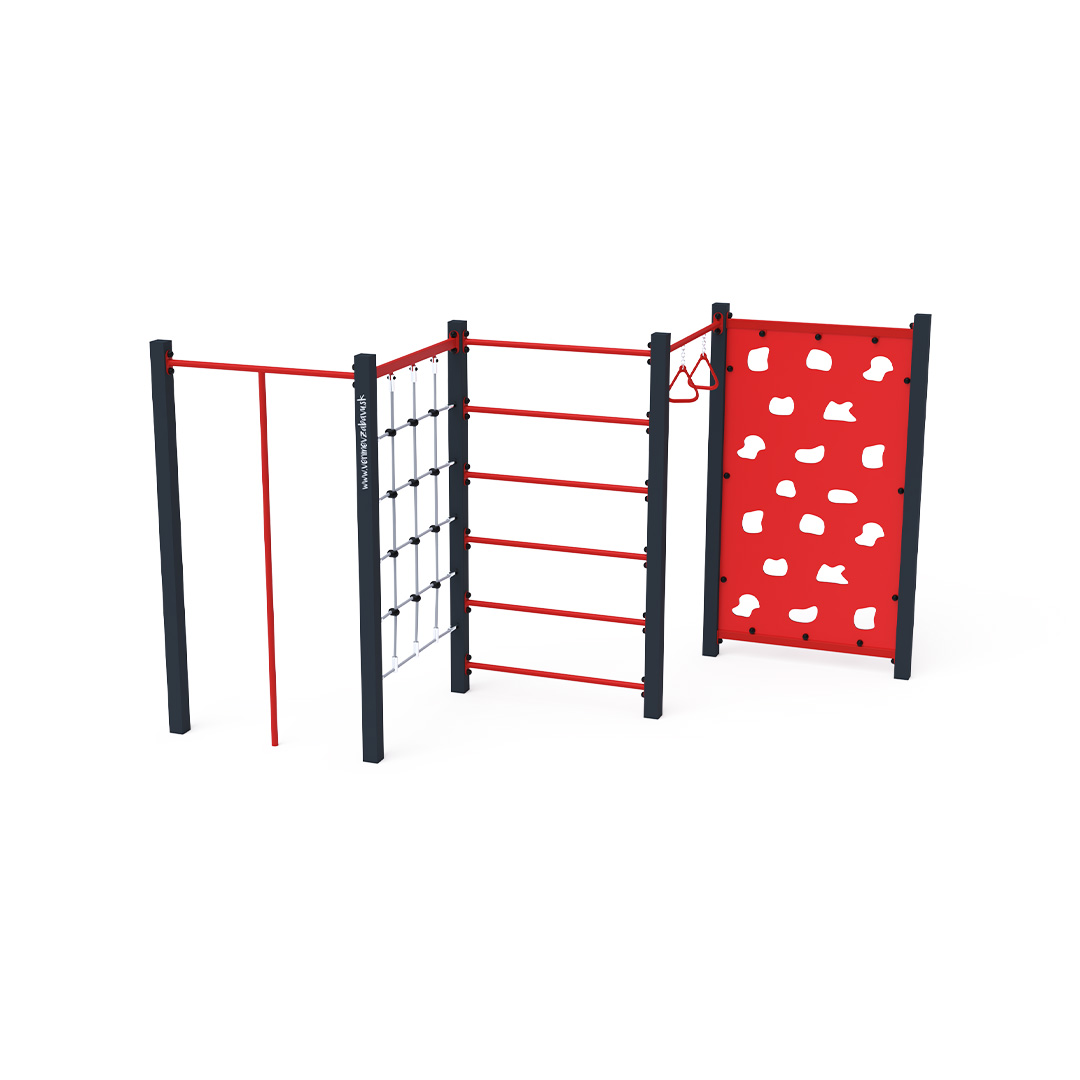

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 2.36 m

width 3.57 m

height 2.1 m

Designed for exterior use:

Yes

Age category:

from 3 to 14 years

Element capacity:

5 persons

Free fall height:

2.00 m

Protective area:

length 6.16 m

width 7.37 m

area 52.26 m²

Certified according to standard:

STN EN 1176

Show all parameters

VVZ-GYM005 Steel Gymcenter

Steel gymcenter composed of five different segments - climbing bar, climbing rope net, ladder, handle rings, and climbing wall with holds. The play element is made of hot-dip galvanized steel with a quality surface finish, joints are stainless steel and covered with plastic caps for increased safety and longevity of connections. Ropes are made of polyester fibers wound around the core, enhancing its strength and resistance to mechanical stress. Polyester itself has many positive attributes: it's resistant to microorganisms, weather conditions, dries quickly after rain, is colorfast, and characterized by high durability. The gymcenter VVZ-GYM005 is certified according to the STN EN 1176 standard.The play set is anchored to the ground by embedding the structure into concrete footings measuring 50x50x50 cm.

Specifications

Steel Gymcenter VVZ-GYM005 is certified according to STN EN 1176.

Age Category: 3 - 14 years
Capacity: 5 persons
Element Dimensions: 2,36 × 3,57 × 2,1 m
Free Fall Height: up to 2.0 m, impact area required. Using a grass reinforcement mat is recommended as the impact surface.
Impact Area: 6,16 × 7,37 m (as per STN EN 1177)
Material: hot-dip galvanized steel, polyester ropes, HPL material, stainless steel connectors

Our implementations with this product:

Documents for download:

Certificate

PDF download

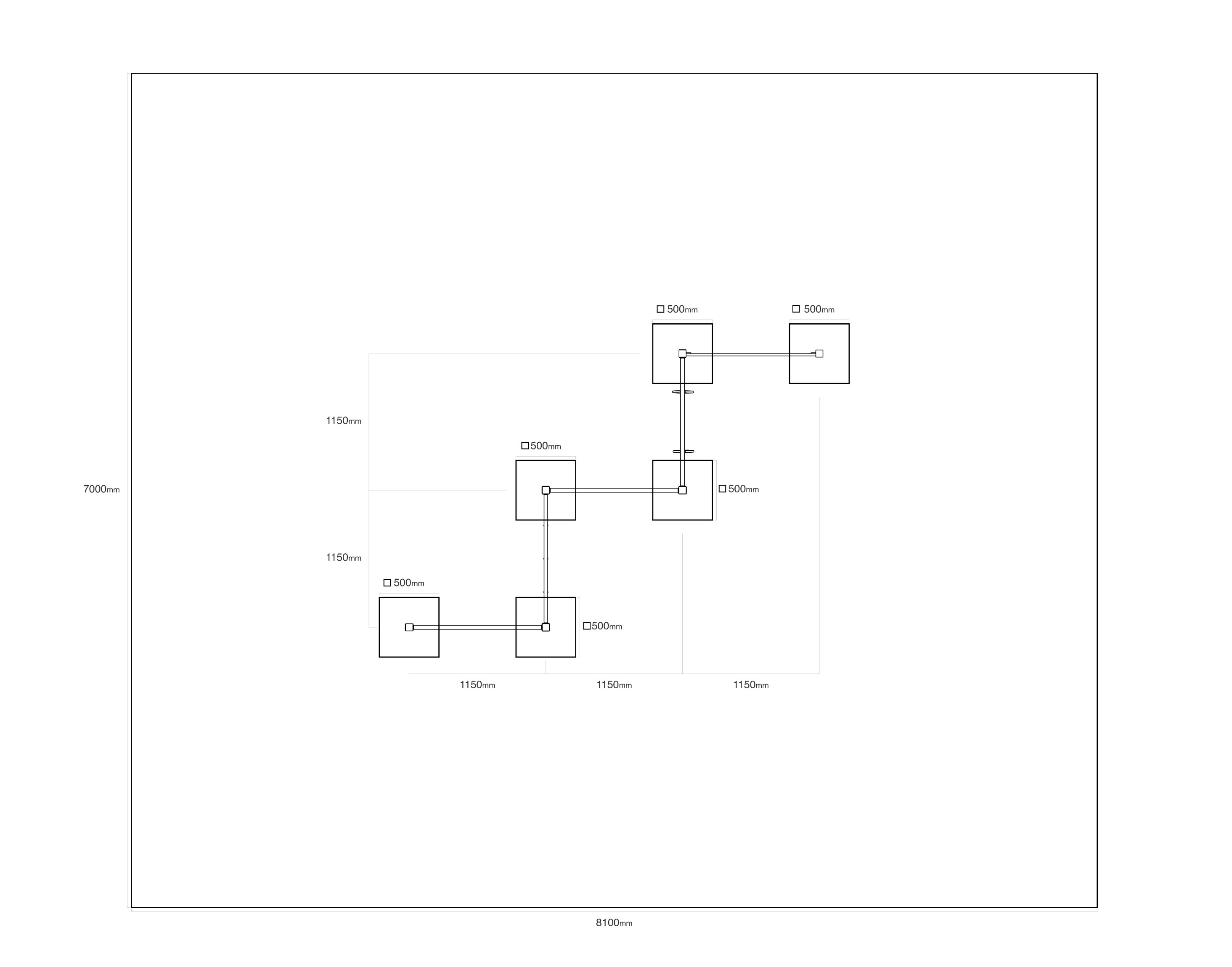

Impact area

Image to download

DWG file

DWG for download

You must log in to view locked files

HPL - High Pressure Laminates

HPL - high-pressure laminate has high resistance to mechanical damage and abrasion, easy maintenance and is suitable for exteriors and extremely stressed areas. They are produced in stacking presses using high pressure and at high temperatures.

Climbing

Climbing and mountaineering are basic human activities that evolved from survival needs and are now popular sports and recreational activities. Climbing and mountaineering are great for physical fitness, promoting overall strength, improving coordination and mental resilience.

Spring swings

Carousels

Balance swings

Hanging swings

Slides with swing

Combined sets

Rope elements

Playhouses and sandpits

Zip lines

Climbing elements

Educational panels

Monkey tracks

Pyramids

Gym-centers

Balancing elements

Bridges

Tunnel assemblies

In-ground trampolines

Tematické prvky

Inclusive playground

Steel gymcenter VVZ-GYM005

Add to cart

Frequently asked questions

Can you arrange transportation to my place?

Yes, we provide transportation in Central Europe.

Will I be able to install the game elements, workout and fitness myself?

Each element in our offer is also available with installation, but if you are interested and want to save money, we can provide you with a drawing of the foundations and assembly so that you can install the elements yourself.

Are your elements certified?

All of our items in the offer have been inspected by the Technical Inspection a.s., according to the relevant standard, as evidenced by the certificates that you can find on the website for each product. Although all of our products are approved by the Technical Inspection a.s., the strictest inspectors for us are those who set out on a journey for fun - and it's not just children.

Who makes all this for you?

Our products are designed, developed, tested and manufactured in our hall in Trenčín.

What is the delivery time of the order?

Standard delivery time is 4 to 6 weeks from order placement.
