Pedal carousel VVZ-KL006 EN

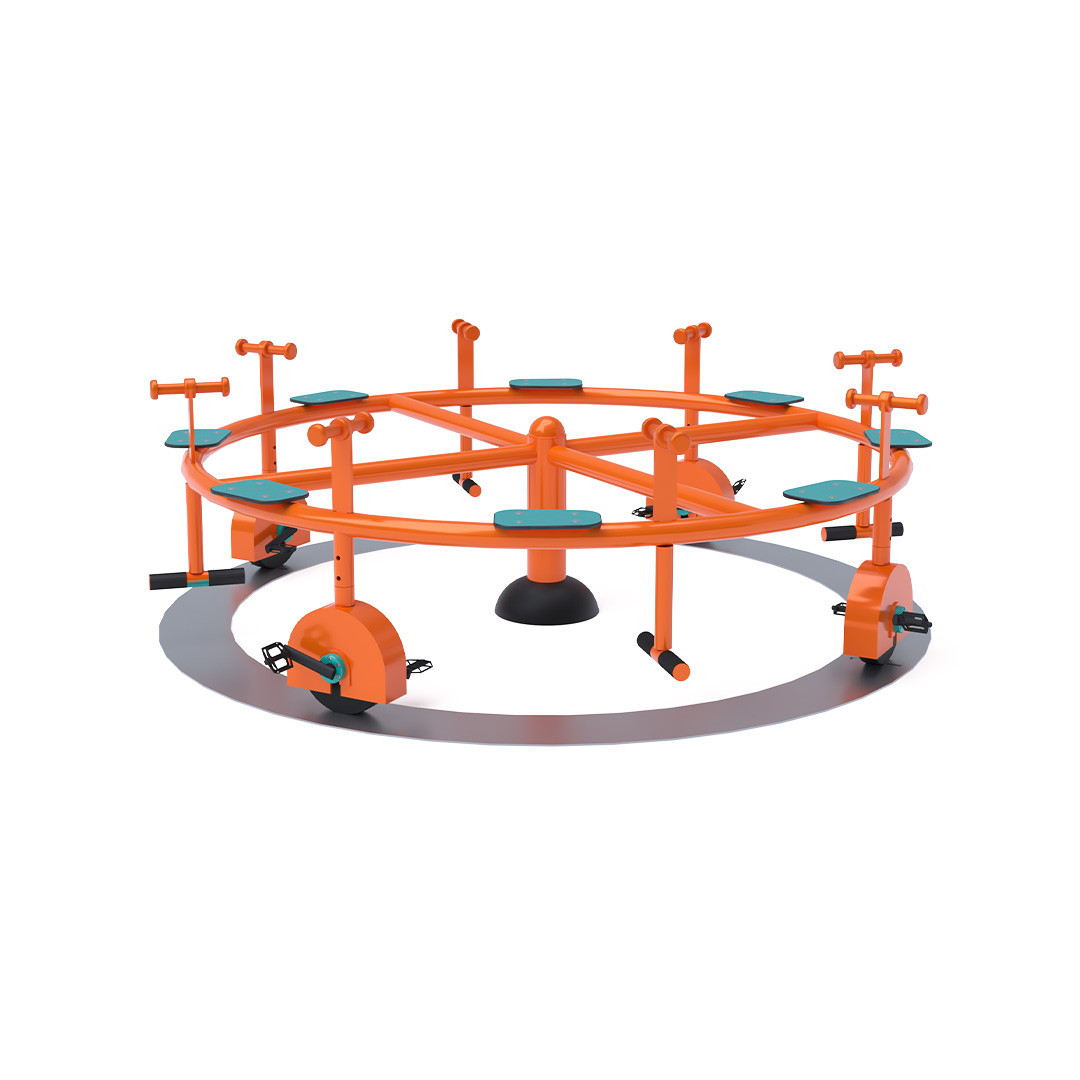

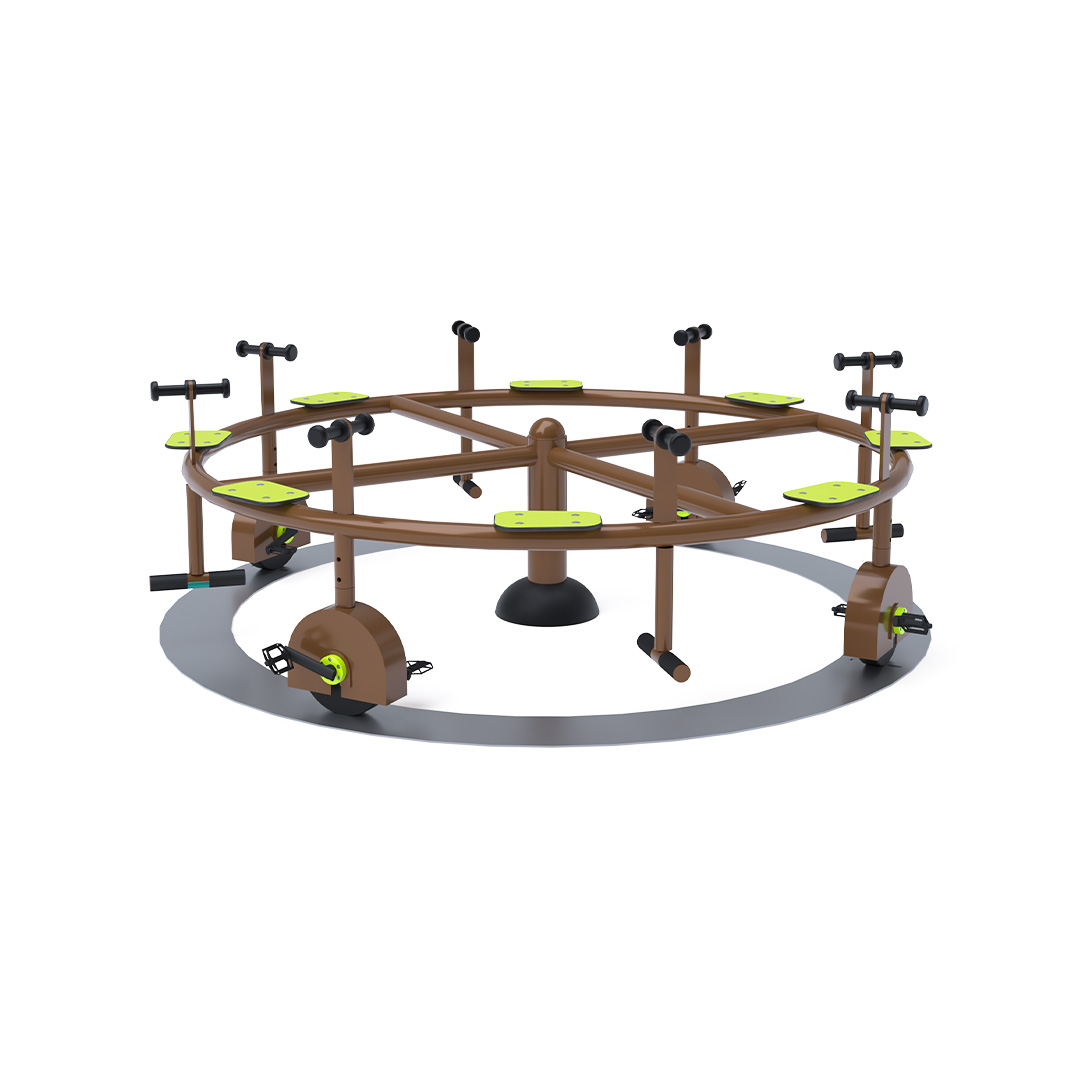

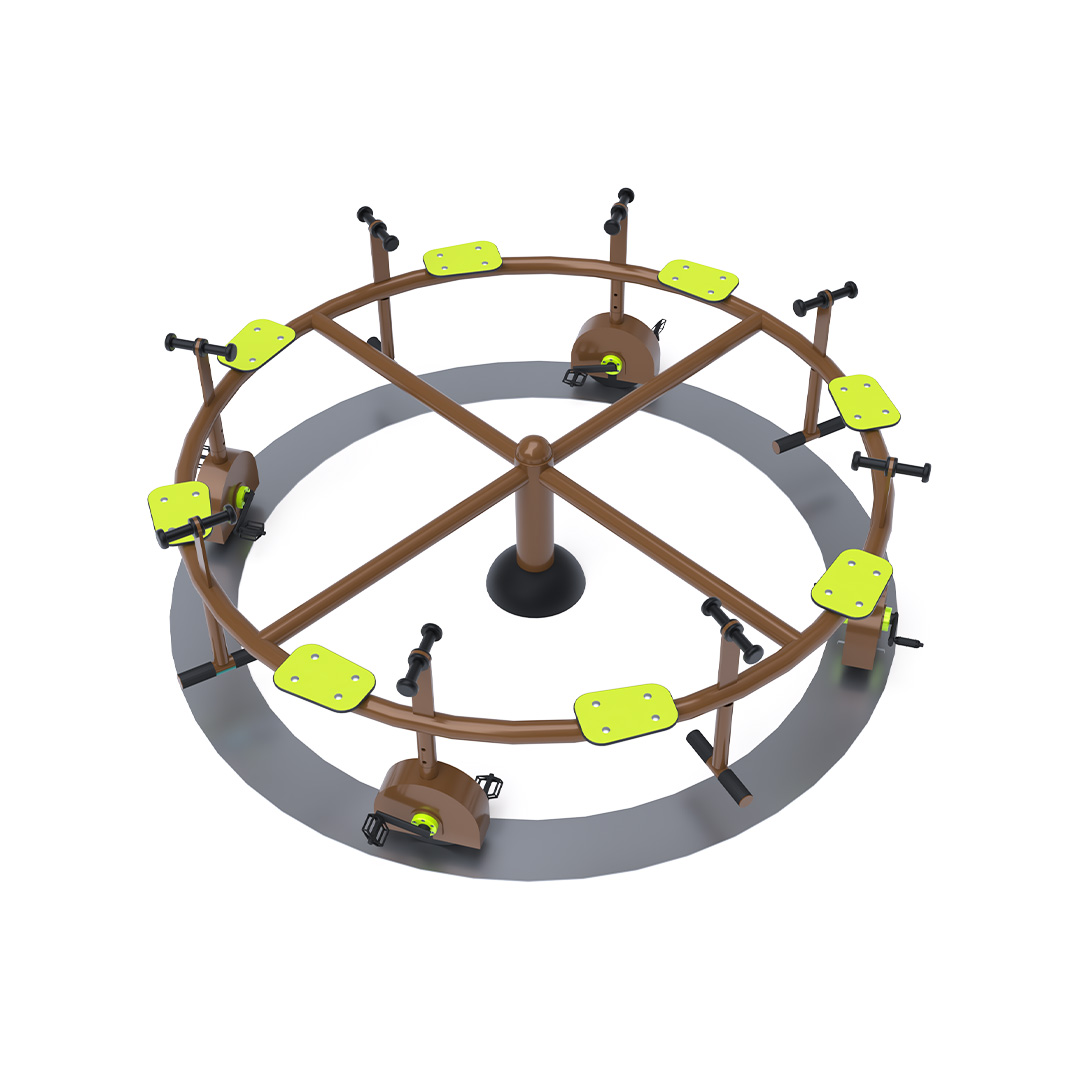

Children's Pedal Carousel VVZ-KL006 The children's pedal carousel with seating is made of hot-dip galvanized steel, finished with powder-coated paint. It is designed with a focus on achieving long life and operational safety. The seats are made of HPL material, which is chemically resistant, UV resistant, non-toxic, recyclable, and non-breakable. This ensures that children are safe from sharp edges or fragments. For increased safety, the pedal mechanism is unidirectional, preventing the carousel from rotating the pedals during operation. Specifications The children's carousel VVZ-KL006 is certified according to STN EN 1176. Capacity: 8 persons Age Category: 3 - 14 years Element Dimensions: diameter 2,0 m height 0,7 m Free Fall Height: up to 0,5 m Impact Area: diameter 5 m (according to STN EN 1177) Materials: hot-dip galvanized steel, HPL, stainless steel fasteners

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

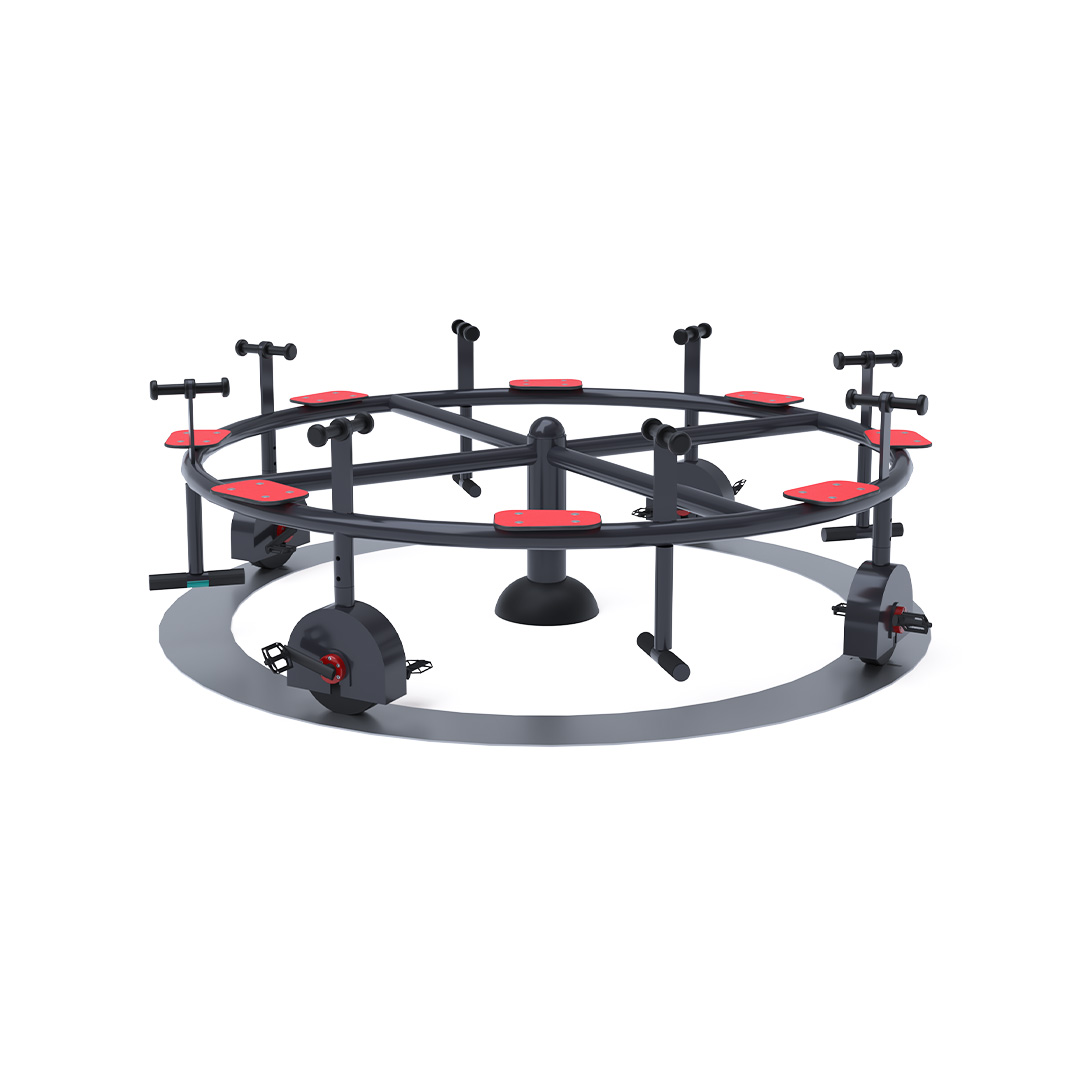

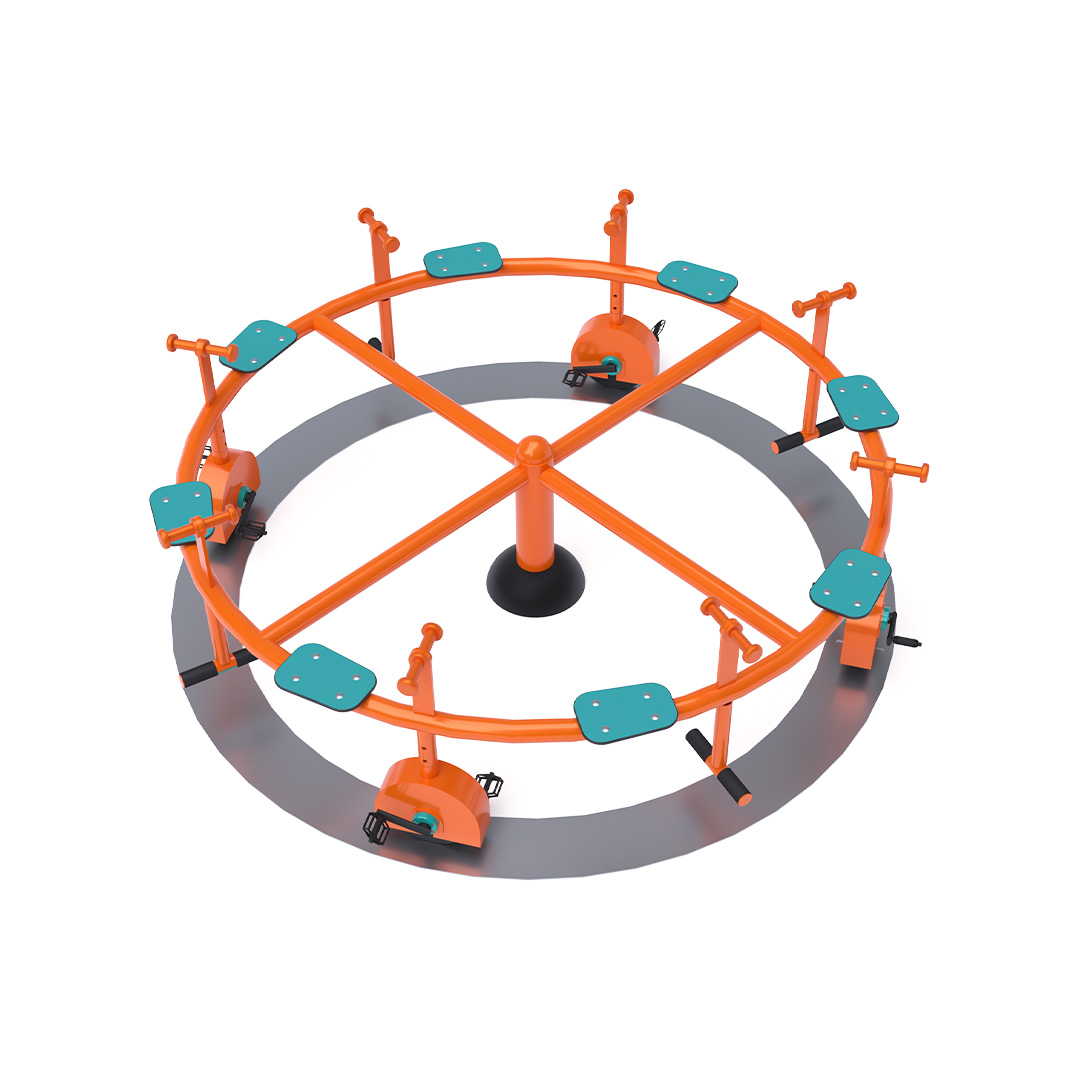

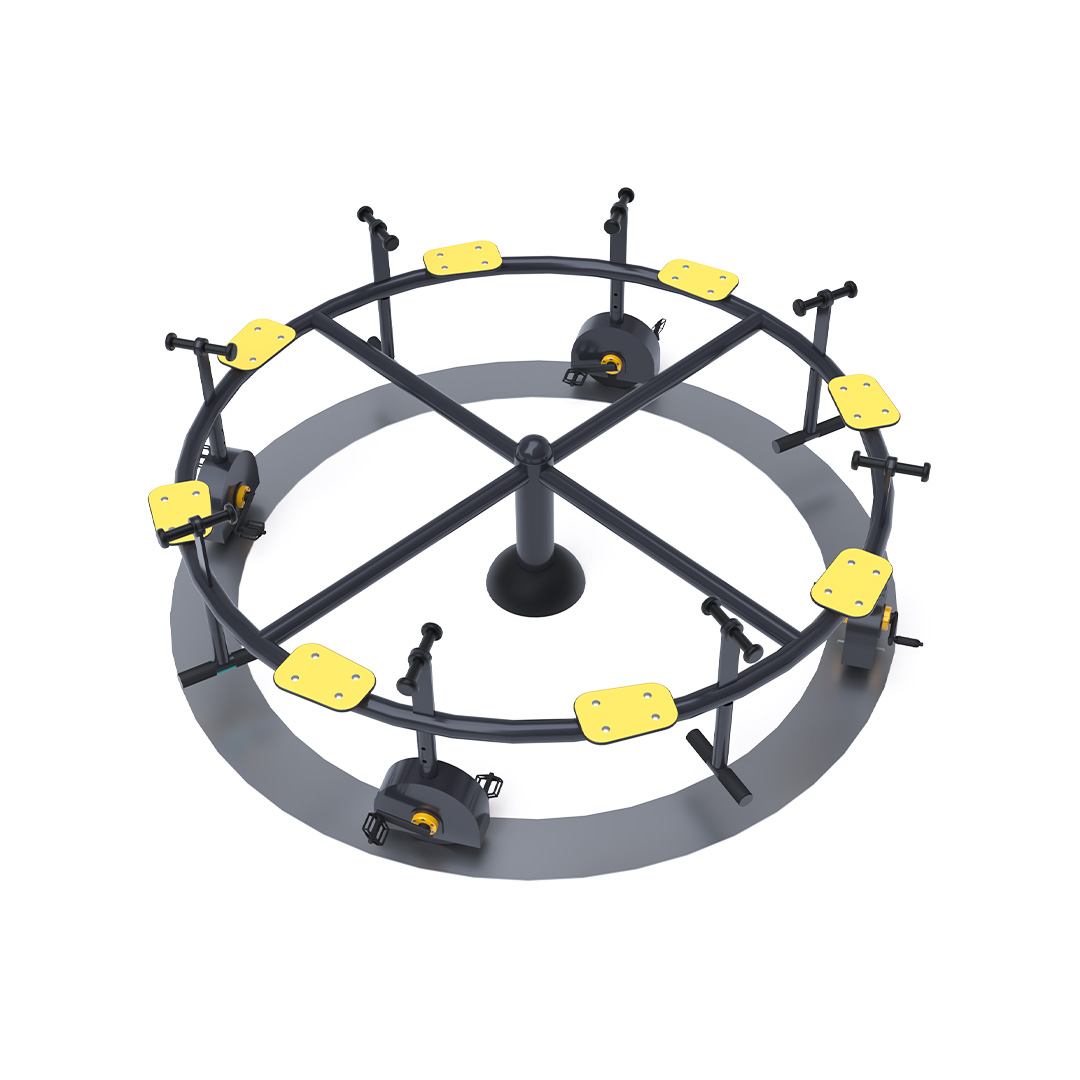

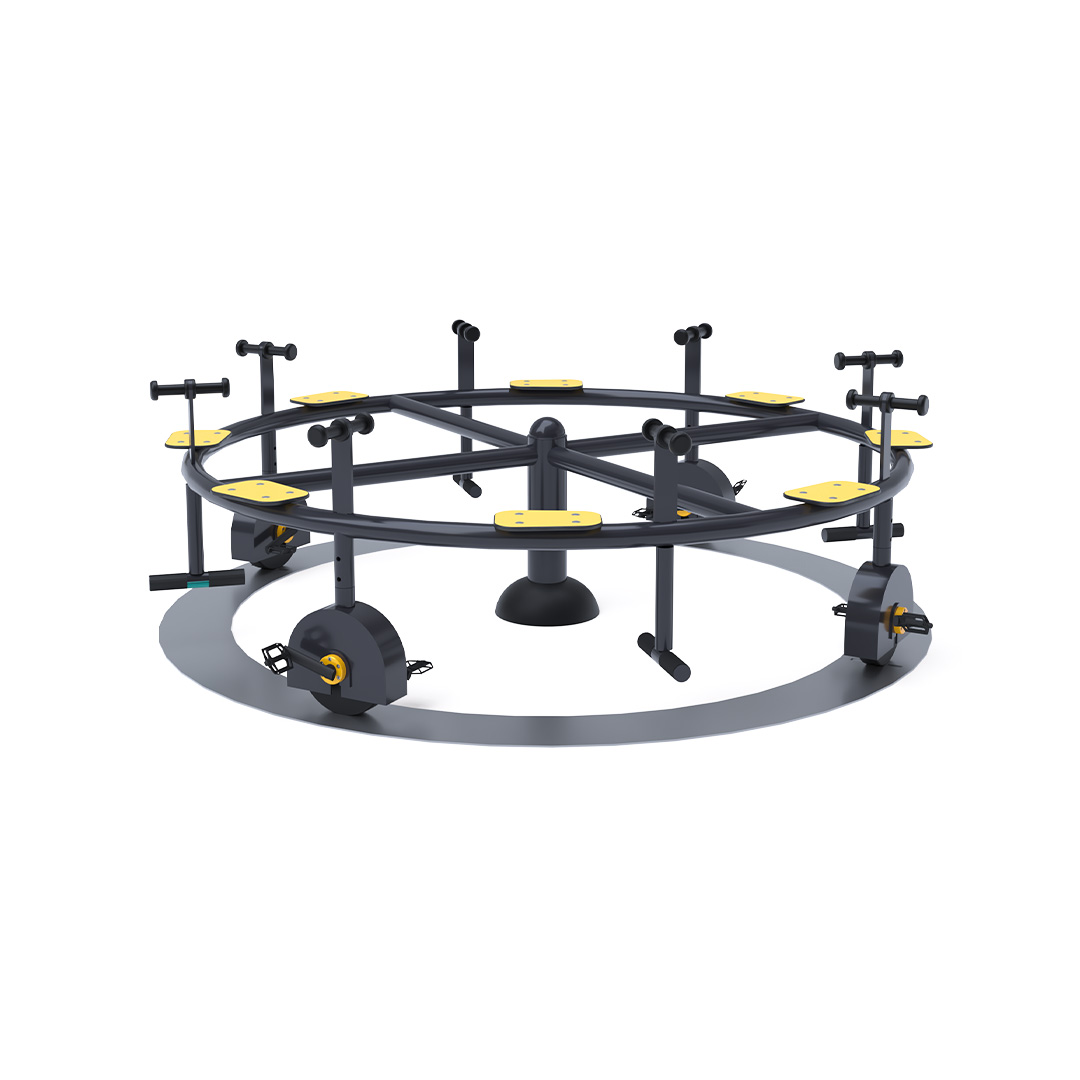

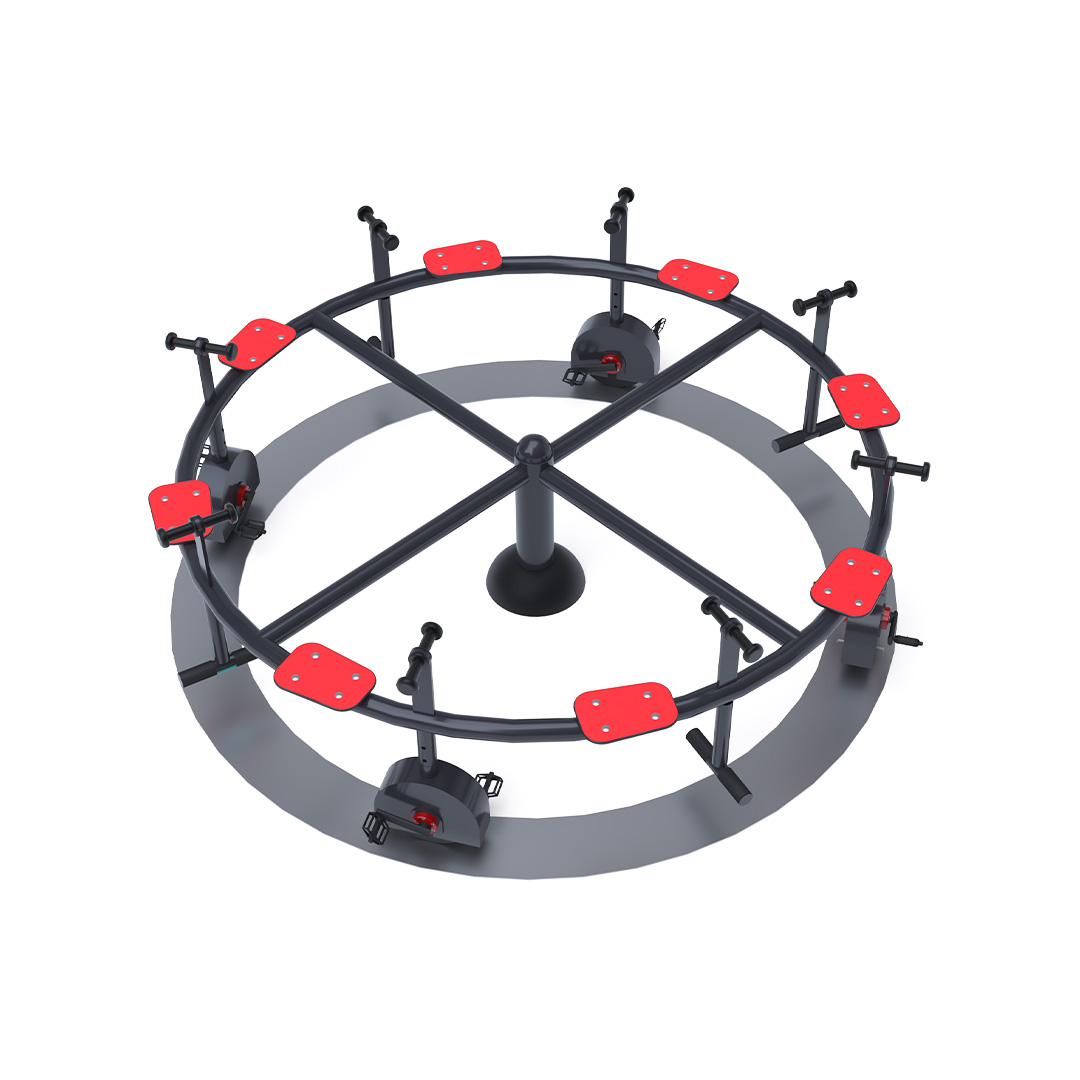

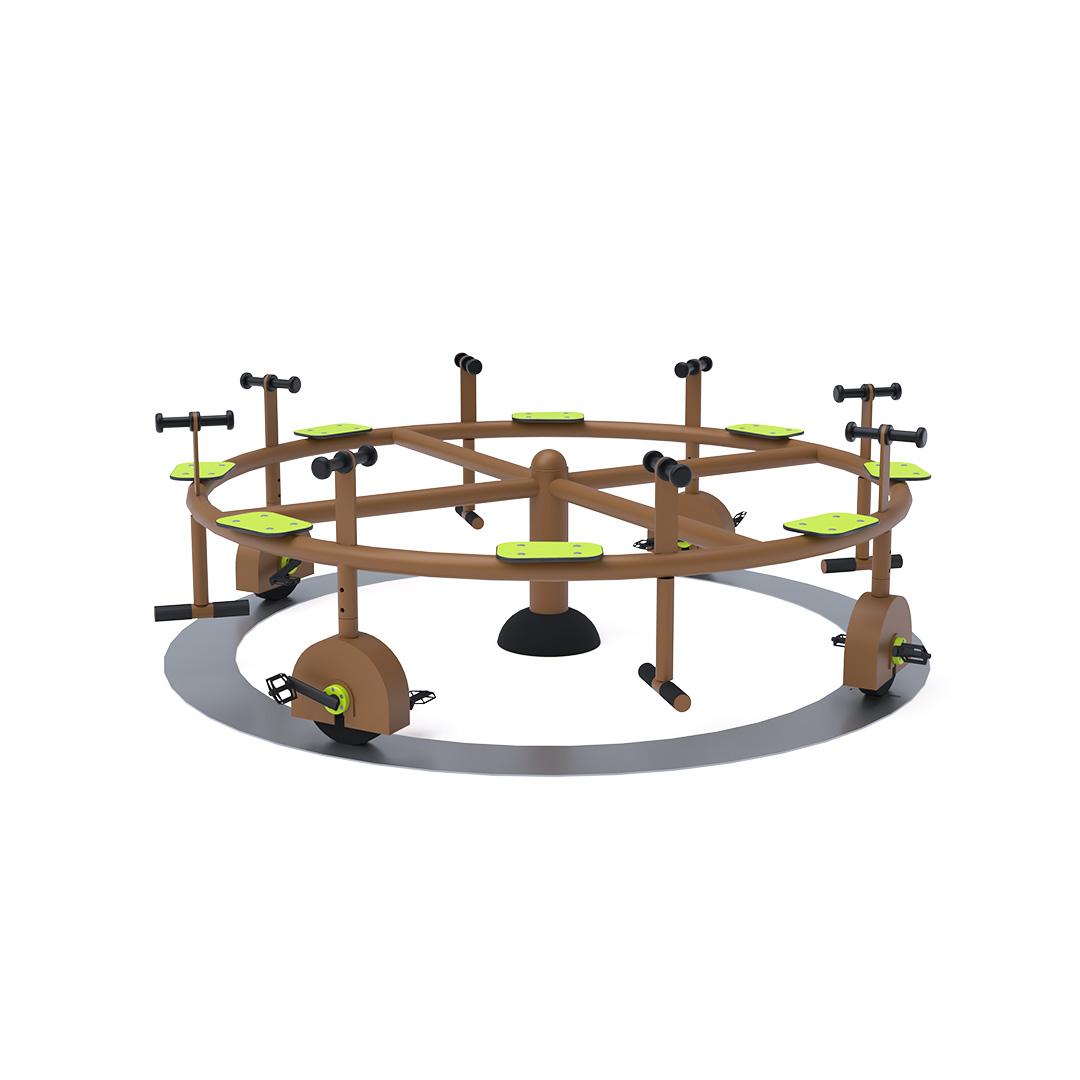

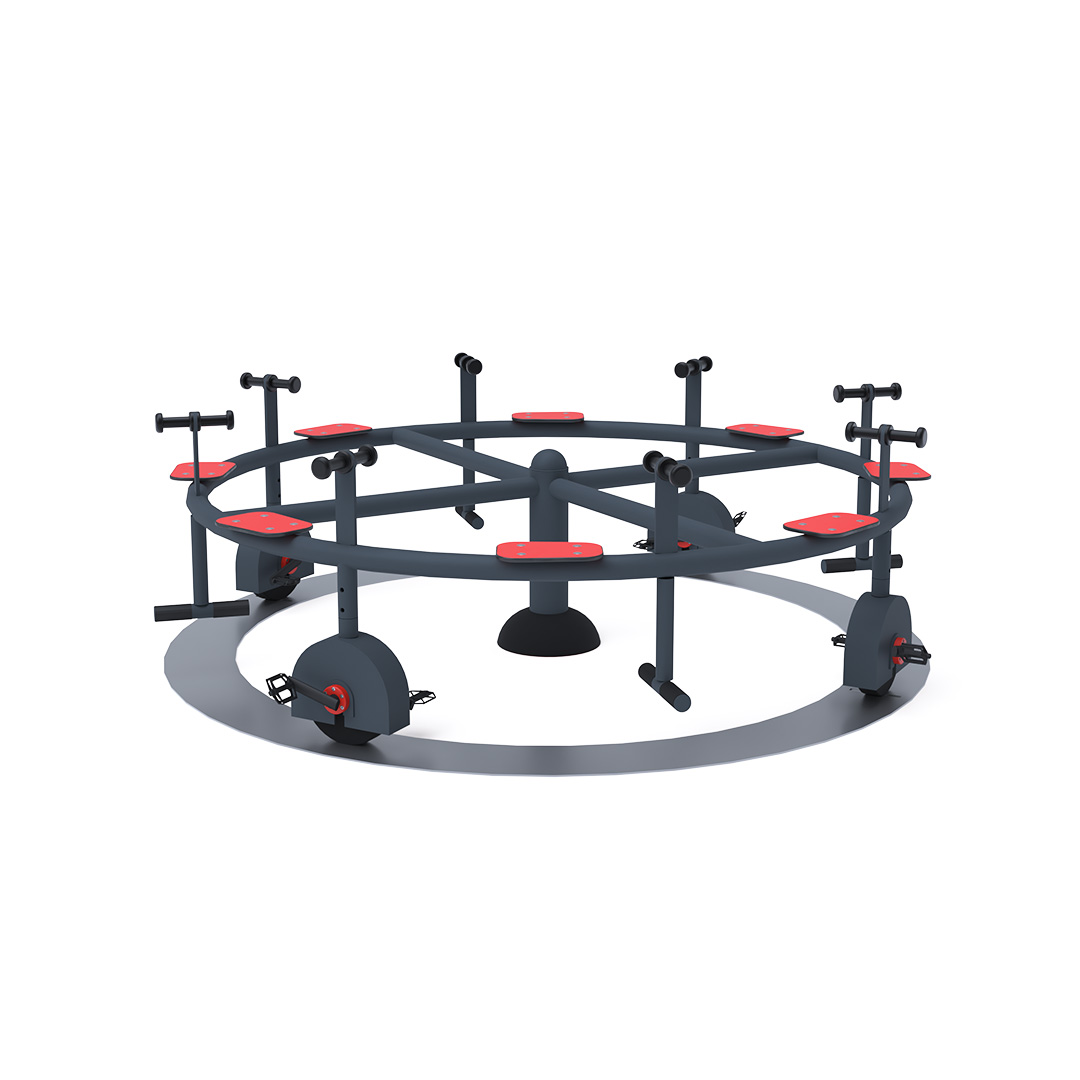

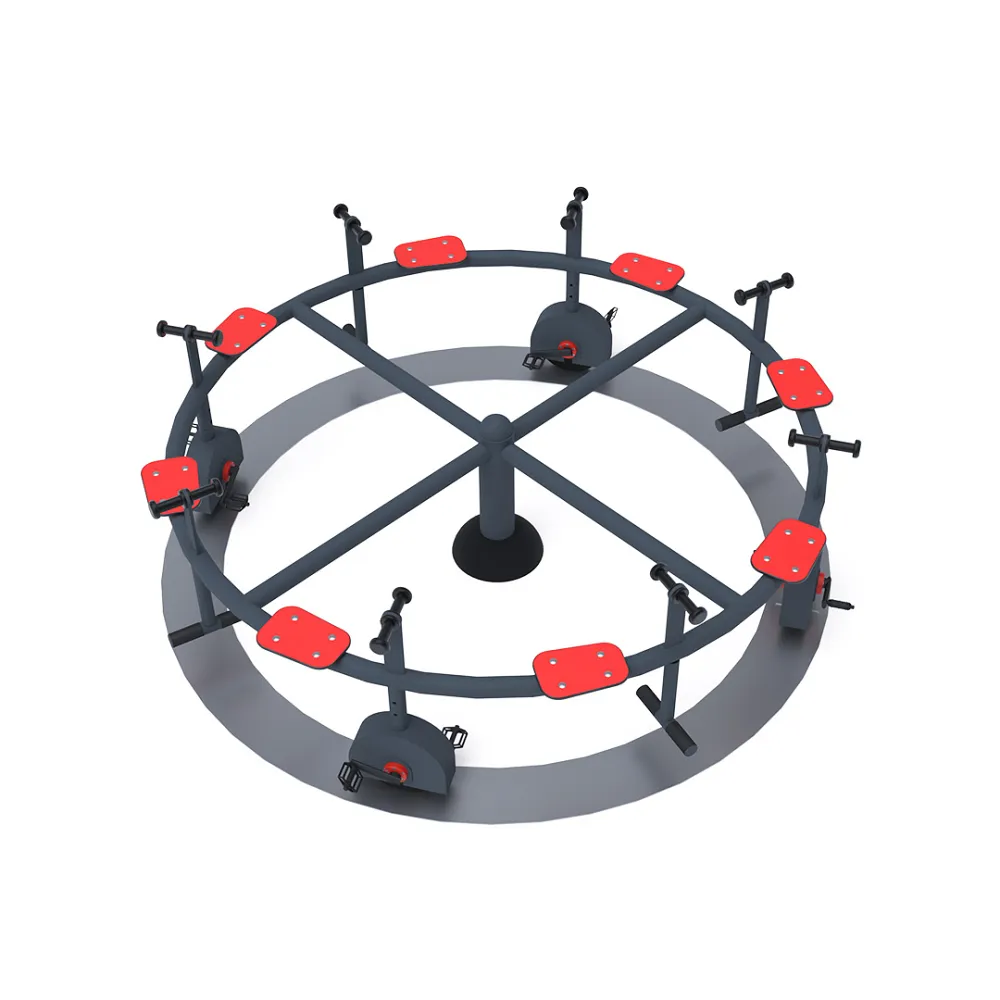

Product color variants:

More color
options

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 2 m

height 7 m

Designed for exterior use:

Yes

Age category:

from 3 to 14 years

Element capacity:

8 persons

Free fall height:

0.50 m

Protective area:

length 5 m

width 5 m

area 19.63 m²

Certified according to standard:

STN EN 1176

Show all parameters

Children's Pedal Carousel VVZ-KL006

The children's pedal carousel with seating is made of hot-dip galvanized steel, finished with powder-coated paint. It is designed with a focus on achieving long life and operational safety. The seats are made of HPL material, which is chemically resistant, UV resistant, non-toxic, recyclable, and non-breakable. This ensures that children are safe from sharp edges or fragments. For increased safety, the pedal mechanism is unidirectional, preventing the carousel from rotating the pedals during operation.

Specifications

The children's carousel VVZ-KL006 is certified according to STN EN 1176.

Capacity: 8 persons
Age Category: 3 - 14 years
Element Dimensions: diameter 2,0 m height 0,7 m
Free Fall Height: up to 0,5 m
Impact Area: diameter 5 m (according to STN EN 1177)
Materials: hot-dip galvanized steel, HPL, stainless steel fasteners

Documents for download:

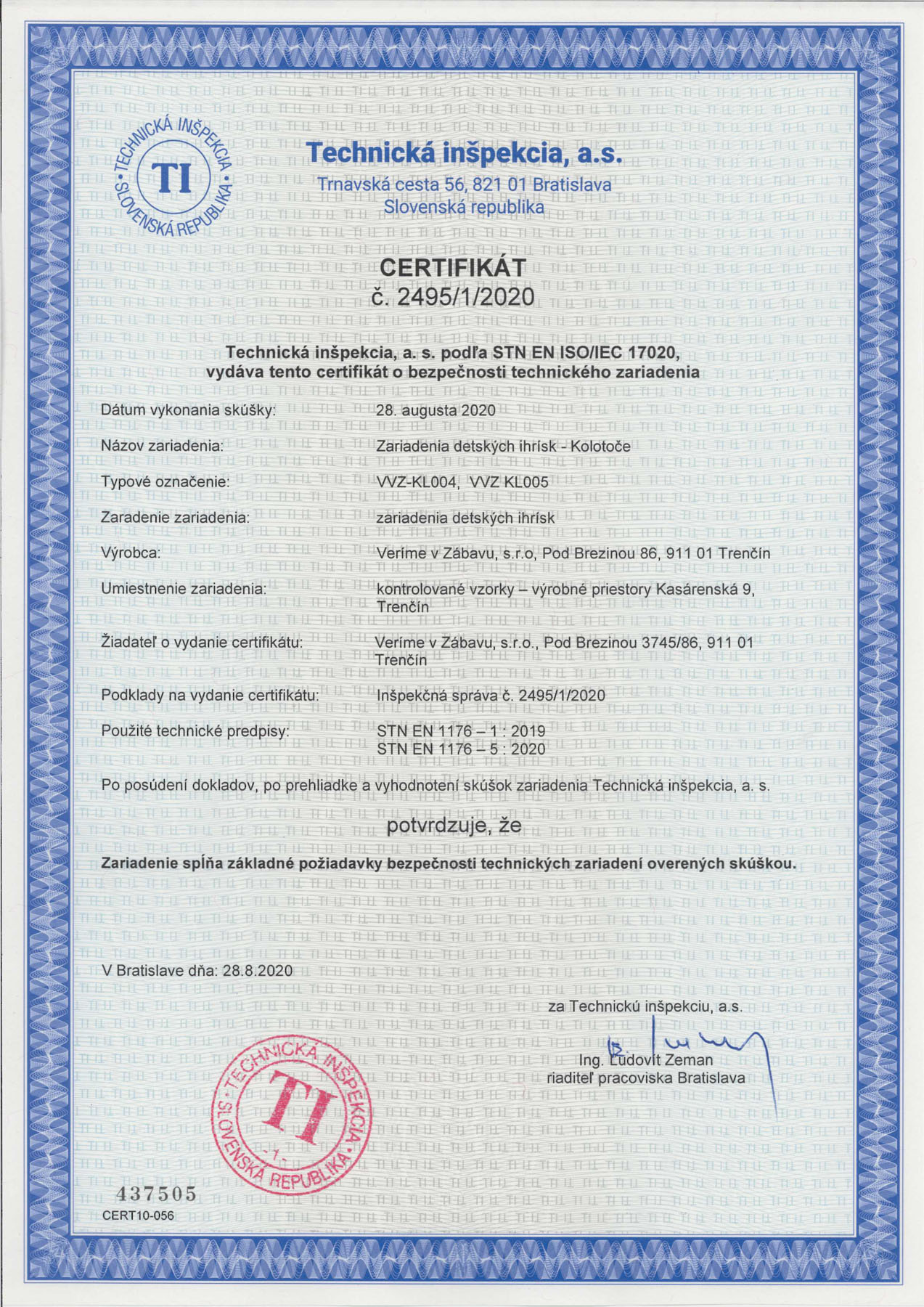

Certificate

Image to download

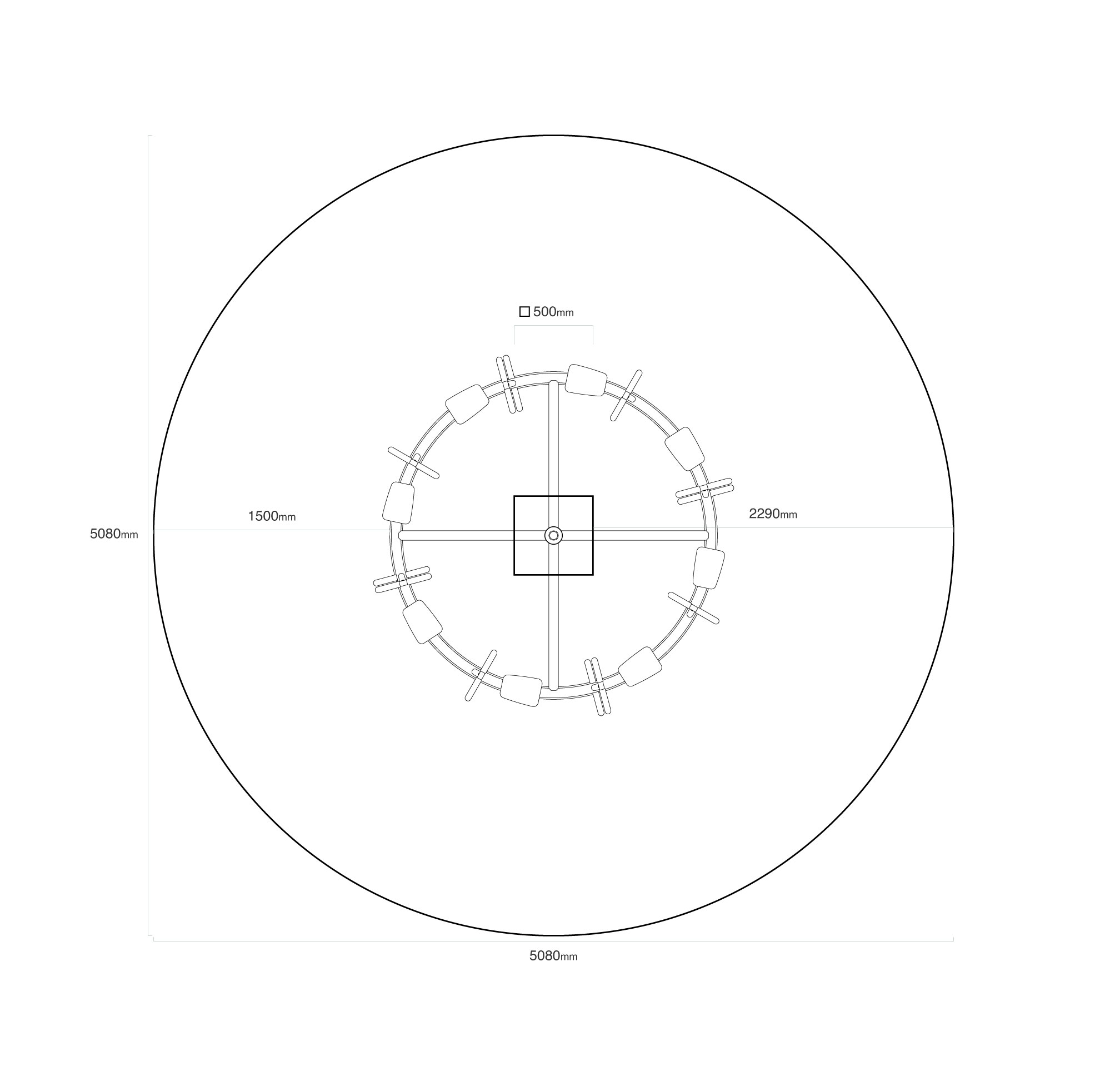

Impact area

Image to download

DWG file

DWG for download

You must log in to view locked files

HPL - High Pressure Laminates

HPL - high-pressure laminate has high resistance to mechanical damage and abrasion, easy maintenance and is suitable for exteriors and extremely stressed areas. They are produced in stacking presses using high pressure and at high temperatures.

Spinning

Spinning is a natural and fun activity for children, which perfectly stimulates the vestibular system in the inner ear. It helps them to better develop balance, coordination of movements and orientation in space. Regular spinning improves concentration, attention and the brain's ability to process information, because it activates connections between both hemispheres. It also promotes a sense of security in the body, reduces uncertainty when moving and builds tolerance to movement stimuli. Children release energy, regulate emotions and feel happier thanks to pleasant sensations. And what is best - spinning brings them joy and laughter, while developing them in a healthy way.
