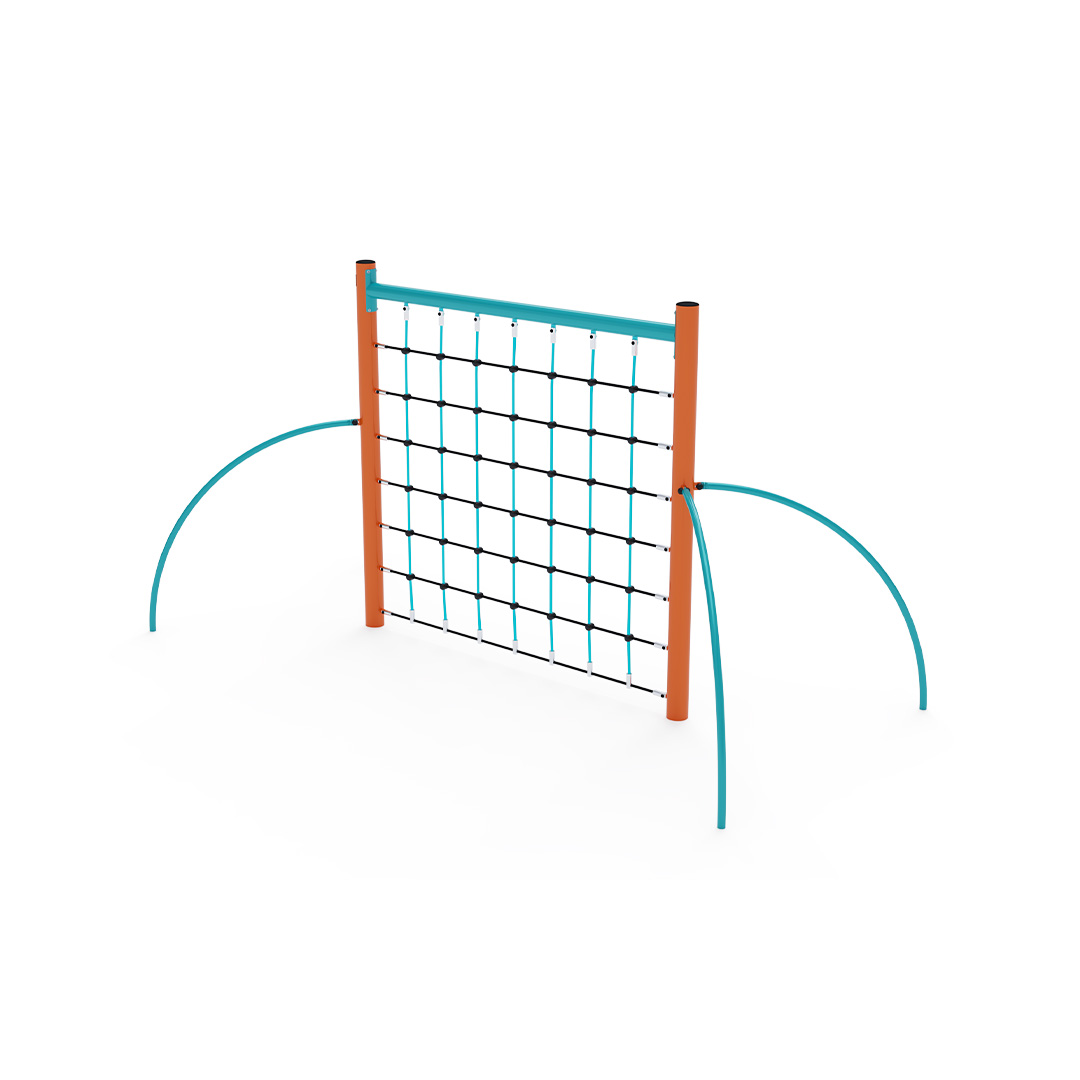

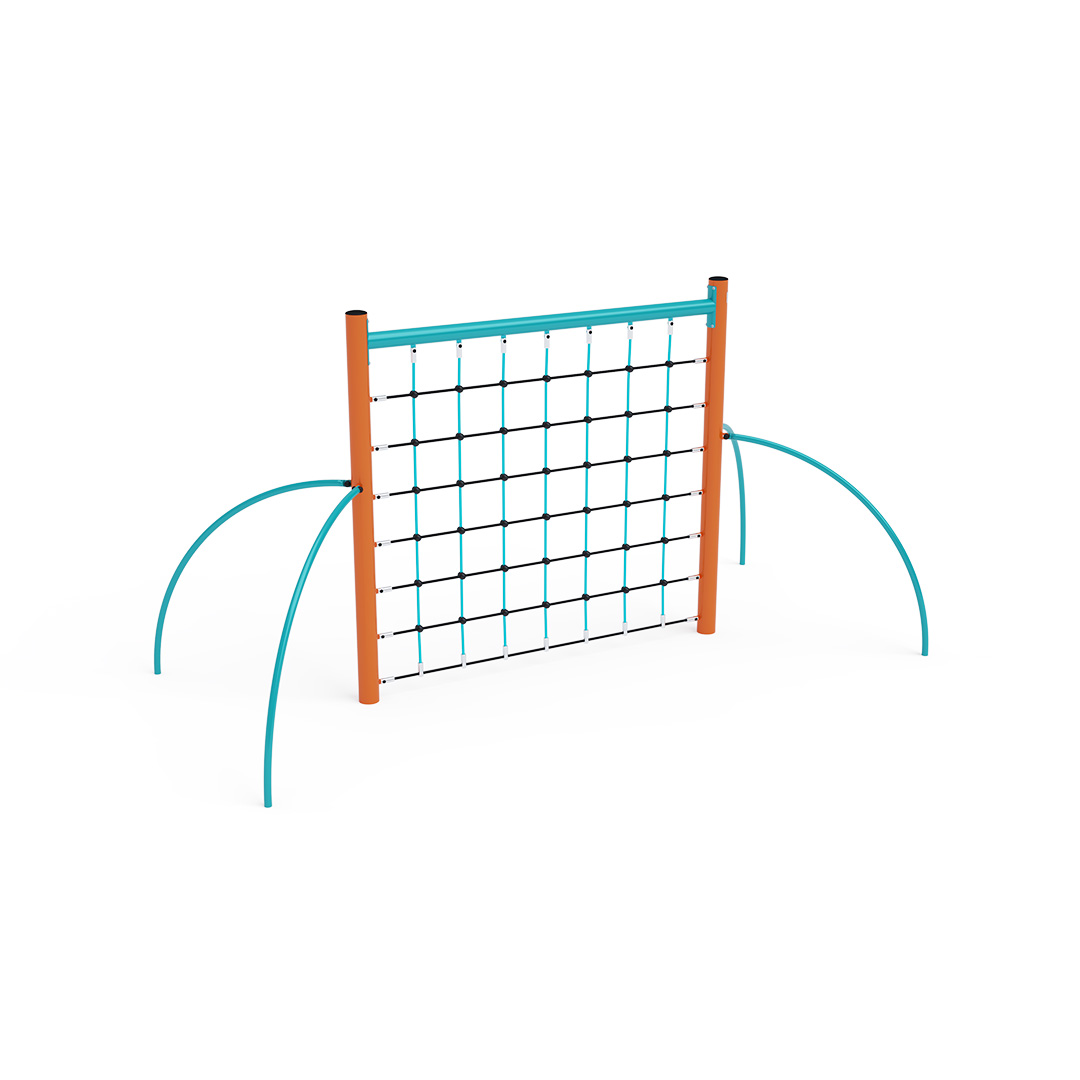

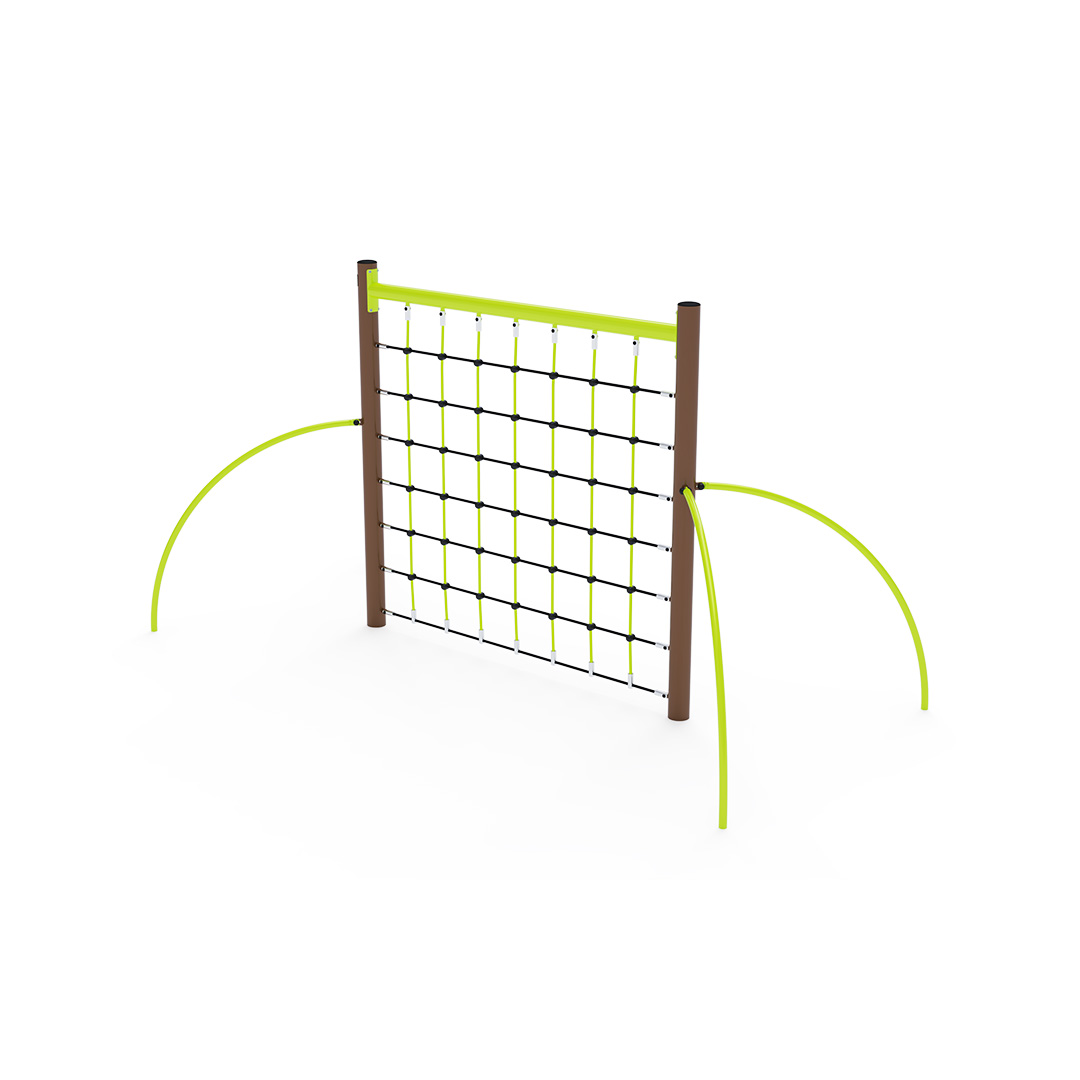

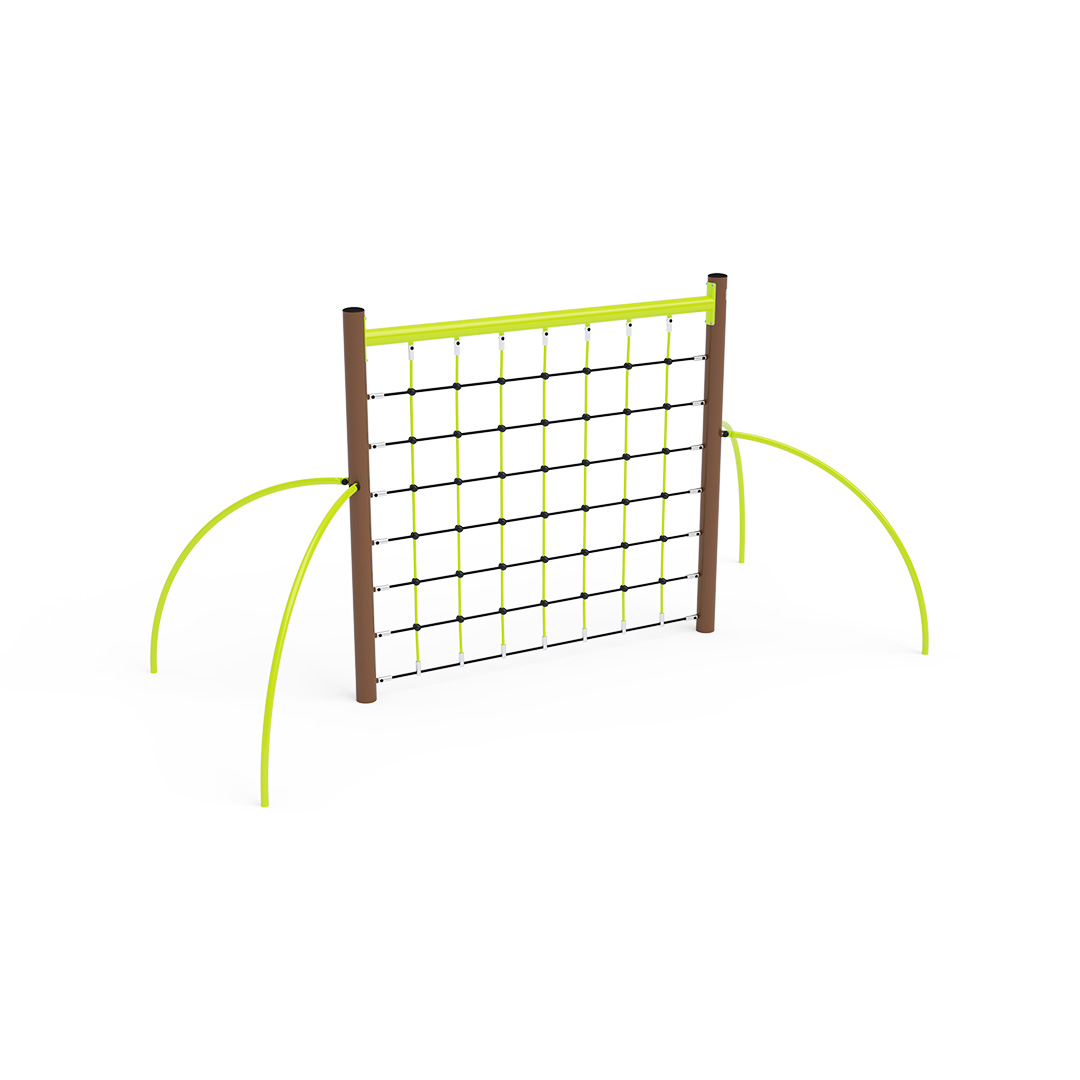

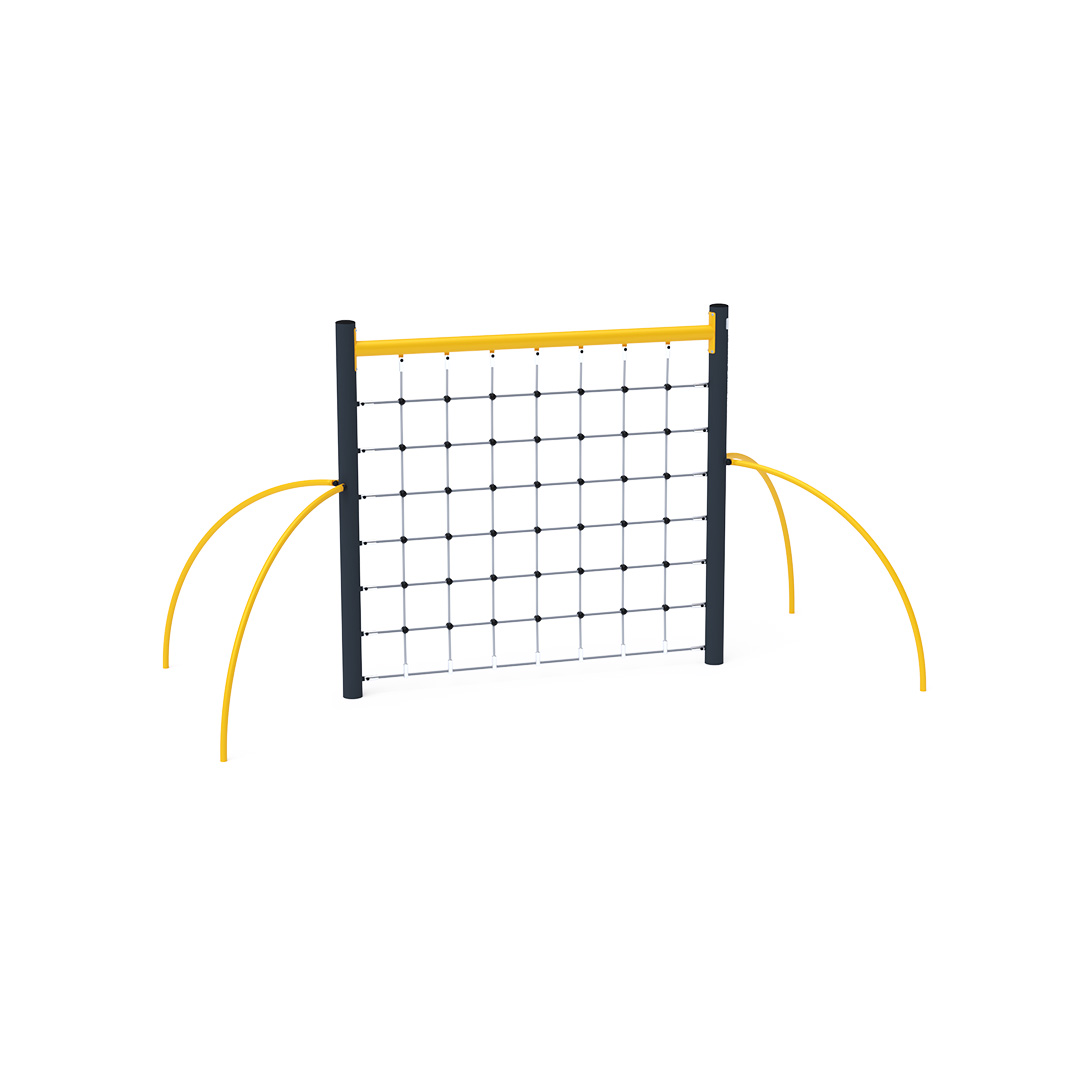

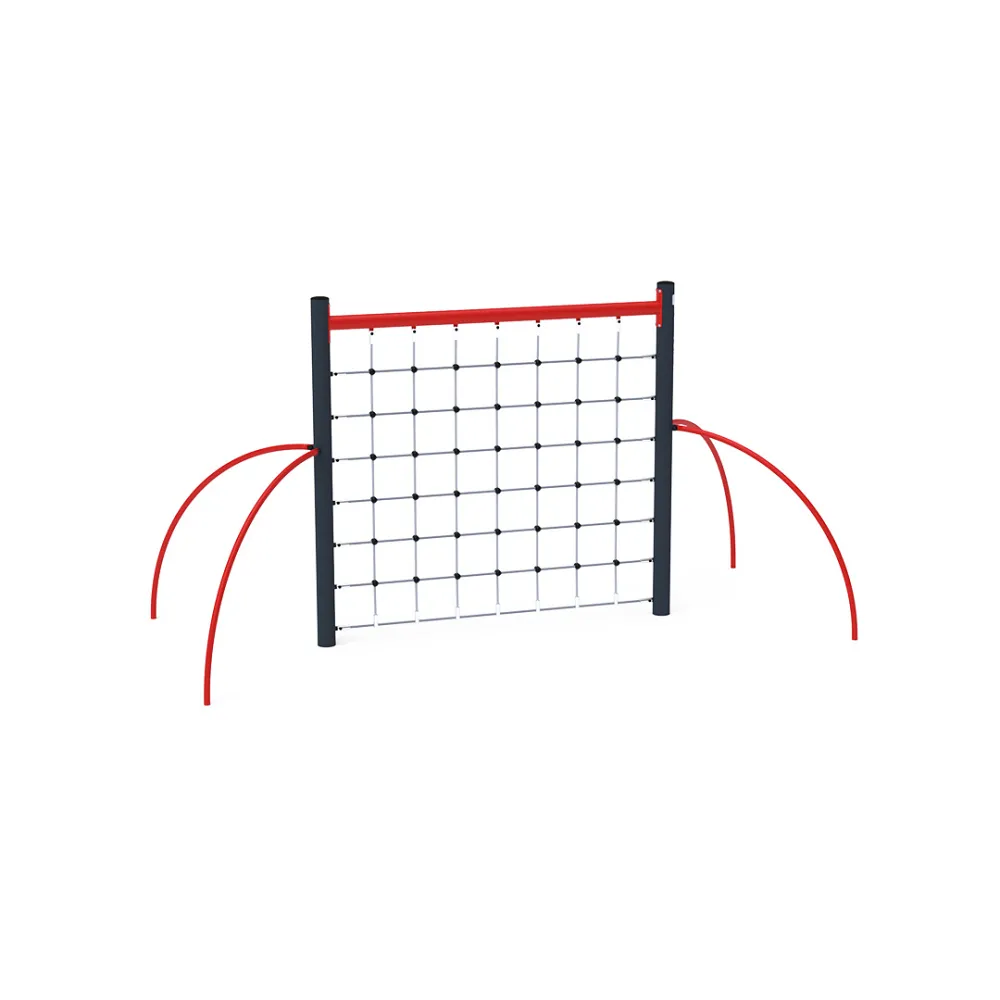

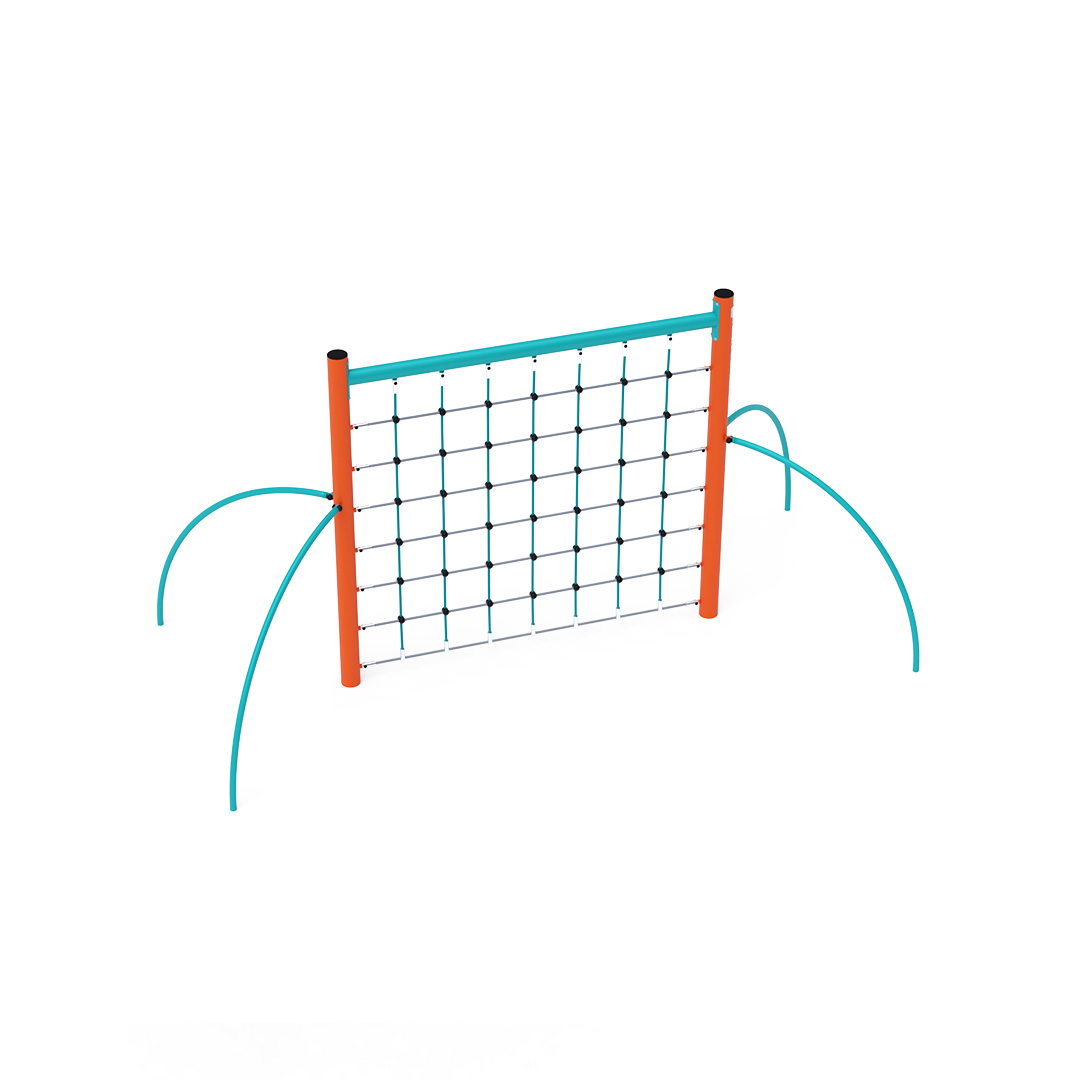

VVZ-LP006 Large Rope Climbing Wall The large rope climbing wall - a three-meter highlight of any playground. This tall and wide rope climbing wall is supported for higher stability by four arc-shaped legs, which children can use as bars for hanging, crossings, or climbing. The play element is made of hot-dip galvanized steel with a quality surface finish. The joints are stainless steel and covered with plastic caps to increase the safety and longevity of the connections. The ropes are made of polyester fibers, which are wound around a central core. This construction of the rope enhances its strength and resistance to mechanical stress. Polyester itself has many positive properties: it is resistant to microorganisms and weather conditions, dries quickly after rain, is colorfast, and is characterized by high strength. The large rope climbing wall VVZ-LP006 is certified according to the STN EN 1176 standard. Specifications The large rope climbing wall VVZ-LP006 is certified according to STN EN 1176. Age Category: 3 - 14 years Dimensions of the Element: 4,1 × 1,9 × 2,2 m Free Fall Height: up to 2,0 meters, the use of an impact surface is required. A grass protection mat is recommended as the impact surface. Impact Area: 6,3 × 5,9 m (according to STN EN 1177) Material: hot-dip galvanized steel, polyester ropes, stainless steel fasteners

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

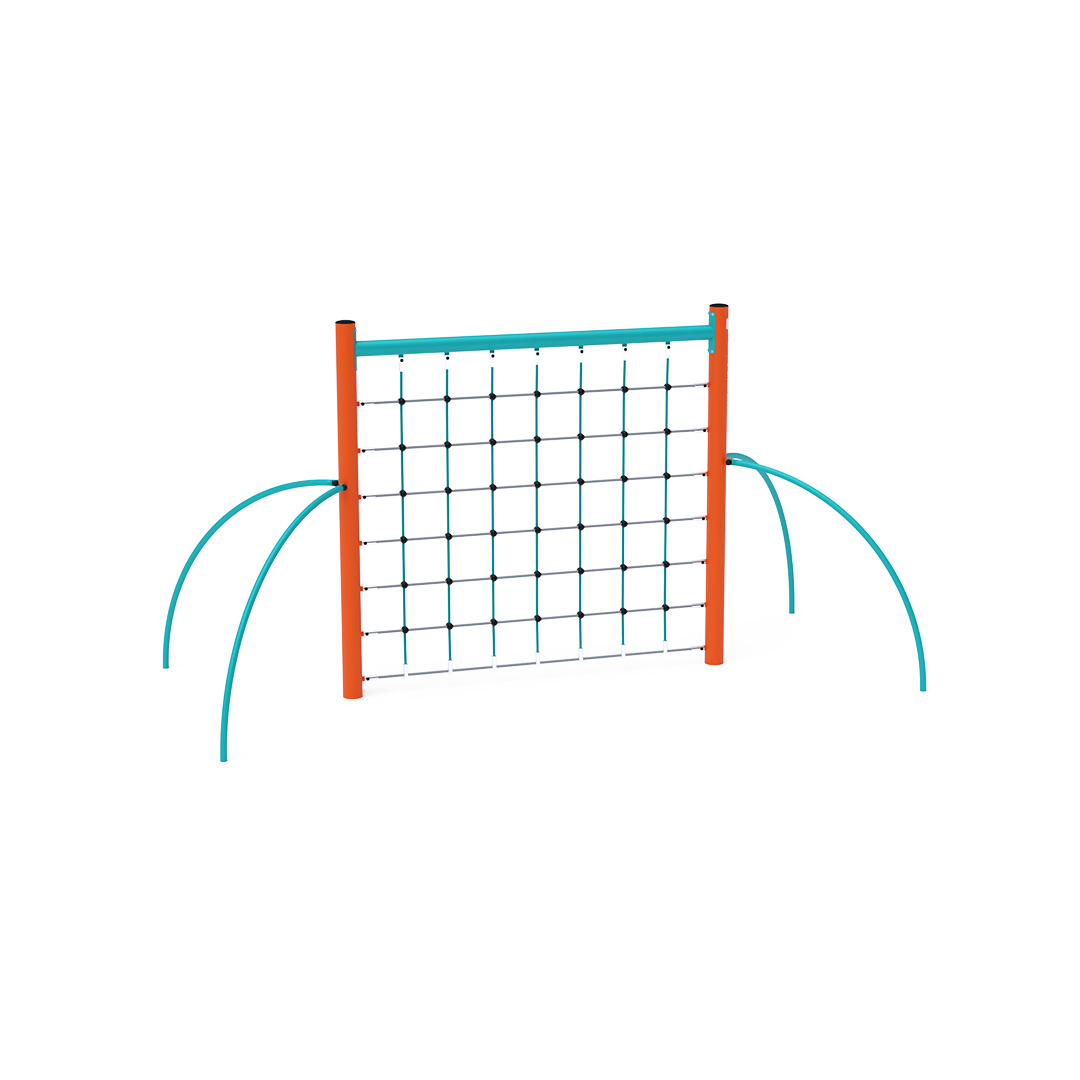

Product color variants:

Turquoise + Orange

Element dimensions:

length 4.1 m

width 1.9 m

height 2.2 m

Designed for exterior use:

Yes

Age category:

from 3 to 14 years

Free fall height:

2.00 m

Protective area:

length 6.3 m

width 5.9 m

area 37.17 m²

Certified according to standard:

STN EN 1176

Show all parameters

VVZ-LP006 Large Rope Climbing Wall

The large rope climbing wall - a three-meter highlight of any playground. This tall and wide rope climbing wall is supported for higher stability by four arc-shaped legs, which children can use as bars for hanging, crossings, or climbing. The play element is made of hot-dip galvanized steel with a quality surface finish. The joints are stainless steel and covered with plastic caps to increase the safety and longevity of the connections. The ropes are made of polyester fibers, which are wound around a central core. This construction of the rope enhances its strength and resistance to mechanical stress. Polyester itself has many positive properties: it is resistant to microorganisms and weather conditions, dries quickly after rain, is colorfast, and is characterized by high strength. The large rope climbing wall VVZ-LP006 is certified according to the STN EN 1176 standard.

Specifications

The large rope climbing wall VVZ-LP006 is certified according to STN EN 1176.

Age Category: 3 - 14 years
Dimensions of the Element: 4,1 × 1,9 × 2,2 m
Free Fall Height: up to 2,0 meters, the use of an impact surface is required. A grass protection mat is recommended as the impact surface.
Impact Area: 6,3 × 5,9 m (according to STN EN 1177)
Material: hot-dip galvanized steel, polyester ropes, stainless steel fasteners

Documents for download:

Certificate

Image to download

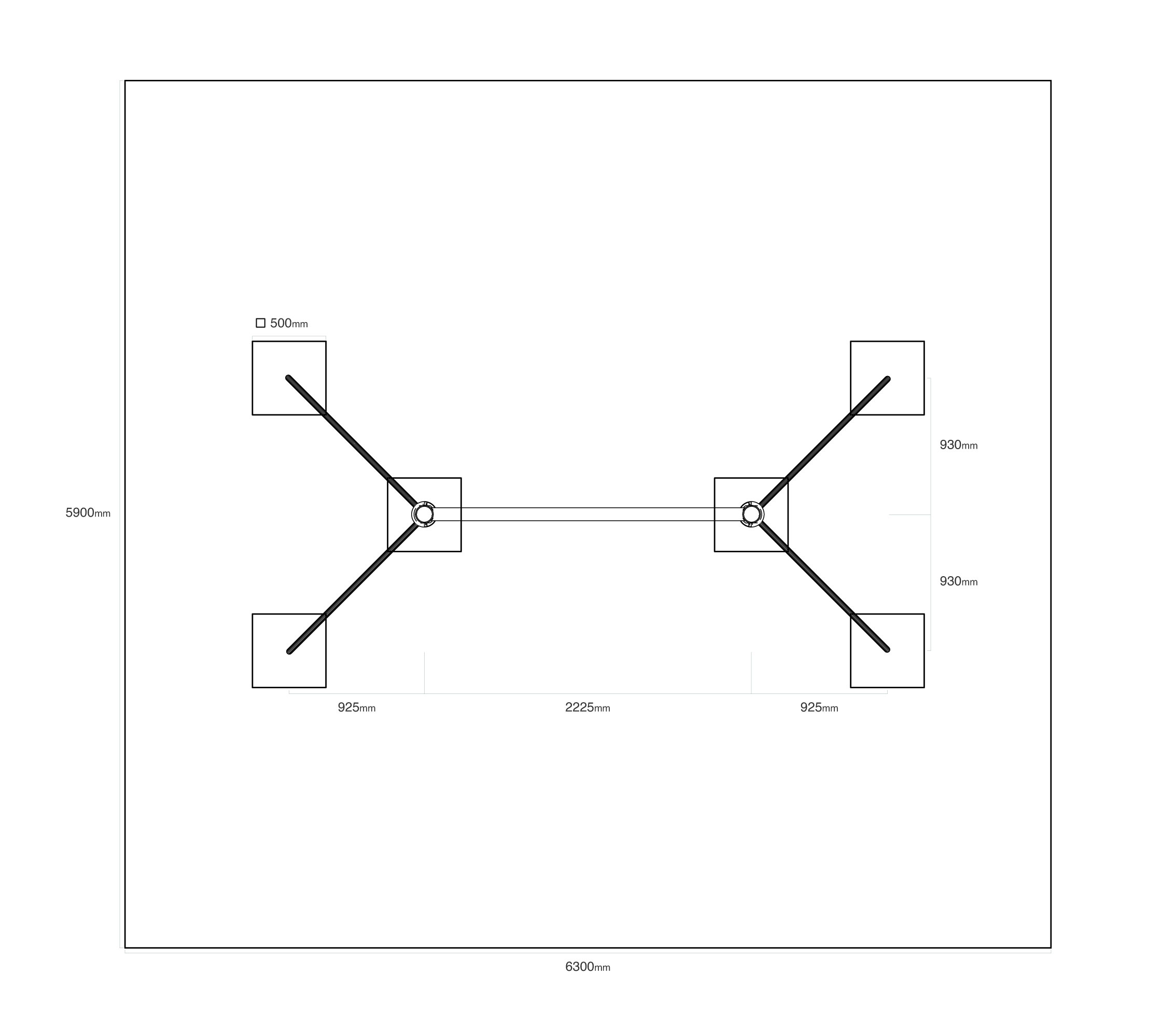

Impact area

Image to download

DWG file

DWG for download

You must log in to view locked files
