Combined Tower set VVZ-VZ3-002-15

VVZ-VZ3-002-15 Triple Tower Combination Set

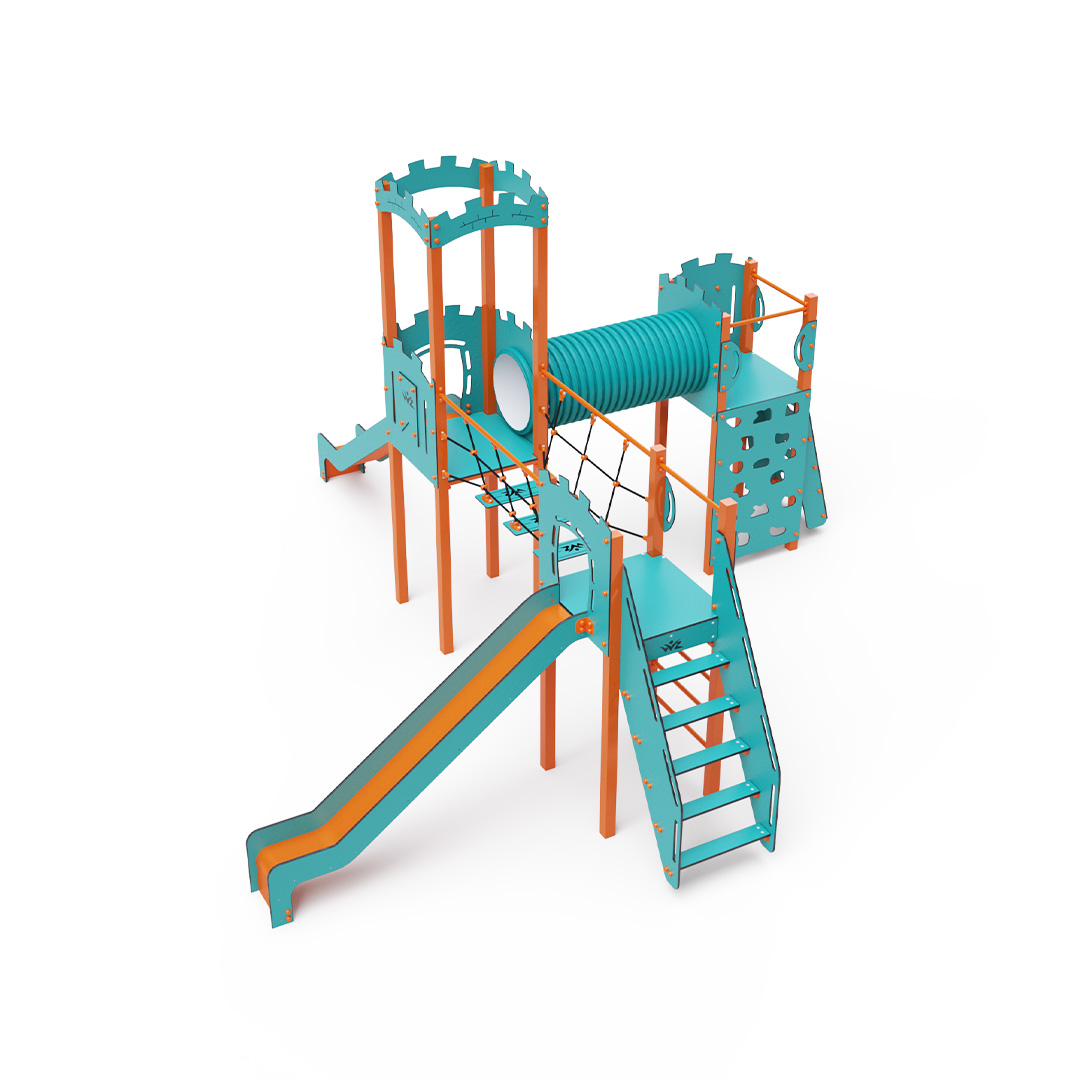

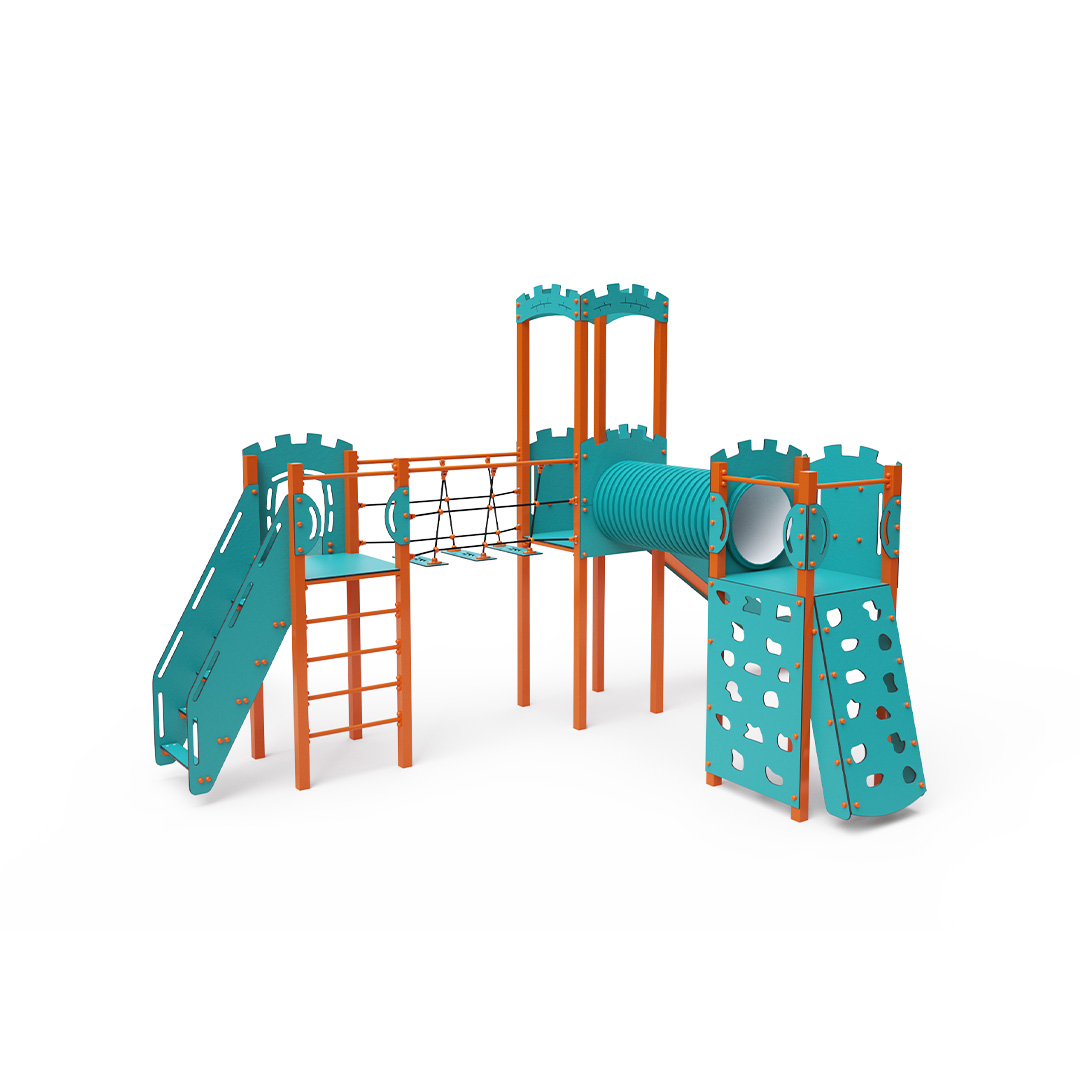

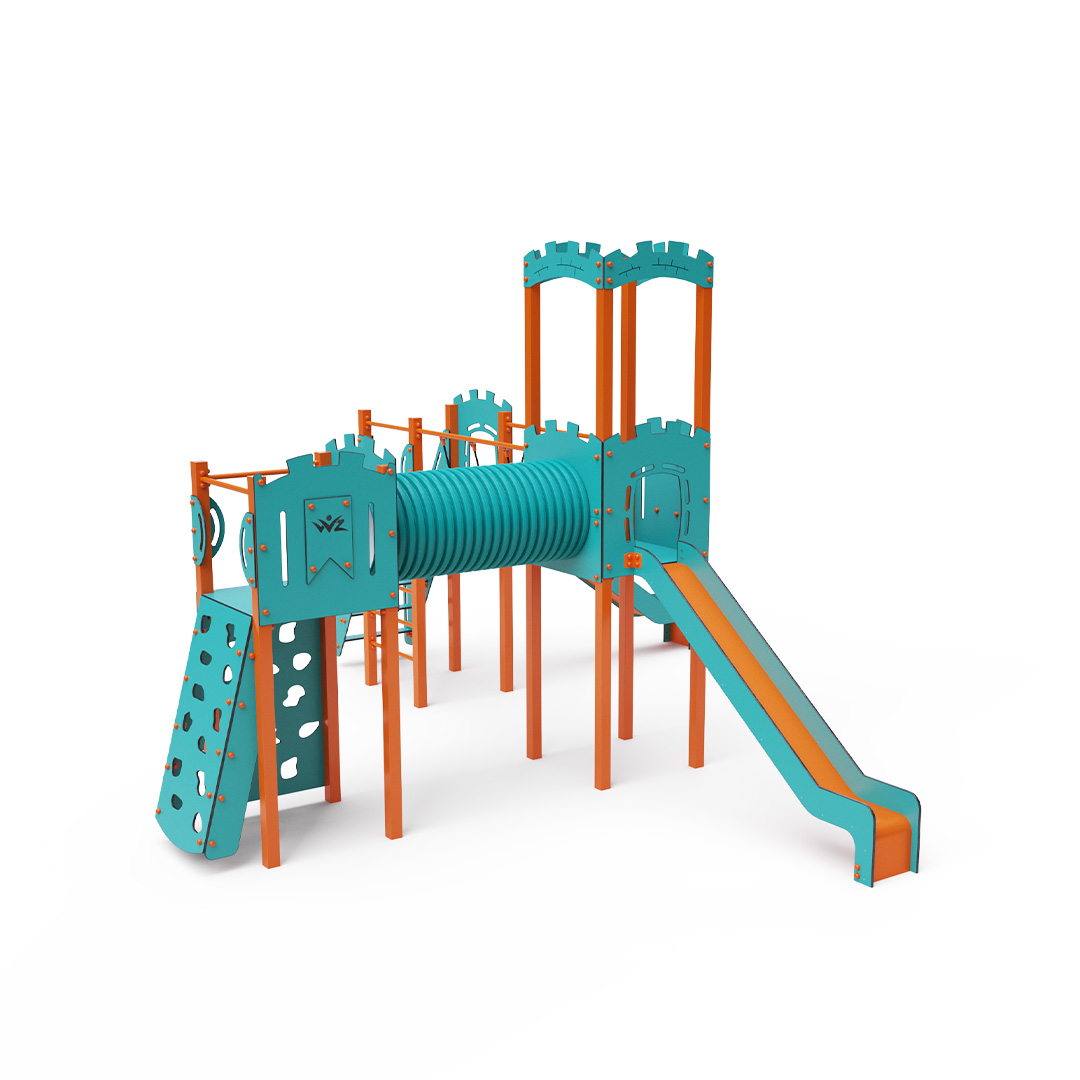

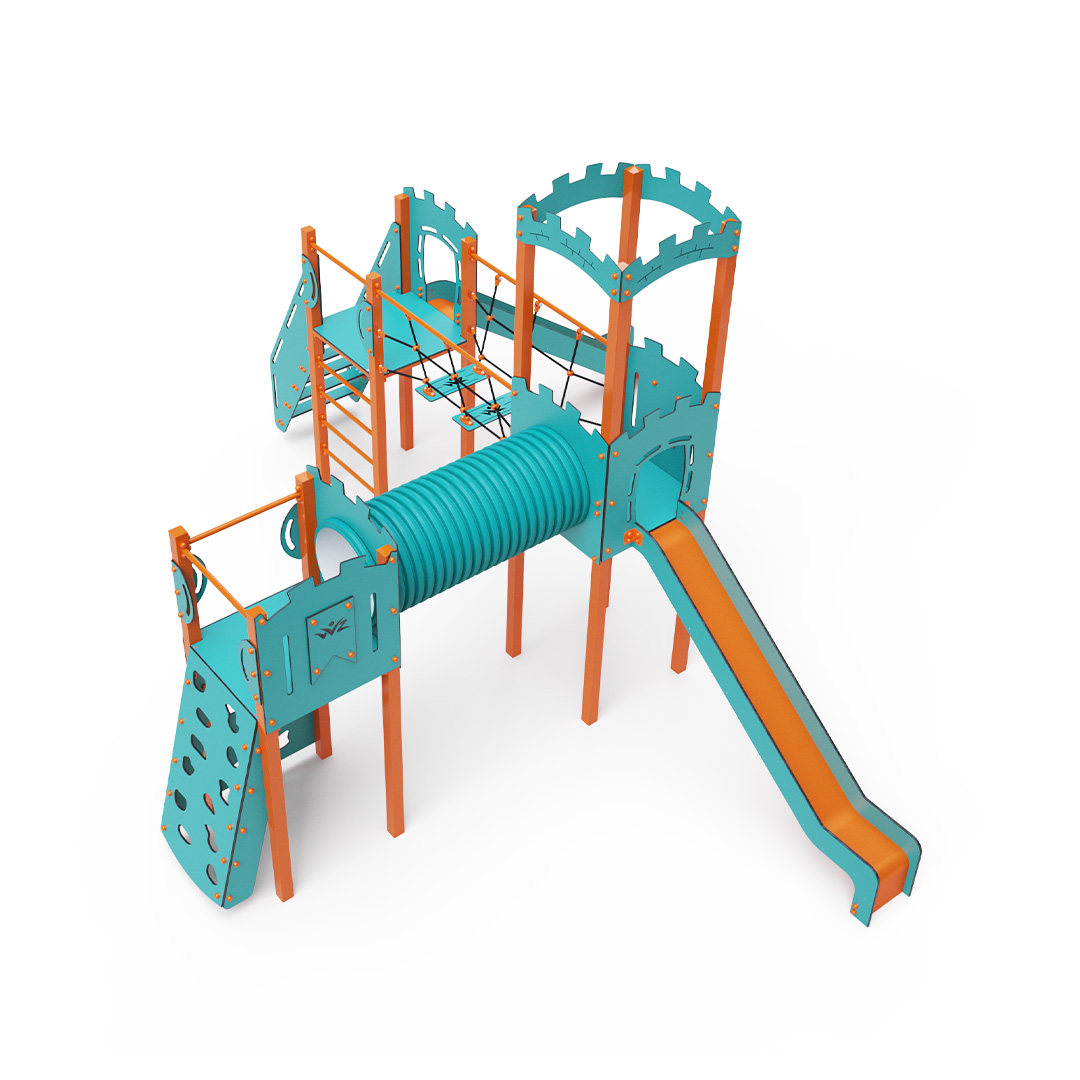

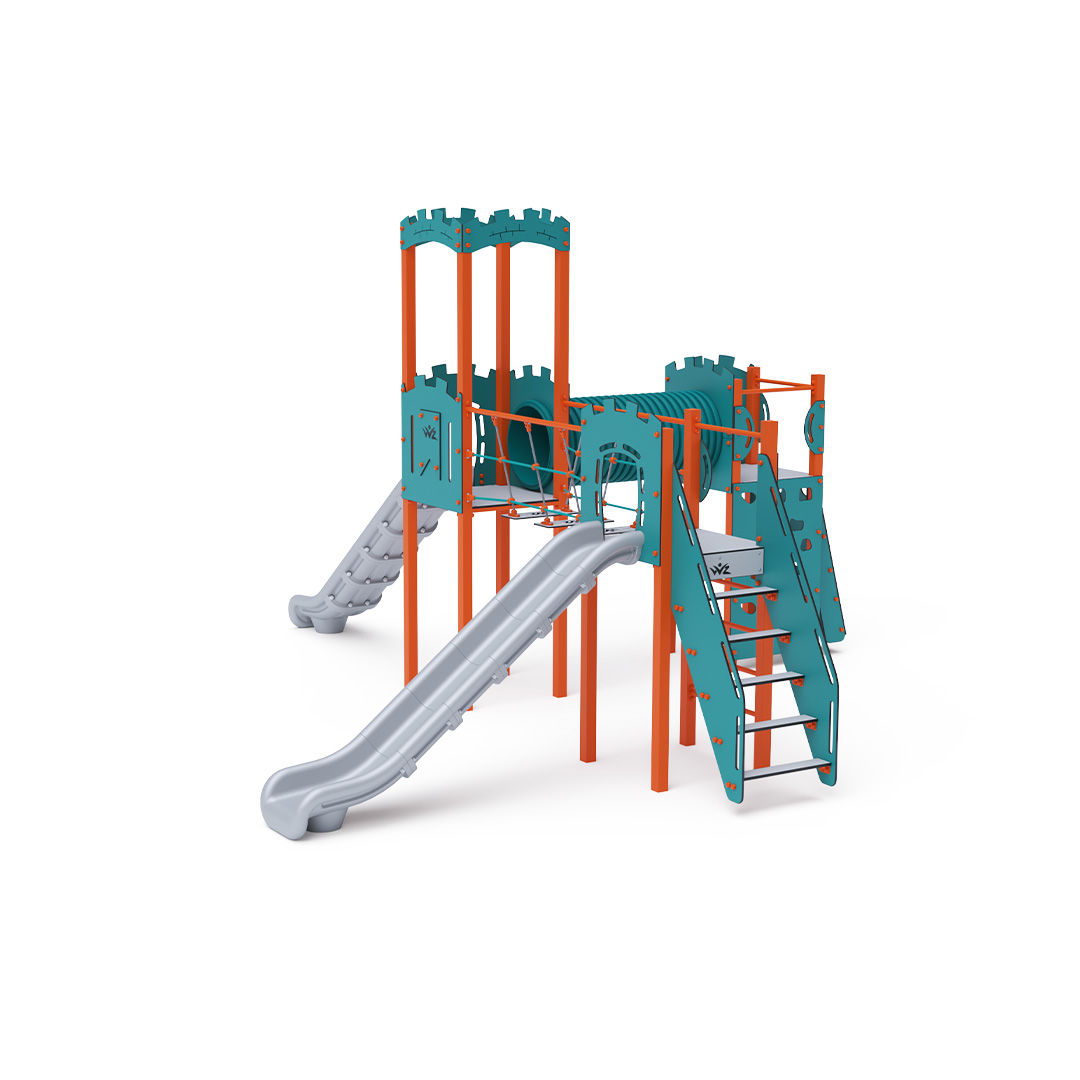

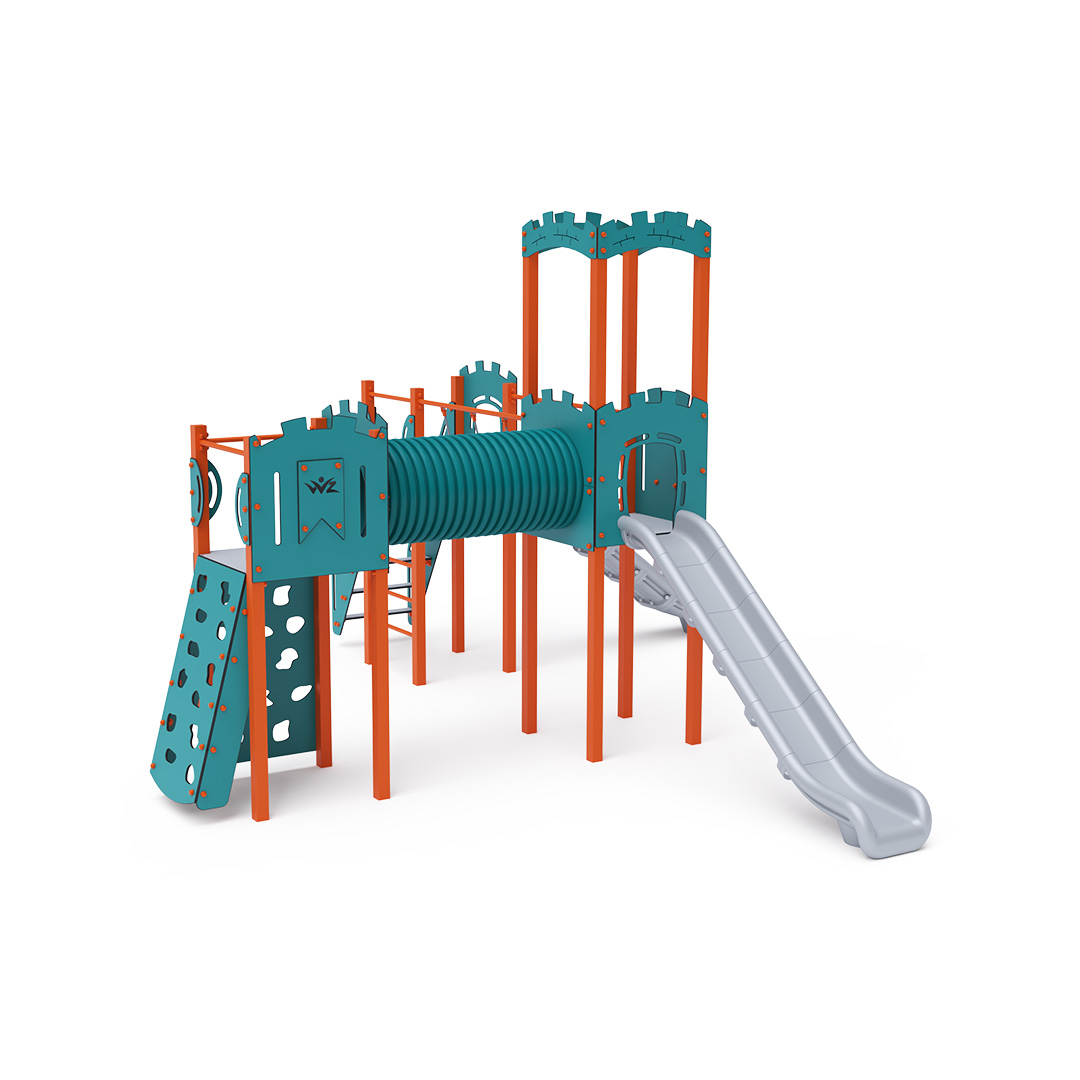

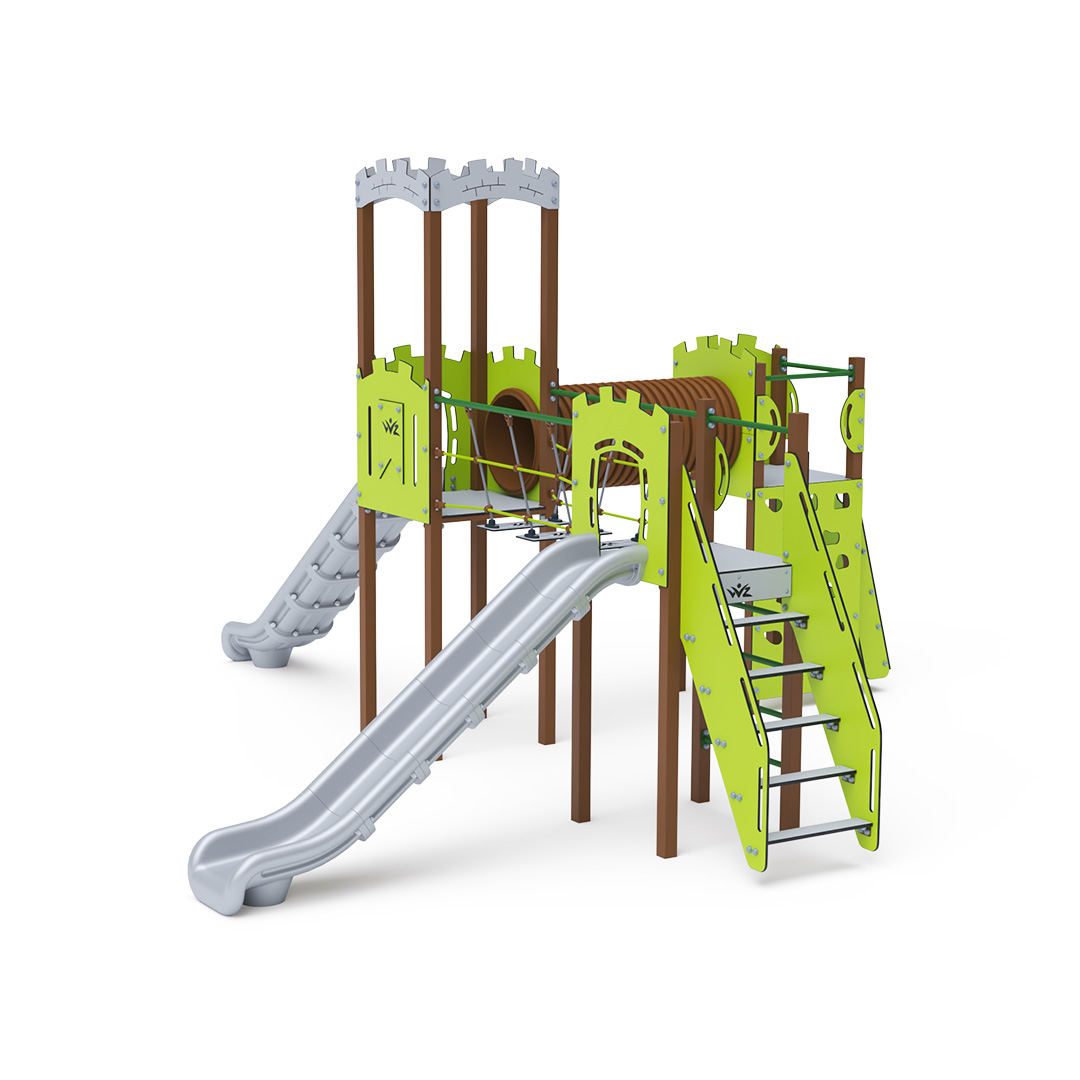

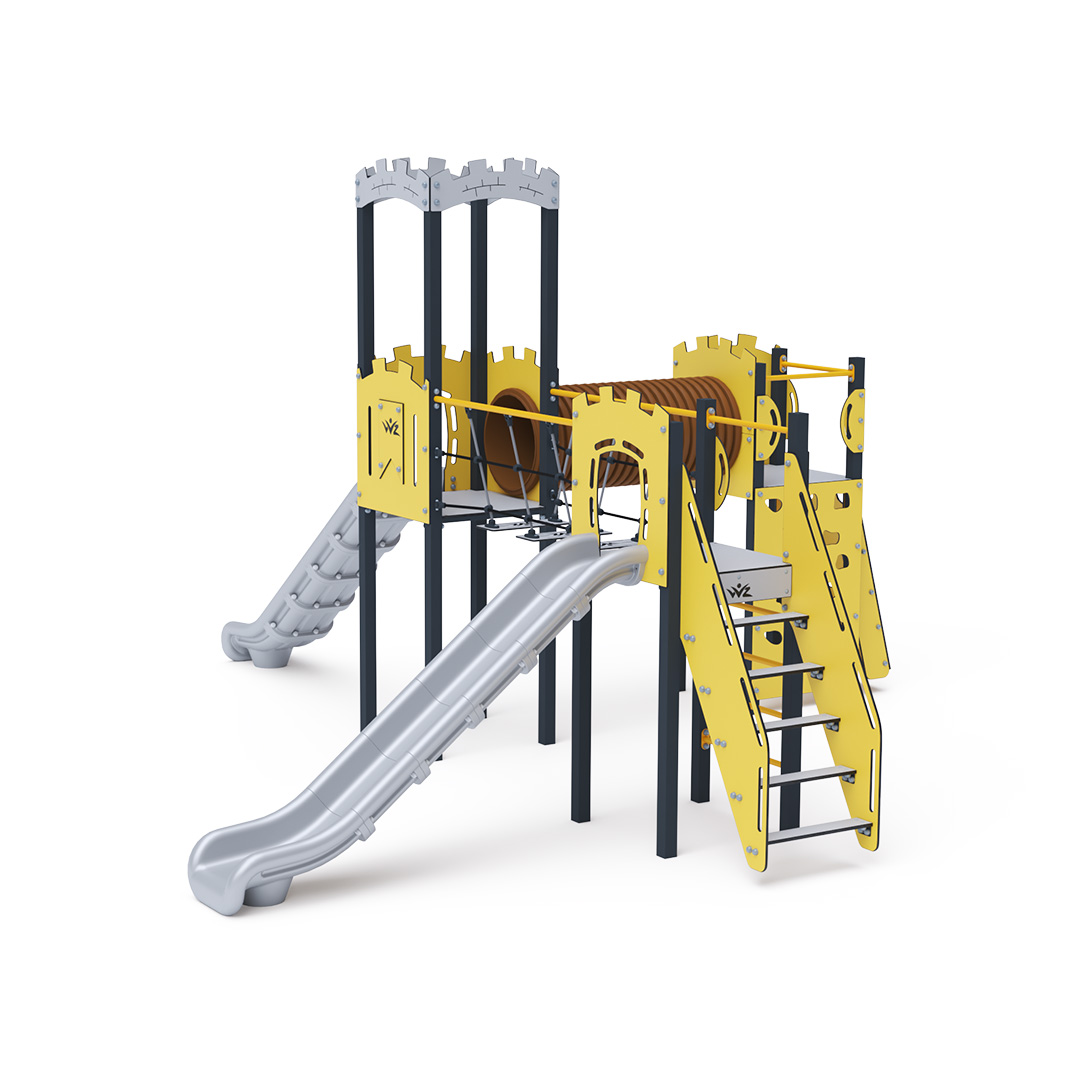

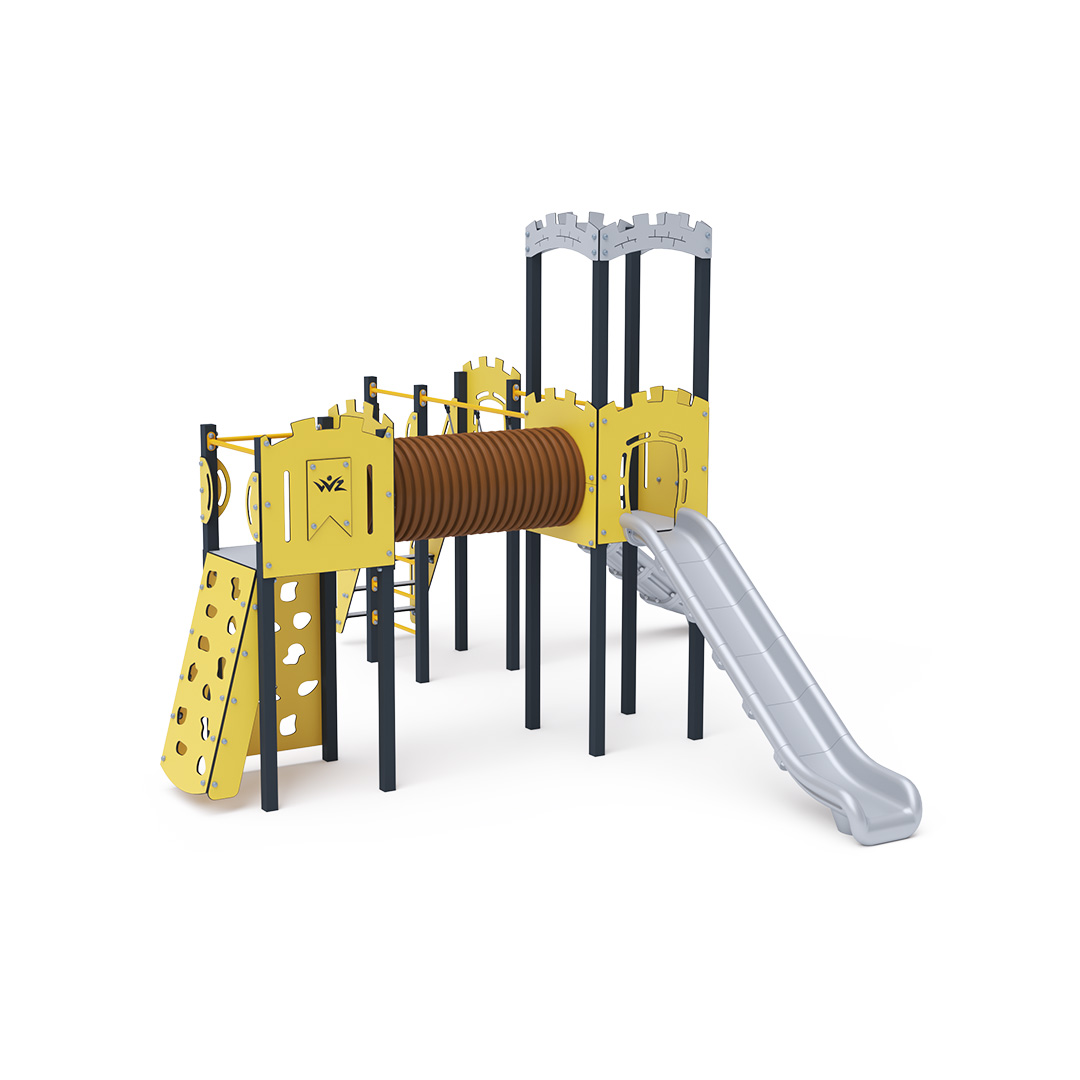

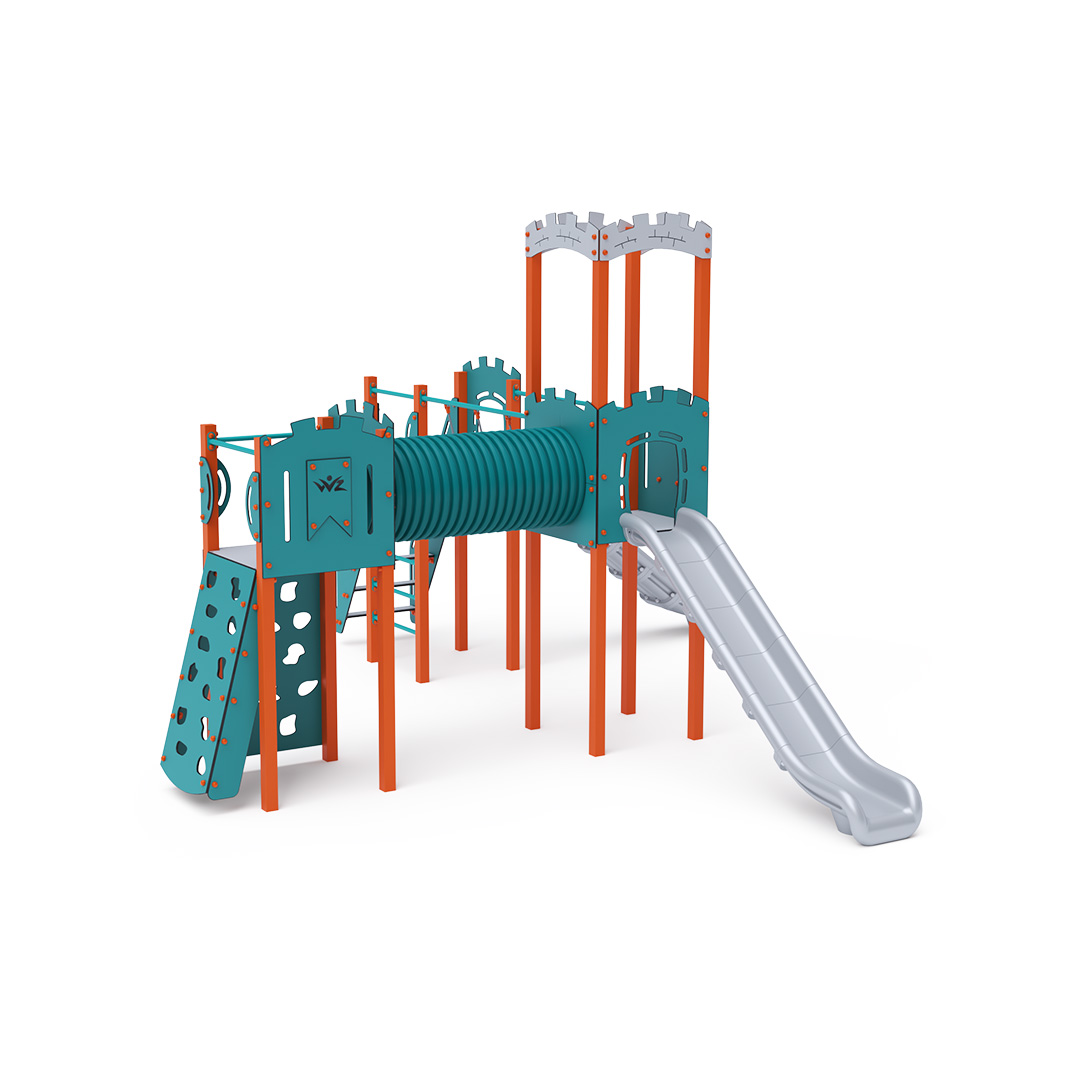

The triple tower combination set is designed in an L-shape. Two towers are connected to a central tower with walls via a rope balance bridge and a tunnel. Children can climb the structure using stairs, a sloped climbing wall with handholds, or a ladder, and can slide down one of two slides. The turquoise-orange design is attractive from a distance. The steel construction is weather-resistant due to hot-dip galvanizing and coating with a durable powder paint. The HPL material used is chemically resistant, UV-resistant—colorfast, non-toxic, recyclable, and unbreakable. This prevents injuries from sharp edges or fragments. The ropes are made from polyester fibers wound around a central core. This construction enhances the strength and resistance of the ropes to mechanical stress. The polyester itself is resistant to microorganisms and weather conditions, dries quickly after rain, retains its color, and exhibits high strength. All joints are made of stainless steel and covered with plastic caps to increase durability and safety.

Specification

The combination tower set VVZ-VZ3-002-15 is certified according to STN EN 1176.

Age category: 3 - 14 years
Element dimensions: 5,9 x 6,3 x 3,6 m (LxWxH)
Free fall height: up to1,5 m
Impact area: 9,6 x 9,9 m (according to STN EN 1176-1)
Material: galvanized and powder-coated steel, HPL material in thicknesses of 6, 10, 15, 19 mm, HDPE plastic, stainless steel fasteners
