VVZ-VZ2-004-15 Double Tower Combination Set A double tower combination set - two towers connected by a rope bridge. Children can climb the set using one of two climbing walls with handholds, a rope net, or a ladder, and slide down one of two slides. The turquoise-orange design attracts children to play from a distance. The steel structure is weather-resistant due to hot-dip galvanizing and coating with durable powder paint. The HPL material used is chemically resistant, UV-resistant - colorfast, non-toxic, recyclable, and unbreakable. This prevents injuries from sharp edges or fragments. The ropes are made from polyester fibers wrapped around a central core. This construction enhances the rope’s strength and resistance to mechanical stress. The polyester itself is resistant to microorganisms, weather conditions, dries quickly after rain, is colorfast, and has high strength. All joints are stainless steel and covered with plastic caps to increase durability and safety. Specification The combination tower set VVZ-VZ2-004 is certified according to STN EN 1176. Age category: 3 - 14 years Element dimensions: 6,1 x 3,7 x 3,6 m (LxWxH) Free fall height: up to 1,5 m Impact area: 9,6 x 7,2 m (according to STN EN 1176-1) Material: galvanized and powder-coated steel, HPL material, slide made out of PE segments, stainless steel fasteners
View full product description and parameters
Design
Production
Transport
Assembly
I am interested in this product
Send us a non-binding inquiry
Product color variants:
Orange + Turquoise
Brown + Yellow green

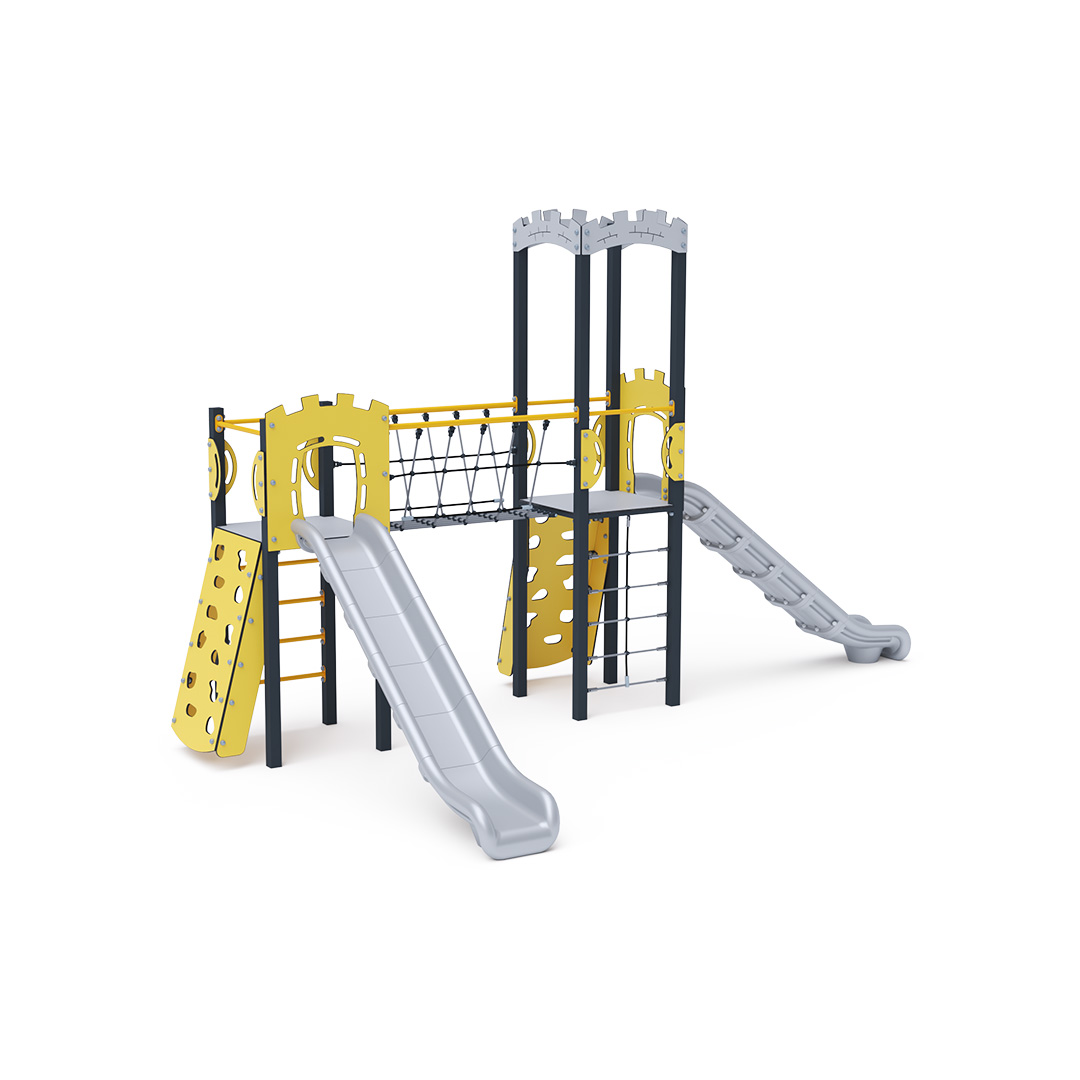

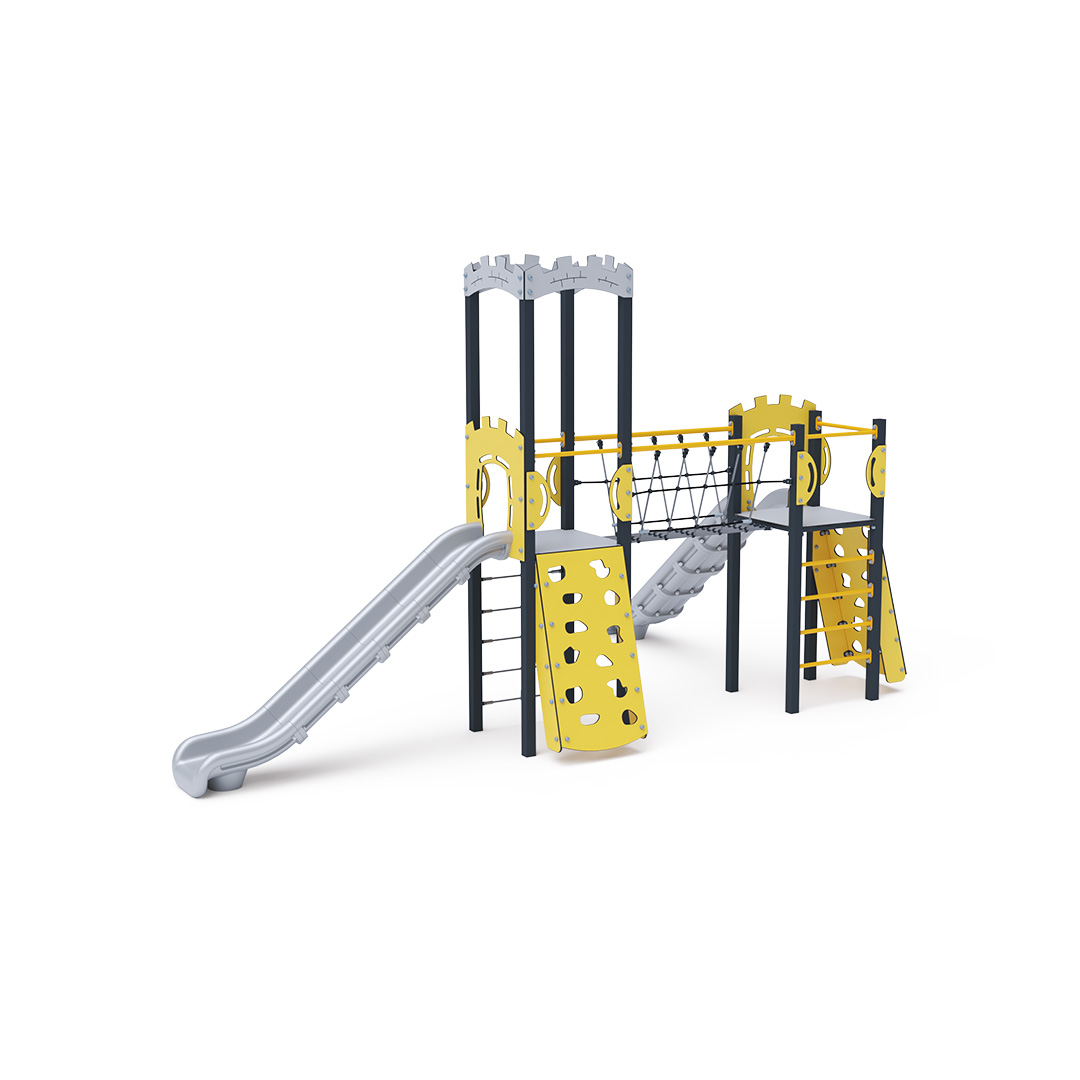

Anthracite + Yellow
Anthracite + Red
Element dimensions:
length 6.1 m
width 3.7 m
height 3.6 m
Certified according to standard:
EN 1176
Age category:
from 3 to 14 years
Free fall height:
1.5 m
Protective area:
length 9.6 m
width 7.2 m
area 69.12 m2
Designed for exterior use:
Yes
Item code:
VZ2-004-15
Show all parameters

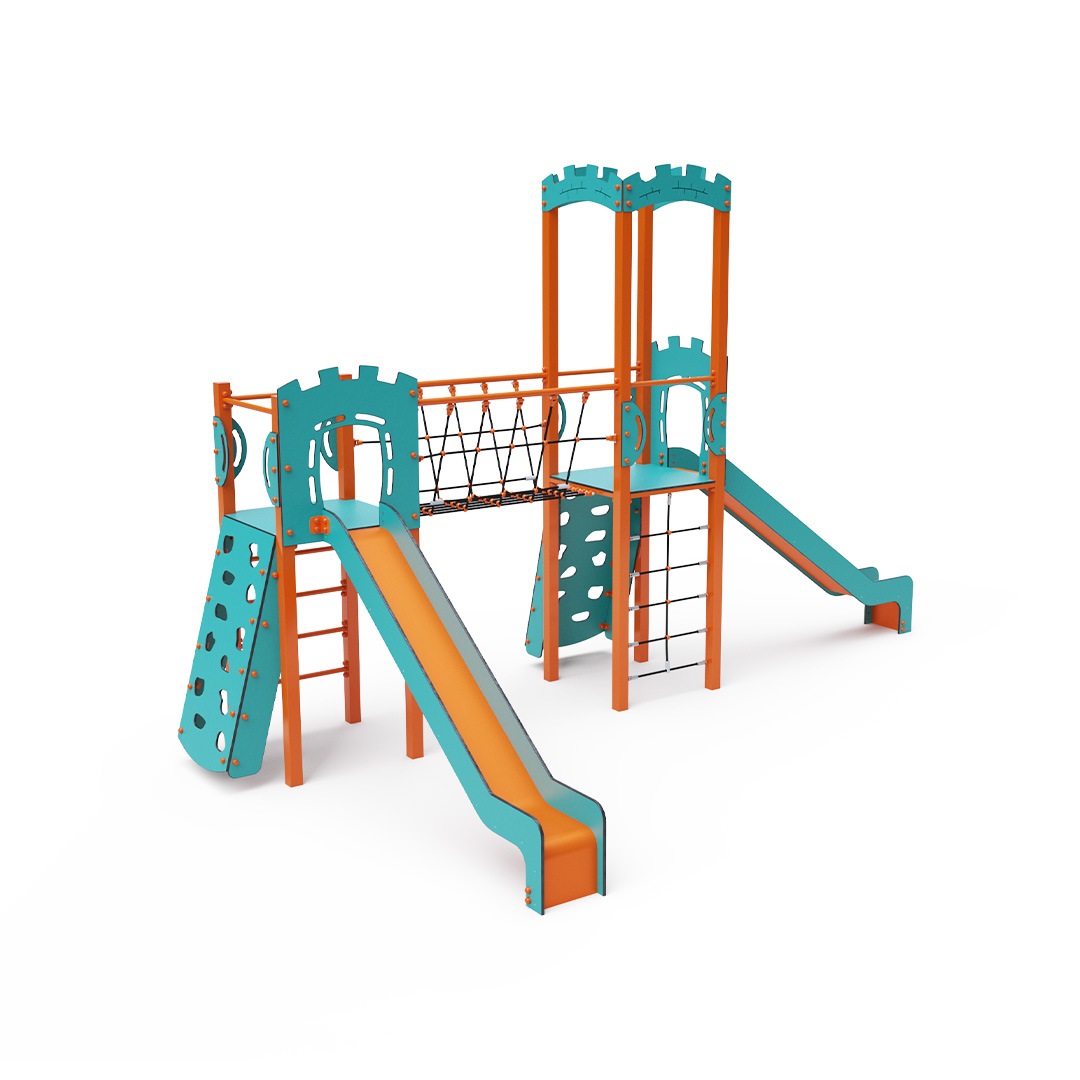

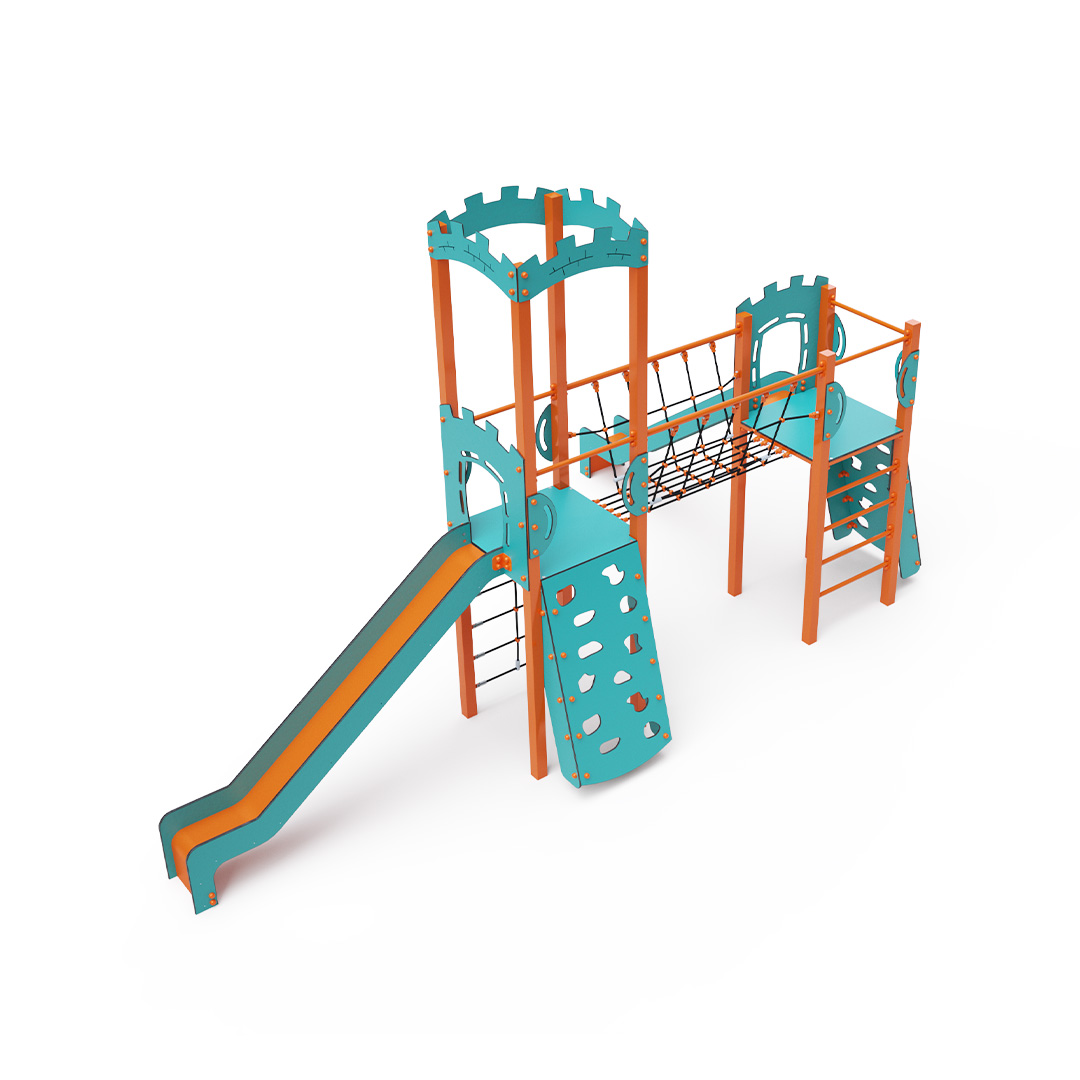

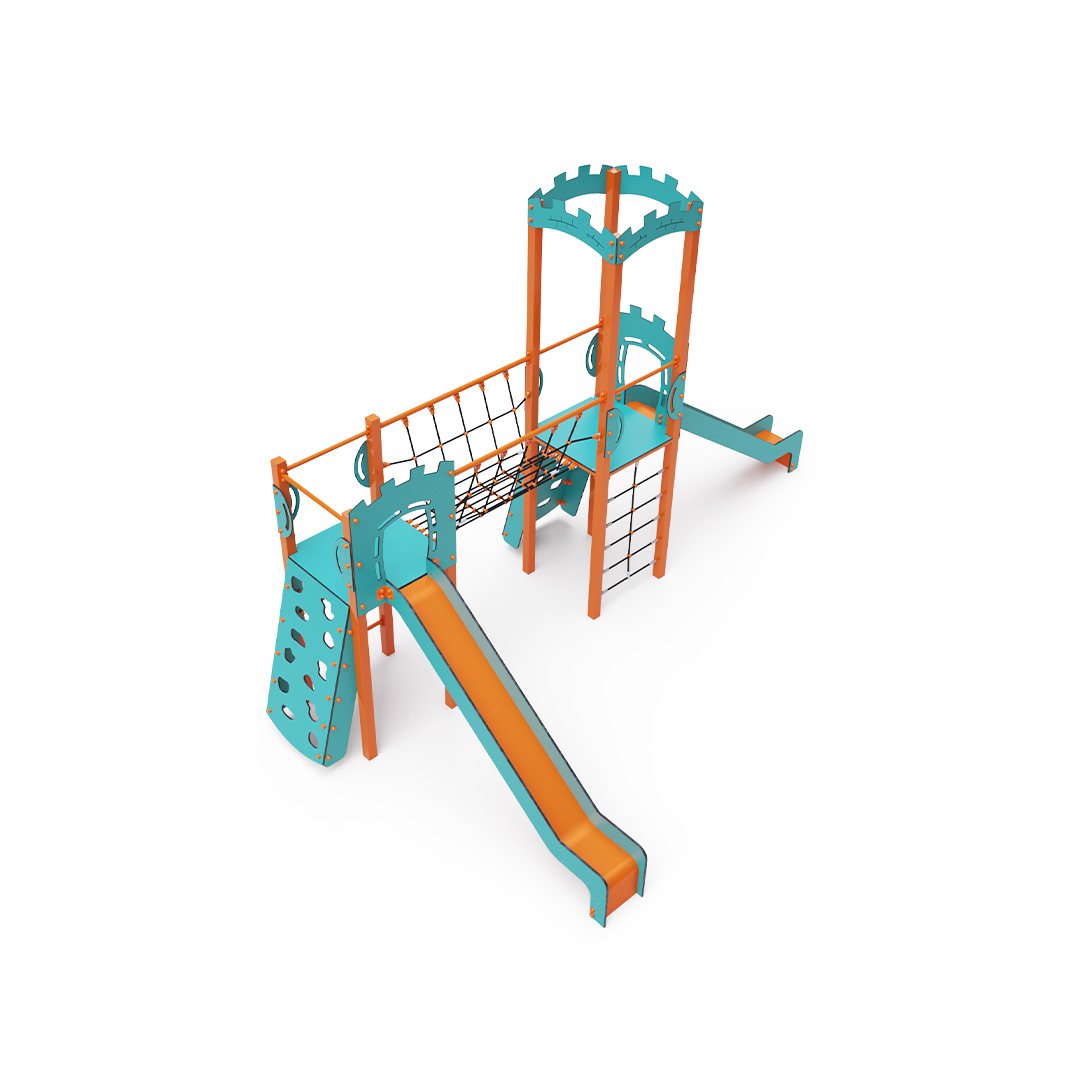

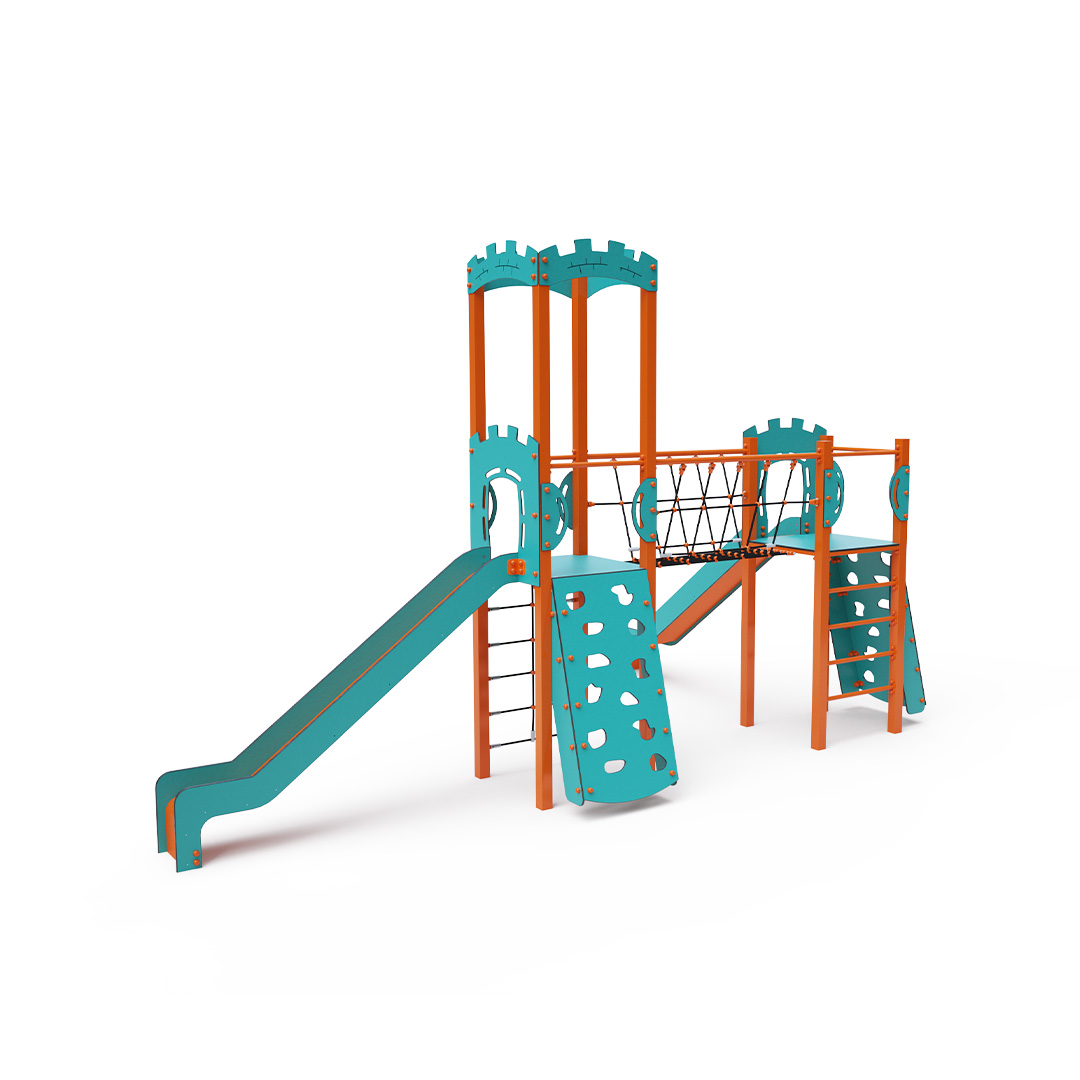

VVZ-VZ2-004-15 Double Tower Combination Set

A double tower combination set - two towers connected by a rope bridge. Children can climb the set using one of two climbing walls with handholds, a rope net, or a ladder, and slide down one of two slides. The turquoise-orange design attracts children to play from a distance. The steel structure is weather-resistant due to hot-dip galvanizing and coating with durable powder paint. The HPL material used is chemically resistant, UV-resistant - colorfast, non-toxic, recyclable, and unbreakable. This prevents injuries from sharp edges or fragments. The ropes are made from polyester fibers wrapped around a central core. This construction enhances the rope’s strength and resistance to mechanical stress. The polyester itself is resistant to microorganisms, weather conditions, dries quickly after rain, is colorfast, and has high strength. All joints are stainless steel and covered with plastic caps to increase durability and safety.

Specification

The combination tower set VVZ-VZ2-004 is certified according to EN 1176.

Age category: 3 - 14 years
Element dimensions: 6,1 x 3,7 x 3,6 m (LxWxH)
Free fall height: up to 1,5 m
Impact area: 9,6 x 7,2 m (according to EN 1176-1)
Material: galvanized and powder-coated steel, HPL material, slide made out of PE segments, stainless steel fasteners

Documents for download:
Certificate
PDF download

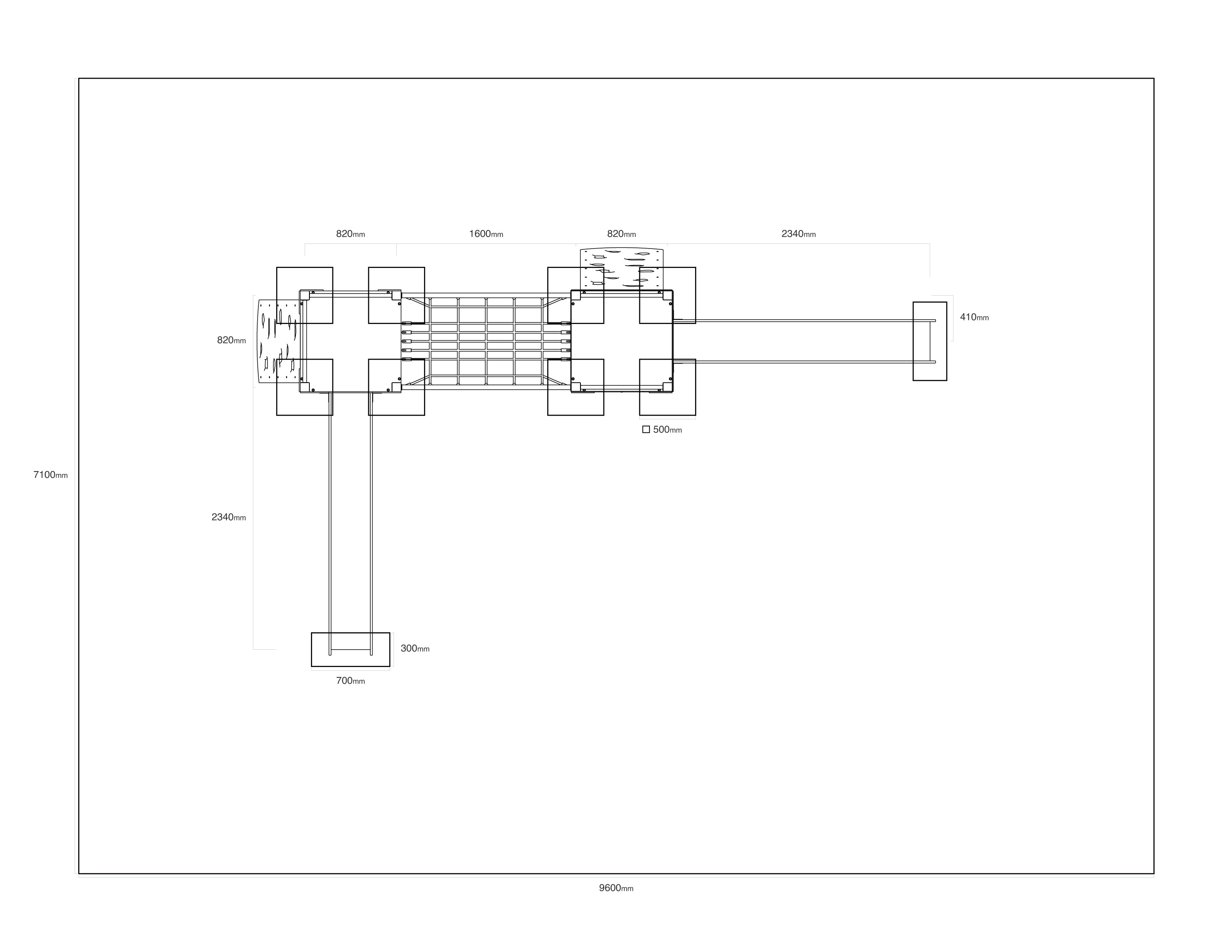

Impact area
Image to download
DWG file
DWG for download
You must log in to view locked files
