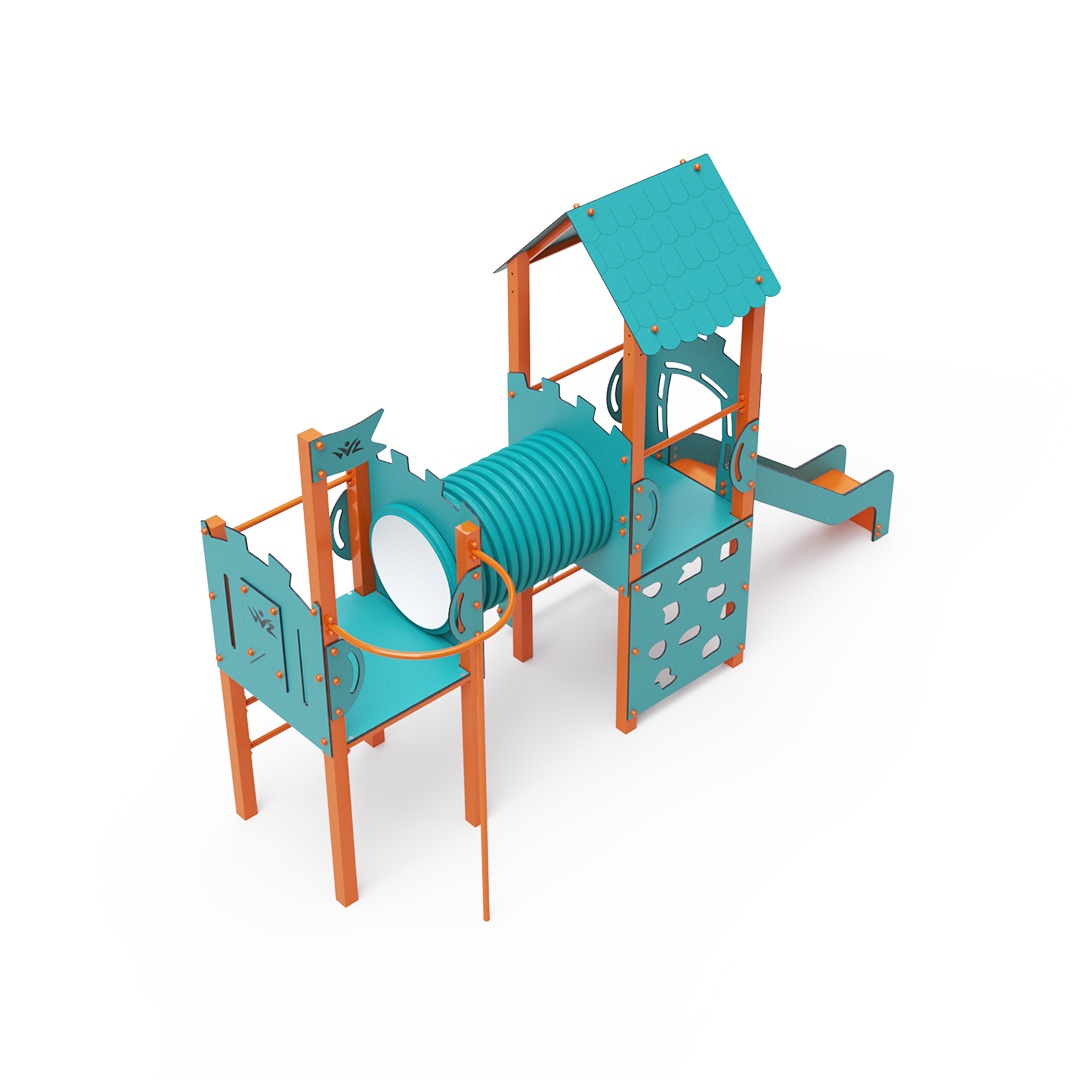

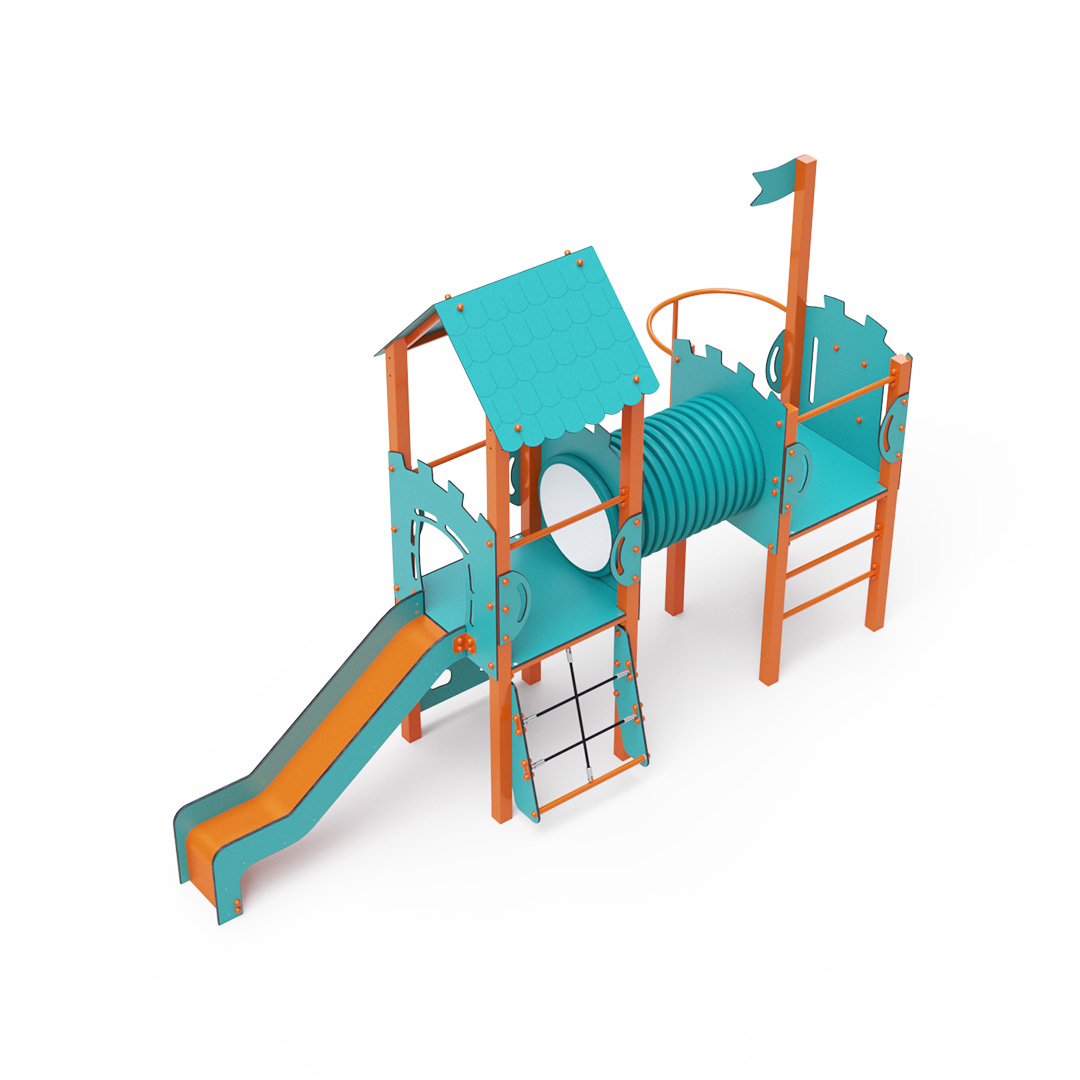

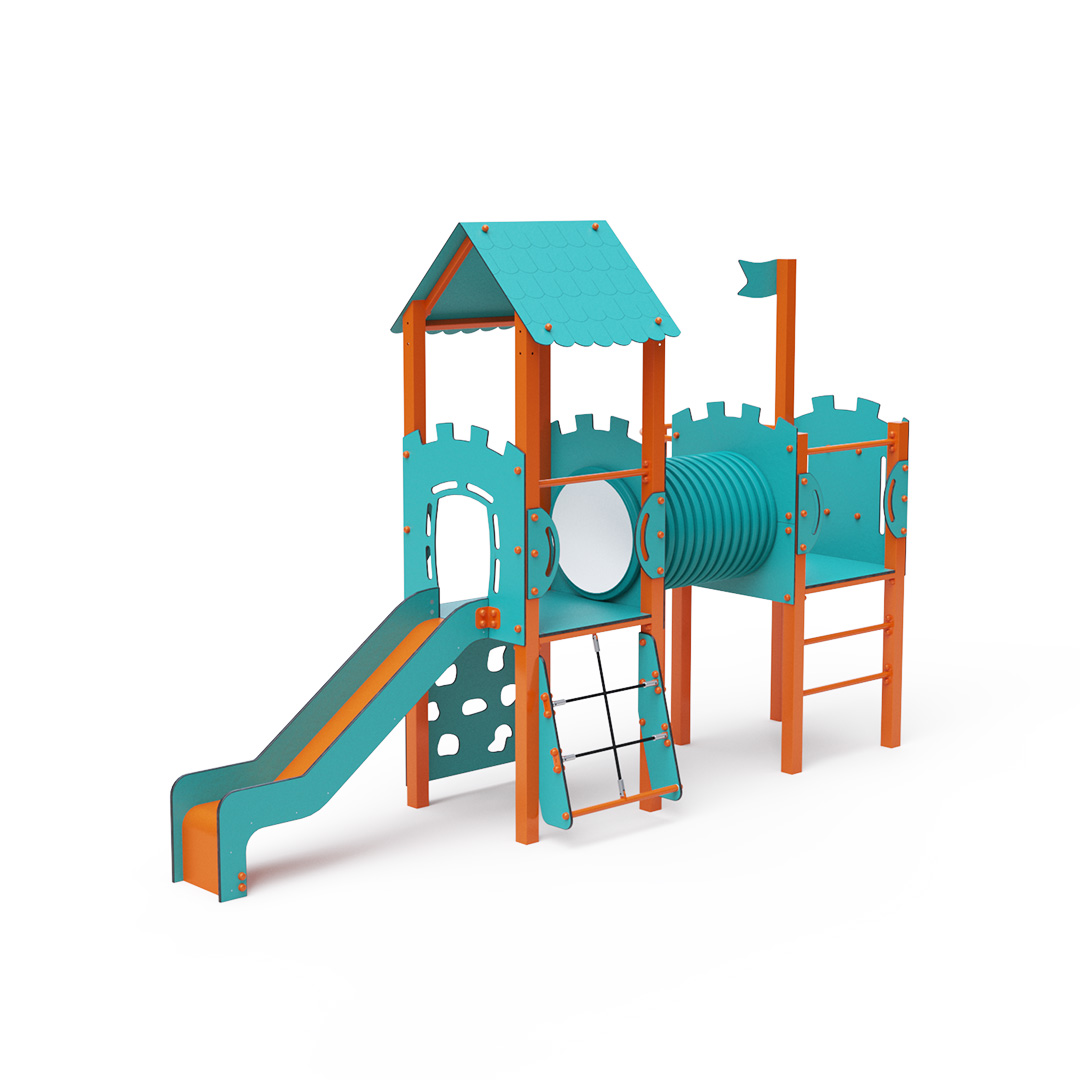

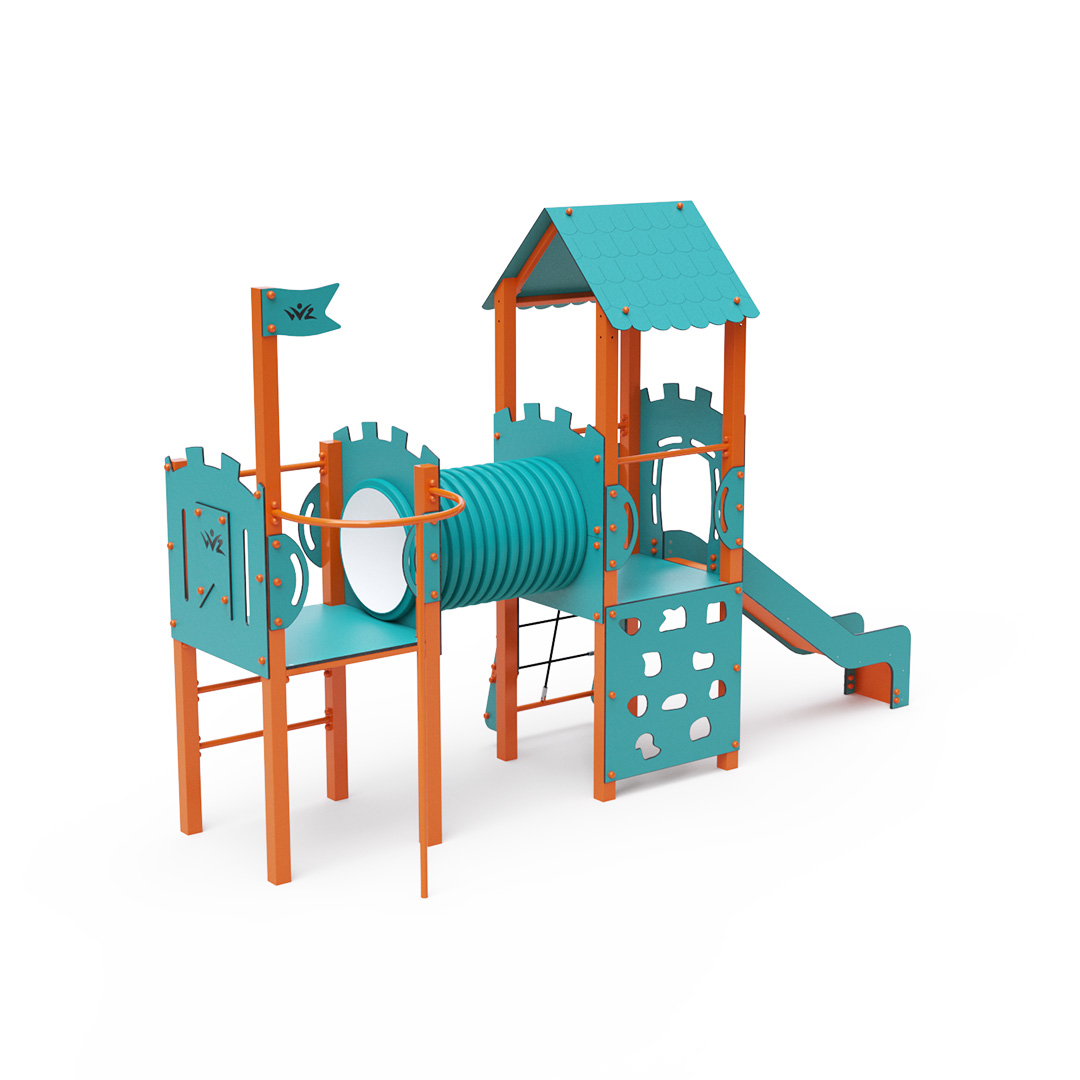

VVZ-VZ2-006 Double Tower Combination Set A double tower combination set - one tower with a roof and another low tower with a flag-shaped shade, connected by a tunnel. Children can climb the set using a climbing wall with handholds, an arched rope net, or a ladder and slide down a slide or a fireman's pole. The turquoise-orange design attracts children to play from a distance. The steel structure is weather-resistant due to hot-dip galvanizing and coating with durable powder paint. The HPL material used is chemically resistant, UV-resistant - colorfast, non-toxic, recyclable, and unbreakable, preventing injuries from sharp edges or fragments. The ropes are made from polyester fibers wound around a central reinforcement, increasing the rope's strength and resistance to mechanical stress. Polyester itself is resistant to microorganisms, weather conditions, dries quickly after rain, is colorfast, and has high strength. All joints are stainless steel and covered with plastic caps to increase durability and safety. Specification The combination tower set VVZ-VZ2-006 is certified according to STN EN 1176. Age category: 2 - 14 years Capacity: 10 persons Element dimensions: 4,4 x 1,7 x 2,9 m (LxWxH) Free fall height: up to 1,0 m Impact area: 7,8 x 4,8 m (according to STN EN 1176-1) Material: galvanized and powder-coated steel, HPL material in thicknesses of 6, 10, 15, 19 mm, HDPE plastic, stainless steel fasteners

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

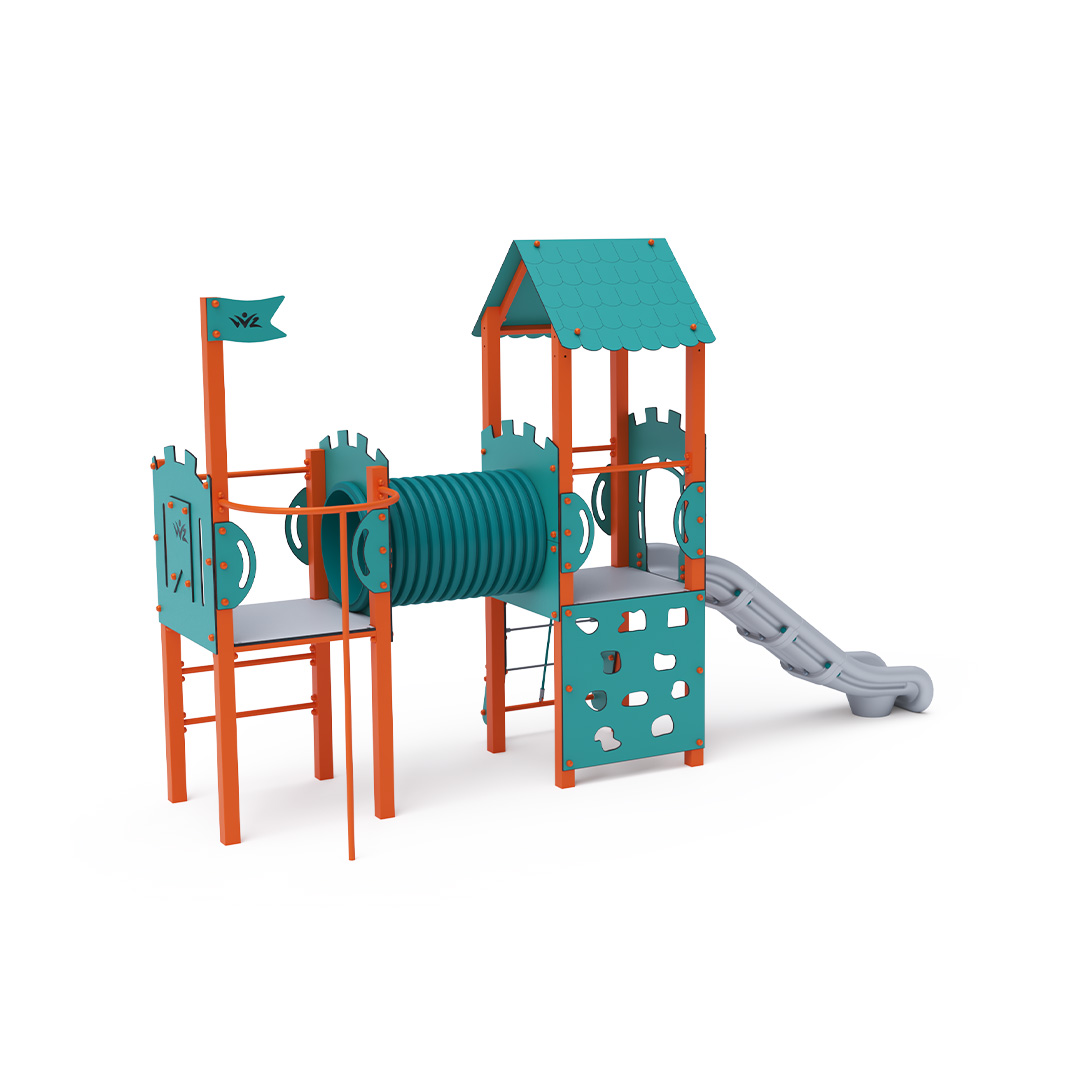

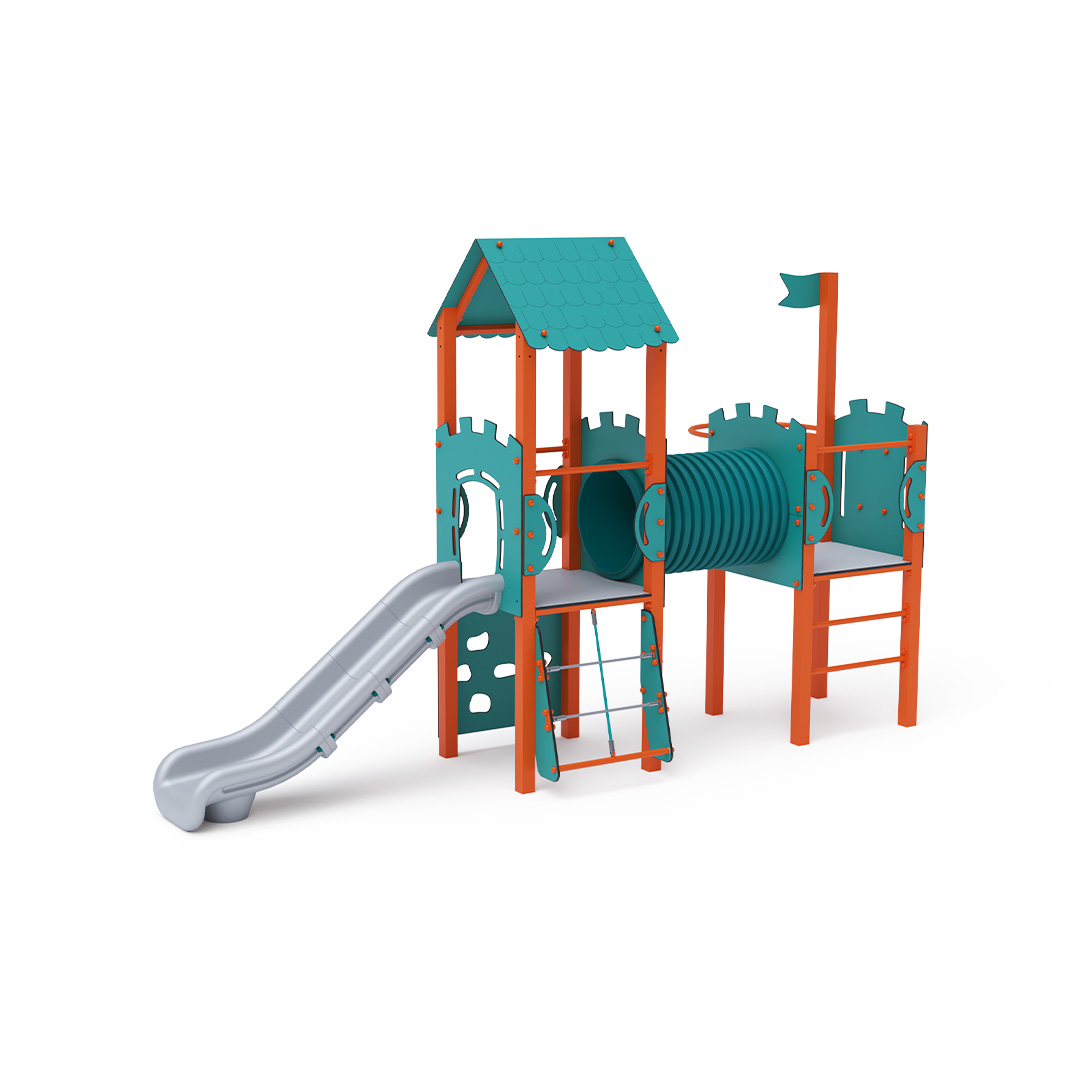

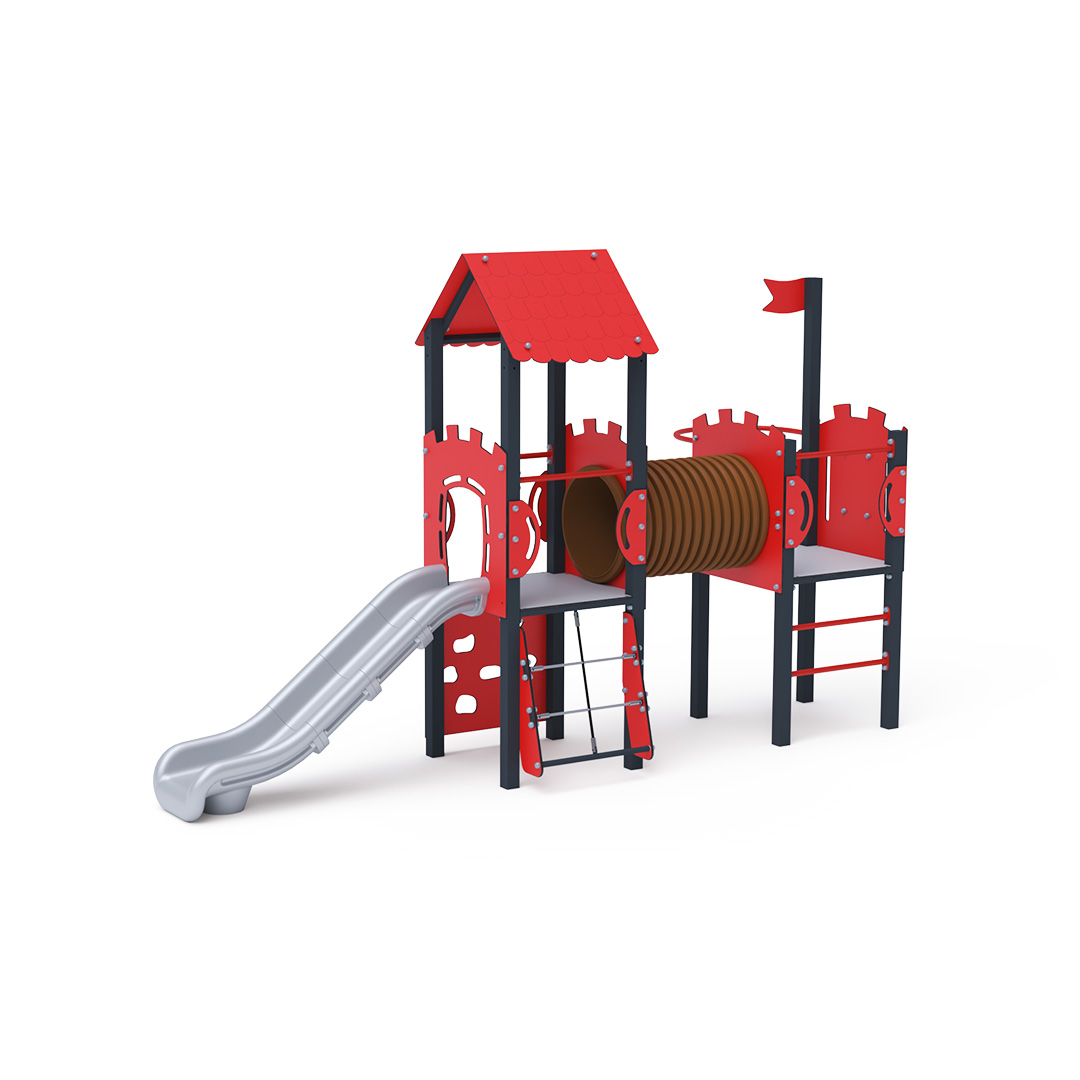

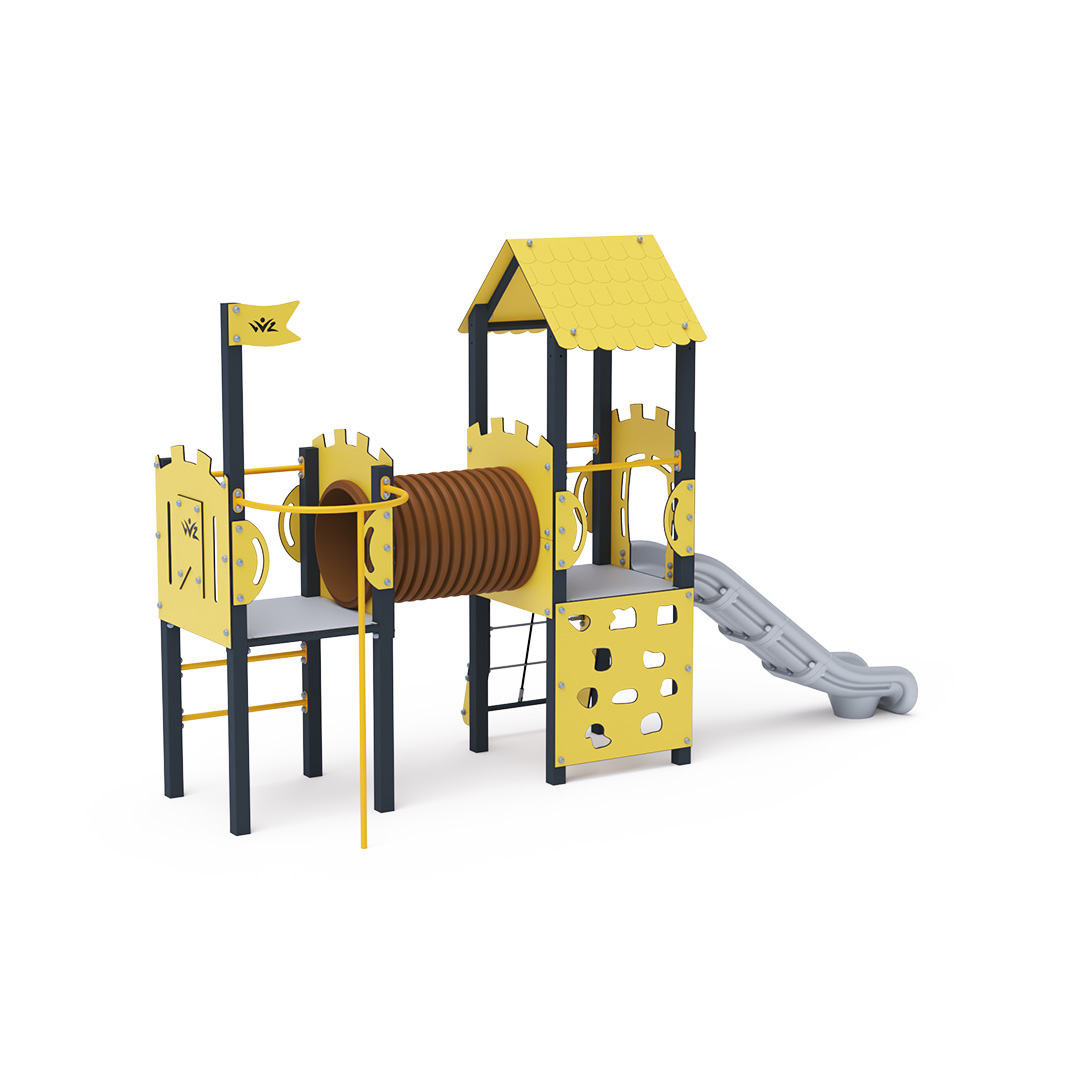

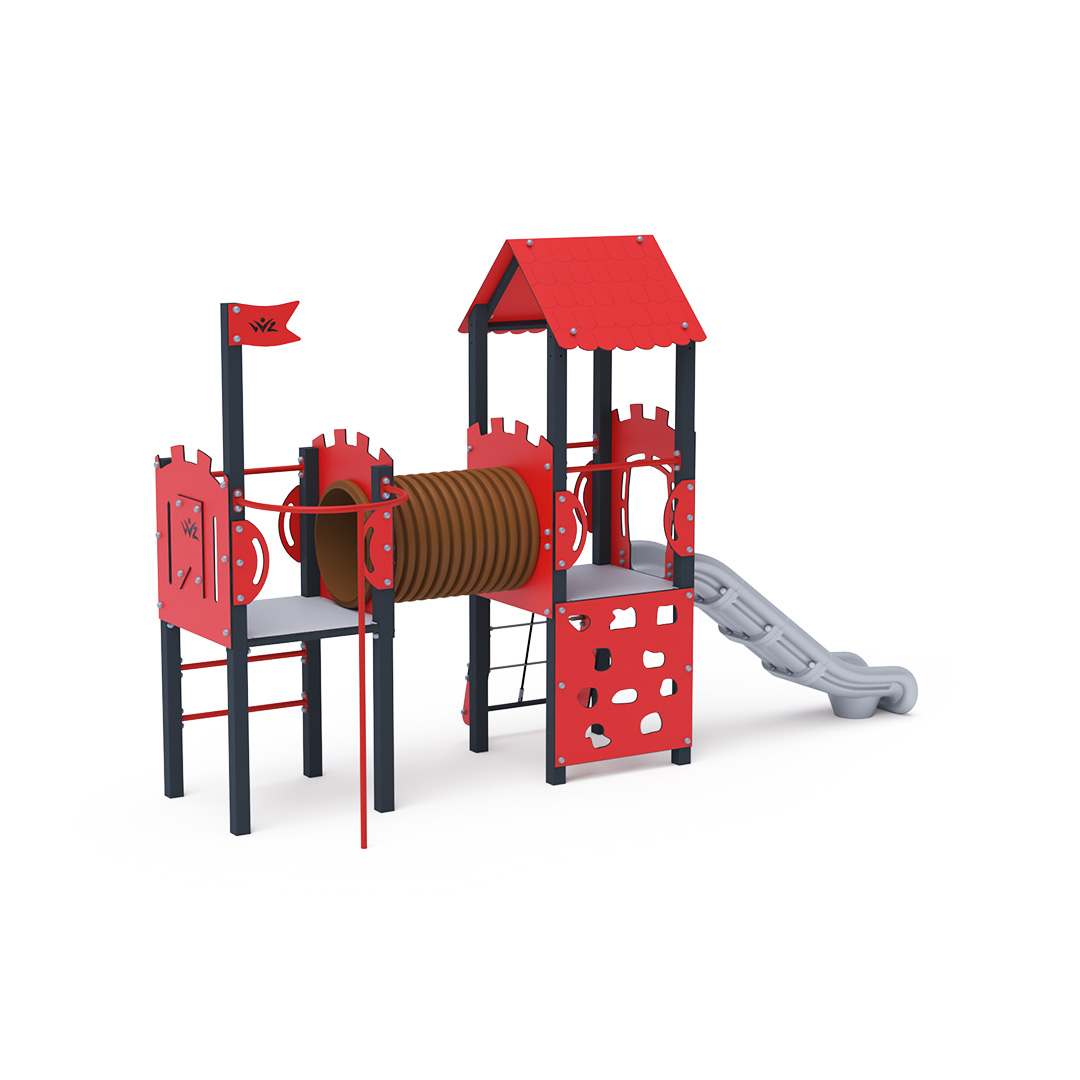

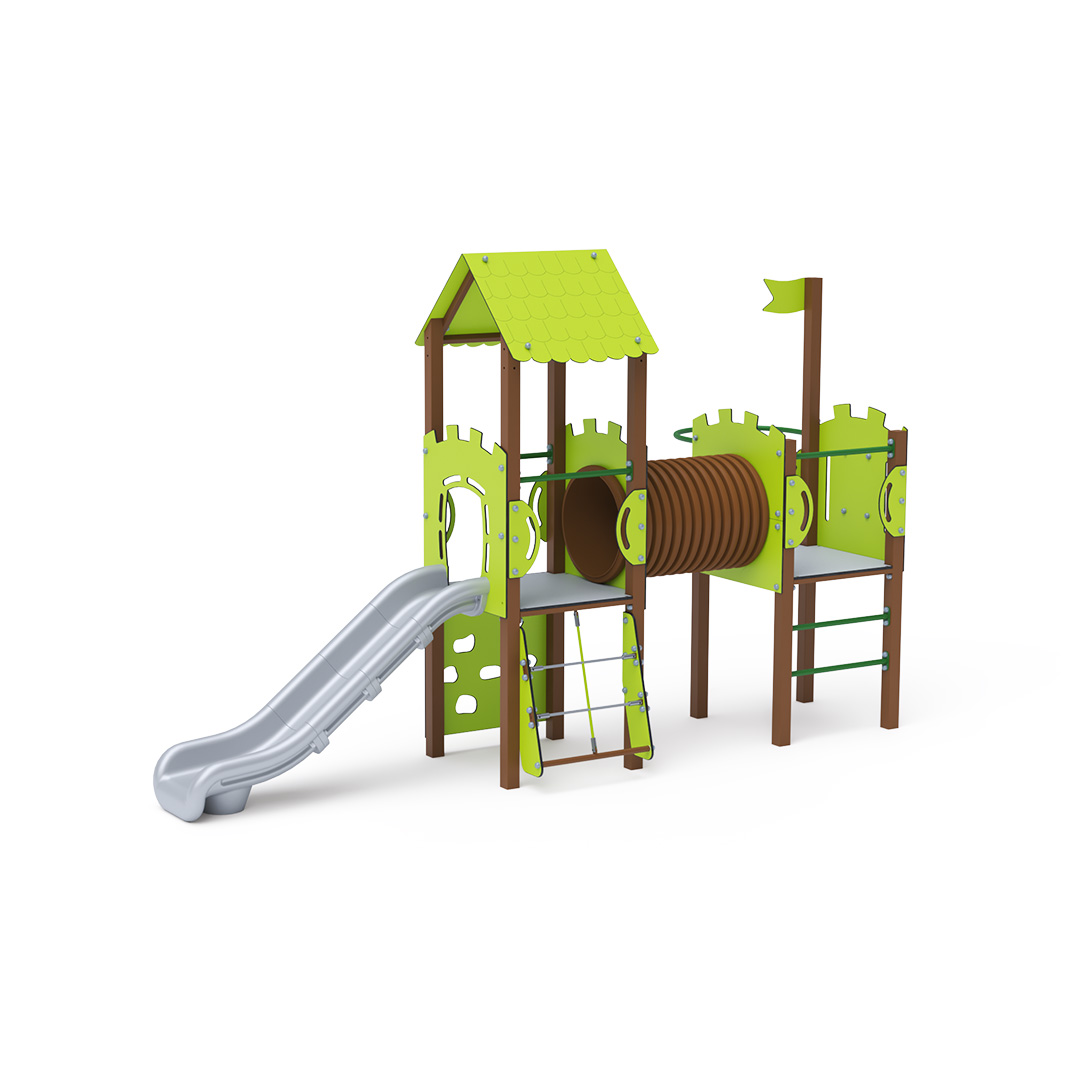

Product color variants:

More color
options

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 4.4 m

width 1.7 m

height 2.9 m

Designed for exterior use:

Yes

Age category:

from 2 to 14 years

Free fall height:

1.00 m

Protective area:

length 7.8 m

width 4.8 m

area 37.44 m²

Certified according to standard:

STN EN 1176

Show all parameters

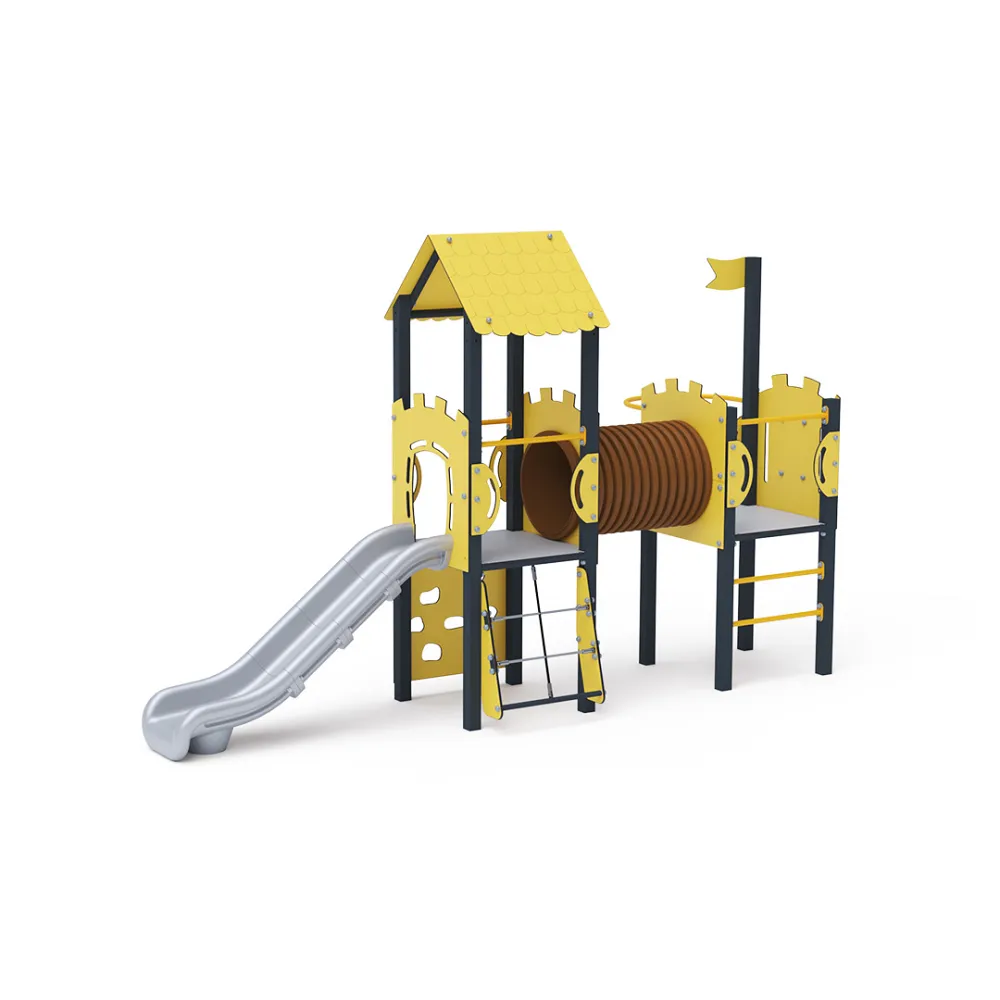

VVZ-VZ2-006 Double Tower Combination Set

A double tower combination set - one tower with a roof and another low tower with a flag-shaped shade, connected by a tunnel. Children can climb the set using a climbing wall with handholds, an arched rope net, or a ladder and slide down a slide or a fireman's pole. The turquoise-orange design attracts children to play from a distance. The steel structure is weather-resistant due to hot-dip galvanizing and coating with durable powder paint. The HPL material used is chemically resistant, UV-resistant - colorfast, non-toxic, recyclable, and unbreakable, preventing injuries from sharp edges or fragments. The ropes are made from polyester fibers wound around a central reinforcement, increasing the rope's strength and resistance to mechanical stress. Polyester itself is resistant to microorganisms, weather conditions, dries quickly after rain, is colorfast, and has high strength. All joints are stainless steel and covered with plastic caps to increase durability and safety.

Specification

The combination tower set VVZ-VZ2-006 is certified according to STN EN 1176.

Age category: 2 - 14 years
Capacity: 10 persons
Element dimensions: 4,4 x 1,7 x 2,9 m (LxWxH)
Free fall height: up to 1,0 m
Impact area: 7,8 x 4,8 m (according to STN EN 1176-1)
Material: galvanized and powder-coated steel, HPL material in thicknesses of 6, 10, 15, 19 mm, HDPE plastic, stainless steel fasteners

Documents for download:

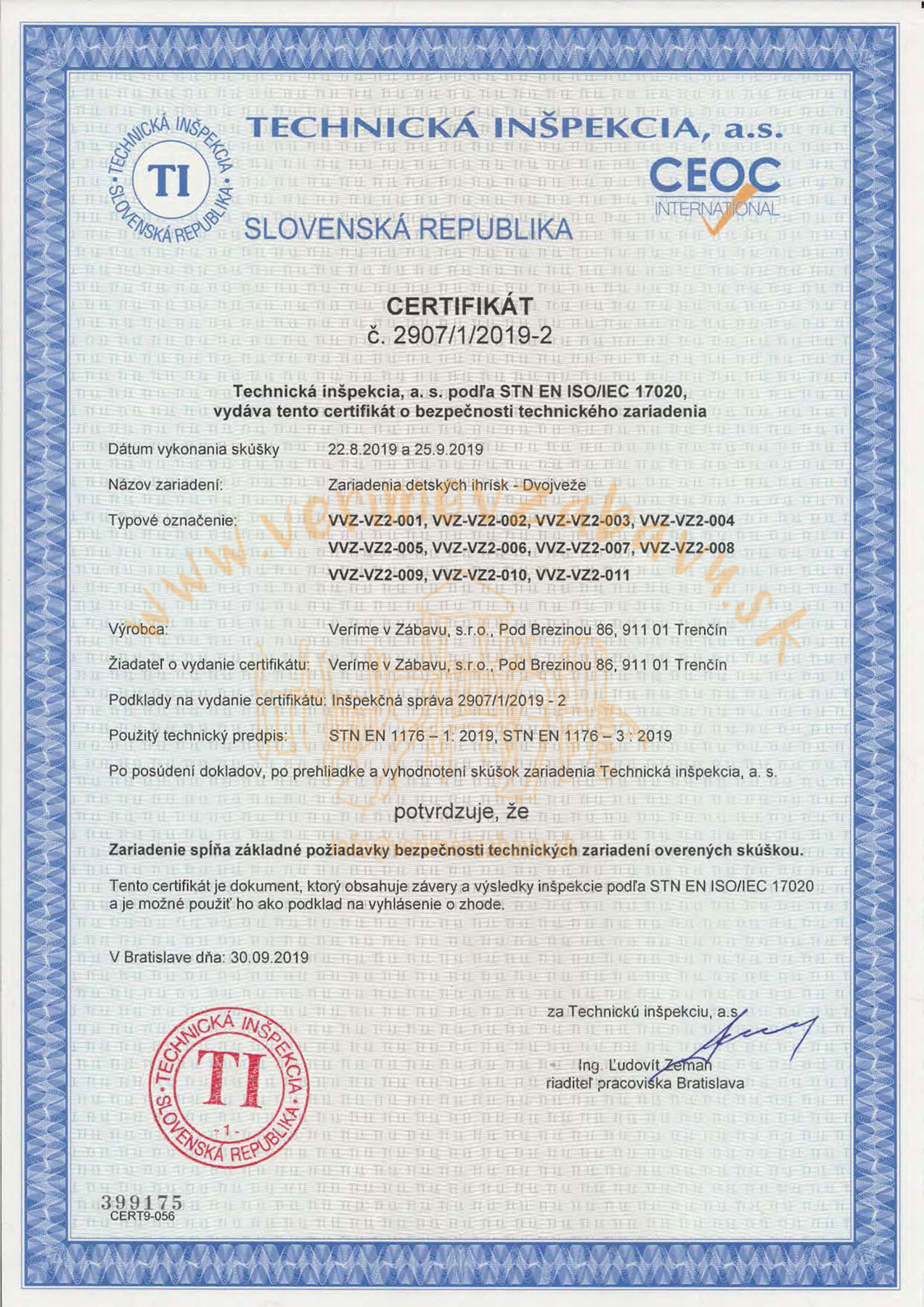

Certificate

Image to download

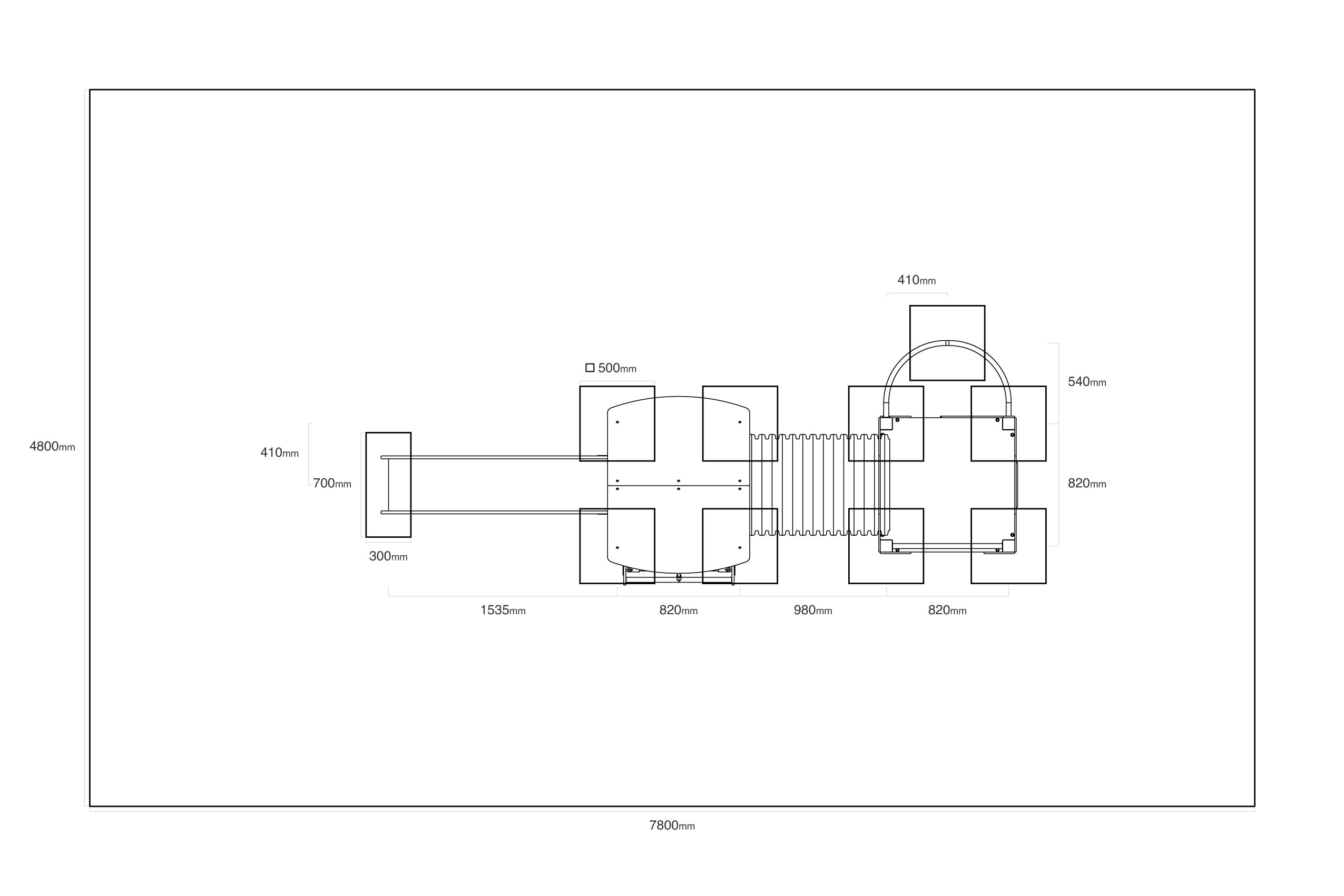

Impact area

Image to download

DWG file

DWG for download

You must log in to view locked files

HPL - High Pressure Laminates

HPL - high-pressure laminate has high resistance to mechanical damage and abrasion, easy maintenance and is suitable for exteriors and extremely stressed areas. They are produced in stacking presses using high pressure and at high temperatures.

Climbing

Climbing and mountaineering are basic human activities that evolved from survival needs and are now popular sports and recreational activities. Climbing and mountaineering are great for physical fitness, promoting overall strength, improving coordination and mental resilience.

Sliding

Sliding down a slide is great fun for children and a great way to develop balance and the vestibular system. Climbing up a ladder strengthens the muscles of the arms, legs and torso, improves coordination and gross motor skills. The fast descent brings a sense of excitement and helps children better understand gravity, space and speed. Regular sliding builds self-confidence - the child overcomes the fear of heights and enjoys success. In addition, it supports social skills, as children learn to wait in line, take turns and play together with friends. And what is best - it is a natural movement that they enjoy and at the same time develops them healthily.

Single-tower assemblies

Twin-tower assemblies

Three-tower assemblies

Multi-tower assemblies

Combined Tower set VVZ-VZ2-006

Add to cart

Frequently asked questions

Can you arrange transportation to my place?

Yes, we provide transportation in Central Europe.

Will I be able to install the game elements, workout and fitness myself?

Each element in our offer is also available with installation, but if you are interested and want to save money, we can provide you with a drawing of the foundations and assembly so that you can install the elements yourself.

Are your elements certified?

All of our items in the offer have been inspected by the Technical Inspection a.s., according to the relevant standard, as evidenced by the certificates that you can find on the website for each product. Although all of our products are approved by the Technical Inspection a.s., the strictest inspectors for us are those who set out on a journey for fun - and it's not just children.

Who makes all this for you?

Our products are designed, developed, tested and manufactured in our hall in Trenčín.

What is the delivery time of the order?

Standard delivery time is 4 to 6 weeks from order placement.
