Combined tower assembly VVZ-VZ2-008-1

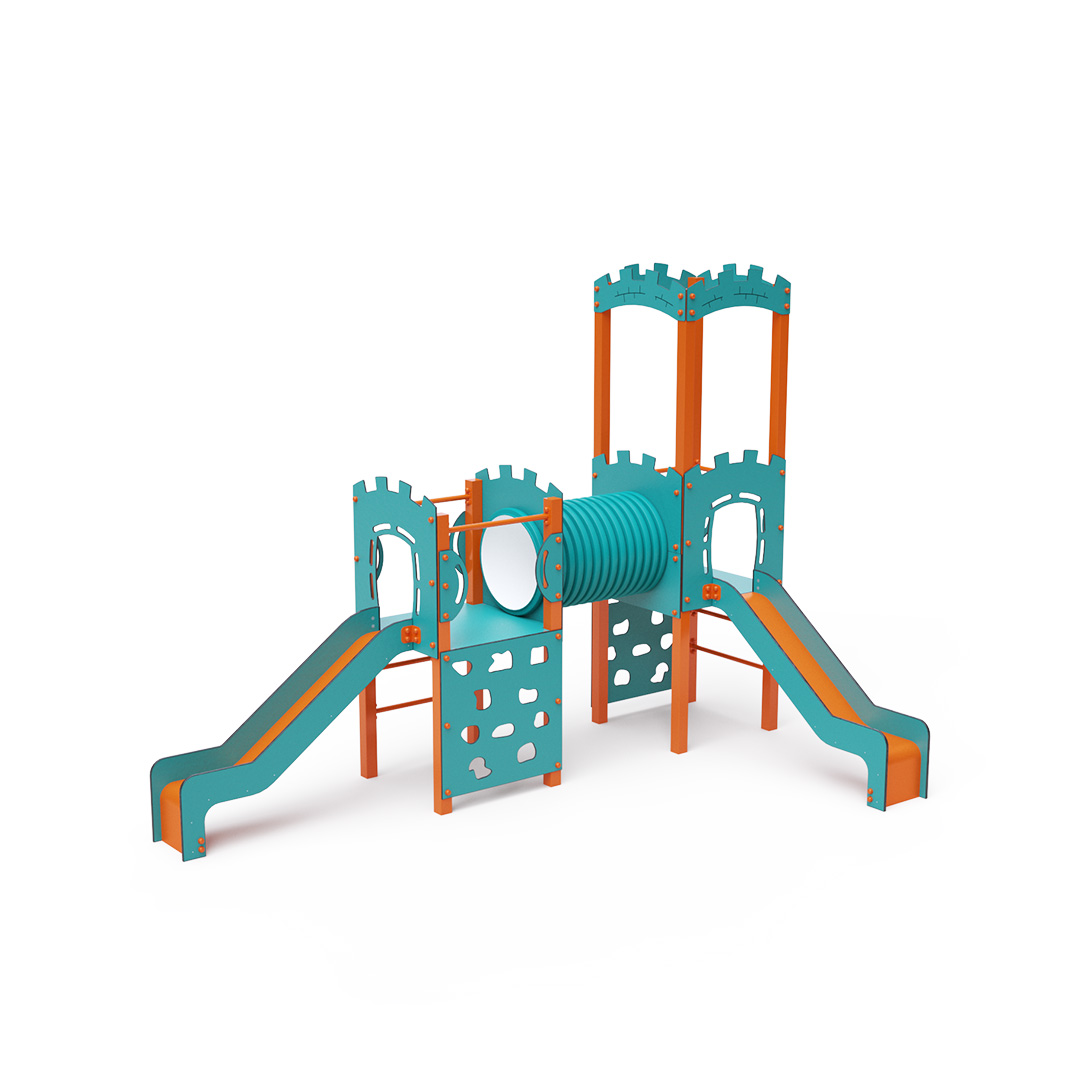

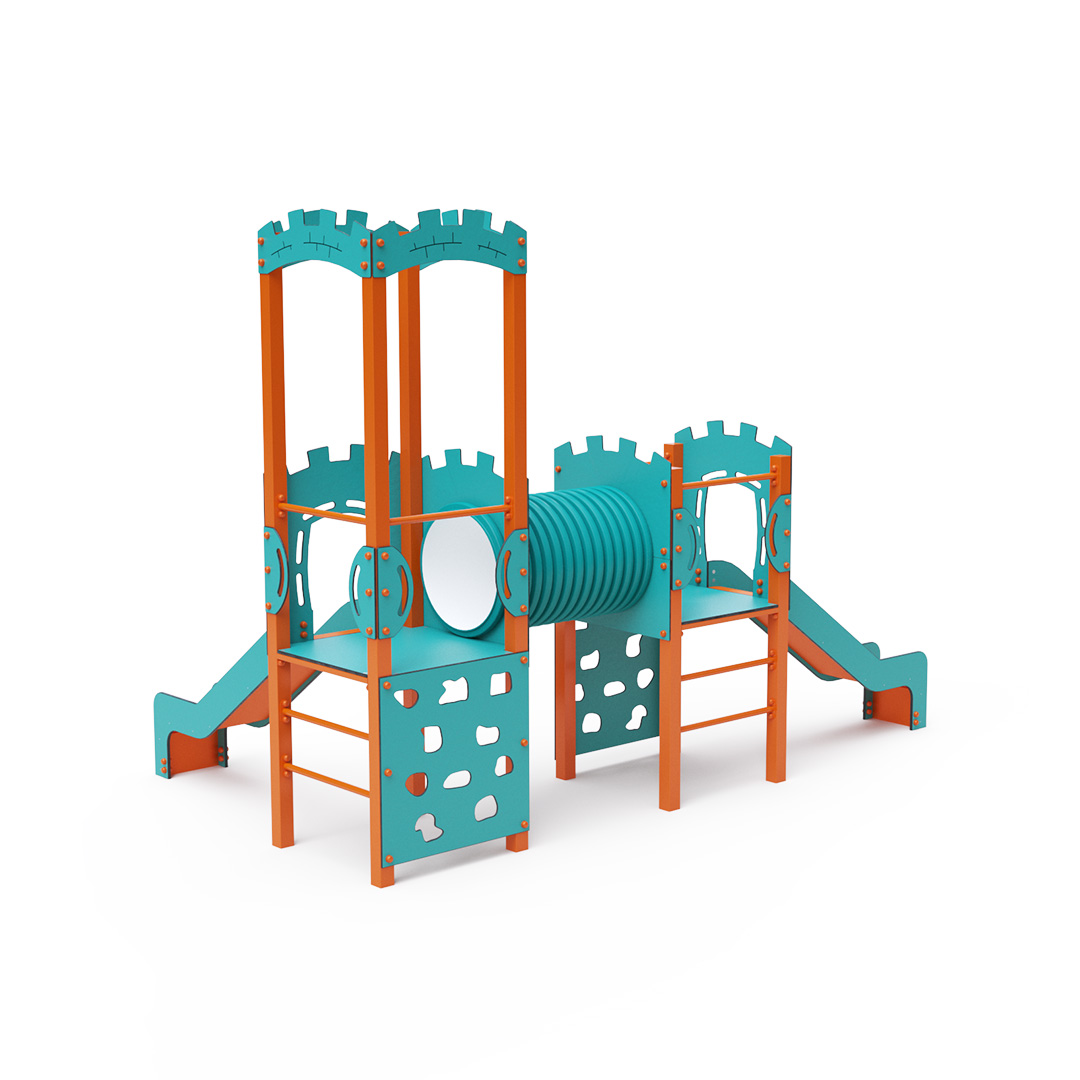

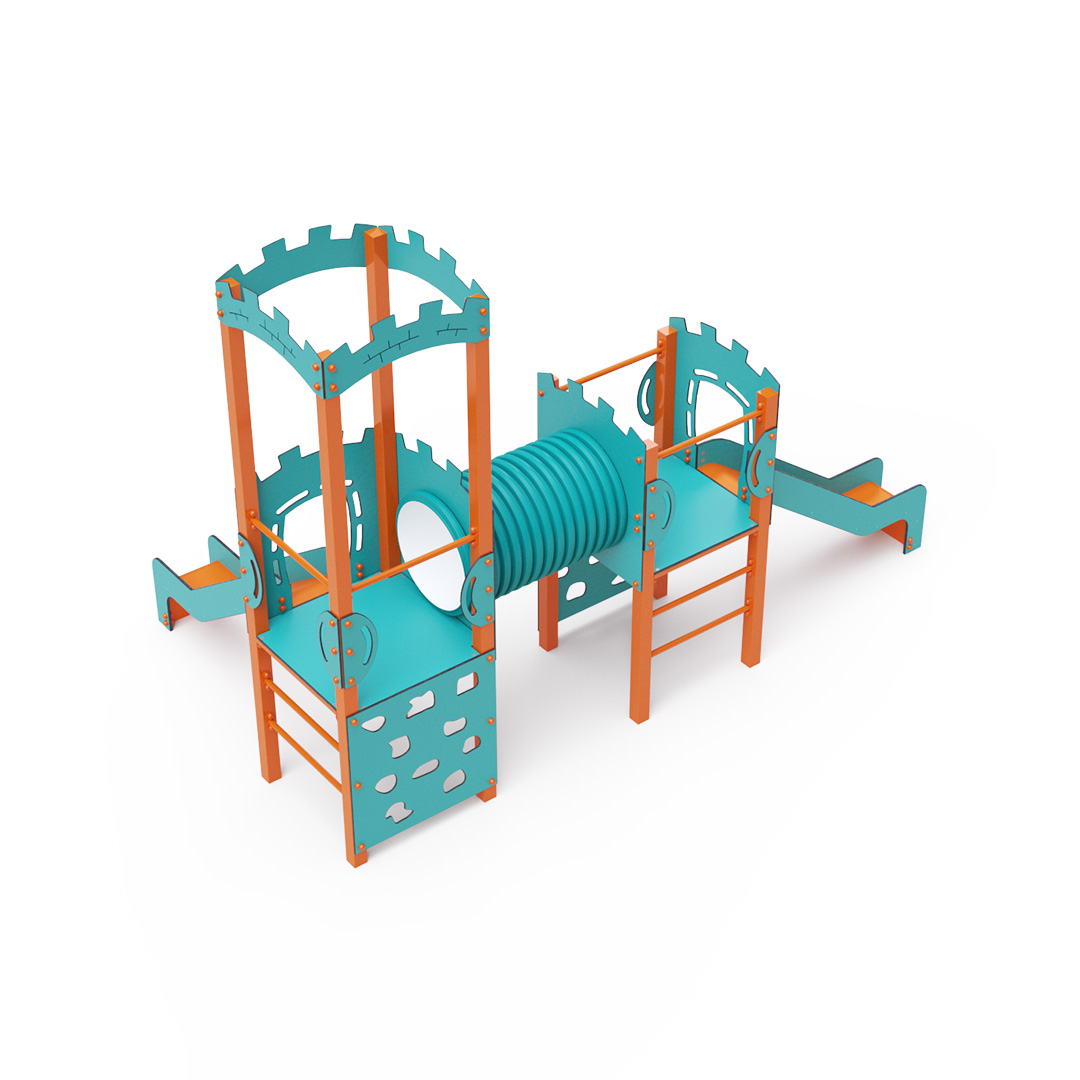

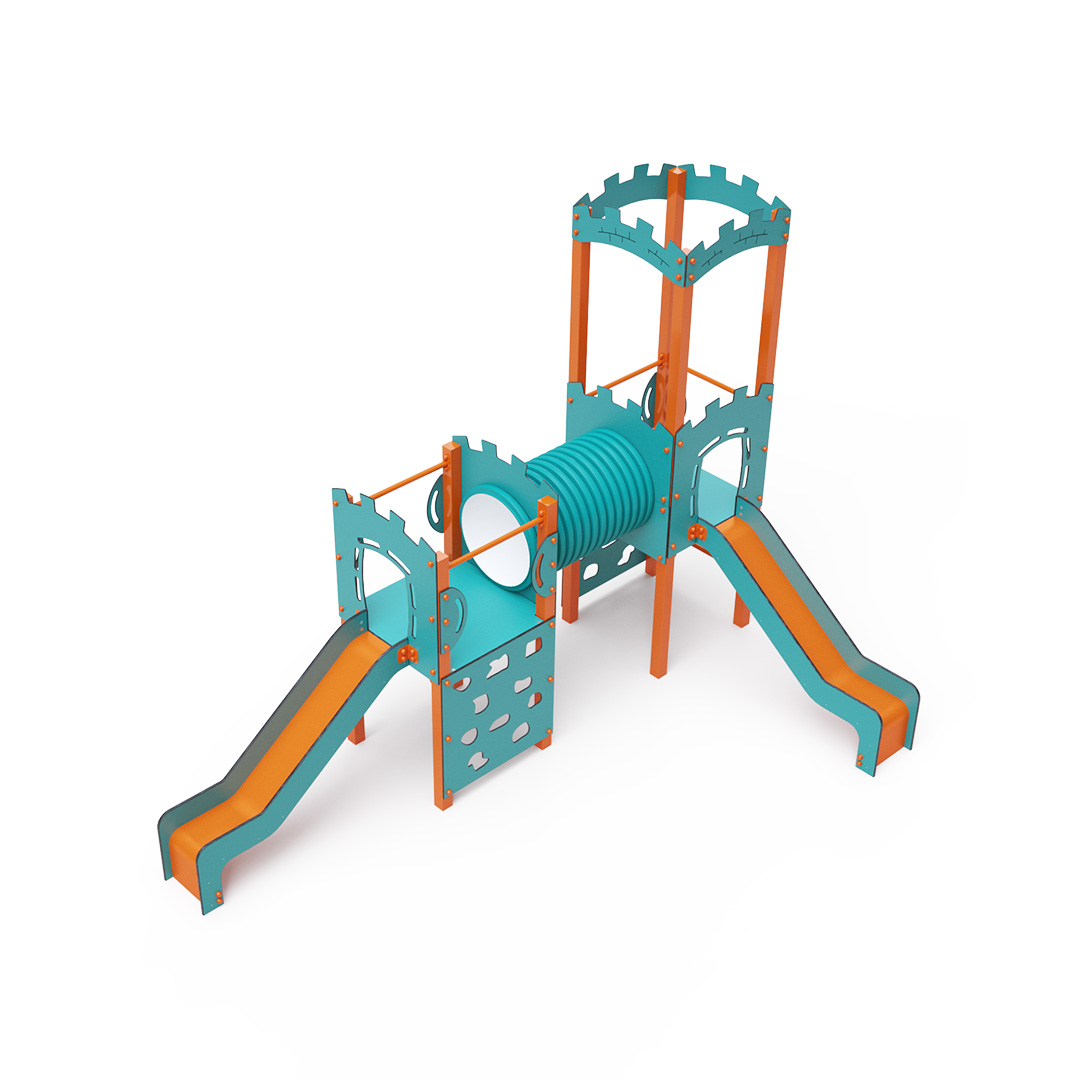

Combined tower set Two-tower combined set - one tower with walls, the other low, are connected by a tunnel. Children climb the set on a climbing wall with handles, a ladder, steps or an arched rope net and can go down one of two slides. The turquoise-orange design attracts children to play from afar. The steel structure is resistant to weathering thanks to hot-dip galvanizing and painting with durable powder paint. The HPL material used is chemically resistant, resistant to UV radiation - colorfast, non-toxic, recyclable and unbreakable. There is no risk of children being injured by sharp edges or fragments. All joints are stainless steel and covered with plastic caps to increase durability and safety. SPECIFICATION: The combined set VVZ-VZ2-008-1 is certified according to STN EN 1176 Age category: 3 - 14 years Capacity: 11 people Element dimensions: 4,5 x 2,7 x 3,1 m (LxWxH) Free fall height: up to 1.0 meter Impact area: 7,8 x 6,1 m (according to STN EN 1176-1) Material: Hot-dip galvanized and powder-coated steel, HPL, slide made out of PE segments, stainless steel connecting material

View full product description and parameters

Design

Production

Transport

Assembly

I am interested in this product

Send us a non-binding inquiry

Product color variants:

Orange + Turquoise

Brown + Yellow green

Anthracite + Yellow

Anthracite + Red

More color
options

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 4.5 m

width 2.7 m

height 3.1 m

Certified according to standard:

EN 1176

Age category:

from 3 to 14 years

Element capacity:

11 persons

Protective area:

length 7.8 m

width 6.1 m

area 47.58 m²

Designed for exterior use:

Yes

Item code:

VZ2-008-1

Show all parameters

Combined tower set

Two-tower combined set - one tower with walls, the other low, are connected by a tunnel. Children climb the set on a climbing wall with handles, a ladder, steps or an arched rope net and can go down one of two slides. The turquoise-orange design attracts children to play from afar. The steel structure is resistant to weathering thanks to hot-dip galvanizing and painting with durable powder paint. The HPL material used is chemically resistant, resistant to UV radiation - colorfast, non-toxic, recyclable and unbreakable. There is no risk of children being injured by sharp edges or fragments. All joints are stainless steel and covered with plastic caps to increase durability and safety.

SPECIFICATION:
The combined set VVZ-VZ2-008-1 is certified according to EN 1176

Age category: 3 - 14 years
Capacity: 11 people
Element dimensions: 4,5 x 2,7 x 3,1 m (LxWxH)
Free fall height: up to 1.0 meter
Impact area: 7,8 x 6,1 m (according to EN 1176-1)
Material: Hot-dip galvanized and powder-coated steel, HPL, slide made out of PE segments, stainless steel connecting material

Our implementations with this product:

Documents for download:

Catalog sheet

PDF download

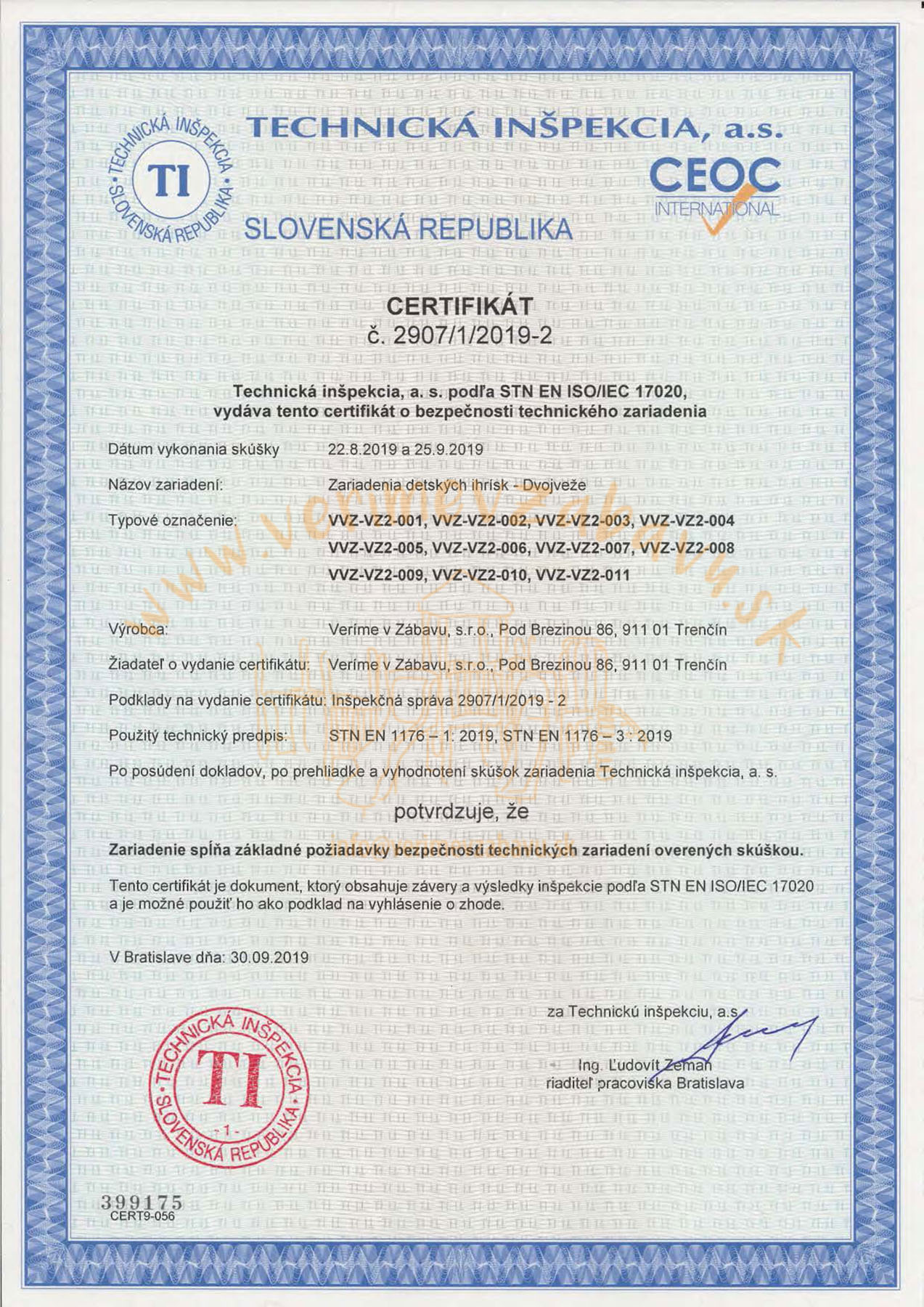

Certificate

Image to download

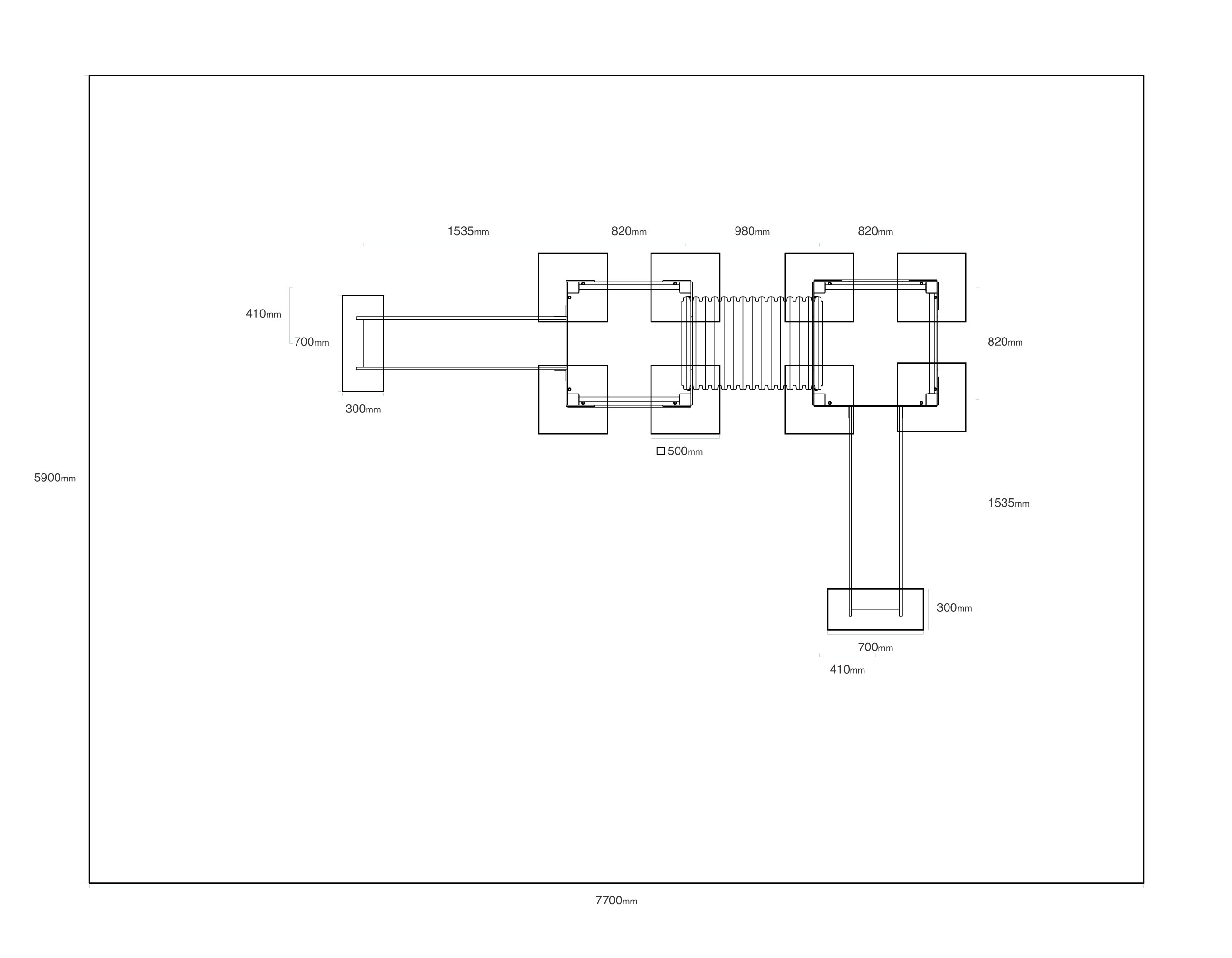

Impact area

PDF download

DWG file

DWG for download

Assembly instructions

PDF download

You must log in to view locked files

HPL - High Pressure Laminates

High-pressure laminate (HPL) is characterized by extreme strength and high resistance to mechanical damage, impacts, and abrasion. This material exhibits continuous resistance to adverse weather conditions and UV radiation, allowing it to maintain its color stability and structural integrity over the long term. It offers exceptionally easy maintenance and cleaning without the need for special treatment. Due to these performance characteristics, it is an ideal choice especially for outdoor applications and use in extremely stressed spaces with a high frequency of use.

Climbing and scrambling

Climbing and mountaineering are basic human activities that evolved from survival needs and are now popular sports and recreational activities. Climbing and mountaineering are great for physical fitness, promoting overall strength, improving coordination and mental resilience.

Sliding

Sliding down a slide is great fun for children and a great way to develop balance and the vestibular system. Climbing up a ladder strengthens the muscles of the arms, legs and torso, improves coordination and gross motor skills. The fast descent brings a sense of excitement and helps children better understand gravity, space and speed. Regular sliding builds self-confidence - the child overcomes the fear of heights and enjoys success. In addition, it supports social skills, as children learn to wait in line, take turns and play together with friends. And what is best - it is a natural movement that they enjoy and at the same time develops them healthily.

Single-tower assemblies

Twin-tower assemblies

Three-tower assemblies

Multi-tower assemblies

Combined tower assembly VVZ-VZ2-008-1

Add to cart

Frequently asked questions

Can you arrange transportation to my place?

Yes, we provide transportation in Central Europe.

Will I be able to install the game elements, workout and fitness myself?

Each element in our offer is also available with installation, but if you are interested and want to save money, we can provide you with a drawing of the foundations and assembly so that you can install the elements yourself.

Are your elements certified?

All of our items in the offer have been inspected by the Technical Inspection a.s., according to the relevant standard, as evidenced by the certificates that you can find on the website for each product. Although all of our products are approved by the Technical Inspection a.s., the strictest inspectors for us are those who set out on a journey for fun - and it's not just children.

Who makes all this for you?

Our products are designed, developed, tested and manufactured in our hall in Trenčín.

What is the delivery time of the order?

Standard delivery time is 4 to 6 weeks from order placement.
