VVZ-8H3-001 - Large Octagonal Tower Set A large combined set - the octagonal tower with a toboggan as the central feature is complemented by two octagonal towers with slides, connected by a rope bridge and a solid bridge. The set includes steps, vertical rope nets, an inclined climbing wall, a rope climb, tic-tac-toe, a counting board, and a drawing board. Those who are not brave enough to slide down the toboggan can descend via the slide. The steel construction is weather-resistant due to hot-dip galvanization and a durable powder coating. The HPL material used is chemically resistant, UV-resistant (colorfast), non-toxic, recyclable, and break-resistant. This prevents injury from sharp edges or fragments. The ropes are made from polyester fibers wound around a central reinforcement. This construction increases the strength and durability of the rope against mechanical stress. Polyester itself is resistant to microorganisms, weather conditions, dries quickly after rain, is colorfast, and has high strength. All joints are stainless steel and covered with plastic caps to increase the durability and safety of the connections. Specifications: Age range: 3 - 14 years Capacity: 30 people Dimensions: 11.5 x 7.5 x 5.7 m (L x W x H) Fall height: Up to 1.5 m Impact area: 15 x 11 m (according to STN EN 1176-1) Materials: Galvanized and powder-coated steel, HPL material (6, 10, 15, 19 mm), HDPE plastic, stainless steel fasteners, LDPE, plexiglass

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

Product color variants:

More color
options

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 7.5 m

width 11.5 m

height 5.7 m

Designed for exterior use:

Yes

Age category:

from 3 to 14 years

Element capacity:

30 persons

Free fall height:

1.50 m

Protective area:

length 15 m

width 11 m

area 165 m²

Certified according to standard:

STN EN 1176

Show all parameters

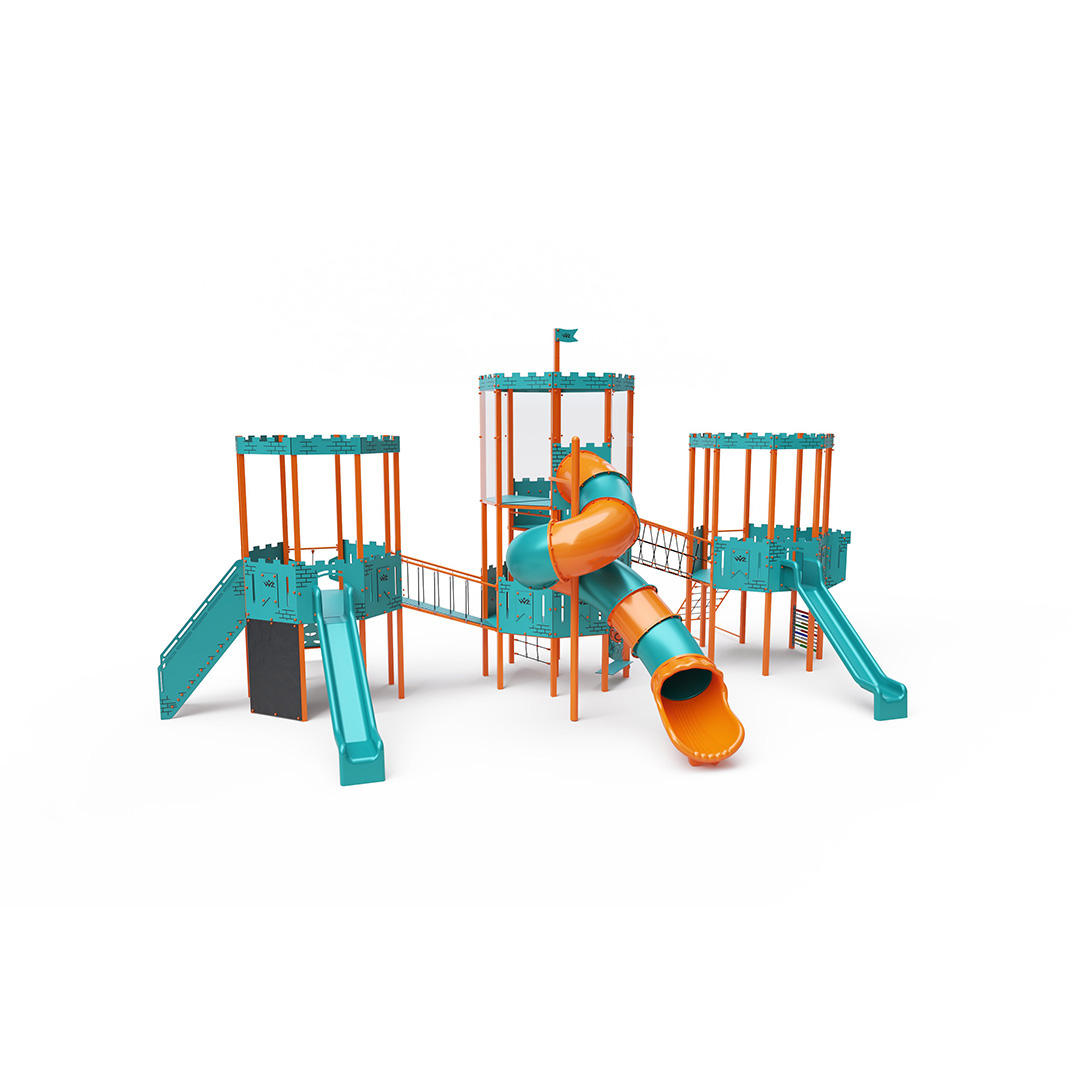

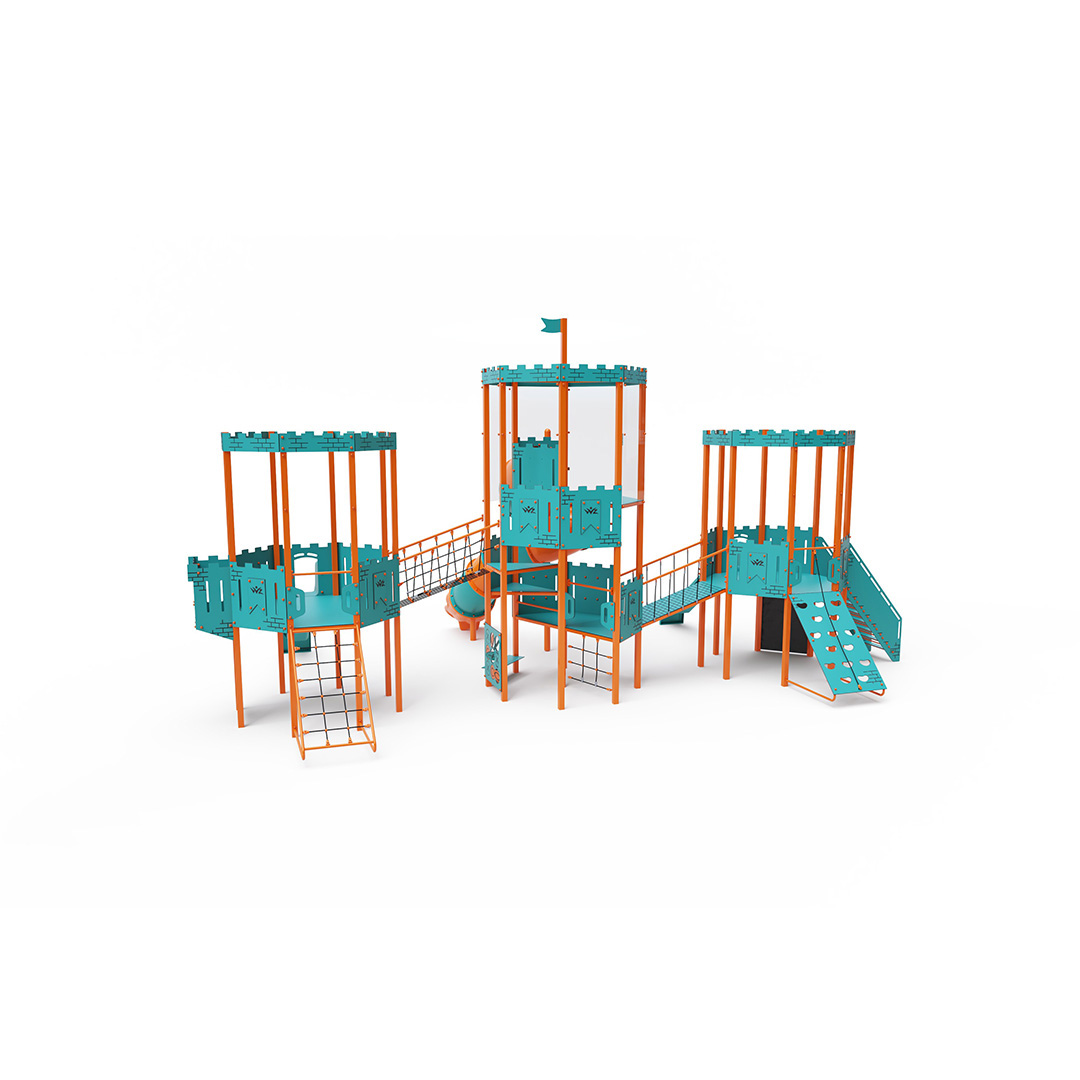

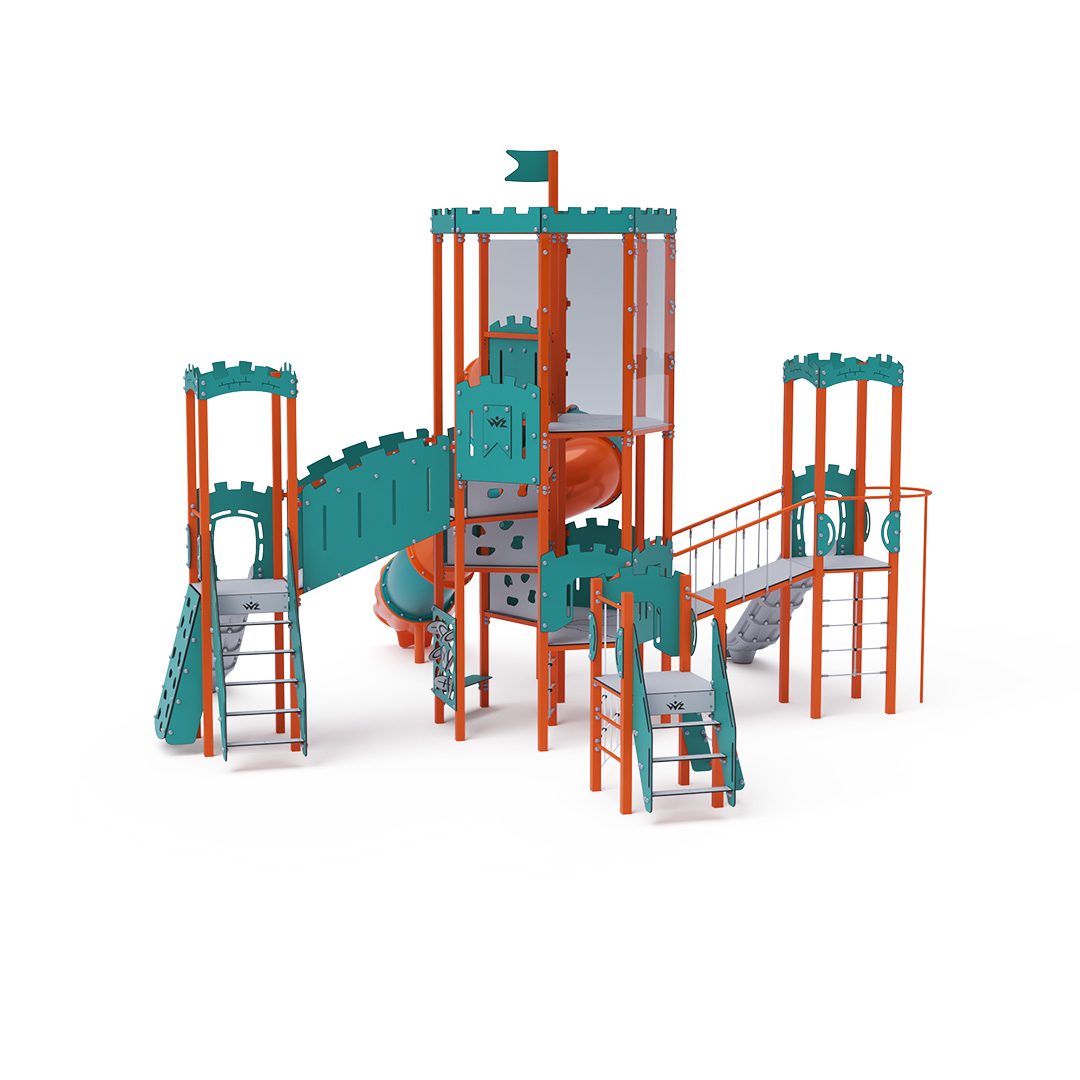

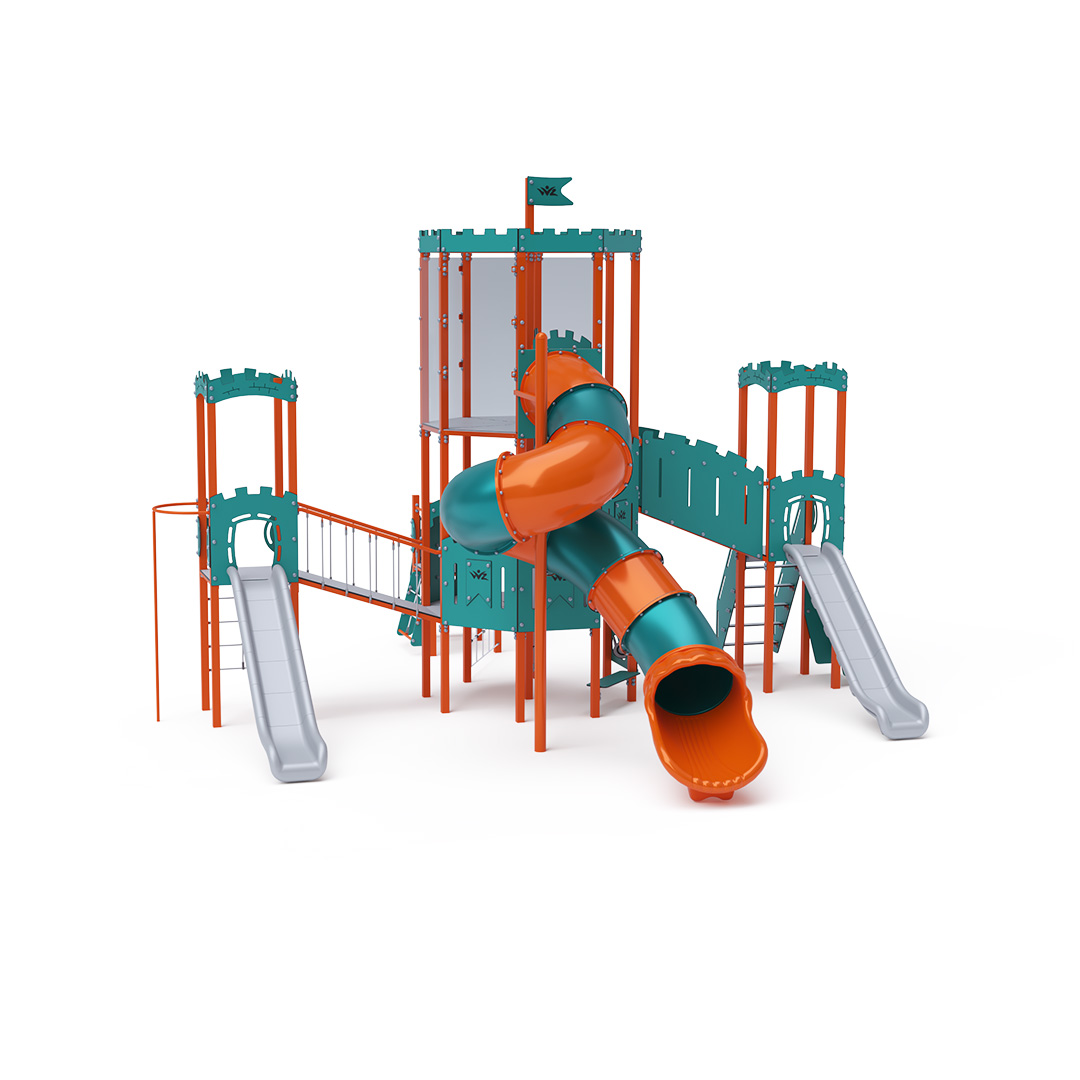

VVZ-8H3-001 - Large Octagonal Tower Set

A large combined set - the octagonal tower with a toboggan as the central feature is complemented by two octagonal towers with slides, connected by a rope bridge and a solid bridge. The set includes steps, vertical rope nets, an inclined climbing wall, a rope climb, tic-tac-toe, a counting board, and a drawing board. Those who are not brave enough to slide down the toboggan can descend via the slide. The steel construction is weather-resistant due to hot-dip galvanization and a durable powder coating. The HPL material used is chemically resistant, UV-resistant (colorfast), non-toxic, recyclable, and break-resistant. This prevents injury from sharp edges or fragments. The ropes are made from polyester fibers wound around a central reinforcement. This construction increases the strength and durability of the rope against mechanical stress. Polyester itself is resistant to microorganisms, weather conditions, dries quickly after rain, is colorfast, and has high strength. All joints are stainless steel and covered with plastic caps to increase the durability and safety of the connections.

Specifications:

Age range: 3 - 14 years
Capacity: 30 people
Dimensions: 11.5 x 7.5 x 5.7 m (L x W x H)
Fall height: Up to 1.5 m
Impact area: 15 x 11 m (according to STN EN 1176-1)
Materials: Galvanized and powder-coated steel, HPL material (6, 10, 15, 19 mm), HDPE plastic, stainless steel fasteners, LDPE, plexiglass

Documents for download:

HPL - High Pressure Laminates

HPL - high-pressure laminate has high resistance to mechanical damage and abrasion, easy maintenance and is suitable for exteriors and extremely stressed areas. They are produced in stacking presses using high pressure and at high temperatures.

Counting

Counting is a great way for children to develop logical thinking and the ability to solve simple problems. It helps them better understand the order of things, compare quantities and navigate everyday life. Regular counting improves concentration, memory and attention, because the child has to focus on the sequence of numbers. Children gain more confidence when they see that they can correctly count toys or stairs. And what's best - when counting is playful, it becomes fun and a natural part of their day.

Drawing

Drawing has many benefits for children. It develops fine motor skills and hand-eye coordination, which later helps them with writing and everyday activities. It encourages creativity and imagination, as children can create freely without rules. It helps them express their feelings and thoughts better, especially when they can't talk well yet. Regular drawing improves concentration and patience. It also boosts self-confidence - the child sees that they can create something on their own. And most importantly, it is a fun and relaxing way for them to spend time.

Climbing

Climbing and mountaineering are basic human activities that evolved from survival needs and are now popular sports and recreational activities. Climbing and mountaineering are great for physical fitness, promoting overall strength, improving coordination and mental resilience.

Sliding

Sliding down a slide is great fun for children and a great way to develop balance and the vestibular system. Climbing up a ladder strengthens the muscles of the arms, legs and torso, improves coordination and gross motor skills. The fast descent brings a sense of excitement and helps children better understand gravity, space and speed. Regular sliding builds self-confidence - the child overcomes the fear of heights and enjoys success. In addition, it supports social skills, as children learn to wait in line, take turns and play together with friends. And what is best - it is a natural movement that they enjoy and at the same time develops them healthily.

Ships

Mega vežové zostavy

Octagonal Tower Set VVZ-8H3-001 EN

Add to cart

Frequently asked questions

Can you arrange transportation to my place?

Yes, we provide transportation in Central Europe.

Will I be able to install the game elements, workout and fitness myself?

Each element in our offer is also available with installation, but if you are interested and want to save money, we can provide you with a drawing of the foundations and assembly so that you can install the elements yourself.

Are your elements certified?

All of our items in the offer have been inspected by the Technical Inspection a.s., according to the relevant standard, as evidenced by the certificates that you can find on the website for each product. Although all of our products are approved by the Technical Inspection a.s., the strictest inspectors for us are those who set out on a journey for fun - and it's not just children.

Who makes all this for you?

Our products are designed, developed, tested and manufactured in our hall in Trenčín.

What is the delivery time of the order?

Standard delivery time is 4 to 6 weeks from order placement.
