Single-Tower Combined Play Structure - Low VVZ-VZD1-001-10

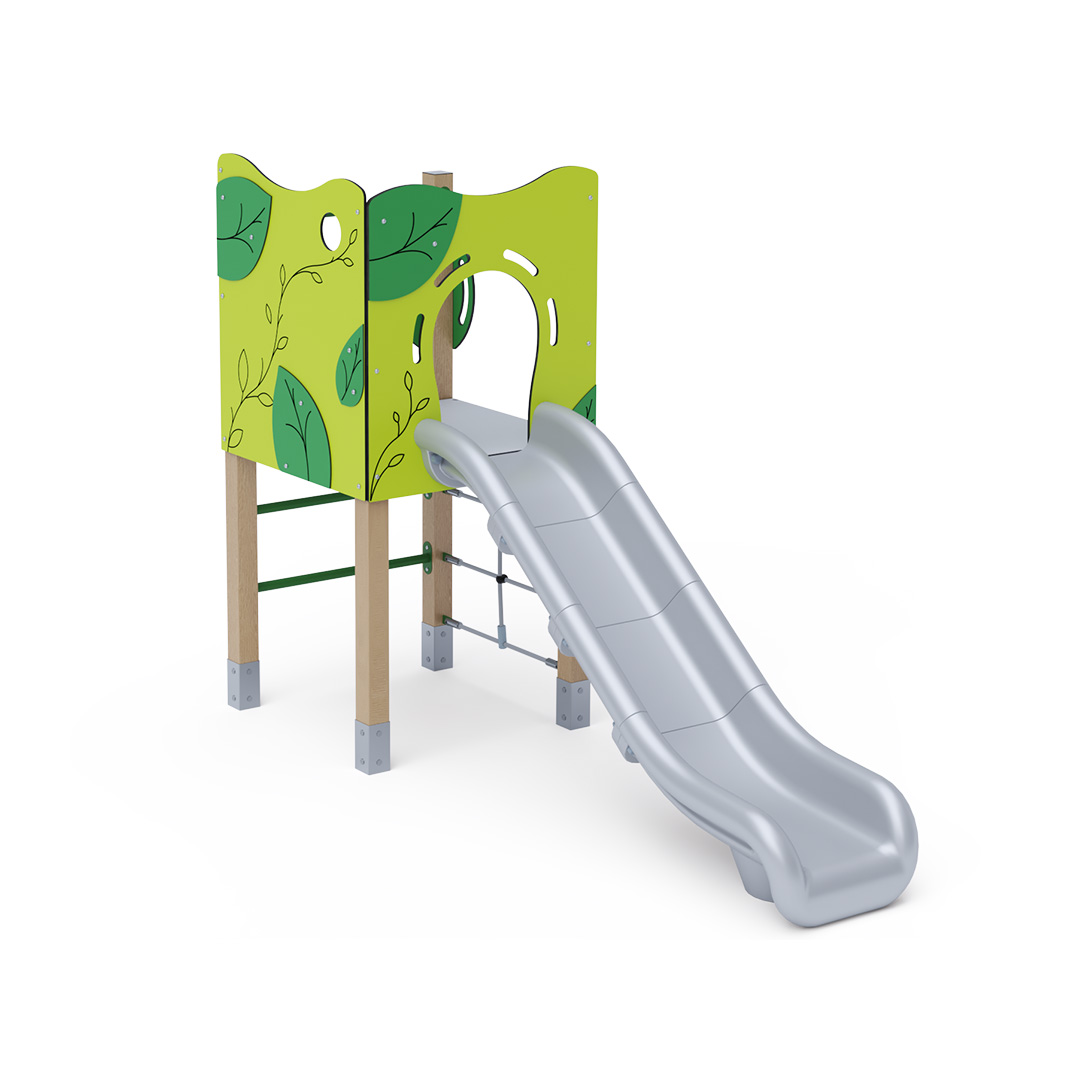

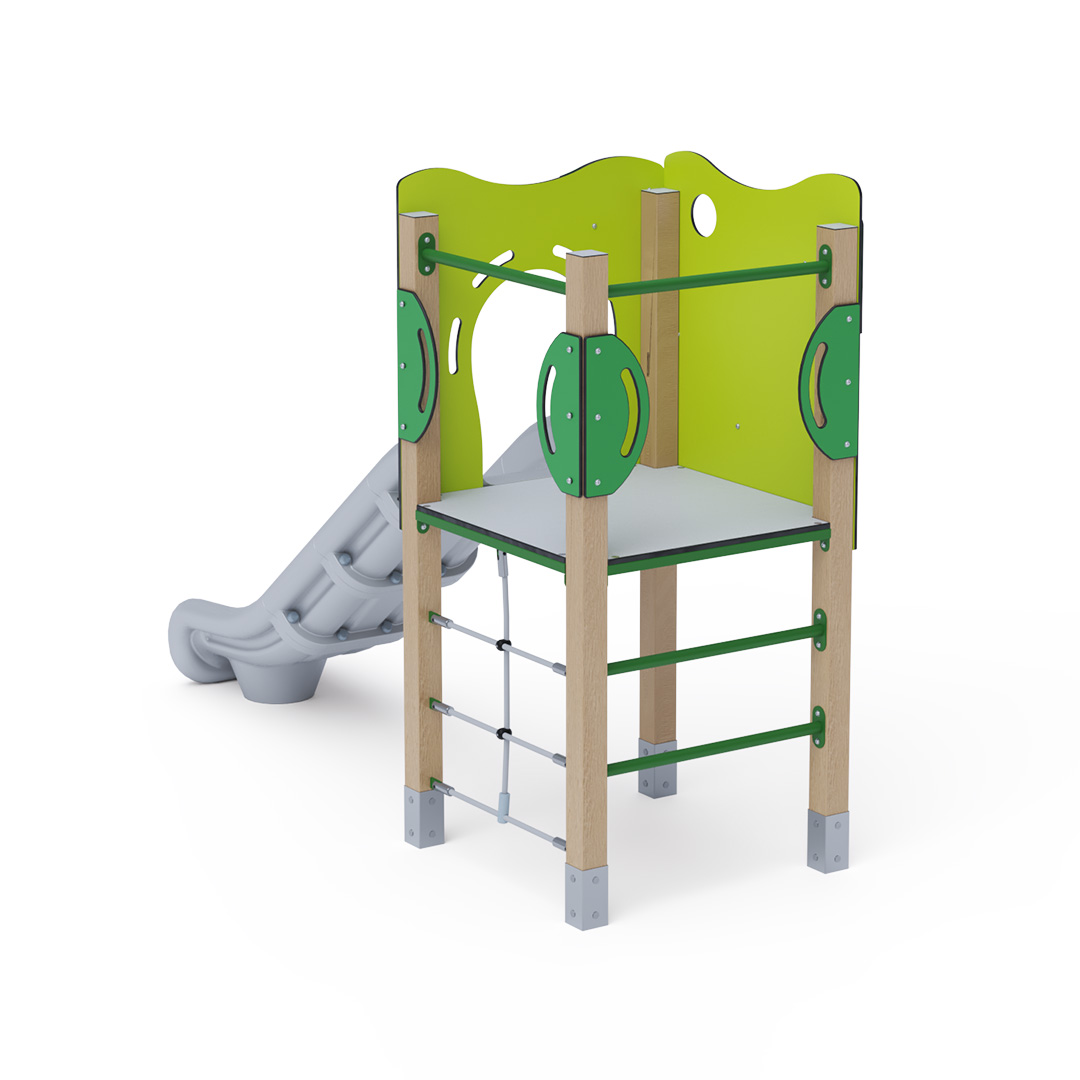

The single-tower combined play structure - a tower which children climb via a ladder or a rope climber, coming back down via the slide. The nature-inspired green-and-brown design invites play from a distance. The HPL material used is chemically resistant, UV-resistant, colorfast, non-toxic, recyclable, and shatter-resistant. This eliminates the risk of injury to children from sharp edges or splinters. The posts are made of BSH glue-laminated timber beams treated with a weather- and UV-resistant coating. The ropes are made of polyester fibers wound around a central reinforcement, increasing strength and resistance to mechanical wear. Polyester itself is resistant to micro-organisms and weathering, dries quickly after rain, is colorfast, and offers high strength. All fasteners are made of stainless steel and covered with plastic protective caps to increase durability and safety.
View full product description and parameters
Design
Production
Transport
Assembly
I am interested in this product
Send us a non-binding inquiry
Product color variants:
More color
options
We can also produce this element in other color variants. Please contact us for details.
Element dimensions:
length 0.9 m
width 2.8 m
height 2 m
Certified according to standard:
EN 1176
Age category:
from 3 to 14 years
Protective area:
length 6 m
width 4 m
area 24 m2
Designed for exterior use:
Yes
Item code:
VZD1-001-10
Show all parameters

The single-tower combined play structure - a tower which children climb via a ladder or a rope climber, coming back down via the slide. The nature-inspired green-and-brown design invites play from a distance.

The HPL material used is chemically resistant, UV-resistant, colorfast, non-toxic, recyclable, and shatter-resistant. This eliminates the risk of injury to children from sharp edges or splinters.

The posts are made of BSH glue-laminated timber beams treated with a weather- and UV-resistant coating.

The ropes are made of polyester fibers wound around a central reinforcement, increasing strength and resistance to mechanical wear. Polyester itself is resistant to micro-organisms and weathering, dries quickly after rain, is colorfast, and offers high strength.

All fasteners are made of stainless steel and covered with plastic protective caps to increase durability and safety.

Documents for download:
Catalog sheet
PDF download
Impact area
PDF download
DWG file
DWG for download
You must log in to view locked files
