Rope pyramid VVZ-PYR050

VVZ-PYR050 Rope Pyramid The five-meter rope pyramid is suitable for older children who have the courage to climb to the top. This play element is a centerpiece of the playground, entertaining several children at once. The play structure is made from galvanized steel with a high-quality surface finish. The joints are stainless steel and covered with plastic caps to enhance safety and prolong the lifespan of the joints. The ropes are made from polyester fibers wound around a core, increasing their strength and resistance to mechanical stress. Polyester itself has many positive properties: it is resistant to microorganisms and weather conditions, dries quickly after rain, retains its color, and is highly durable.A grass surface can be used as the impact area, but we recommend using a grass reinforcement mat. Specification The VVZ-PYR050 Rope Pyramid is certified according to the STN EN 1176 standard. Capacity: 30 persons Age Category: 3 - 14 years Element Dimensions: 5,2 × 5,2 × 5,2 m Free Fall Height: up to 1,0 m Impact Area: 7,3 × 7,3 m (as per STN EN 1176-1) Material: galvanized steel, polyester ropes, stainless steel connectors

View full product description and parameters

Design

Production

Transport

Assembly

I am interested in this product

Send us a non-binding inquiry

Product color variants:

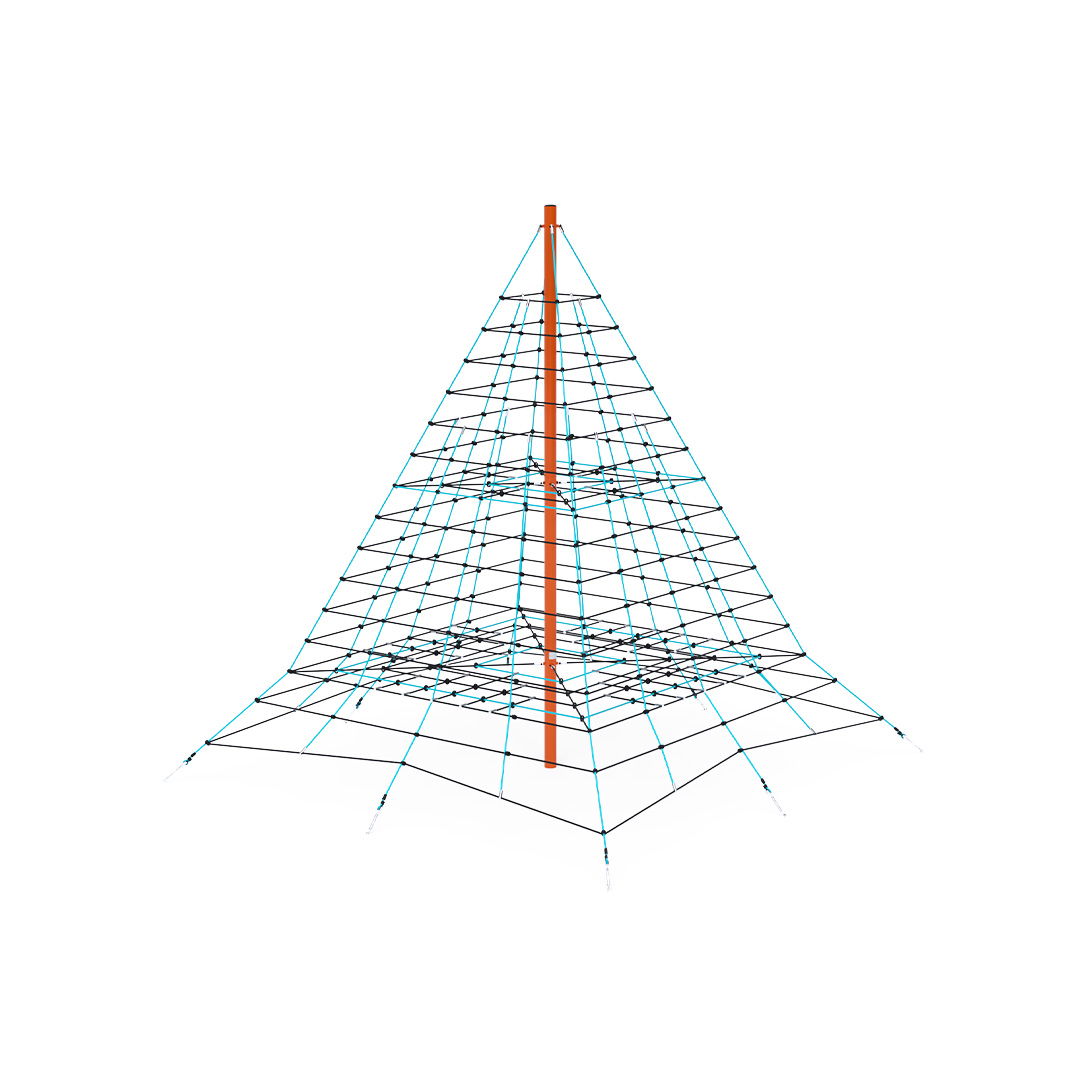

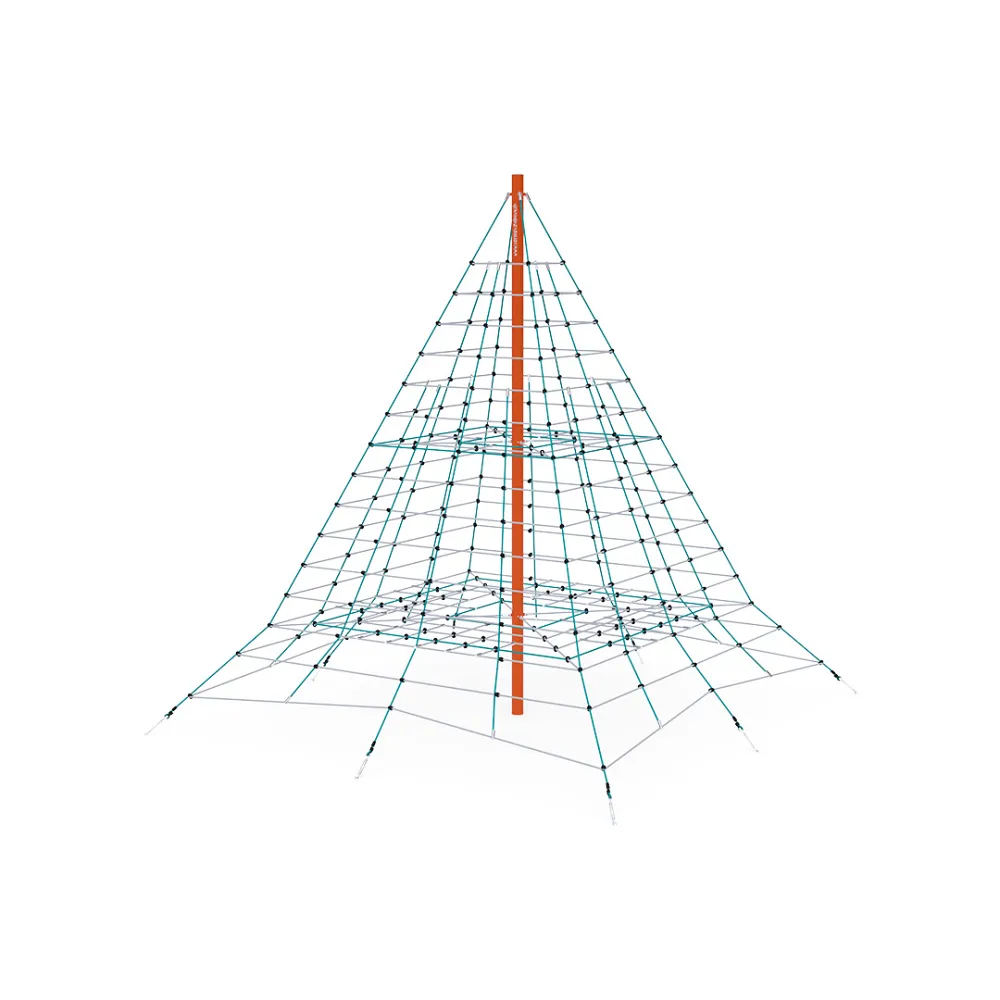

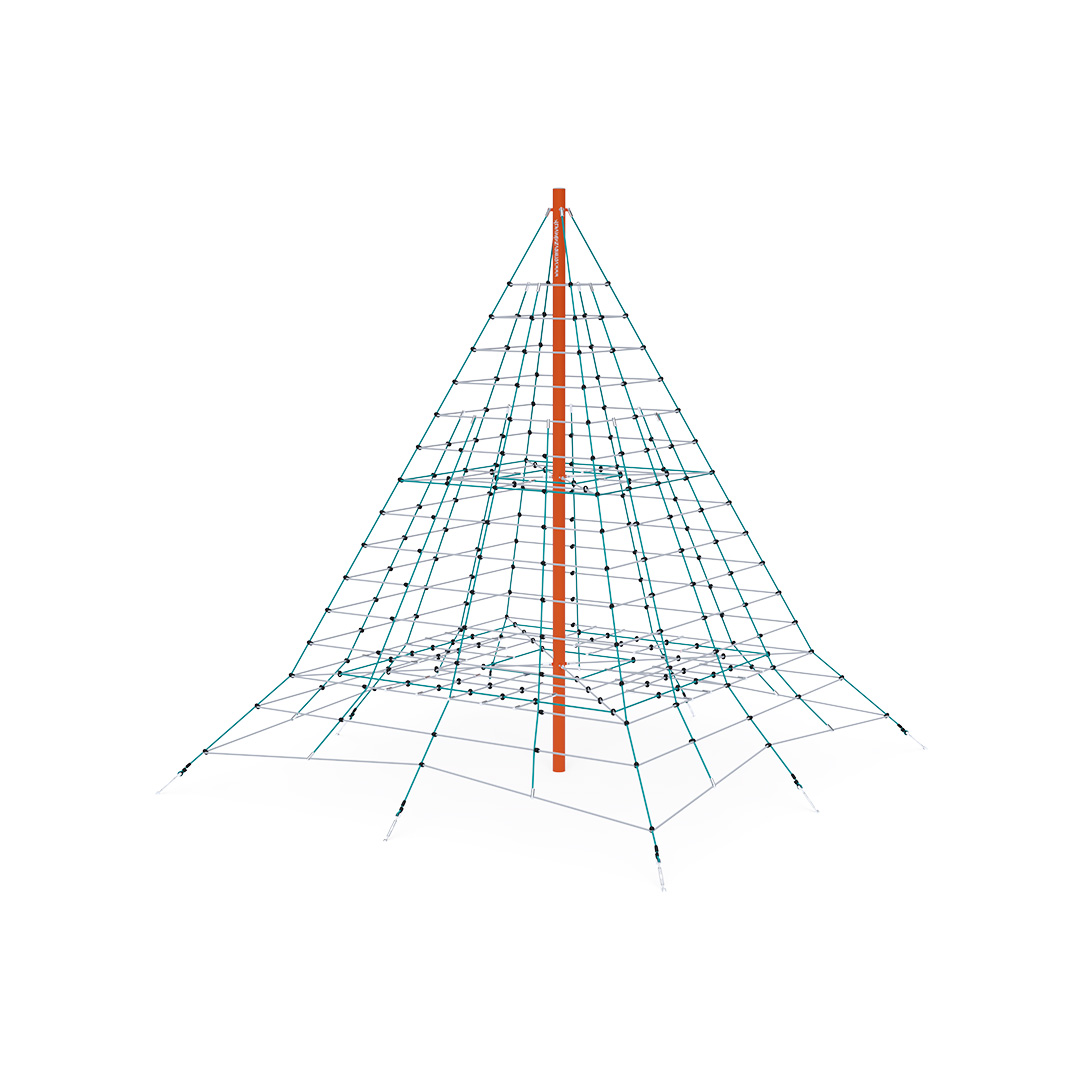

Orange + Turquoise

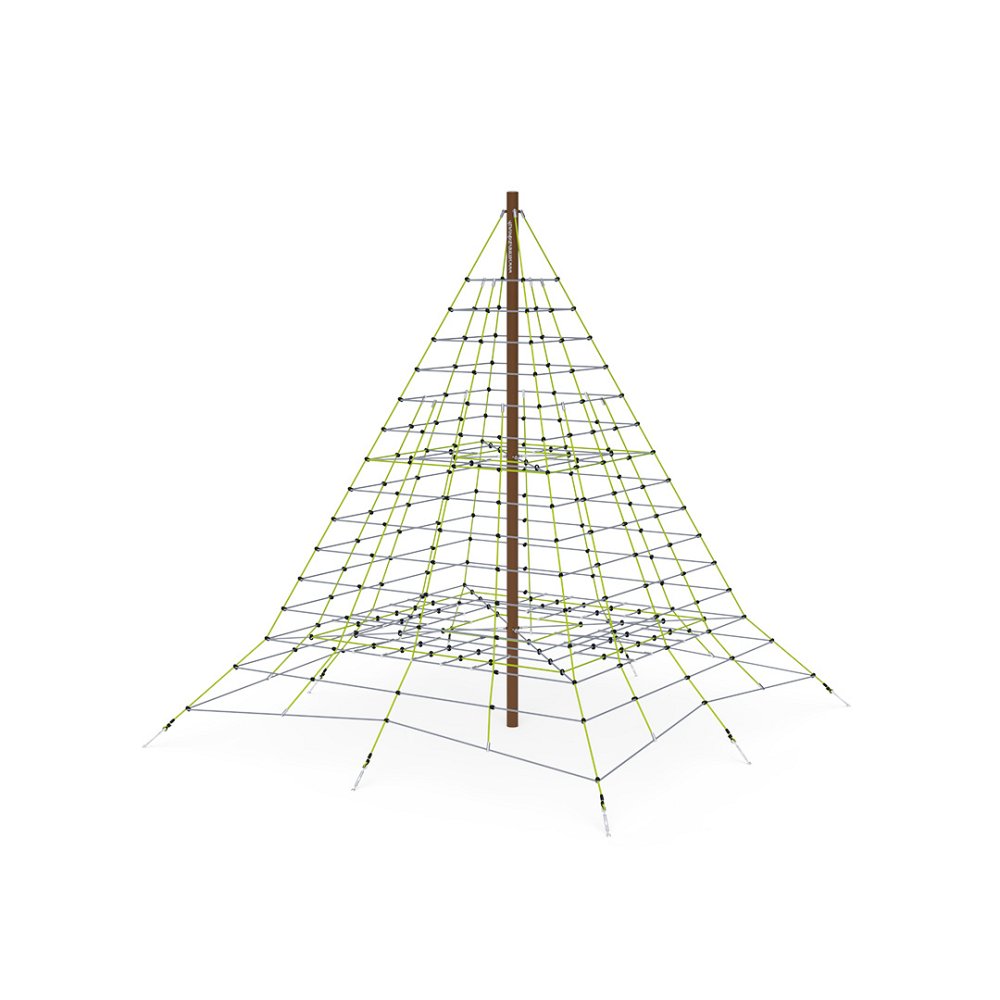

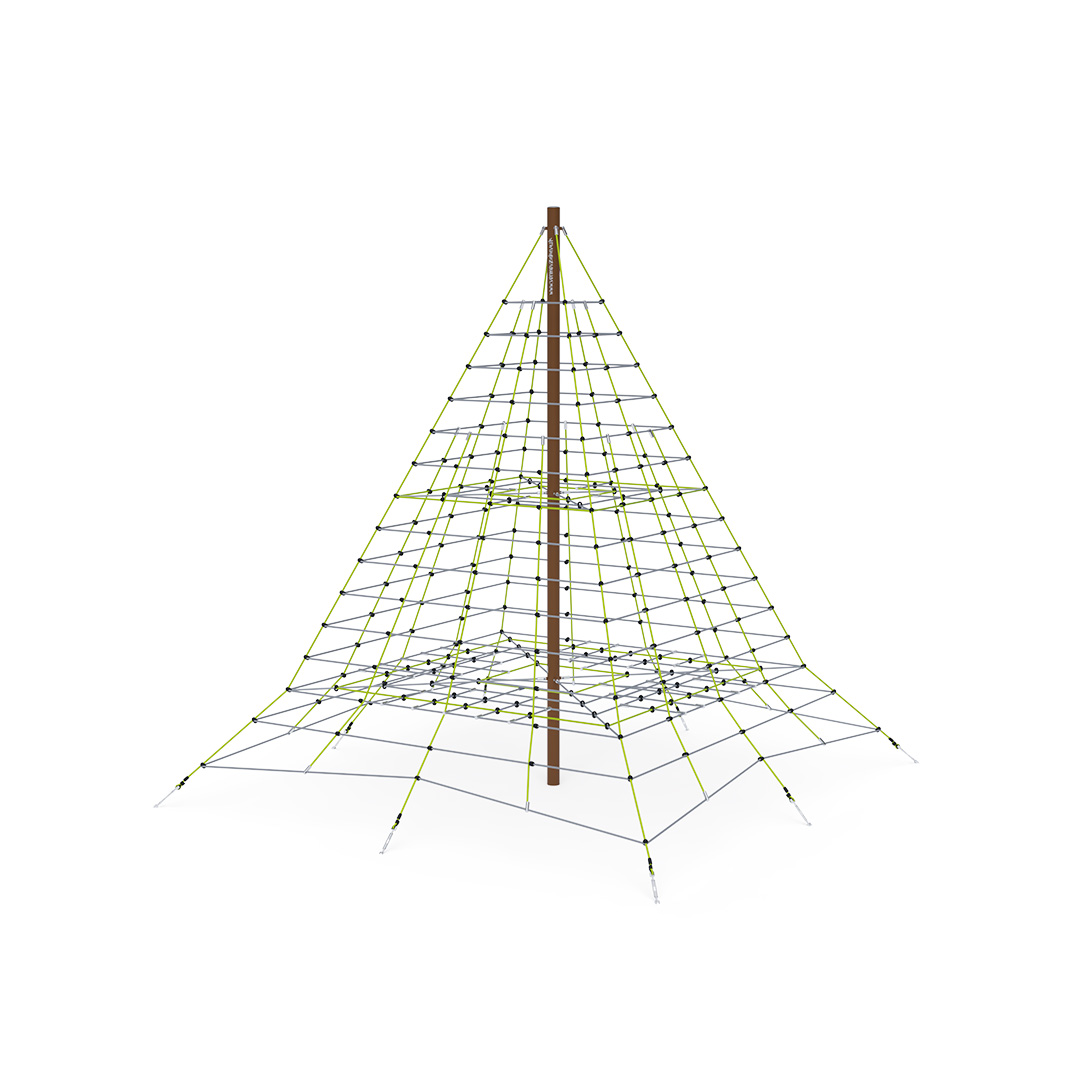

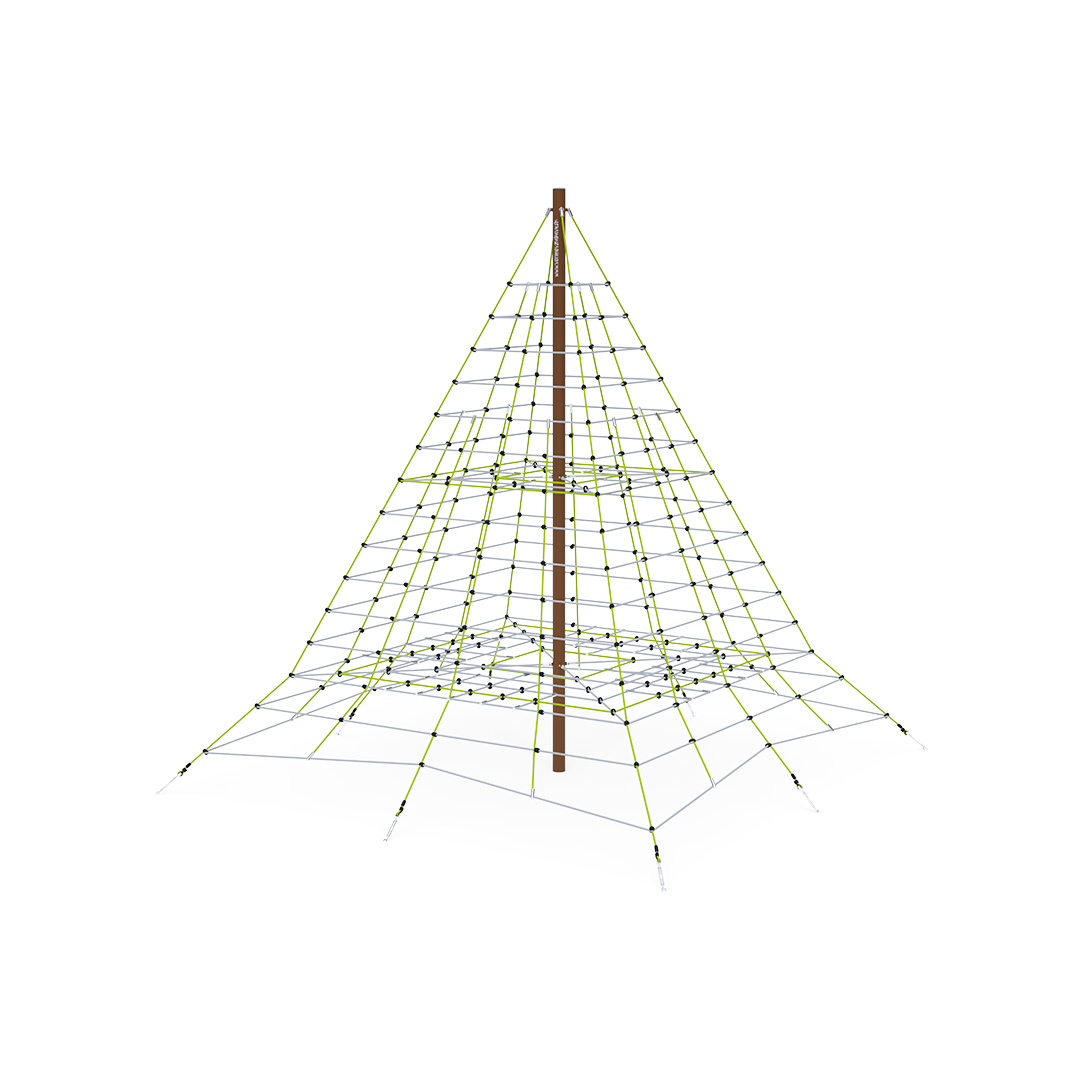

Brown + Yellow green

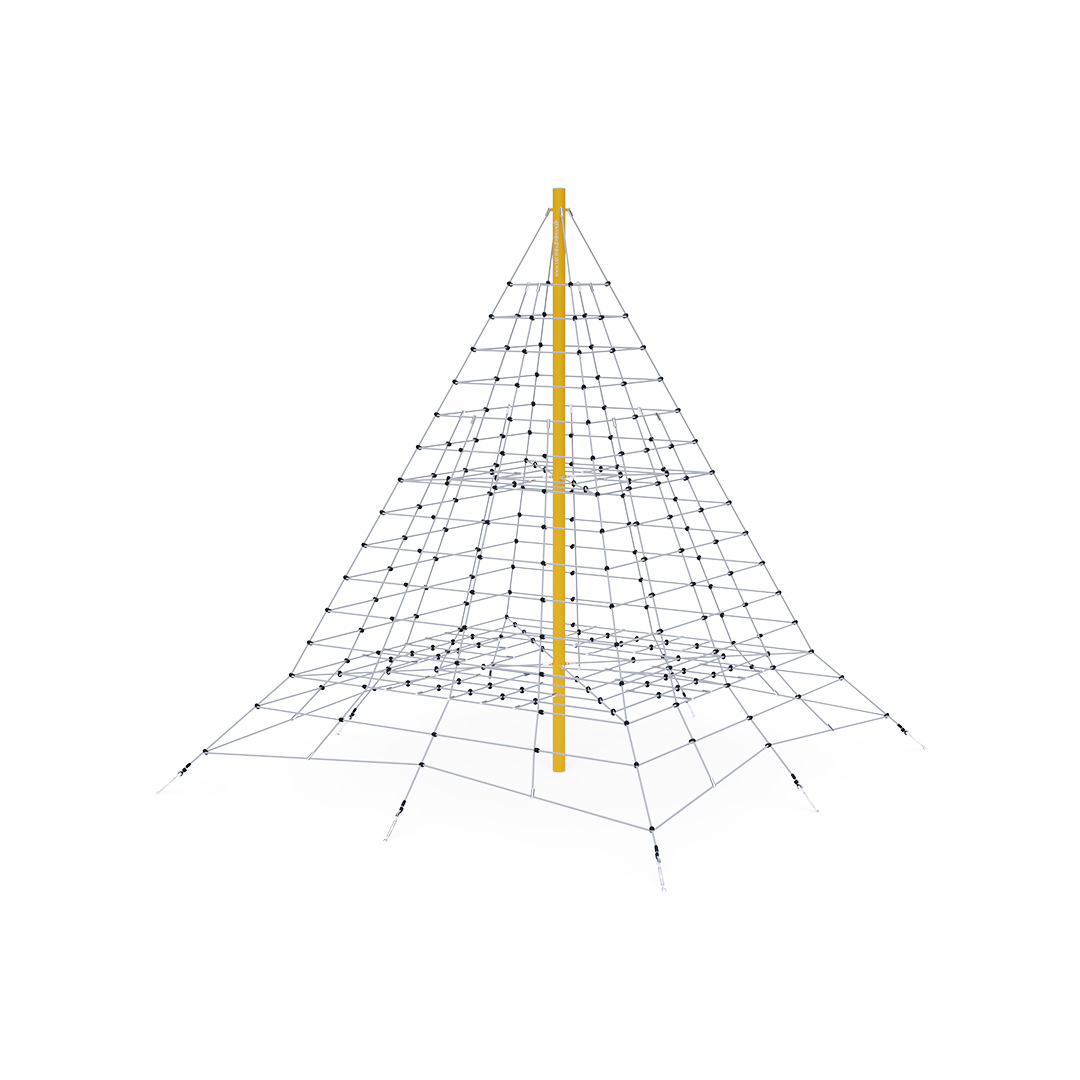

Anthracite + Yellow

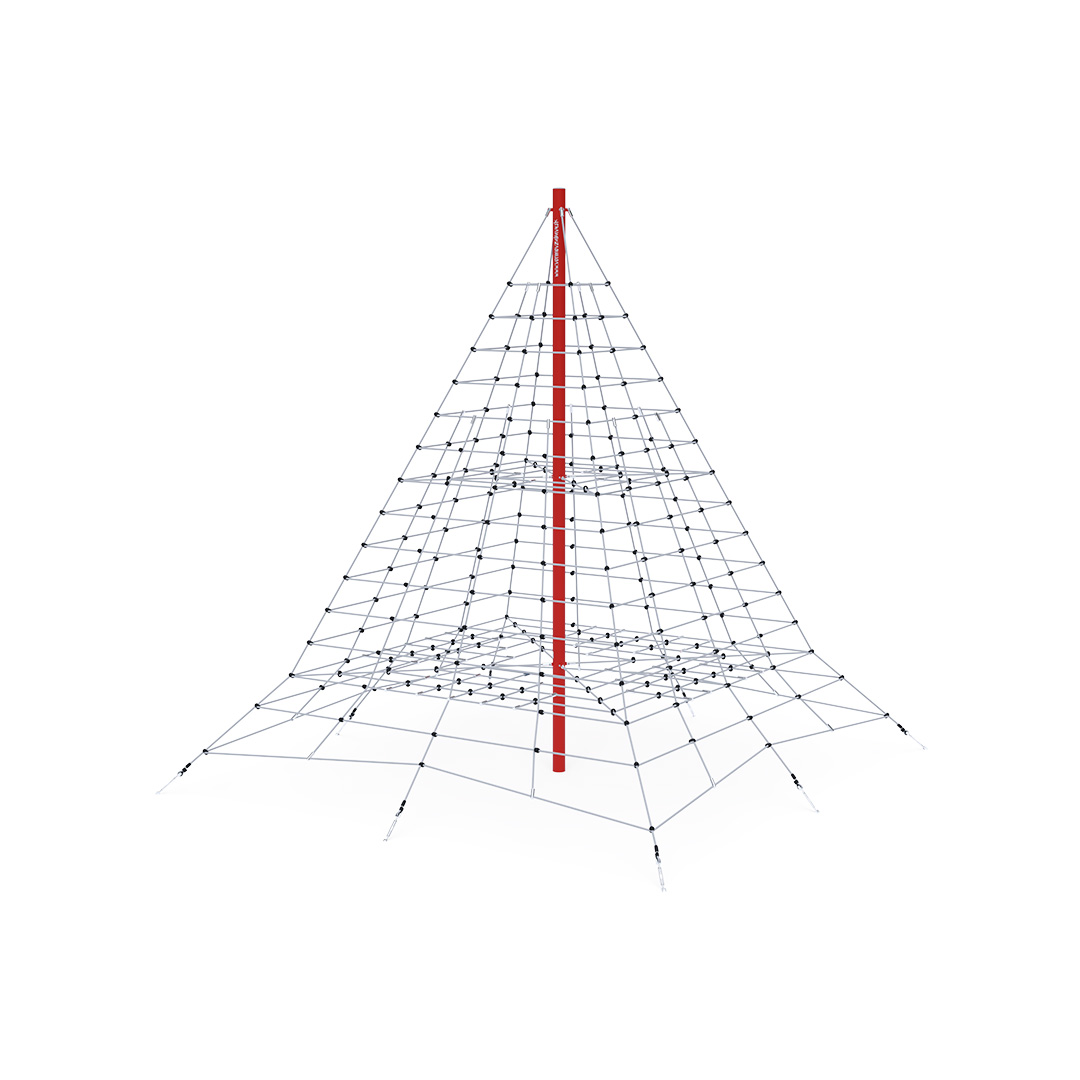

Anthracite + Red

Element dimensions:

length 5.2 m

width 5.2 m

height 5.2 m

Certified according to standard:

EN 1176

Age category:

from 3 to 14 years

Element capacity:

30 persons

Protective area:

length 7.3 m

width 7.3 m

area 53.29 m²

Designed for exterior use:

Yes

Item code:

PYR050

Show all parameters

VVZ-PYR050 Rope Pyramid

The five-meter rope pyramid is suitable for older children who have the courage to climb to the top. This play element is a centerpiece of the playground, entertaining several children at once. The play structure is made from galvanized steel with a high-quality surface finish. The joints are stainless steel and covered with plastic caps to enhance safety and prolong the lifespan of the joints. The ropes are made from polyester fibers wound around a core, increasing their strength and resistance to mechanical stress. Polyester itself has many positive properties: it is resistant to microorganisms and weather conditions, dries quickly after rain, retains its color, and is highly durable.A grass surface can be used as the impact area, but we recommend using a grass reinforcement mat.

Specification

The VVZ-PYR050 Rope Pyramid is certified according to the EN 1176 standard.

Capacity: 30 persons
Age Category: 3 - 14 years
Element Dimensions: 5,2 × 5,2 × 5,2 m
Free Fall Height: up to 1,0 m
Impact Area: 7,3 × 7,3 m (as per EN 1176-1)
Material: galvanized steel, polyester ropes, stainless steel connectors

Documents for download:

Catalog sheet

PDF download

Certificate

PDF download

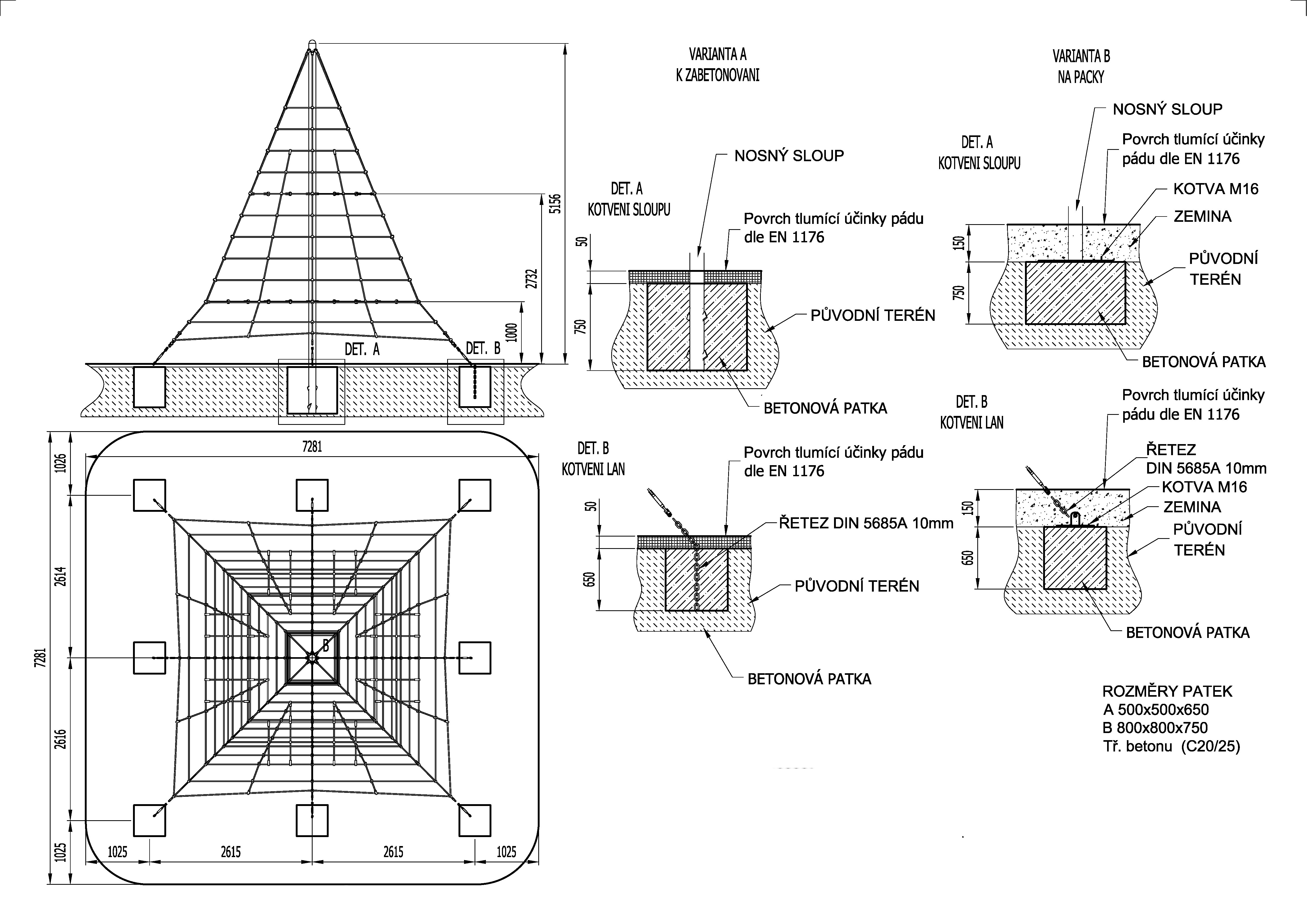

Impact area

PDF download

DWG file

DWG for download

Assembly instructions

PDF download

You must log in to view locked files

Polyester ropes

Ropes made of polyester fibers with a steel core wound around the center provide high strength, stability, and resistance to mechanical damage. Thanks to the internal steel reinforcement, they successfully withstand extreme loads, vandalism, and intentional cutting, ensuring maximum safety for children during play. The outer polyester braiding is exceptionally pleasant to the touch, non-slip, and minimizes the risk of hand chafing. The rope is naturally resistant to microorganisms, mold, and adverse weather conditions. The material does not absorb moisture, so it dries quickly after rain, making the play elements ready for use almost immediately. Thanks to special UV stabilization, it is also colorfast, does not fade in direct sunlight, and maintains its attractive appearance and full functionality for decades.

Climbing and scrambling

Climbing and mountaineering are basic human activities that evolved from survival needs and are now popular sports and recreational activities. Climbing and mountaineering are great for physical fitness, promoting overall strength, improving coordination and mental resilience.

Spring rockers for kids

Playground Carousels and Roundabouts

Playground Seesaws

Playground Swings

Slides with swing

Combined sets

Rope structures

Playhouses and Sandboxes

Zip lines

Educational Play Panels

Climbing elements

Obstacle courses and climbing tracks

Rope Pyramids

Gymcenters

Balance and Agility Elements

Bridges

In-Ground Trampolines

Tunnel systems

Playground Vehicles

Inclusive playgrounds

Tematické prvky

Rope pyramid VVZ-PYR050

Add to cart

Frequently asked questions

Can you arrange transportation to my place?

Yes, we provide transportation in Central Europe.

Will I be able to install the game elements, workout and fitness myself?

Each element in our offer is also available with installation, but if you are interested and want to save money, we can provide you with a drawing of the foundations and assembly so that you can install the elements yourself.

Are your elements certified?

All of our items in the offer have been inspected by the Technical Inspection a.s., according to the relevant standard, as evidenced by the certificates that you can find on the website for each product. Although all of our products are approved by the Technical Inspection a.s., the strictest inspectors for us are those who set out on a journey for fun - and it's not just children.

Who makes all this for you?

Our products are designed, developed, tested and manufactured in our hall in Trenčín.

What is the delivery time of the order?

Standard delivery time is 4 to 6 weeks from order placement.
