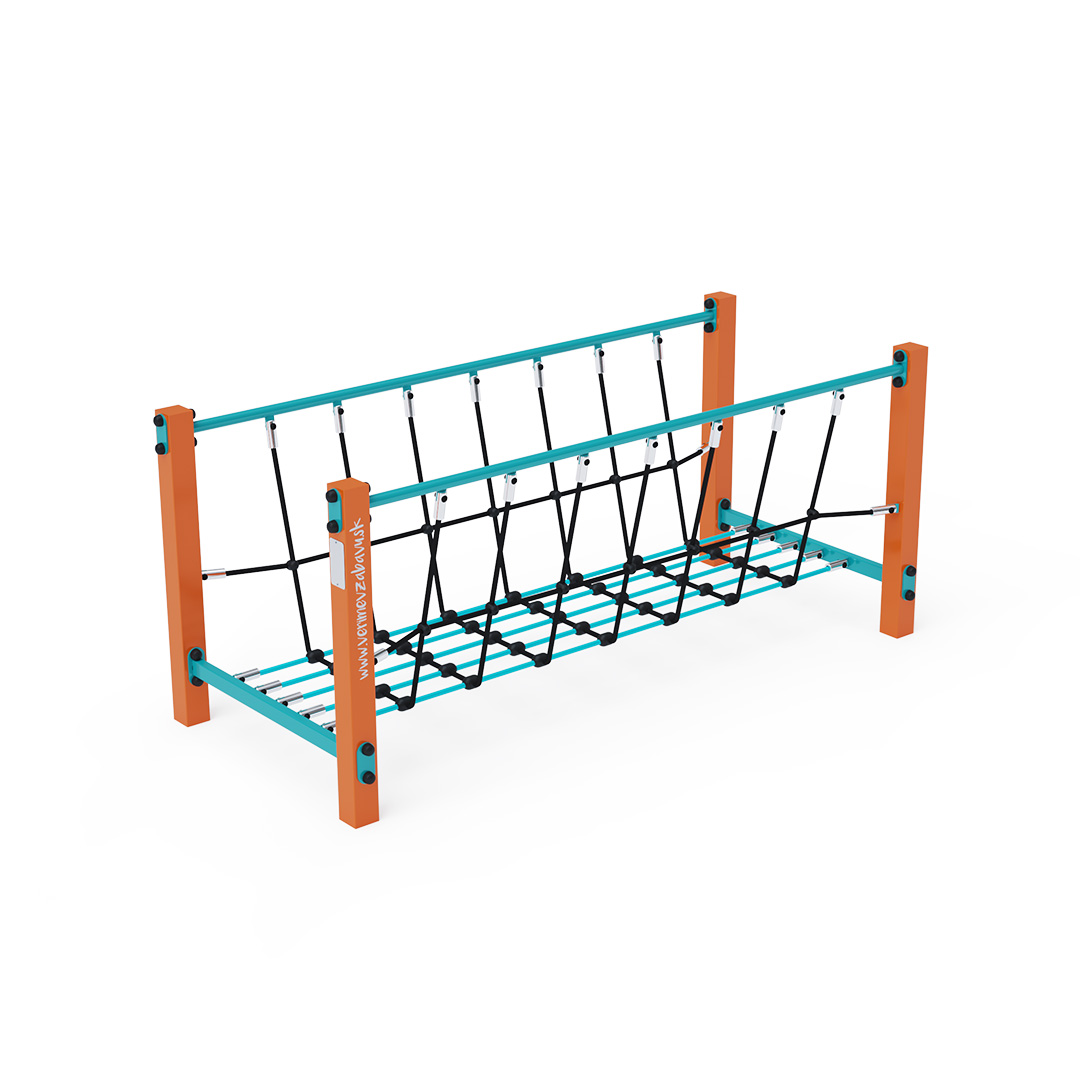

VVZ-M1-01 Rope Bridge On the rope bridge, children can practice stability and coordination. The bridge is made of hot-dip galvanized steel with a high-quality surface finish, and the joints are stainless steel covered with plastic caps to enhance safety and extend the joints' lifespan. The ropes are made of polyester fibers wound around the core, which increases their strength and resistance to mechanical stress. Polyester itself has many positive attributes: it's resistant to microorganisms, weather conditions, dries quickly after rain, maintains color stability, and is characterized by high strength. The rope bridge VVZ-M1-01 is certified according to the STN EN 1176 standard. Specification The rope bridge VVZ-M1-01 is certified according to the STN EN 1176 standard. Age category: 3 - 14 years Dimensions of the element: 1,92 × 0,72 × 1,0 m Free fall height: up to 1,0 m Impact area: 3,9 × 5,2 m (according to STN EN 1177) Material: hot-dip galvanized steel, HDPE plastics, polyester ropes, stainless steel connecting materials

View full product description and parameters

I am interested in this product

Send us a non-binding inquiry

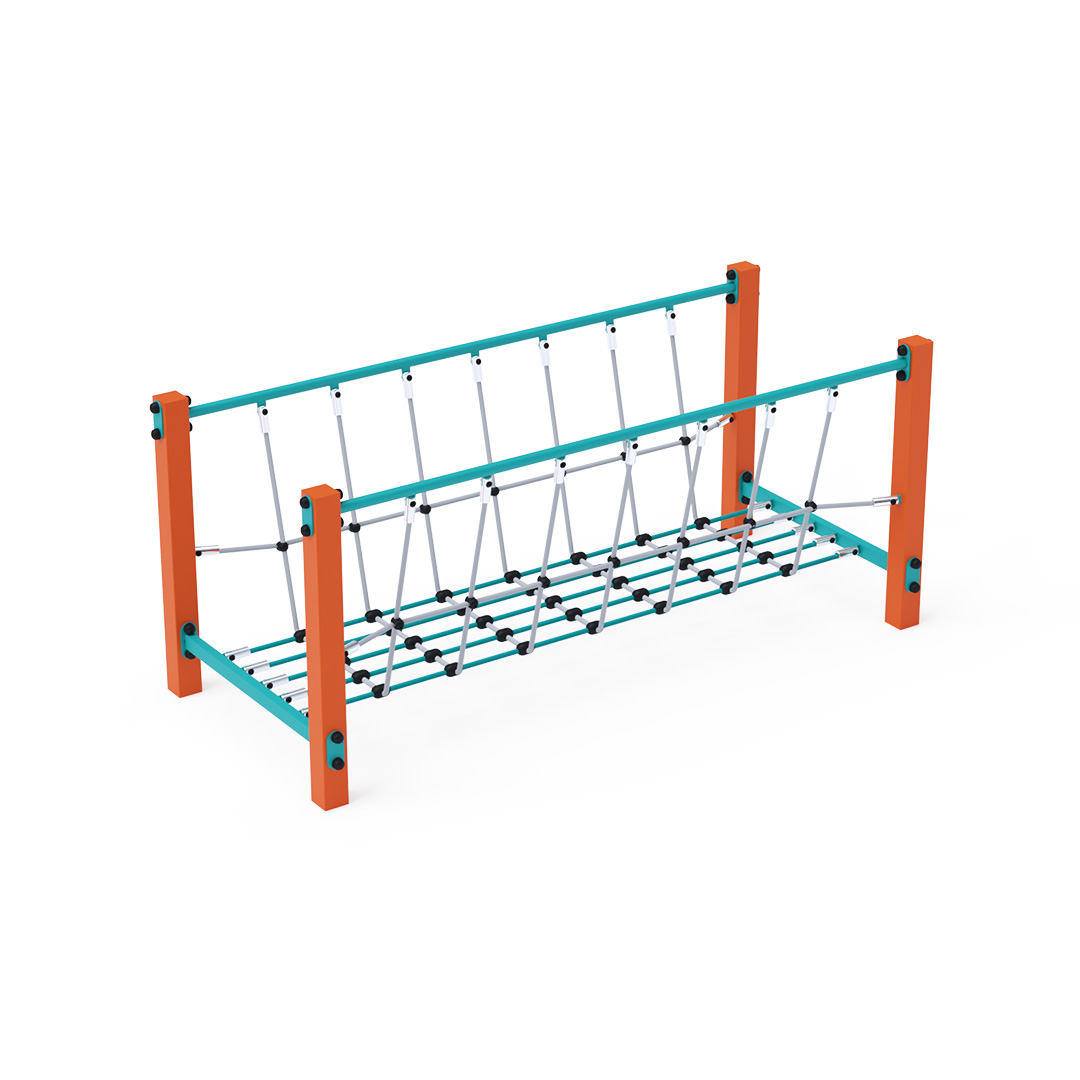

Product color variants:

Orange + Turquoise

Element dimensions:

length 1.92 m

width 0.72 m

height 1 m

Designed for exterior use:

Yes

Age category:

from 3 to 14 years

Free fall height:

1.00 m

Protective area:

length 3.9 m

width 5.2 m

area 20.28 m²

Certified according to standard:

STN EN 1176

Show all parameters

VVZ-M1-01 Rope Bridge

On the rope bridge, children can practice stability and coordination. The bridge is made of hot-dip galvanized steel with a high-quality surface finish, and the joints are stainless steel covered with plastic caps to enhance safety and extend the joints' lifespan. The ropes are made of polyester fibers wound around the core, which increases their strength and resistance to mechanical stress. Polyester itself has many positive attributes: it's resistant to microorganisms, weather conditions, dries quickly after rain, maintains color stability, and is characterized by high strength. The rope bridge VVZ-M1-01 is certified according to the STN EN 1176 standard.

Specification

The rope bridge VVZ-M1-01 is certified according to the STN EN 1176 standard.

Age category: 3 - 14 years
Dimensions of the element: 1,92 × 0,72 × 1,0 m
Free fall height: up to 1,0 m
Impact area: 3,9 × 5,2 m (according to STN EN 1177)
Material: hot-dip galvanized steel, HDPE plastics, polyester ropes, stainless steel connecting materials

Documents for download:

Certificate

PDF download

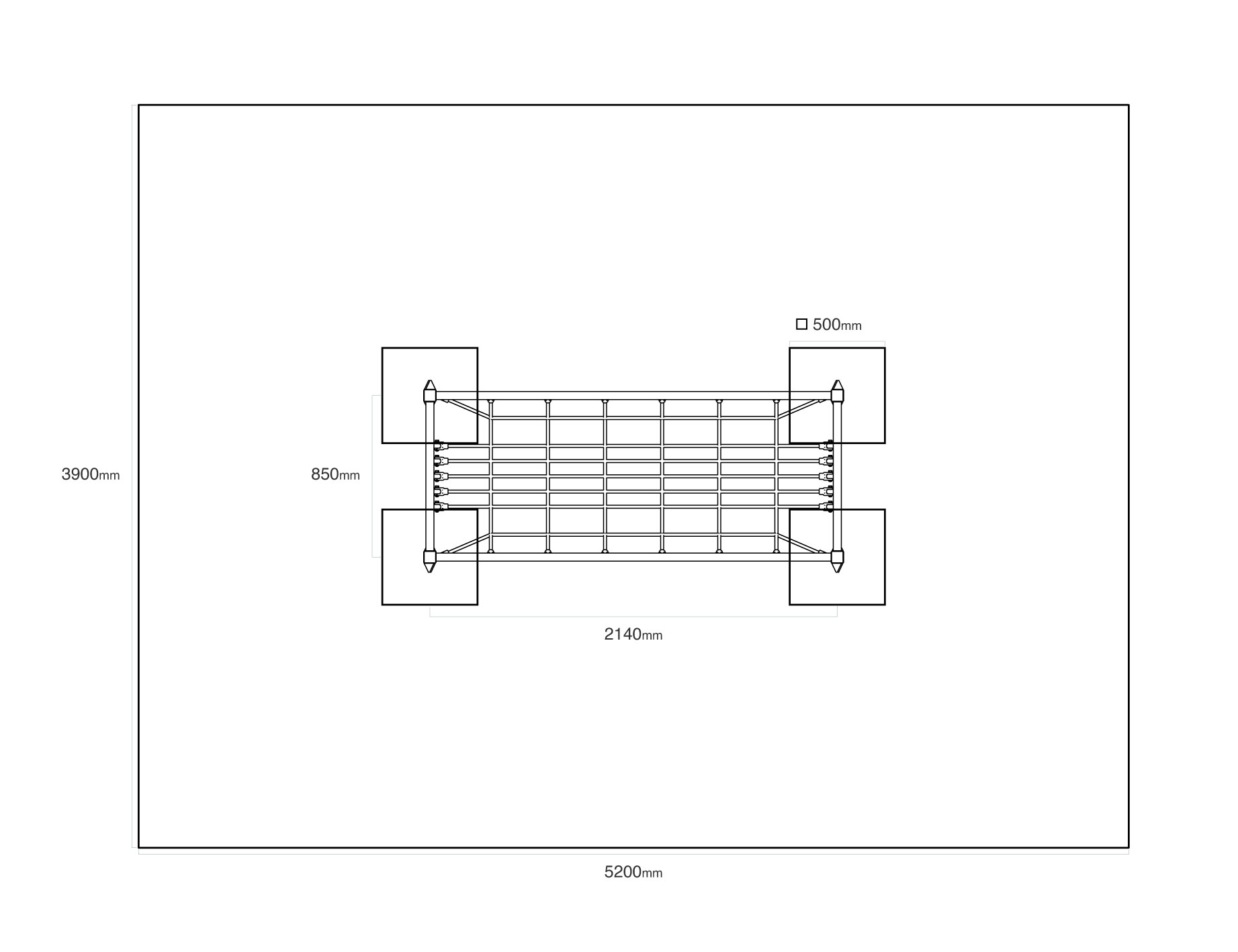

Impact area

Image to download

DWG file

DWG for download

You must log in to view locked files

Balance training

Balance training helps children better control their bodies and move safely in space – when running, walking on uneven surfaces and playing. It strengthens the core muscles (abdominals, back, pelvis), which is the basis for proper posture and injury prevention. It improves coordination between the eyes, inner ear and muscles, thanks to which children orient themselves faster and react to changes in position. Regular balance exercises promote better concentration and attention, because the child has to focus on maintaining stability. Children gain more confidence and courage to try new movements, because they feel that their body obeys them. And what is best – balance activities (standing on one leg, walking on a bench, swinging) are fun and natural for them, so they develop in a playful way.
