Climbing set VVZ-LEZ006

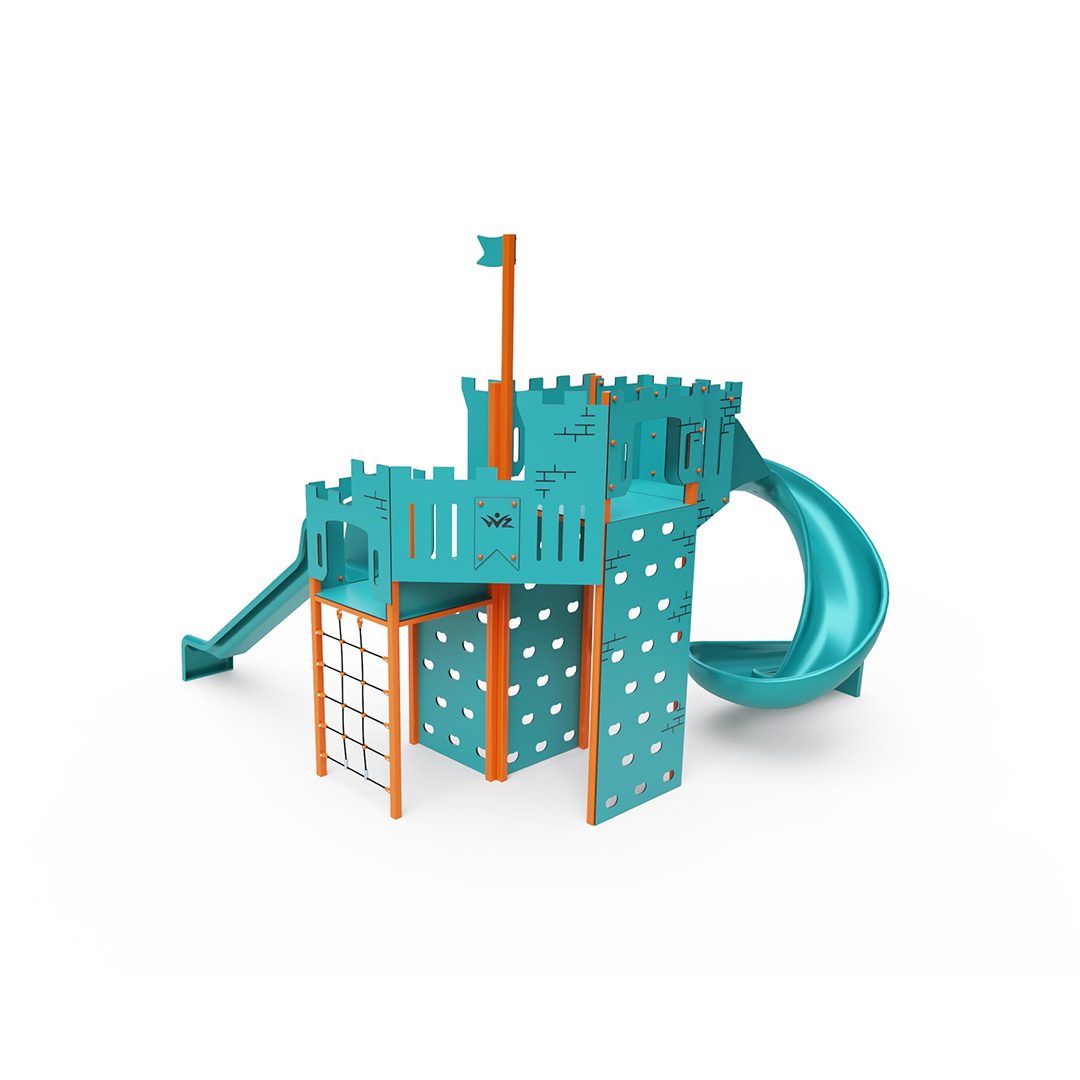

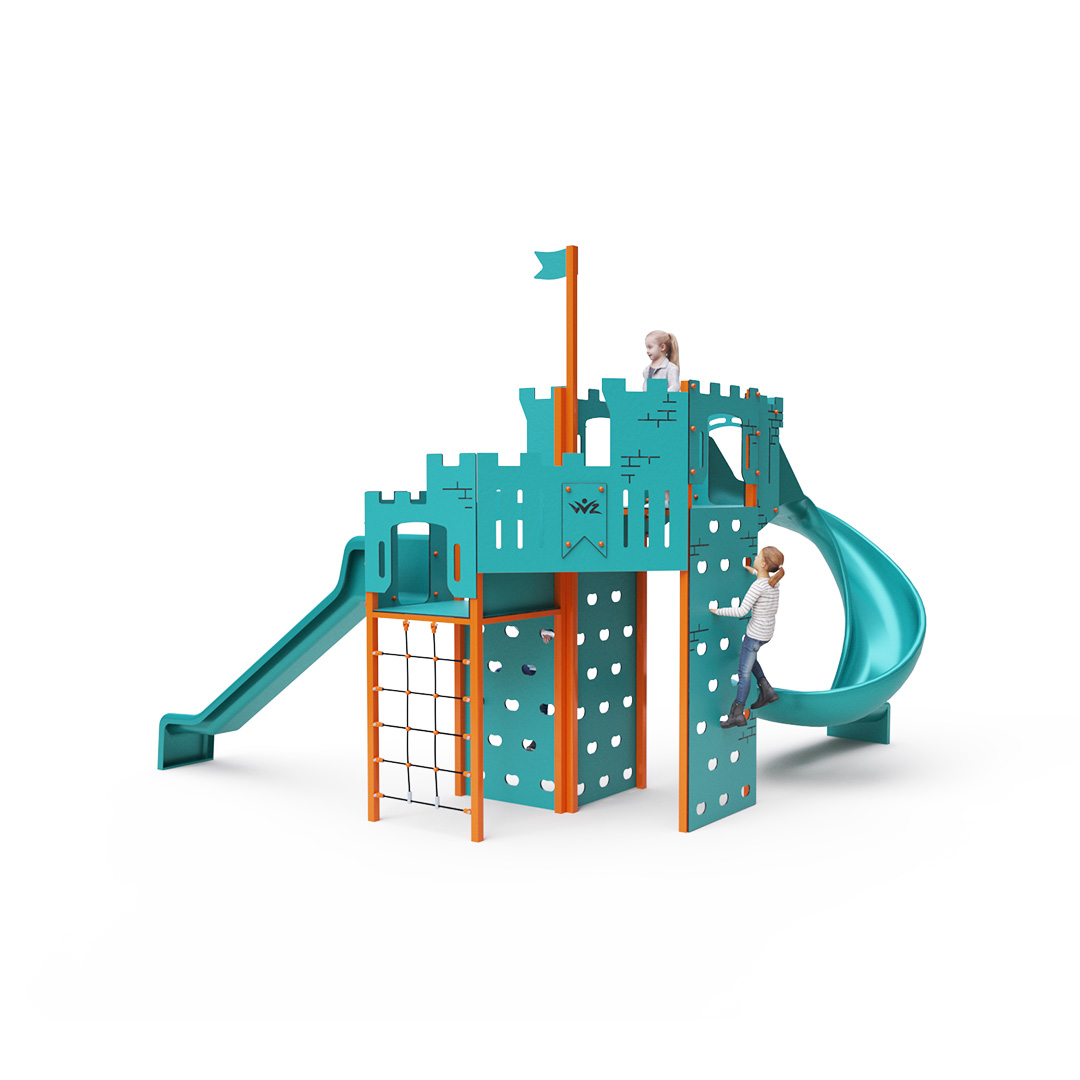

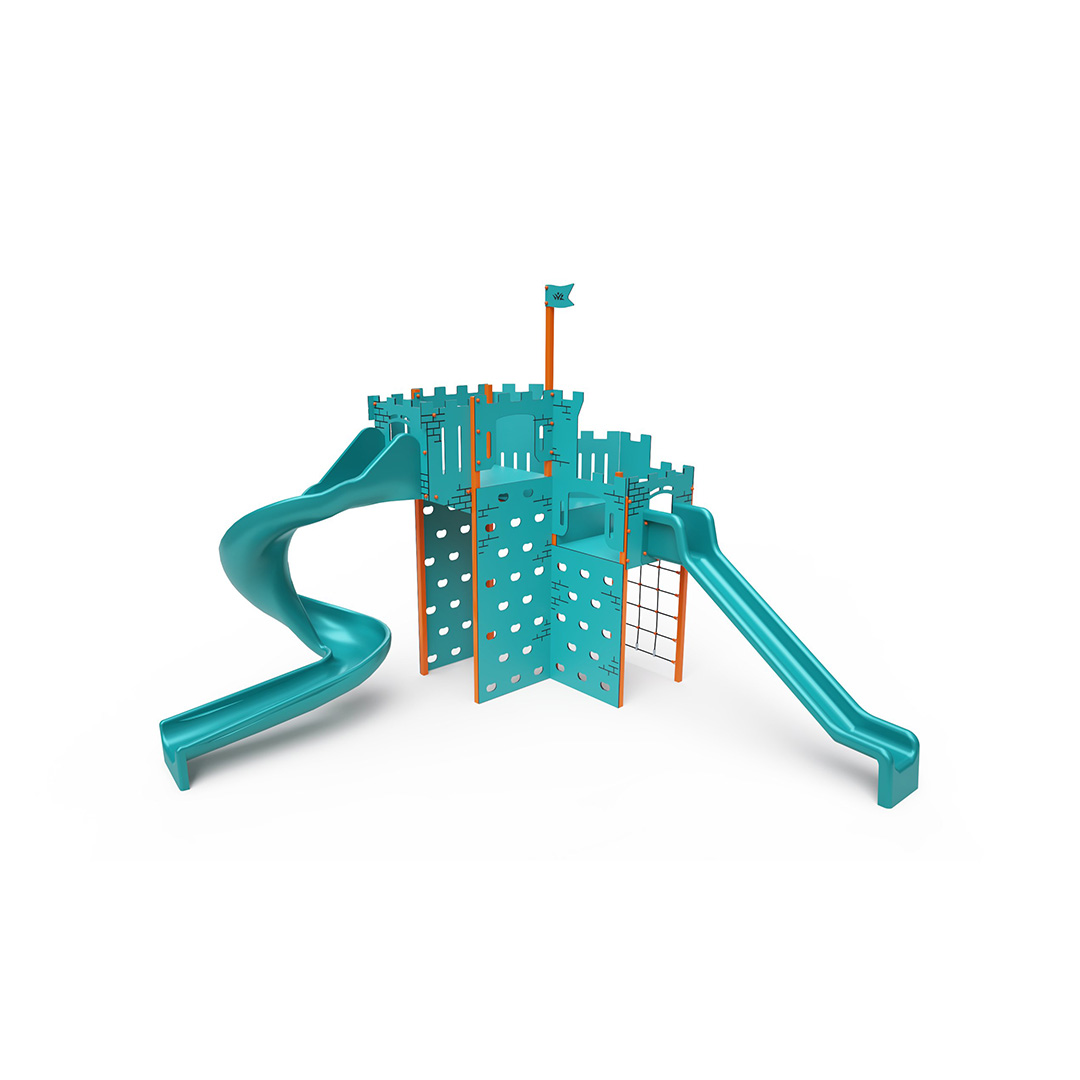

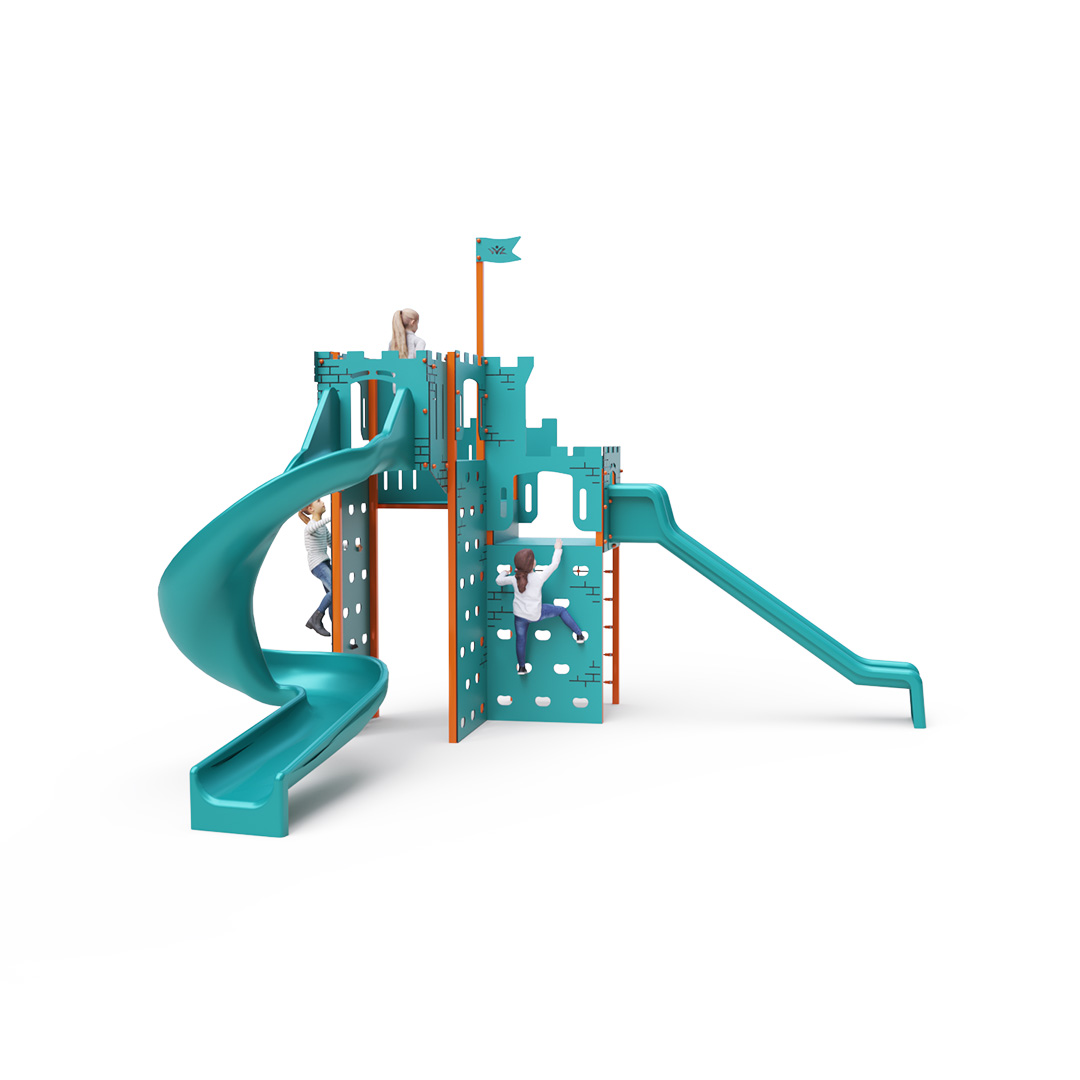

Climbing Set VVZ-LEZ006 Climbing structure where children ascend via climbing or rope walls and descend using a slide or open slide. The tower's construction is made of galvanized steel with a powder-coated finish for durability. Climbing walls, floors, and grips are made from eco-friendly HPL (High Pressure Laminate) material, designed for longevity and safety. Ropes are crafted from polyester fibers wound around a core, enhancing strength and resilience against mechanical stress. Polyester itself boasts numerous advantages, including resistance to microorganisms and weathering, quick drying after rain, color fastness, and high tensile strength. For impact protection, a grass reinforcement mat is recommended. Specification Climbing structure VVZ-LEZ006 is certified according to STN EN 1176. Age Category: 3 - 14 years Capacity: 10 persons Element Dimensions: 5,28 x 4,75 x 3,62 m Free Fall Height: 2,2 m, requires impact area, for the landing area, it is recommended to use a grass reinforcement mat Impact Area: 8,8 x 8,8 m (as per STN EN 1177) Material: hot-dip galvanized steel, HPL material,stainless steel fasteners

View full product description and parameters

Design

Production

Transport

Assembly

I am interested in this product

Send us a non-binding inquiry

Product color variants:

Orange + Turquoise

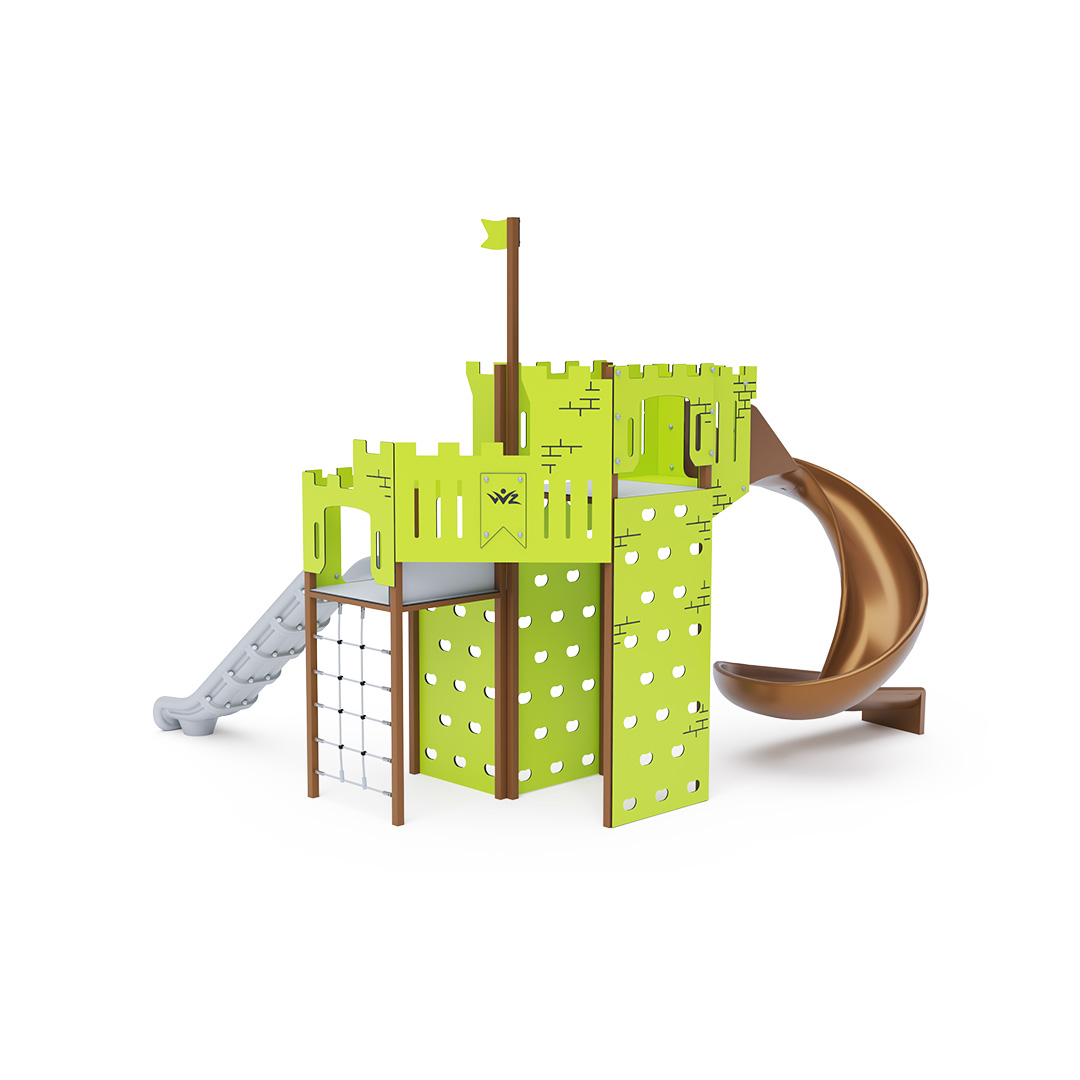

Brown + Yellow green

Anthracite + Yellow

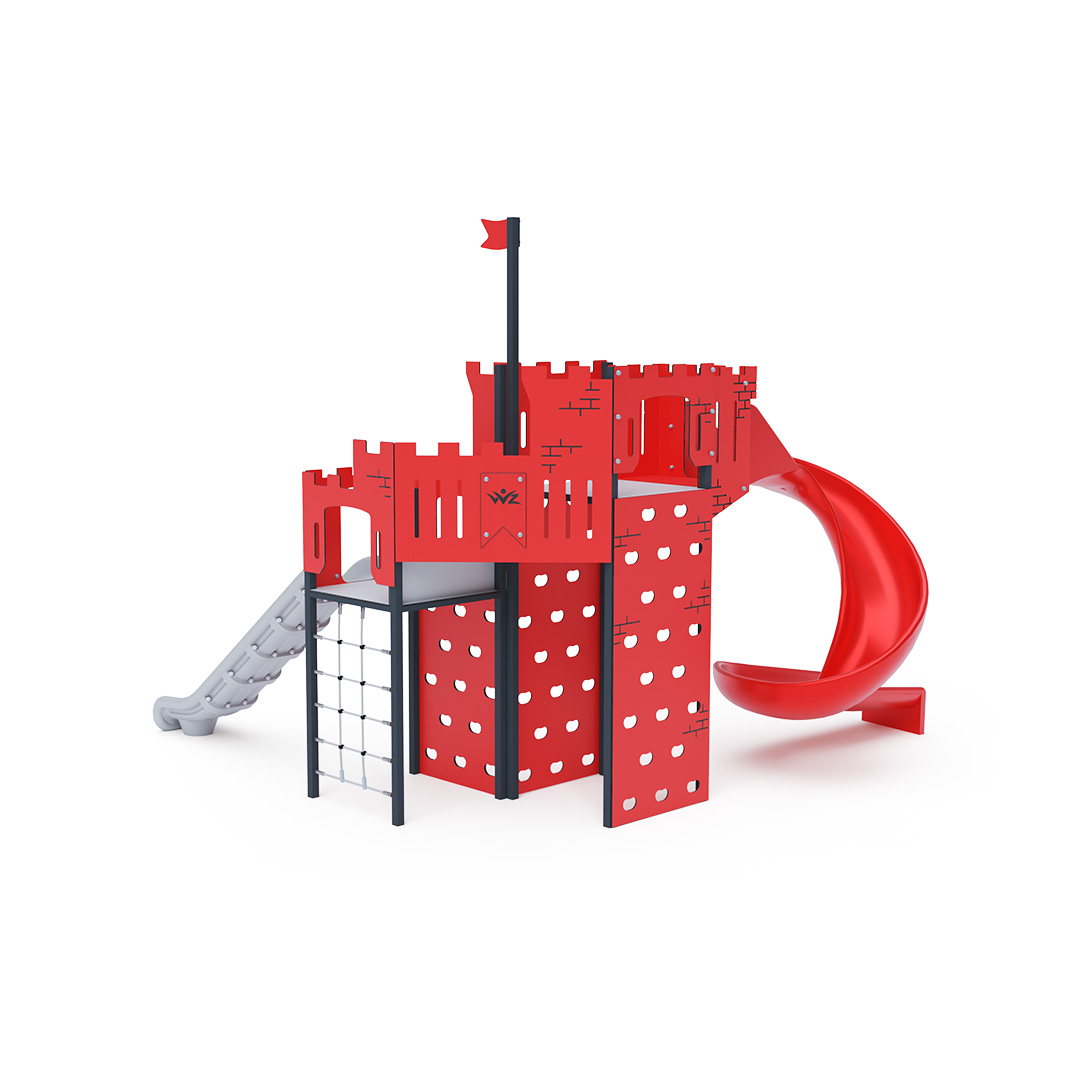

Anthracite + Red

More color
options

We can also produce this element in other color variants. Please contact us for details.

Element dimensions:

length 5.28 m

width 4.75 m

height 3.62 m

Certified according to standard:

EN 1176

Age category:

from 3 to 14 years

Free fall height:

2.2 m

Protective area:

length 8.8 m

width 8.8 m

area 77.44 m²

Designed for exterior use:

Yes

Item code:

LEZ006

Show all parameters

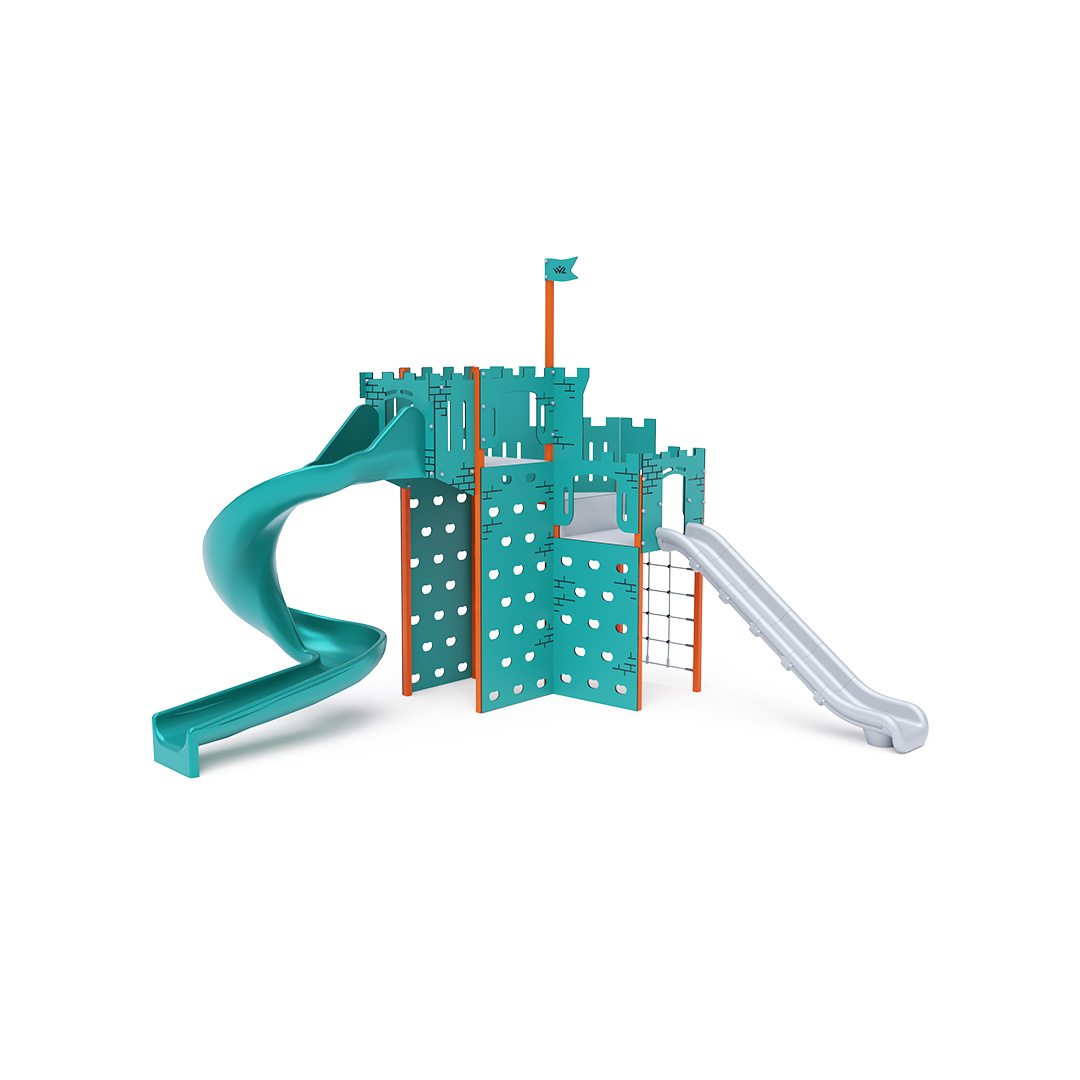

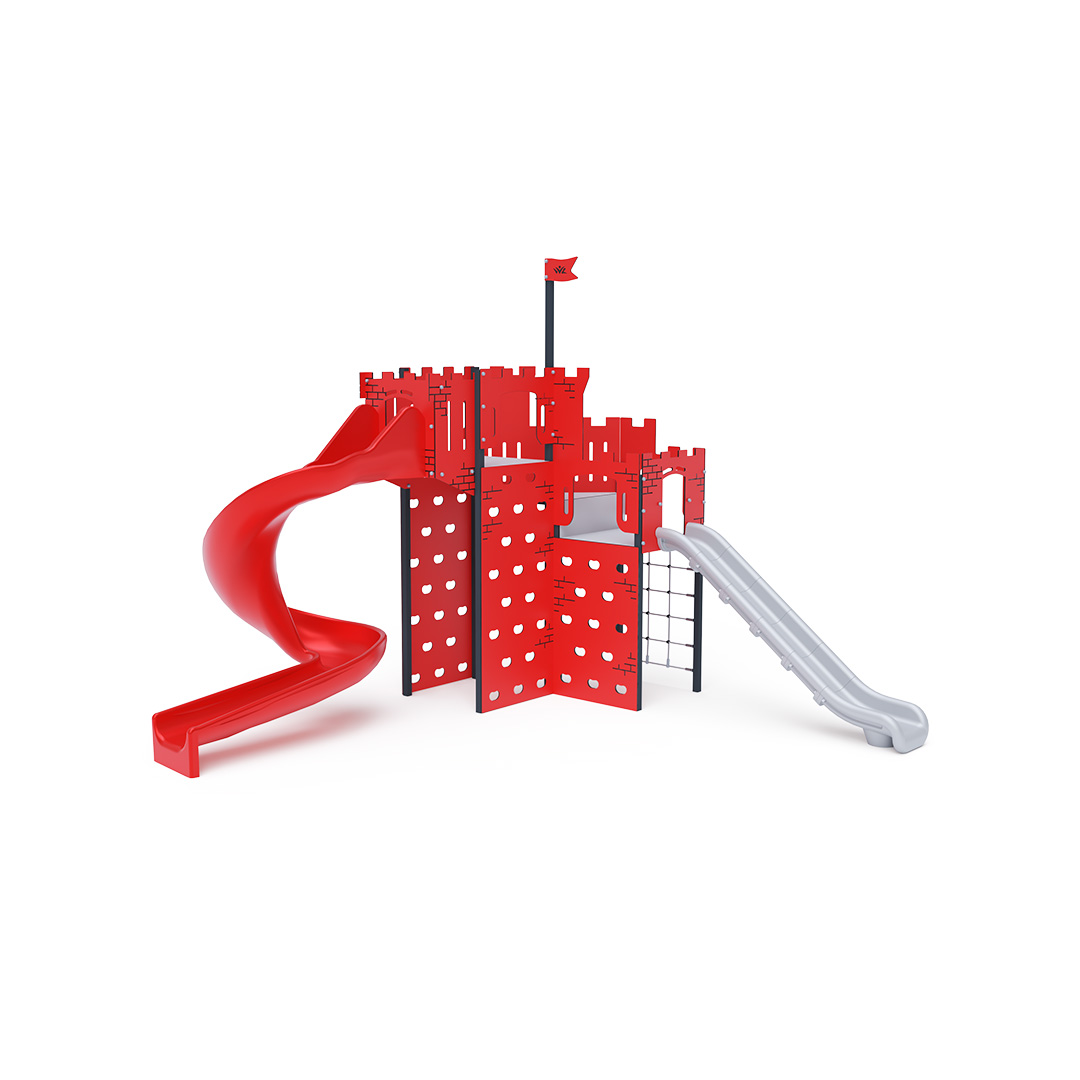

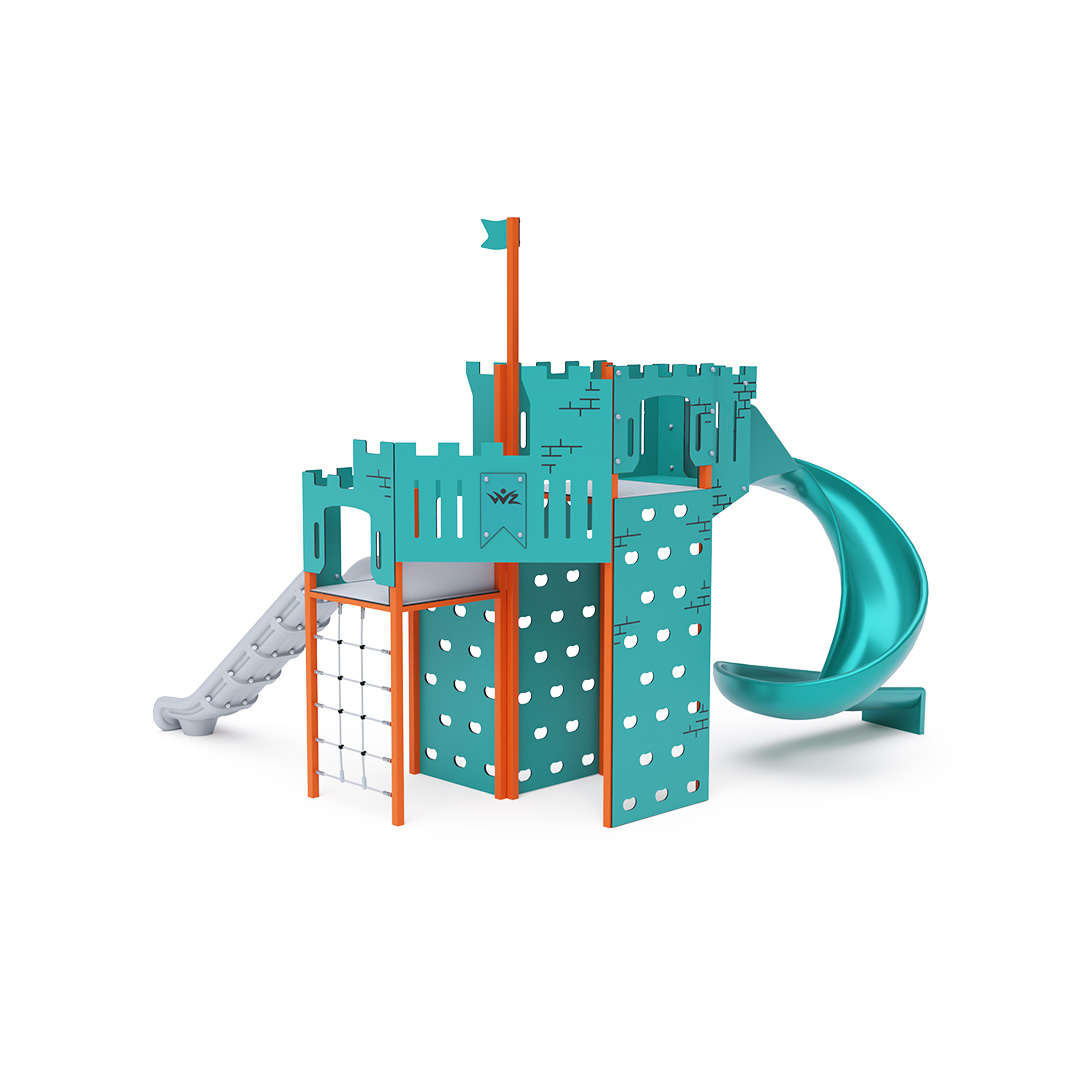

Climbing Set VVZ-LEZ006

Climbing structure where children ascend via climbing or rope walls and descend using a slide or open slide. The tower's construction is made of galvanized steel with a powder-coated finish for durability. Climbing walls, floors, and grips are made from eco-friendly HPL (High Pressure Laminate) material, designed for longevity and safety. Ropes are crafted from polyester fibers wound around a core, enhancing strength and resilience against mechanical stress. Polyester itself boasts numerous advantages, including resistance to microorganisms and weathering, quick drying after rain, color fastness, and high tensile strength. For impact protection, a grass reinforcement mat is recommended.

Specification

Climbing structure VVZ-LEZ006 is certified according to EN 1176.

Age Category: 3 - 14 years
Capacity: 10 persons
Element Dimensions: 5,28 x 4,75 x 3,62 m
Free Fall Height: 2,2 m, requires impact area, for the landing area, it is recommended to use a grass reinforcement mat
Impact Area: 8,8 x 8,8 m (as per EN 1177)
Material: hot-dip galvanized steel, HPL material,stainless steel fasteners

Documents for download:

Catalog sheet

PDF download

Certificate

PDF download

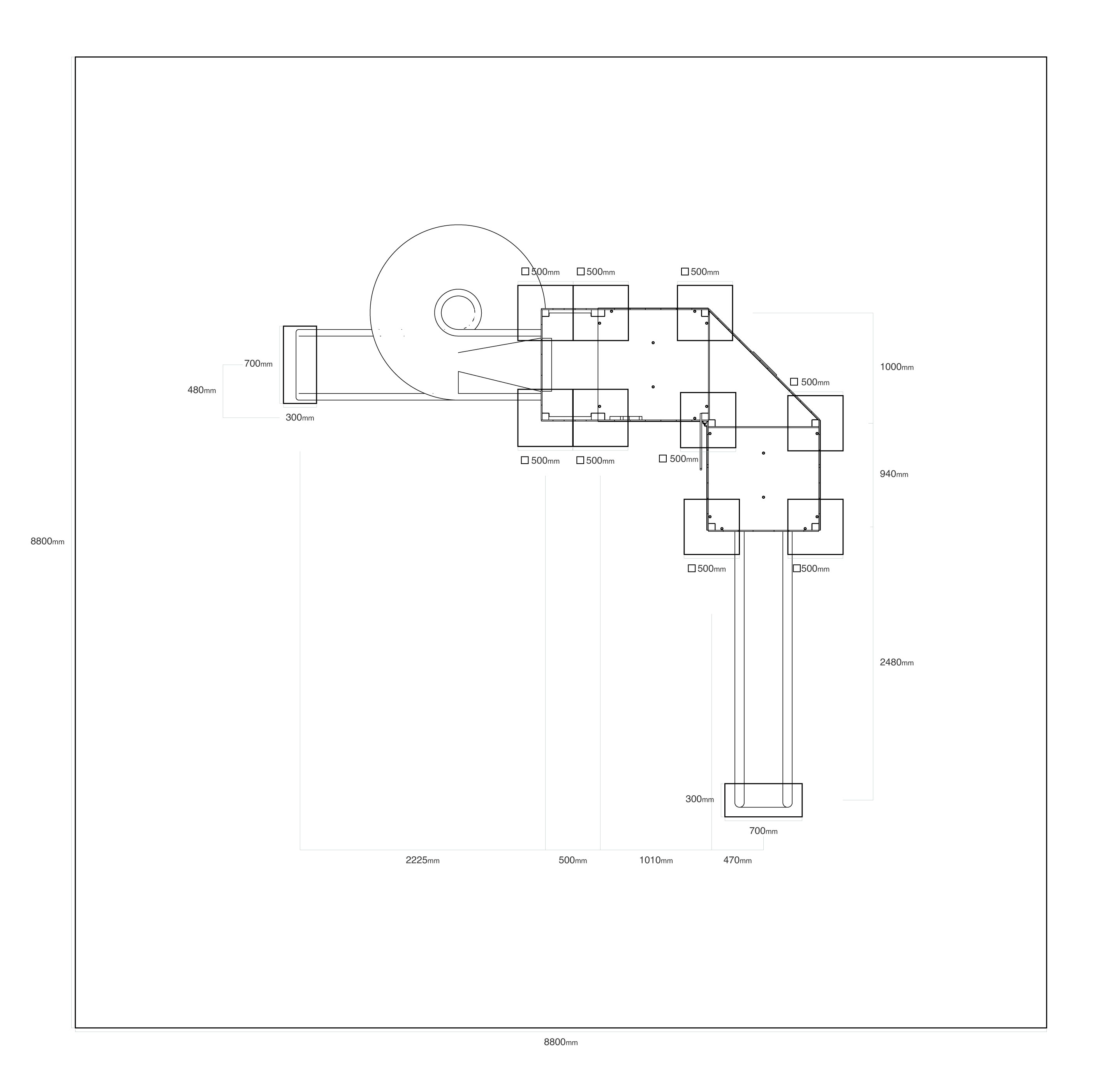

Impact area

PDF download

DWG file

DWG for download

Assembly instructions

PDF download

You must log in to view locked files

HPL - High Pressure Laminates

High-pressure laminate (HPL) is characterized by extreme strength and high resistance to mechanical damage, impacts, and abrasion. This material exhibits continuous resistance to adverse weather conditions and UV radiation, allowing it to maintain its color stability and structural integrity over the long term. It offers exceptionally easy maintenance and cleaning without the need for special treatment. Due to these performance characteristics, it is an ideal choice especially for outdoor applications and use in extremely stressed spaces with a high frequency of use.

Polyester ropes

Ropes made of polyester fibers with a steel core wound around the center provide high strength, durability and resistance to mechanical damage. The rope is resistant to microorganisms, weather conditions, dries quickly after rain and is colorfast.

Climbing and scrambling

Climbing and mountaineering are basic human activities that evolved from survival needs and are now popular sports and recreational activities. Climbing and mountaineering are great for physical fitness, promoting overall strength, improving coordination and mental resilience.

Sliding

Sliding down a slide is great fun for children and a great way to develop balance and the vestibular system. Climbing up a ladder strengthens the muscles of the arms, legs and torso, improves coordination and gross motor skills. The fast descent brings a sense of excitement and helps children better understand gravity, space and speed. Regular sliding builds self-confidence - the child overcomes the fear of heights and enjoys success. In addition, it supports social skills, as children learn to wait in line, take turns and play together with friends. And what is best - it is a natural movement that they enjoy and at the same time develops them healthily.
